Sony XS-L1236 User manual

Design and Specifications subject to change without notice.

XS-L1236

12” Component Subwoofer

2002 SONY MOBILE

PRODUCT GUIDE

Specifications

Speaker Woofer 30 cm (12 in.) cone type

Maximum input power 900 watts

Rated input power 300 watts

Impedance 4 ohms

Sensitivity 89 dB/W/m

Frequency response 20  2 500 Hz

Mass Approx. 5.3 kg (11 lb. 11 oz.) per speaker

Supplied accessory Parts for installation

Parts List

Part No. Description

1-825-094-11 SPEAKER (30cm)

3-239-542-21 MANUAL, INSTRUCTION (ENGLISH, SPANISH,

TRA ITIONAL CHINESE)

3-239-542-31 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH,

GERMAN, SWE ISH, UTCH, PORTUGUESE, ITALIAN, POLISH,

GREEK, RUSSIAN)

3-239-553-01 INSTRUCTION (PARAMETER SHEET)(ENGLISH, FRENCH, SPANISH,

GERMAN, SWE ISH, UTCH, PORTUGUESE, ITALIAN, POLISH,

GREEK, RUSSIAN, JAPANESE, TRA ITIONAL CHINESE)

3-222-098-01 PAPER PATTERN

7-685-677-19 SCREW AN BVTP 5X30 TYPE2 N-S (x8)

3-024-340-01 GASKET (REAR)

 12 Polypropylene Cone

 900W max input power (300W RMS)

 Santoprene Rubber Surround

 Dual Damper Suspension

 Gold-plated Binding Posts

 Small sealed/ported enclosure optimized

 4W Voice Coil

 Indicates step-up

Impedance 4WVas (Lit.) 66.1

d (mm) 260 Vas (Cu.ft) 3.67

d (inch) 10.3 Mms (g) 226.0

Rdc (W) 3.3 Lvc (mH) 1.2

Fs (Hz) 25.6 Xmax (mm) 5

Qts 0.36 Xmax (inch) 0.2

Qes 0.39 BL (Tm) 17.5

Qms 5.18 Enclosure vol. (Net) 28 Lit.(1.0 cu.ft)

Recommended Enclosure: Sealed type

Thiele/Small Parameters

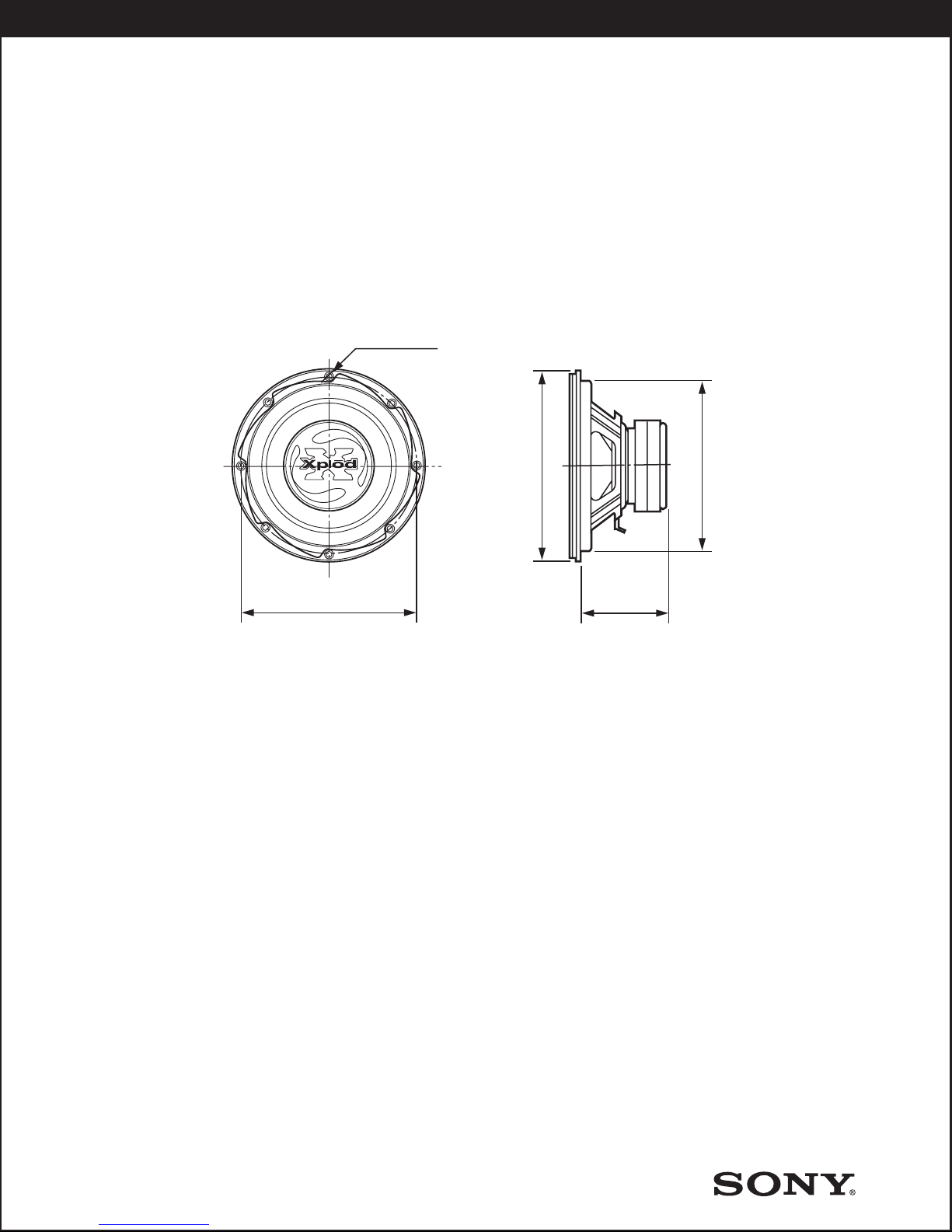

Dimensions

2002 SONY MOBILE

PRODUCT GUIDE

XS-L1236

12” Component Subwoofer

Design and Specifications subject to change without notice.

Unit: mm (in.)

8 - ø5.5

ø295 (115/8)135 (5

ø315 (12 1/2)

ø278 (11)

/

38)
