Sony VPCEB Series Guide
VPCEB Series Hard Disk Drive
Replacement Instructions
P/N
989201350
Rev. B 1/3
Battery Pack Removal
Step 2:
1) Slide the right battery tab to the
unlock position.
2) With your left thumb, slide the left
battery tab up and hold.
3)
Lift the battery with your right thumb
using the notch at the bottom.
Prepare the Computer
CAUTION:Make sure the
computer is turned off, the lid is
closed, and the AC Adapter is
disconnected. Failure to do so can
result in damage to the computer.
Step 1. Place the computer upside down
on a protected surface with the front
edge facing you.
Hard Drive
Removal
(
Steps 3
-
7)
Step 3. Using the enclosed magnetic
screwdriver, remove the two (2)
screws securing the Hard Drive Door.
Put aside the Hard Drive Door
Screws to re-secure the Hard Drive
Door later in the procedure.
These easy instructions will guide you through the Hard Drive replacement process.
Before you begin, place your noteboo computer on a clean or covered surface to avoid
damage to the computer's case.*
Follow the ESD (Electrostatic Discharge) damage prevention instructions:
oHold parts by the edges, away from exposed circuitry when possible.
oDo not wal around excessively as this promotes static build-up.
Before you begin, remove any jewelry you may be wearing to prevent scratches to the surface
of your noteboo computer.*
The appearance of the electronic components shown in the illustrations may differ from the
components shipped. This slight difference does not affect the accuracy of these instructions.
* Sony is not responsible for damage caused by incorrect handling of the noteboo computer.
IMPORTANT!
PLEASE READ BEFORE YOU START
Lift here to remove the battery
2
.
3
.
Hard Drive Door
1
.
VPCEB Series Hard Disk Drive
Replacement Instructions
P/N
989201350
Rev. B 2/3
Step 4.
Using the included pry stick,
insert the stick at the notch indicated and
lift up to remove the door.
Step 5.
Using the enclosed magnetic
screwdriver, remove the two (2) screws
securing the Hard Drive Assembly. Put
aside the Hard Drive Screws to re-
secure the Hard Drive later in the
procedure.
Step 6.
Disconnect the Hard Drive by
pulling the clear plastic tab to the left.
Step 7. Carefully lift the Hard Drive from
the unit to remove.
Step 8. Identify the (4) side screws that
secure the bracket to the Hard Drive.
Step
9
.
Holding the edge of the Hard
Drive, remove each screw. Put aside
the Bracket Screws to secure the
Bracket to the Hard Dive later in the
procedure.
Step 12. Place the Hard Drive bracket
over the new Hard Drive.
Step
10
.
Set the old Hard Drive aside.
Step
11
.
Prepare the new Hard Drive for
assembly.
Hard Drive Disassembly
Steps 8-13
Lift To Remove
Old
H
ard
Drive
Drive
Drive
New Hard Drive
VPCEB Series Hard Disk Drive
Replacement Instructions
P/N
989201350
Rev. B 3/3
NOTE! Proper mounting of the
Hard Drive bracket can be verified
with the Hard Drive connectors
appearing below the plastic pull
tab.
Step 13. Re-install the four (4) Hard
Drive Bracket screws to secure the Hard
Drive bracket to the New Hard Drive.
(H
ard Drive
Reinstalla
tion)
Steps 14-18
Step 14. Insert the Hard Drive
Assembly into the Hard Drive Bay.
Hold the Hard Drive on the sides to
avoid damage.
Step
15
.
Install the Hard Drive by sliding
the assembly to the right. Make sure the
screw holes are aligned correctly.
Step
16
.
Re-install the two (2) Hard
Drive screws holding the Hard Drive
assembly in place.
Step
17
.
Re-attach the Hard Drive Door.
Verify the Tabs are completely seated.
Step 18. Re-install the two (2) Hard
Drive Door Screws to secure the Door.
Step 19. Re-install the battery pack and
reconnect the AC Adaptor.
Power on your computer and continue
with the recovery process by following
the instructions described on the back of
the recovery disk’s case.
Return the old Hard Drive to
Sony using the included
shipping instructions.
Other Sony Storage manuals
Sony
Sony VGC-RB10M - Vaio Desktop Computer User manual
Sony
Sony ERA-MS008 User manual
Sony
Sony PMW-RX50 User manual
Sony
Sony SR16A4 User manual
Sony
Sony AIT-SDX450 Installation instructions
Sony
Sony PFD23A/3 User manual
Sony
Sony PXU-HC240 User manual
Sony
Sony AITi200STS User manual
Sony
Sony MSH-128 User manual
Sony
Sony MICROVAULT USM16SA2 User manual
Sony
Sony ODS-L60E User manual
Sony
Sony StorStation AITe90 User manual
Sony
Sony MicroVault USM1GL User manual
Sony
Sony SDX-560V Series User manual
Sony
Sony AIT-SDX800 Installation instructions
Sony
Sony NSS-S2 User manual
Sony

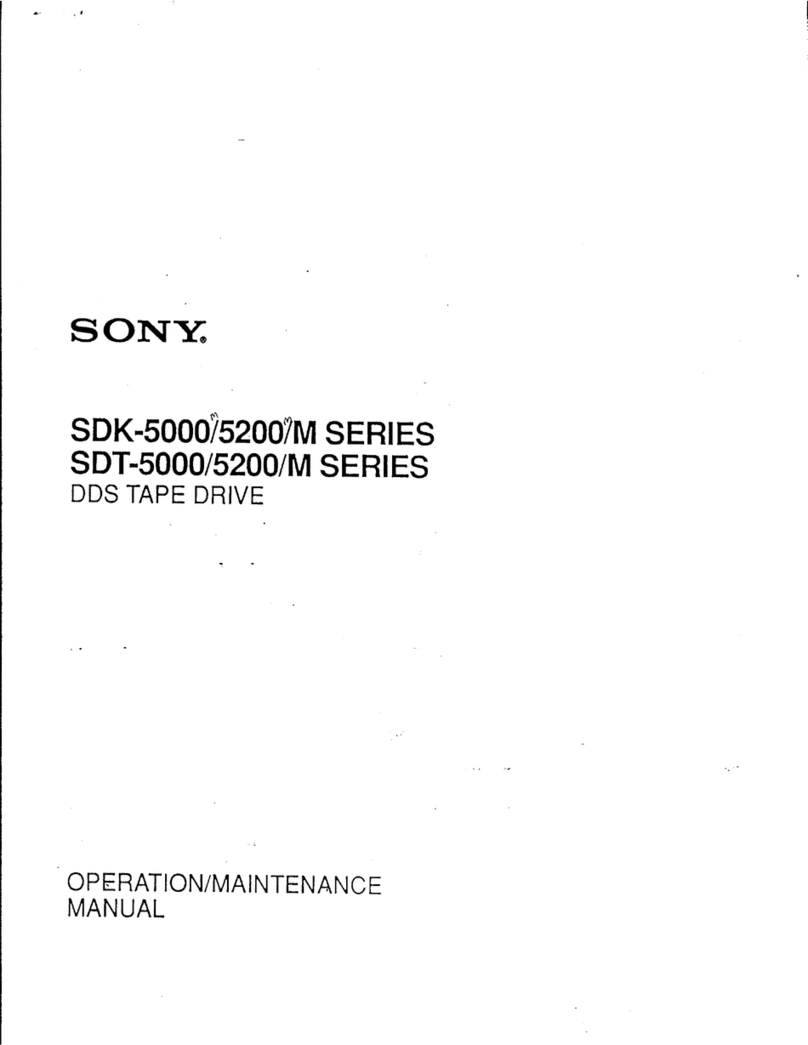

Sony SDK-5000M User manual
