Sony PMC-303L User manual

3-856-988-13(1)

1996 by Sony Corporation

Operating Instructions page 2EN

Bedienungsanleitung Seite 2DD

PMC-303L

Personal

Component

System

Introduction2EN

Warning

To prevent fire or shock hazard, do

not expose the player to rain or

moisture.

To avoid electrical shock, do not open

the cabinet. Refer servicing to

qualified personnel only.

Information

For customers in Europe

Notice for customers in the United

Kingdom

A moulded plug complying with BS 1363 is

fitted to this equipment for your safety and

convenience.

Should the fuse in the plug supplied need to

be replaced, same rating fuse approved by

ASTA or BSI to BS 1362, (i.e. marked with

or mark) must be used.

If the plug supplied with this equipment has

a detachable fuse cover, be sure to attach the

fuse cover after you change the fuse. Never

use the plug without the fuse cover. If you

should lose the fuse cover, please contact

your nearest Sony service station.

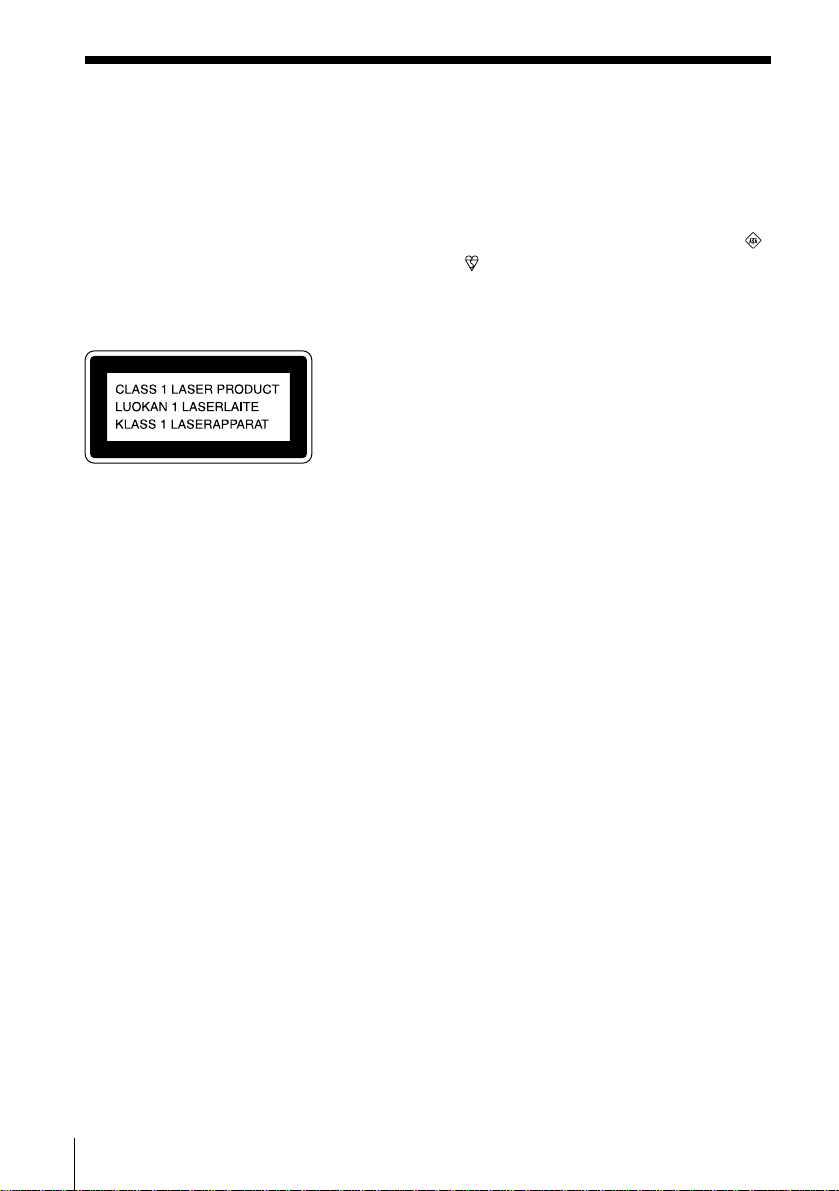

This Compact Disc player is classified as a

CLASS 1 LASER product.

The CLASS 1 LASER PRODUCT label is

located on the side.

Warning

Do not install the appliance in a confined

space, such as a bookcase or built-in cabinet.

CAUTION

You can use this player on AC power

source only. You cannot use it on

batteries.

If you disconnect the AC power cord,

the memory data for the clock/timer/

preset memory for radio will be

erased after about 30 minutes.

Reenter them when you use the

player again.

Dolby noise reduction manufactured under

license from Dolby Laboratories Licensing

Corporation.

“DOLBY” and the double-D symbol aare

trademarks of Dolby Laboratories Licensing

Corporation.

Basic Operations

3EN

Introduction

Table of contents

Basic Operations

4Playing a CD

6Listening to the radio

8Playing a tape

10 Recording on a tape

The CD Player

12 Using the display

13 Locating a specific track

14 Playing tracks repeatedly

(Repeat Play)

15 Playing tracks in random order

(Shuffle Play)

16 Creating your own program

(Program Play)

The Radio

18 Presetting radio stations

19 Playing preset radio stations

The Tape Player

20 Finding the beginning of a track

The Timer

21 Setting the clock

22 Waking up to music

26 Falling asleep to music

27 Timer-recording radio programs

Setting Up

29 Hooking up the system

32 Selecting the audio emphasis

(Sound Mode/MEGA BASS)

Additional Information

33 Precautions

35 Troubleshooting

37 Maintenance

38 Specifications

39 Index

Basic Operations4EN

Playing a CD

Basic Operations

For hookup instructions, see pages 29 - 31.

1Press 6OPEN/CLOSE down to

open the disc compartment and

place the CD on the CD

compartment.

2Close the lid of the CD

compartment.

3Press ^(direct power-on).

The player plays all the tracks

once.

Display

123456789

With the label side up

OPEN/CLOSE

1,2

Basic Operations

5EN

Use these buttons for additional operations

Tip

Next time you want to

listen to a CD, just press

^. The player turns on

automatically and starts

playing the CD.

POWER

To Press

Adjust the volume VOLUME +/–

Stop playback p

Pause playback ^

Press again to resume play

after pause.

Go to the next track +

Go back to the previous track =

Remove the CD 6OPEN/CLOSE

Turn on/off the player POWER

6OPEN/CLOSE

VOLUME +/–

=/+

Basic Operations6EN

Listening to the radio

For hookup instructions, see pages 29 -31.

1Press BAND until the band you

want appears in the display

(direct power-on).

2Hold down TUNING +/–until

the frequency digits begin to

change in the display.

The player automatically scans

the radio frequencies and stops

when it finds a clear station.

If you can't tune in a station,

press the button once at a time.

Display

RADIO

Indicates an FM

stereo broadcast.

RADIO

TUNINGRADIO

PRESET

BAND

Basic Operations

7EN

Use these buttons for additional operations

Tips

•If the FM broadcast is

noisy, press STEREO/

MONO/ISS on the

remote until “MONO”

appears in the display

and the radio will play

in monaural. (on the

remote only)

•Next time you want to

listen to the radio, just

press the BAND button.

The player turns on

automatically and starts

playing the previous

station.

To Press

Adjust the volume VOLUME +/–

Turn on/off the radio POWER

To improve broadcast reception

Connect the FM outdoor aerial (not supplied) (see

page 31.)

MW/LW

Reorient the MW/LW loop aerial (supplied). If the

MW/LW broadcast is still noisy, connect an insulated

wire to the MW/LW terminal (see page 31.)

POWER VOLUME +/–

Basic Operations8EN

Playing a tape

For hookup instructions, see pages 29 -31.

1Press 6to open the tape

compartment and insert a

recorded tape. Use TYPE I

(normal), TYPE II (high position)

and TYPE IV (metal) tapes. Close

the compartment.

2Press (.

The player turns on (direct

power-on) and starts playing.

With the side you want

to play facing forward

Display

TAPE

Tape counter

TAPE

Basic Operations

9EN

Use these buttons for additional operations

To Press

Adjust the volume VOLUME +/–

Stop playback p

Play the reverse side 9

Fast-forward or rewind the tape )or 0

Eject the cassette 6

Turn on/off the player POWER

To select the direction of the tape

Press DIR MODE on the remote repeatedly (on the

remote only.)

To play Display shows

One side of the tape

Both sides of the tape

from the front side to reverse

side only

Both sides of the tape repeatedly

Tips

•Press COUNTER RESET

on the remote to reset

the counter to “000.”(on

the remote only)

•When you listen to a

tape recorded with the

Dolby B NR system,

press DOLBY NR on the

remote until “DOLBY B

NR”appears in the

display. (on the remote

only)

•Next time you want to

listen to a tape, just

press (or 9. The

player turns on

automatically and starts

playing the tape.

VOLUME +/–

POWER

0/)

Basic Operations10EN

Recording on a tape

For hookup instructions, see pages 29 - 31.

1Press 6to open the tape

compartment and insert a blank

tape. Use TYPE I (normal) and

TYPE II (high position) tapes

only.

2Select the program source you

want to record.

To record from the CD player,

insert a CD (see page 4) and press

pon the CD section.

To record from the radio, press

BAND and tune in the station

you want (see page 6.)

With the side you want to

record on facing forward

Display

123456789

RADIO

PRESET

BAND
