Operating Instructions

4-241-675-11(2)

RM-LP211

Precautions

On safety

Should any solid object or liquid fall into the cabinet,

unplug the receiver and have it checked by qualified

personnel before operating it any further.

On operation

Before connecting other components, be sure to turn

off and unplug the receiver.

On cleaning

Clean the cabinet, panel and controls with a soft cloth

slightly moistened with a mild detergent solution. Do

not use any type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

If you have any question or problem

concerning your remote, please consult your

nearest Sony dealer.

About this manual

The instructions in this manual are for model

RM-LP211. Check your model number by

looking at the lower right corner of the front

side.

Before you use your

remote

Inserting batteries into the

remote

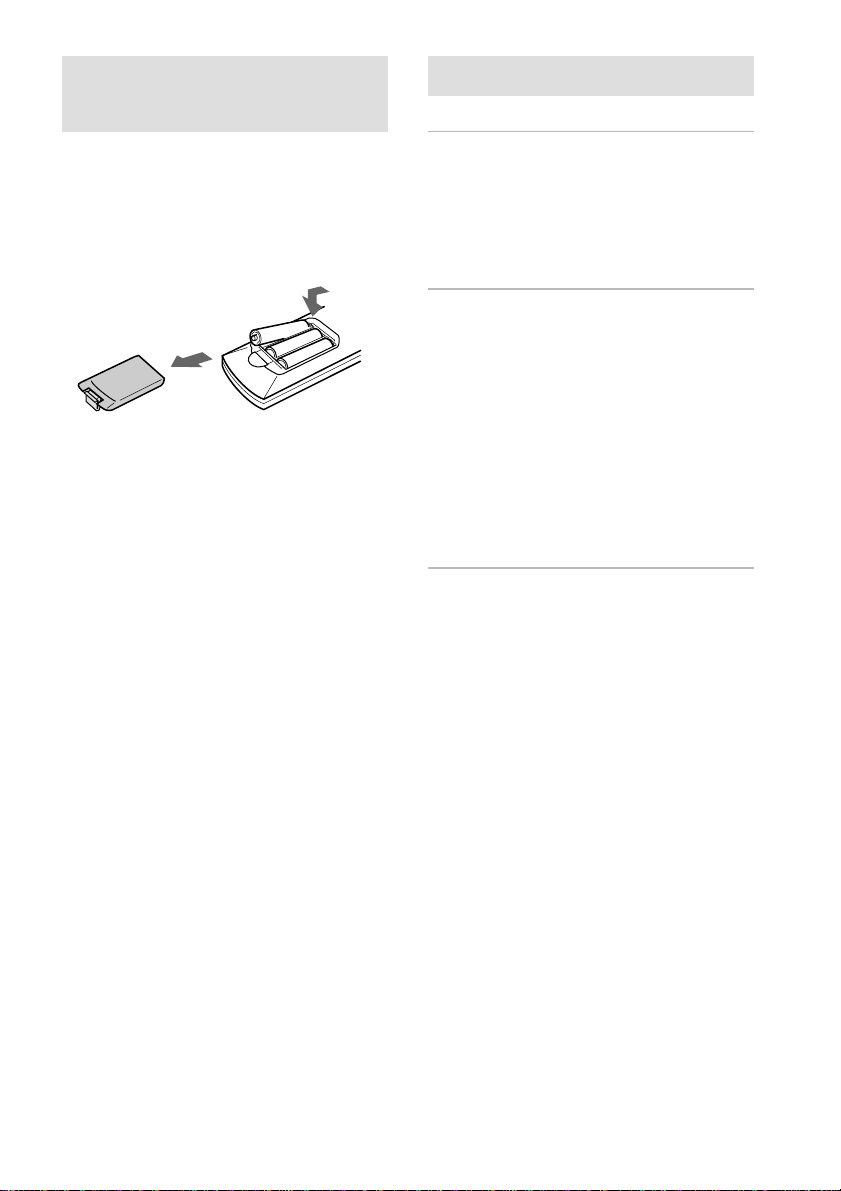

Insert three R6 (size-AA) batteries with the +

and – properly oriented in the battery

compartment.

Tip

Under normal conditions, the batteries should last for

about 3 months. When the remote no longer operates

the receiver, replace all the batteries with new ones.

Notes

• Do not leave the remote in an extremely hot or

humid place.

• Do not use a new battery with old ones.

• Do not mix the alkaline batteries and other kinds of

batteries.

• Do not expose the remote sensor of the receiver to

direct sunlight or lighting apparatuses. Doing so

may cause a malfunction.

• If you don’t use the remote for an extended period

of time, remove the batteries to avoid possible

damage from battery leakage and corrosion.

Table of Contents

Location of parts and basic

remote operations

Parts description .................................... 4

Table of buttons used to control each

component ....................................... 8

Using the lists

Chart of lists ........................................ 12

Selecting a component......................... 13

Selecting a sound field ........................ 14

Programming the remote ..................... 15

Performing several commands in

sequence automatically

(Macro Play).................................. 16

Using the RECEIVER menu ............... 18

Other operations .................................. 18

Additional Information

Troubleshooting.....................Back cover

Specifications ........................Back cover

}

]]

}}

]

1?/1 switch

Press to turn the receiver on or off.

2AV ?/1 switch

Press to turn on or off the components that

the remote is programmed to operate. For

details on programming procedure, see

“Programming the Remote” on page 15.

If you press the ?/1 switch (1) at the

same time, it will turn off the main

component and other Sony audio/video

components (SYSTEM STANDBY).

Note

The function of the AV ?/1 switch changes

automatically each time you press FUNCTION

(4). Depending on the component, the above

operation may not be possible or may operate

differently than described.

3Display window

The current status of the selected

component or a list of selectable items

appears here.

Note

Characters other than letters of the alphabet or

numbers may be displayed incorrectly on the

remote, even if they appear correctly in the

display window on the main unit.

4FUNCTION button

Press to display the function (component)

list.

See the table on page 8 for information on

the buttons you can use to control each

component.

If you want to change the contents of the

function list to match your particular

components, do the procedure

“Programming the Remote” on page 15.

This chapter provides information on the

location of buttons and how to use them to

perform basic operations.

However, some functions explained in this

section may not operate depending on the

receiver.

For the functions of the receiver you purchased,

refer to the Operating Instructions supplied

with the receiver.

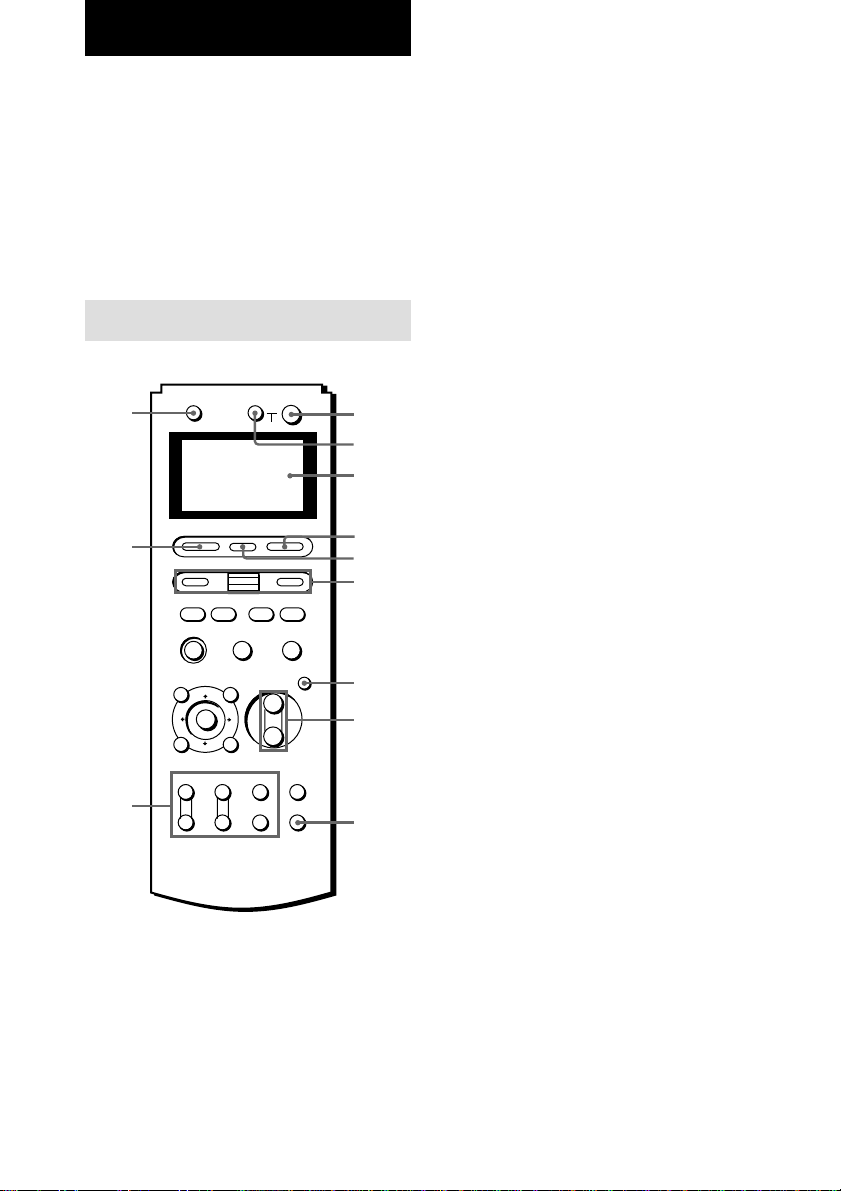

Parts description

Location of parts and basic remote

operations

–

AV ?/1TV ?/1

SOUND FIRLD

TOP MENU/GUIDE AV MENU

DISPLAY

TV VOL TV CH TV/VIDEO

WIDE

MAIN

ON SCREEN

RETURN/EXIT

MASTER

VOL

MUTING

FUNCTION

SYSTEM STANDBY

RM SET UP

?/1

HXx

.> m M

qa 4

Location of parts and basic remote operations

5RM SET UP button

Press to display the set up list.

6Easy scroll key

While displaying a list, move up or down to

select an item from the list, and then press

to enter the selection.

I/i buttons

Press to change the information displayed

on the display. Press the Ibutton

repeatedly to display the RECEIVER menu,

press the ibutton repeatedly to display the

SUB menu (pages 9–11) or NUM menu.

In the NUM menu, move the easy scroll key

to select the numeric value, then press the

key to enter the selection.

7MUTING button

Press to mute the sound.

8MASTER VOL +/– buttons

Press to adjust the volume level of all

speakers at the same time.

9ON SCREEN button

Press to display the menus of the receiver

on the TV screen.

continued

0TV buttons

TV/VIDEO button

Press to change the input mode of the TV.

WIDE button

Press to switch the TV to the wide mode.

TV CH +/–

Press to switch the channel.

TV VOL +/–

Press to adjust the volume of TV.

qa SOUND FIELD button

Press to display the sound field list.

qs TV ?/1 switch

Press to turn TV on or off.

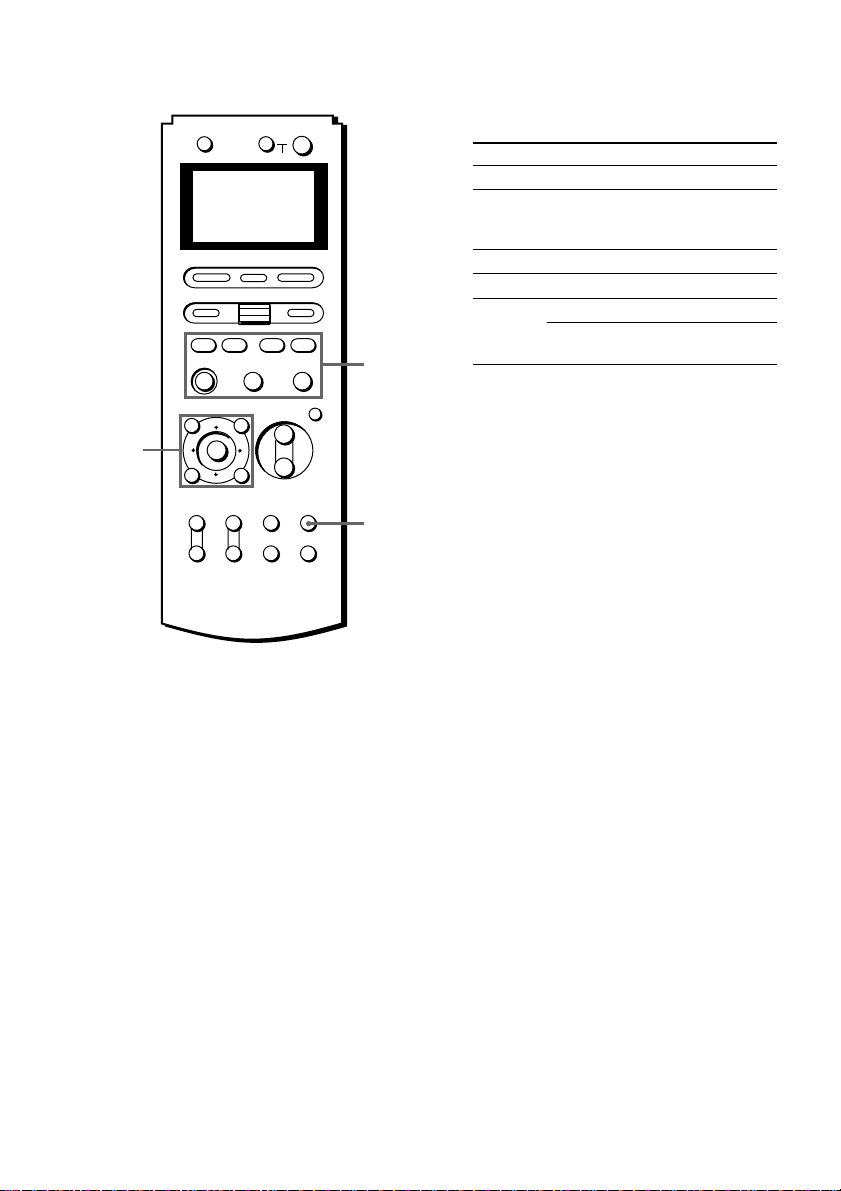

Parts description (continued)

qd Tape/disc operation buttons

The following table shows what

components are operated by each button and

the function of the buttons.

Button(s) Function

HStarts play of the playback medium.

XPauses play or recording or starts

recording when the component is in

recording standby.

xStops play.

./> Skips tracks.

m/M Fast-forwards or rewinds.

Searches tracks in the forward or

backward direction.

See the table on page 8 for information on

the buttons that you can use to control each

component.

qf MAIN MENU button

Press repeatedly to select a menu

(SURROUND, etc.) for the receiver.

qg Control button

After pressing MAIN MENU, TOP MENU/

GUIDE, or AV MENU, move the control

button up, down, left or right to select the

settings, then press the button to enter the

selection.

To perform menu operations on the VCR,

DVD player, or SAT tuner, do the

procedure below. If you do not do this, the

cursor buttons merely operate the receiver.

1Press FUNCTION and move the easy

scroll key to select the VCR, DVD

player, or SAT tuner.

2Press MAIN MENU, TOP MENU/

GUIDE, or AV MENU.

The CURSOR TYPE list appears.

If the list has disappeared before you go

on to step 3, press any of the cursor

buttons to restore the list.

3Move the easy scroll key to select the

component that you selected in step 1,

then press the key to enter the selection.

–

AV ?/1TV ?/1

SOUND FIRLD

TOP MENU/GUIDE AV MENU

DISPLAY

TV VOL TV CH TV/VIDEO

WIDE

MAIN

ON SCREEN

RETURN/EXIT

MASTER

VOL

MUTING

FUNCTION

SYSTEM STANDBY

RM SET UP

?/1

HXx

.> m M

Location of parts and basic remote operations

TOP MENU/GUIDE button

Press to display the menu or guide for the

DVD player or SAT tuner on the TV screen.

Then use the control button to perform the

menu operations.

AV MENU button

Press to display the menus of the VCR,

DVD player, or SAT tuner on the TV

screen. Then use the control button to

perform the menu operations.

DISPLAY button

Press to select information displayed on the

TV screen.

RETURN O/EXIT button

Press to return to the previous menu or exit

the menu while VCR, DVD, or SAT menu

or SAT guide is displayed on the TV screen.

Table of buttons used to control each component

When you program the remote to control the following Sony or non-Sony components, you can use

the buttons on the remote that are marked with circles. Note, however, that some buttons may not

operate your component.

Component VCR TV LD DVD

Video CD

CD MD Tape DAT

Tuner

Cable Satellite Projector

player player player player deck deck deck

box tuner

(A and B)

Button

AV ?/1 z z z z z z z z z

H z zz z zzz z

X z zz z zzz z

x z zz z zzz z

./> z z z z z z z*z

m/M z z z z z z z z

Control button zz zz

TOP MENU/GUIDE zz

AV MENU zz zz

DISPLAY zz z z z z

EXIT z

RETURN Ozzz

* Deck B only.

Location of parts and basic remote operations

Table of the SUB menu

operations

Press the ibutton repeatedly to display a list of

operations (SUB menu) that the corresponding

buttons are not found on the remote. The

contents of the lists will vary according to the

currently selected component. The following

table shows the items in each list and the

function of each item.

You can arrange the order of the SUB menu

(page 20).

Component

Item(s) Function

VCR CH + Selects preset channels.

CH –

INPUT Changes the input mode

SELECT of the VCR.

AUDIO Changes the sounds.

ANT TV/

Selects the signal to be

VIDEO output from the antenna

terminal of the VCR (TV

signal or video signal).

SP/LP Selects the playback

speed.

REC Starts recording.

COUNTER/ Displays the playing or

REMAIN remaining time.

TV CH + Selects preset channels.

CH –

MUTING Mutes the sound.

VOL + Raises the volume.

VOL –Lowers the volume.

JUMP Toggles between the

previous and current

channels.

TV/VIDEO Changes the input mode

of the TV.

MPX/DUAL Changes the audio

setting.

WIDE Selects the wide-picture

mode.b)

P IN P Activates the picture-in

picture function.c)

POSITION Changes the position of

the small picture.c)

SWAP Swaps the small and

large pictures.c)

SUB CH + Selects preset channels

SUB CH –for the small picture.c)

SLEEP Activates sleep timer.

Component

Item(s) Function

LD Player SIDE Aa) Selects side A of the disc.

SIDE Ba) Selects side B of the disc.

PROGRAM Programs the tracks.

REPEAT Repeats current track or

programmed tracks.

DVD player

AUDIO

Changes the sounds.

ANGLE

Changes the angles.

SUBTITLE Changes the Subtitle

Language.

SUBTITLE Turns the Subtitles on

ONOFF or off.

TIME Changes the time

information.

SEARCH Changes the search

MODE mode.

CLEAR Returns to the

Continuous Play etc.

INDEX + Selects a index.

INDEX –

DISC SKIP + Selects a disc.

DISC SKIP –

SET UP Displays the Set up

menu. For details on the

menu operation, see the

tip on page 11.

continued

Table of buttons used to control each

component (continued)

Component

Item(s) Function

VIDEO CD DISC SKIP + Selects a disc.

player DISC SKIP –

TIME Changes the time

information.

INDEX + Selects a index.

INDEX –

DISC Selects a disc.

CD Player DISC Selects a disc.d)

TRACK Selects a track.

CONTINUE Selects Continuous Play.

SHUFFLE Selects Shuffle Play.

PROGRAM Selects Program Play.

REPEAT Selects Repeat Play.

TIME Changes the time

information.

DISC SKIP + Selects a disc.

DISC SKIP –

MD deck DISC SKIP + Selects a disc.

DISC SKIP –

TIME Changes the time

information.

CONTINUE Selects Continuous Play.

SHUFFLE Selects Shuffle Play.

PROGRAM Selects Program Play.

REPEAT Selects Repeat Play.

MENU/NO Selects editing operation

or cancels editing.

YES Performs editing

operation.

CLEAR Erases a track in the

program etc.

REC Pauses for recording.

Tape deck REVERSE Plays the reverse side.

PLAY

A-REC Makes deck A pause for

recording.

B-REC Makes deck B pause for

recording.

PROGRAM/ Selects Program Play.

START

Component

Item(s) Function

DAT deck REPEAT Starts Repeat Play.

CLEAR Erases a track in the

program etc.

REC Pauses for recording.

Tuner PRESET + Selects a preset station.

PRESET –

DIRECT Enters Direct Tuning

TUNING mode.

FM/AM Selects the FM or AM

band.

SHIFT Switches the memory

page.

Cable box

Satellite tuner

CH + Selects preset channels.

(DSS) CH –

JUMP Toggles between the

previous and current

channels.

FAVORITE Displays the Favorite

Station Guides.

CATEGORY Displays the Guide

Category list.

INDEX Displays the Station

Index.

Satellite tuner

CH + Selects preset channels.

(BST) CH –

-/-- Selects the channel of

eleven or higher.

MAIN/SUB Switched the main or sub

language.

TV/RADIO Switches the TV or radio

input.

* D.CS and BSD are not available with this unit.

Table of contents

Other Sony Remote Control manuals

Sony

Sony RM-X60M - Marine Remote Commander User manual

Sony

Sony RM-VL1000 - Integrated Remote Commander User manual

Sony

Sony RMT-NWS20 User manual

Sony

Sony RM-SC200 - S Link Remote User manual

Sony

Sony RM-V301 Operating Instructions (primary... User manual

Sony

Sony RM-LVR2 Operating instructions

Sony

Sony RMT-VP1K User manual

Sony

Sony RM-VPR1 User manual

Sony

Sony RM-1000BP User manual

Sony

Sony RM-PP401 Operating Instructions (primary... User manual

Sony

Sony RM-US104 User manual

Sony

Sony MKS-8080 User manual

Sony

Sony RM-V202T User manual

Sony

Sony RM-AX1400 - Home Theater Remote Control User manual

Sony

Sony RM-C950 User manual

Sony

Sony RM-LJ312 User manual

Sony

Sony Live-View Remote RM-LVR1 User manual

Sony

Sony AIR-RM10 User manual

Sony

Sony VCT-VPR1 User manual

Sony

Sony RM-V20T User manual

Sony

Sony RMF-TX910U User manual

Sony

Sony RM-VZ950T User manual

Sony

Sony RM-AV2000T User manual

Sony

Sony RM-IP10 User manual

Popular Remote Control manuals by other brands

Panasonic

Panasonic EUR7622KB0 Operation guide

Bang & Olufsen

Bang & Olufsen Beo4 user manual

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 user manual

Multiplex

Multiplex PROFI TX 9 instructions

One Remote

One Remote RMB4 user manual

FUTABA

FUTABA 9ZAP - PART2 manual

HR Matic

HR Matic HR MULTI 3 quick start guide

Yamaha

Yamaha ACC-GNRST-30-20 installation instructions

EisSound

EisSound KBSOUND user manual

Marantz

Marantz RC101 user guide

Conrad

Conrad FS20 TC6 operating instructions

Anritsu

Anritsu MP1777A Operation manual

Niles

Niles WVC100 Installation & operating guide

RCA

RCA RCU1300 manual

Bang & Olufsen

Bang & Olufsen BEO6 Getting started

GE 94901 instruction manual

Onbon

Onbon YQ1-75 user manual

FUTABA

FUTABA R7108SB Full manual
