Sony RM-VL700 User manual

3-232-145-12 (1)

Integrated Remote

Commander

Operating Instructions

RM-VL700

For the customers in the U.S.A.

WARNING

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of

the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly

approved in this manual could void your authority to operate this

equipment.

Features

The RM-VL700 Remote Commander provides centralized control of all

your AV components from a single remote commander and saves the

trouble of operating different AV components with different remote

control devices. The following are its main features.

Centralized control of Sony AV components with this one remote

commander

This Commander is preset at the factory to operate Sony brand

components, so you can use it out of the box as a control center for your

Sony AV components.

Remote control signals for non-Sony components are also preset

This Commander is preset for most major brands components including

Sony. You can remote control your components by setting the type and

code number of each component (page 8).

Learning function for programming various other remote control

signals

This Commander has a Learning function, to “learn” the remote control

signals needed to operate other non-preset components or functions. (To

“teach” such signals to this Commander, use the remote control supplied

with the non-preset components.) (See page 15.)

In addition, the Commander can “learn” remote control signals (infrared

signals only) of non-Audio Visual components such as air-conditioners,

lights, etc. (Some specific appliances or functions may not be available.)

(page 23.)

Reassigning new components

You can assign Component Select buttons to freely operate other

components. This is useful when you have more than two of the same

kind of AV component (only if a Component Select buttons is free). (See

page 27.)

Table of Contents

Getting Started

Installing the Batteries ................................................................................. 6

When to replace the batteries ............................................................................ 6

Location of Controls .....................................................................................7

Basic Operations

Setting the Code for non-Sony Preset Audio

and Visual Components — Setting component codes ............................... 8

Setting a component code .................................................................................. 8

Checking if the code number works .............................................................. 10

Setting a component code by the Search function .................................... 11

Operating Your Components with the Remote Commander ......................12

To control the volume ....................................................................................... 13

Notes on operating your components ........................................................... 14

Programming signals of another remote control — Learning Function .... 15

For accurate Learning ....................................................................................... 18

Programming remote control signals to the Component Select buttons ..... 19

Changing or erasing the function of a “learned” button ............................ 21

Notes on programming the signals for an air-conditioner ......................... 23

Advanced Features

Controlling the Volume of Visual Components Connected to an Audio

System ......................................................................................................24

Adding an Extra Function to the Component Select Buttons ..................... 26

Programming the Power-On Command of the Selected Component just

by pressing that Component Select button (for Sony Components only)

.......................................................................................................................... 26

Assigning Other Components to the Component Select Buttons .............. 27

Copying the settings of a Component Select button to another button .... 29

Using Other Functions

Locking the Controls — Hold Function ....................................................... 30

Erasing all settings — To reset the Commander to its factory settings ..... 31

Additional Information

Precautions .................................................................................................32

Specifications .............................................................................................. 32

Troubleshooting ..........................................................................................33

Appendix

Table of Preset Functions ............................................................................ 35

TV ........................................................................................................................ 35

VCR ..................................................................................................................... 36

CBL (Cable box) ................................................................................................. 36

SAT ...................................................................................................................... 37

DVD .................................................................................................................... 37

CD ....................................................................................................................... 38

MD ....................................................................................................................... 38

DAT ..................................................................................................................... 38

DECK .................................................................................................................. 38

AMP .................................................................................................................... 39

Digital Cable Box .............................................................................................. 39

Index ............................................................................................. Back cover

Getting Started

Installing the

Batteries

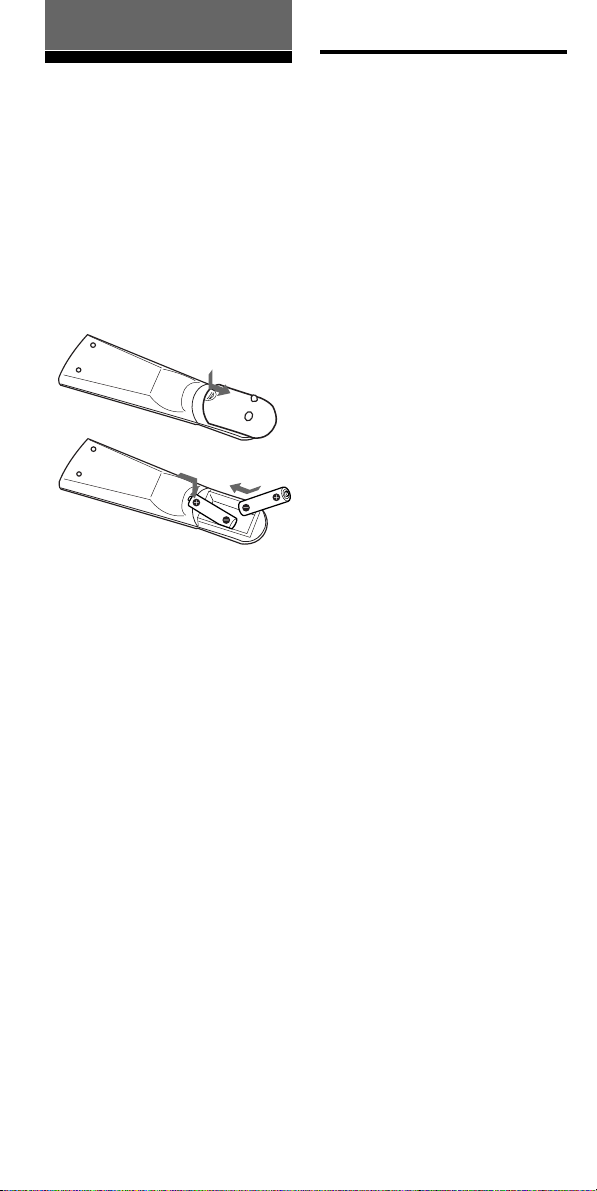

Slide open the battery

compartment lid and insert two

size AA(R6) batteries (not

supplied). Be sure to match up the

+ and – indications on the

batteries with the + and –

indications on the battery

compartment.

When to replace the

batteries

Batteries for remote control

operation (two size AA (R6)

batteries)

Under normal conditions, the

batteries will last up to six

months. If the Commander does

not operate properly, the batteries

might be drained. When this

happens, replace the batteries with

new ones.

Note

Do not take more than one hour to

replace the batteries. Otherwise, your

setting of the code numbers (page 8)

and “learned” remote control signals

(page 15) will be erased.

Notes on batteries

• Do not use an old battery with a new

one or mix different types of batteries

together.

• If the electrolyte inside the battery

should leak, wipe the contaminated

area of the battery compartment with

a cloth and replace the old batteries

with new ones. To prevent the

electrolyte from leaking, remove the

batteries when you plan not to use

the Commander for a long period of

time.

Insert the batteries negative-and-

first through the guide clamp

within each compartment as

shown above.

Location of Controls

1SET indicator

2SET button

3Component Select buttons

Light or flash during operation.

4TV/VIDEO button

5DISPLAY button

6Number buttons

7PIP button

8Player Control buttons

9Cursor Control buttons

0MENU button

qa VOL +/– buttons*

qs MUTING button*

qd POWER button

qf GUIDE button

qg SLEEP button

qh ENT (enter) button

qj OK button

qk CH (channel) +/– buttons

ql RECALL button

*Note on the VOL +/– and MUTING buttons

The Commander controls or mutes the TV’s volume when you select a visual

component. The Commander controls or mutes the amplifier’s volume when you

select an audio component. You can change this setting also (page 24.)

Note

The function of the control buttons varies depending on settings/operating modes.

The “Table of Preset Functions” (page 35) shows how the Commander generally

operates for each component in the factory preset mode.

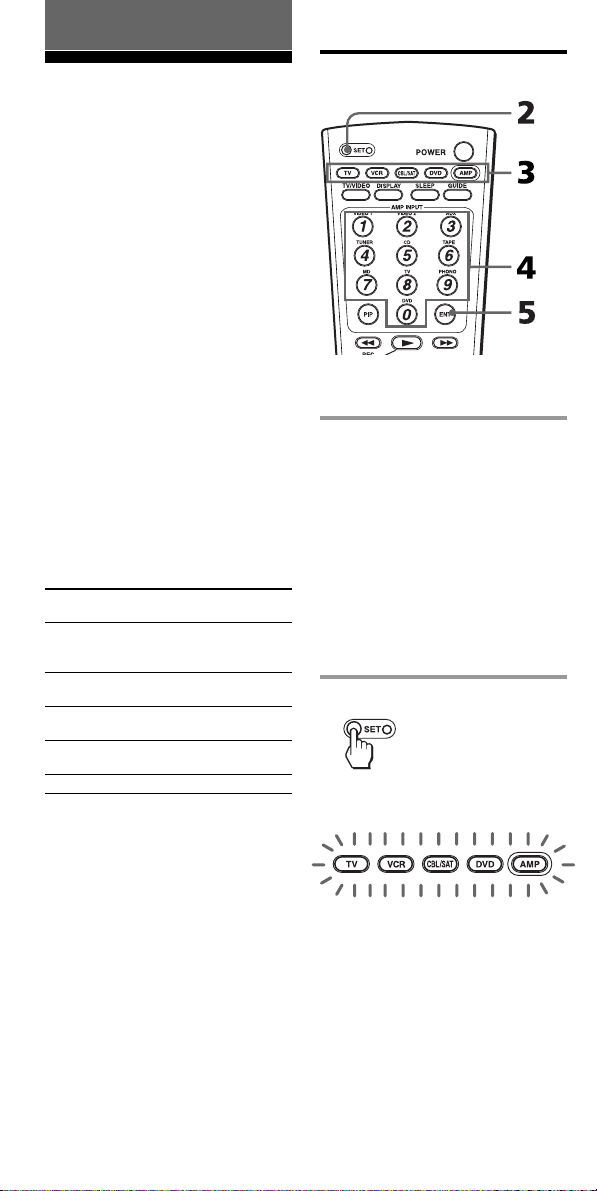

2Press SET.

All Component Select buttons

flash.

Example: To set up a Philips’ TV

1See the tables in the

supplied “Component

Code Numbers”, and find

the three-digit code number

for the desired component.

If more than one code number

is listed, use the number that is

listed first.

For example, to set up a

Philips’TV, you would use the

code number 056.

Component

Select Button

VCR

CBL/SAT

DVD

AMP

Factory setting

Sony TV

Sony VHS

VCR

Sony DVD

player

Sony amplifier

Preset

component(s)

TV/VCR

Combo

VCR

Cable box

DVD player

Amplifier

Setting a component code

Note

A CD player, an MD player and a

cassette deck can be set to any of the

above Component Select buttons. You

can assign Component Select buttons to

freely set signals of your desired

components. For further information,

see “Assigning Other Components to

the Component Select Buttons”(page

27) .

For the functions of buttons as for each

component, see “Table of Preset

Functions”(page 35).

Basic Operations

Setting the Code for

non-Sony Preset

Audio and Visual

Components

— Setting

component codes

The Commander is preset at the

factory to operate Sony brand AV

components (see the table below).

If you are using the Commander

with a factory-set Sony

components, skip the following

procedures.

You can use the Commander with

other major brand preset AV

components also. To use with

other AV components, or Sony

components which do not

function with the Commander,

you need to follow the procedures

to set the correct codes for each

component.

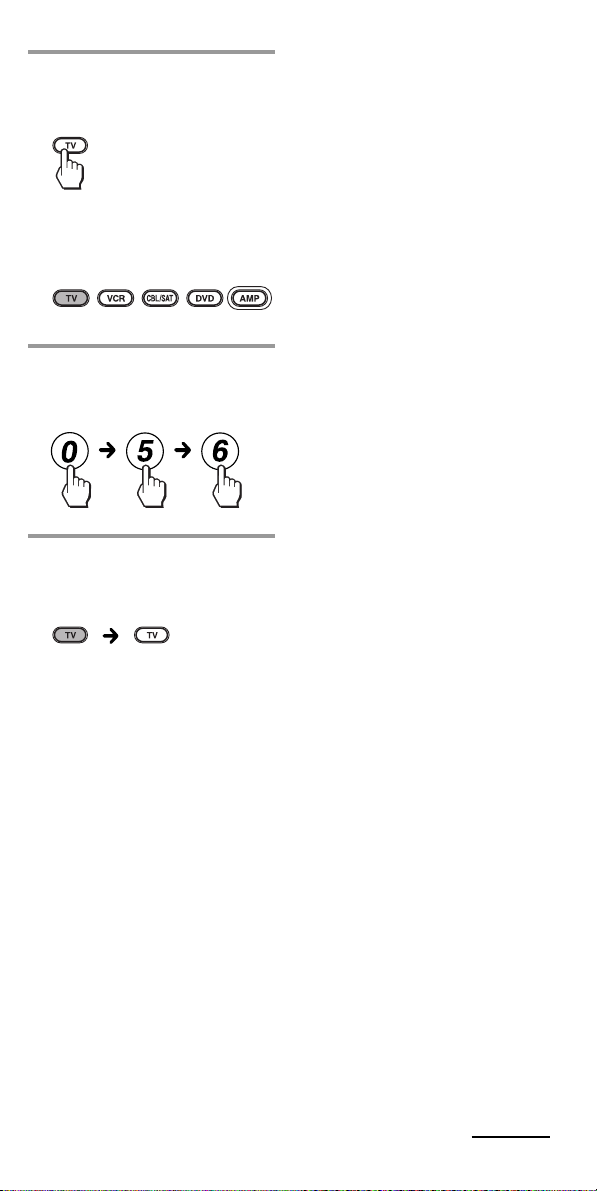

3Press the Component Select

button for the desired

component.

The selected Component

button lights up, and all other

buttons turn off.

4Press the Number buttons

to enter the three-digit

component code number.

5Press ENT.

The Component Select button

turns off.

If the Component Select button

flashes five times before

turning off, it means that the

setup is incomplete. Start over

from Step 2.

Continued

Notes

•If you press a component code

number that is not on the table in the

supplied “Component Code

Numbers”, or if you press a button in

the wrong order, the Component

button flashes five times, and then

turns off. Check the component code

number, and try setting it again.

•If you don’t input anything into the

Commander within 20 seconds

between each step, the setup

procedure will be canceled. To set the

code, start over from Step 2.

•If you press SET while setting the

component code, all code numbers

will be lost, and the setup procedure

will be canceled. Start over from Step

To cancel setup, press SET.

Setting the Code for non-Sony

Preset Audio and Visual

Components (continued)

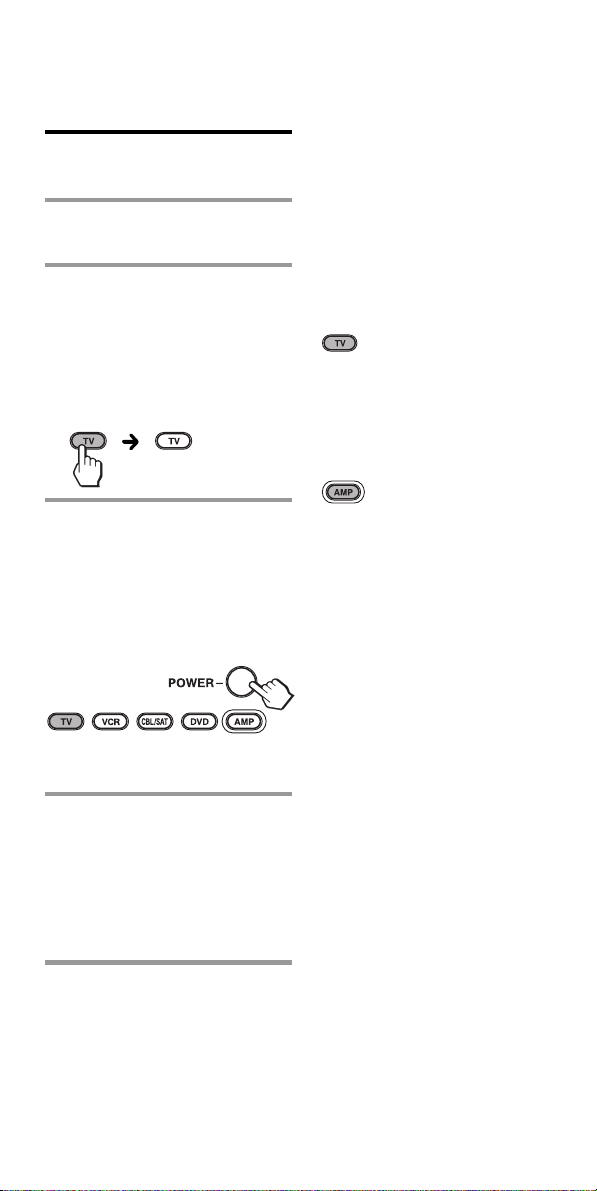

Checking if the code

number works

1Power on the component

with its power switch.

2Press the corresponding

Component Select button

for the component you

have set up.

The Component button lights

up when you press it, and

turns off when you release it.

3Aim the Commander at the

component and press

POWER.

The selected Component

button lights up when you

press a function button, and

turns off when you release it.

The component should power

off.

4If you have succeeded,

check that the Commander

is operating the other

functions of your

component, such as channel

and volume control.

See page 12 for details.

If the Commander does not

seem to be working

Try repeating the setup procedures

using the other codes listed for your

component, or try setting the code

number using the Search function

(page 11).

Note on the VOL+/– and MUTING

buttons

When you operate a visual

component, the TV button lights

up to indicate that the

Commander is controlling or

muting the TV’s volume.

When you operate an audio

component, the AMP button lights

up to indicate that the

Commander is controlling or

muting the amplifier’s volume.

It is recommended that you first

set the TV and AMP codes before

setting up any other components.

Note on buttons that have

already “learned” remote

control signals

If another signal has already been

programmed on a button using

the Learning function (page 15),

that “learned”signal will continue

to work even after you set the

component code number. To use it

as a preset function button, you

must first erase its “learned”

signal (page 21).

Other manuals for RM-VL700

This manual suits for next models

Table of contents

Other Sony Remote Control manuals

Sony

Sony MKS-8080 User manual

Sony

Sony RM-AX4000 - Integrated Remote Commander User manual

Sony

Sony RM-TP502 User manual

Sony

Sony RM-VL900 User manual

Sony

Sony RM-AV2500 - Integrated Remote Commander User manual

Sony

Sony UVR-60 User manual

Sony

Sony RM-P352 Operating instructions

Sony

Sony RM-YD007 Owner's manual

Sony

Sony RM-AX5000 User manual

Sony

Sony RM-NX7000 Navitus Mounting instructions

Sony

Sony RM-X4S Operating Instructions (primary... User manual

Sony

Sony RM-PP505L User manual

Sony

Sony RCP-730 User manual

Sony

Sony RM-AX4000 - Integrated Remote Commander Mounting instructions

Sony

Sony RM-VL610A (RM-VL610A Remote Commander®) User manual

Sony

Sony 3-097-863-13 User manual

Sony

Sony RM-DR1 User manual

Sony

Sony RM-X7BT User manual

Sony

Sony Remote Commander RM-V22 User manual

Sony

Sony RM-XM10 Instruction Manual

Sony

Sony RM-AV3000 User manual

Sony

Sony RM-PP404 User manual

Sony

Sony RM-C950 User manual

Sony

Sony XR-55A90J Owner's manual

Popular Remote Control manuals by other brands

Panasonic

Panasonic EUR7622KB0 Operation guide

Bang & Olufsen

Bang & Olufsen Beo4 user manual

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 user manual

Multiplex

Multiplex PROFI TX 9 instructions

One Remote

One Remote RMB4 user manual

FUTABA

FUTABA 9ZAP - PART2 manual

HR Matic

HR Matic HR MULTI 3 quick start guide

Yamaha

Yamaha ACC-GNRST-30-20 installation instructions

EisSound

EisSound KBSOUND user manual

Marantz

Marantz RC101 user guide

Conrad

Conrad FS20 TC6 operating instructions

Anritsu

Anritsu MP1777A Operation manual

Niles

Niles WVC100 Installation & operating guide

RCA

RCA RCU1300 manual

Bang & Olufsen

Bang & Olufsen BEO6 Getting started

GE 94901 instruction manual

Onbon

Onbon YQ1-75 user manual

FUTABA

FUTABA R7108SB Full manual
