Sony Xperia miro User manual

1266-5140 Rev 1



Sony Mobile Communications AB – Company Internal

ST23i,ST23a

Xperia

miro

Customization

Build S

wap

Customization Repair Instruction Build Swap

1266-5140 Rev 1



Sony Mobile Communications AB – Company Internal 2(7)

CONTENTS

Emma Login & Script Execution...................................................3

Customization Workflow ...............................................................4

2.1

Customize Unit .....................................................................................5

2.2

Customize to Ship or Build Swap........................................................6

2.2.1

Customize to Ship........................................................................................6

2.2.2

Build Swap....................................................................................................6

Revision History.............................................................................7

For general information about Customization and Swap, refer to

1221-5655: Generic Repair Manual – build swap

1266-5140 Rev 1



Sony Mobile Communications AB

Emma Login & Script Execution

In order to change a phone from Customer A to Customer B you must run a ‘

followed by an ‘Activation Script’.

Start by launching the Emma application.

Connect the Micro USB to

USB cable

computer’s USB ports but do not

connect the cable to

the phone.

The USB Activation Dongle

has to be inserted

the computer’s USB ports to be able to

To execute a ‘Customization’ or ‘

Activation

application by using your

User ID and Password

To execute a ‘

Customization Script

•

check that the phone is powered off

•press and keep the ”

Volume Down

•

connect the phone to the USB Cable

•release the ” Volume Down

” key

When executing an ‘

Activation Script

Customization Repair Instruction Build Swap

Sony Mobile Communications AB

– Company Internal

Emma Login & Script Execution

In order to change a phone from Customer A to Customer B you must run a ‘

Customization Script

Start by launching the Emma application.

USB cable

to one of the

connect the cable to

has to be inserted

into one of

the computer’s USB ports to be able to

Activation

’ you need to be properly logged on to the Emma

User ID and Password

Customization Script

’or ‘Activation Script’ (

or any other function):

check that the phone is powered off

Volume Down

” key down on the phone

connect the phone to the USB Cable

” key

Activation Script

’

you will be prompted for the PIN of your USB Activation Dongle

Customization Repair Instruction Build Swap

3(7)

Emma Login & Script Execution

Customization Script

’

’ you need to be properly logged on to the Emma

or any other function):

you will be prompted for the PIN of your USB Activation Dongle

Customization Repair Instruction Build Swap

1266-5140 Rev 1



Sony Mobile Communications AB – Company Internal 4(7)

2 Customization Workflow

Customization Repair Instruction Build Swap

1266-5140 Rev 1



Sony Mobile Communications AB – Company Internal 5(7)

Customization Workflow

The primary reason for the customization process is to create a customized unit.

A customized unit is a unit that is ready to ship as a final swap unit.

The second reason for customization is to create “build swap” units and this can be done by selecting

the ‘Service Exchange Unit’ customization script for the particular model.

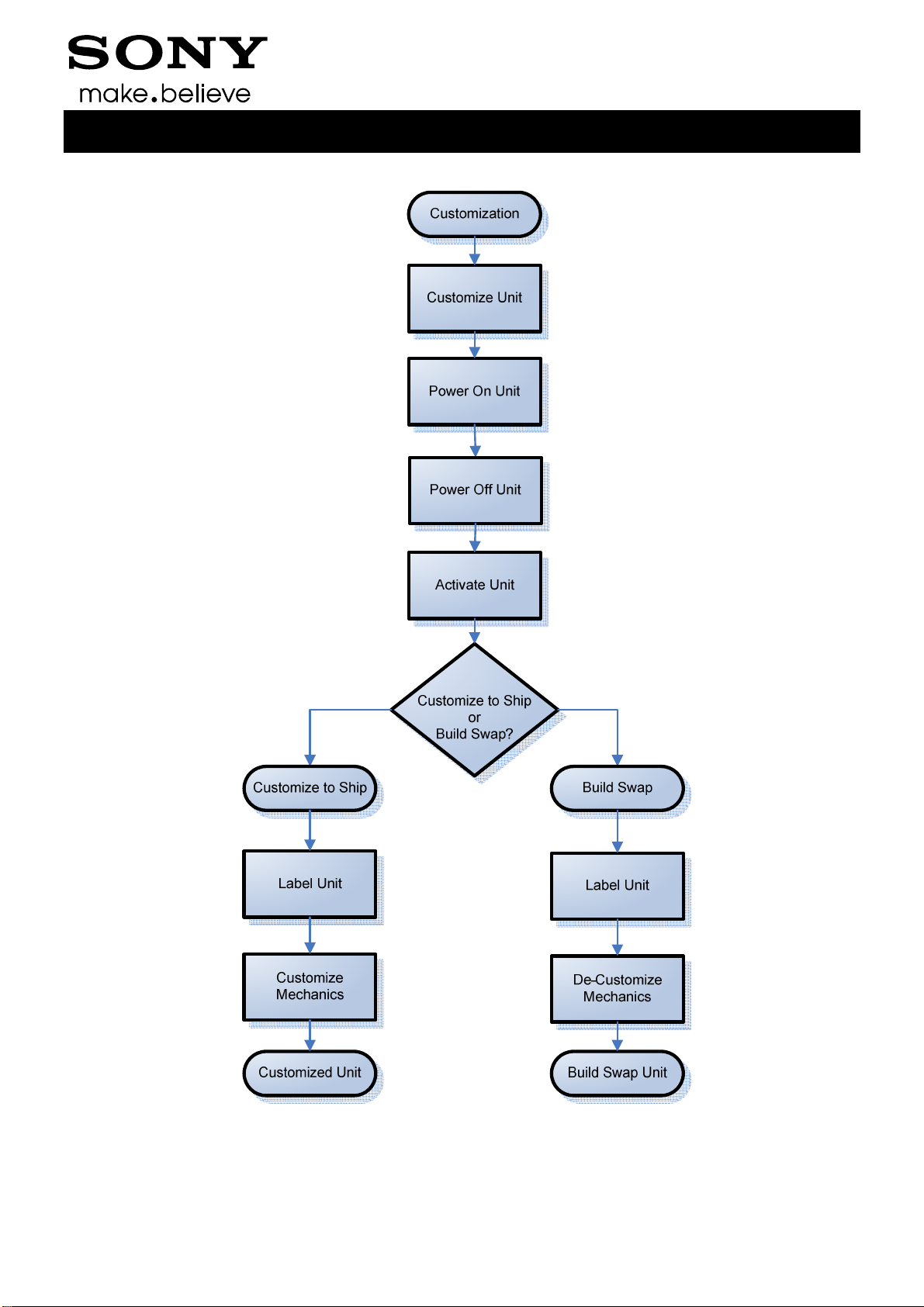

The instruction steps below refer to the flowchart on previous page.

2.1 Customize Unit

After following the steps in section 1, ‘Emma Login & Script Execution’, you can customize a phone as

follows:

•look for the Customize script for the desired Sales Item

•if that script is not available locally, select ‘Server search’ for a complete list of available scripts.

When creating a ‘build swap’ unit, select “ST23 Service Exchange Unit” as the customization

scripts!

•choose the desired script

•the application will download all necessary software to run the script and then flash that software to

the phone

•after successful update, disconnect the phone from the USB Cable

NOTE: For phones with eMMC flash memory (built in “SD card” memory), the only service

which erase this eMMC memory is Service’s “Refurbish” and “Customize”. See also emma

User Guide info. http://emma.extranet.sonyericsson.com/documents/emma_user_guide.pdf

(see “Service Types” and “Aspects of large files”)

In Swap flow, when change a phone from Customer A to Customer B, always use the service

Customization script.

Customization Repair Instruction Build Swap

1266-5140 Rev 1



Sony Mobile Communications AB – Company Internal 6(7)

Customization Workflow

2.2 Customize to Ship or Build Swap

Is the unit a customized unit to be shipped?

Yes – proceed to 2.2.1 Customize to Ship

No – go to 2.2.2 Build Swap

2.2.1 Customize to Ship

2.2.1.1 Label Unit

Print two Core Unit labels by using ‘LabelMake’.

Place one label on the phone as described in 1266-5134: Working Instructions – mechanical.

Place the second label on the Exchange Unit Box.

‘LabelMake’ instructions to be found on CSPN under ‘LabelMake’!

2.2.1.2 Customize Mechanics

If necessary, apply the proper custom mechanical parts (co-branding, keyboard, etc.) for the variant

being created in accordance with the Cross Reference List by following the instructions of

1266-5134: Working Instructions – mechanical

2.2.2 Build Swap

2.2.2.1 Label Unit

Using a red marker, label the unit with the correct Exchange Unit number.

Refer to the Cross Reference List for the appropriate variant, which should be based on the non-

customizable mechanics of the unit.

2.2.2.2 De-Customize Unit

Remove any co-branding as described in 1266-5134: Working Instructions – mechanical

Customization Repair Instruction Build Swap

1266-5140 Rev 1



Sony Mobile Communications AB – Company Internal 7(7)

3 Revision History

Rev

Date

Changes / Comments

1 2012-Sep-07 Initial release
