VCT-870RM

US Model

Canadian Model

AEP Model

SERVICE MANUAL

REMOTE CONTROL TRIPOD

MICROFILM

FEATURESSPECIFICATIONS

Ver 1.1 2004 04

All manuals and user guides at all-guides.com

all-guides.com

VCT-870RM

— 2 —

Sony EMCS Co. 2004D1600-1

©2004.4

Published by DI Technical Support Section

9-974-140-11

1

2

3

11

4

5

6

7

8

9

10

10

(including 10)

1 3-972-158-01 BAG, TRIPOD

2 3-972-005-01 KNOB(WASHER), PAN BAR

3 3-972-004-01 LEVER(SCREW TO), SHOE

4 3-972-003-01 SHOE, QUICK

5 3-972-006-01 STOPPER, TILT

6 3-972-007-01 STOPPER, PAN

7 A-7007-969-A BAR BLOCK ASSY, PAN

8 3-054-902-01 TRIPOD(MAIN)

(WITHOUT 2, 3, 4, 5, 6 ,7 ,9, 10)

Ref. No. Part No. Description Ref. No. Part No. Description

9 3-972-009-01 KNOB, ELEVATOR FIXED

10 3-972-010-01 RUBBER, FERRULE

11 3-056-411-01 HOLDER, HAND

3-866-291-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH,

GERMAN,SPANISH)(US, CND, AEP)

3-866-291-21 MANUAL, INSTRUCTION (DUTCH,SWEDISH,

ITALIAN,PORTUGUESE)(AEP)

3-866-291-31 MANUAL, INSTRUCTION (RUSSIAN,CHINESE,

KOREAN,ARABIC)(AEP)

NOTE :

• -XX, -X mean standardized parts, so they

may have some difference from the original

one.

• Items marked “ * ”are not stocked since they

are seldom required for routine service. Some

delay should be anticipated when ordering

these items.

• The mechanical parts with no reference

number in the exploded views are not

supplied.

All manuals and user guides at all-guides.com

Sony EMCS Co.

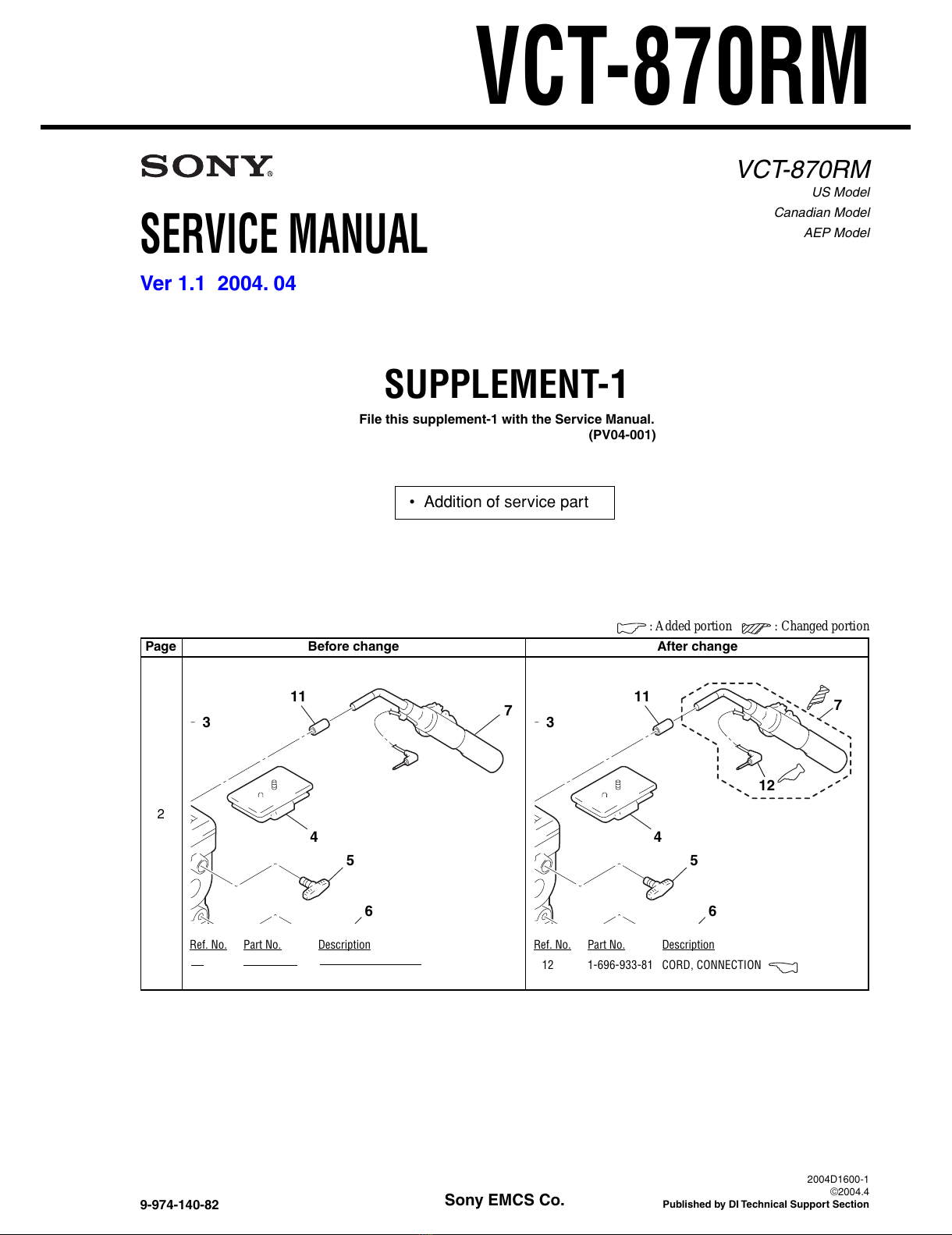

SERVICE MANUAL

2004D1600-1

©2004.4

Published by DI Technical Support Section

9-974-140-82

SUPPLEMENT-1

File this supplement-1 with the Service Manual.

(PV04-001)

VCT-870RM

Ver 1.1 2004. 04

VCT-870RM

US Model

Canadian Model

AEP Model

• Addition of service part

: Added portion : Changed portion

Page Before change After change

2

Ref. No. Part No. Description

12 1-696-933-81 CORD, CONNECTION

Ref. No. Part No. Description

3

11

4

5

6

73

11

4

5

6

7

12

All manuals and user guides at all-guides.com

Revision History

997414012.pdf

Reverse

Ver.

1.0

1.1

Date

1999.03

2004.04

History

Official Release

Supplement-1

Contents

—

Addition of service part

S.M. Rev.

issued

—

No
