Sony HXR-NX70 User manual
SONY HXR-NX70
Welcome to the SONY-NX70
This manual was created to provide our members at Napa Valley
TV with a basic tutorial on the operation of our camera. If you
have a question that this manual cannot answer, please ask a
staff member for assistance.
Table of Contents
Tripod & Camera Mounting Set-up............................................................. 1
Inserting Battery..........................................................................................2
Power Switch............................................................................................. 3
Iris and Gain Controls................................................................................ 4
White Balance.............................................................................................6
Focus......................................................................................................... 7
Connecting a Microphone, Audio Settings ..................................................8
Charging Battery.........................................................................................9

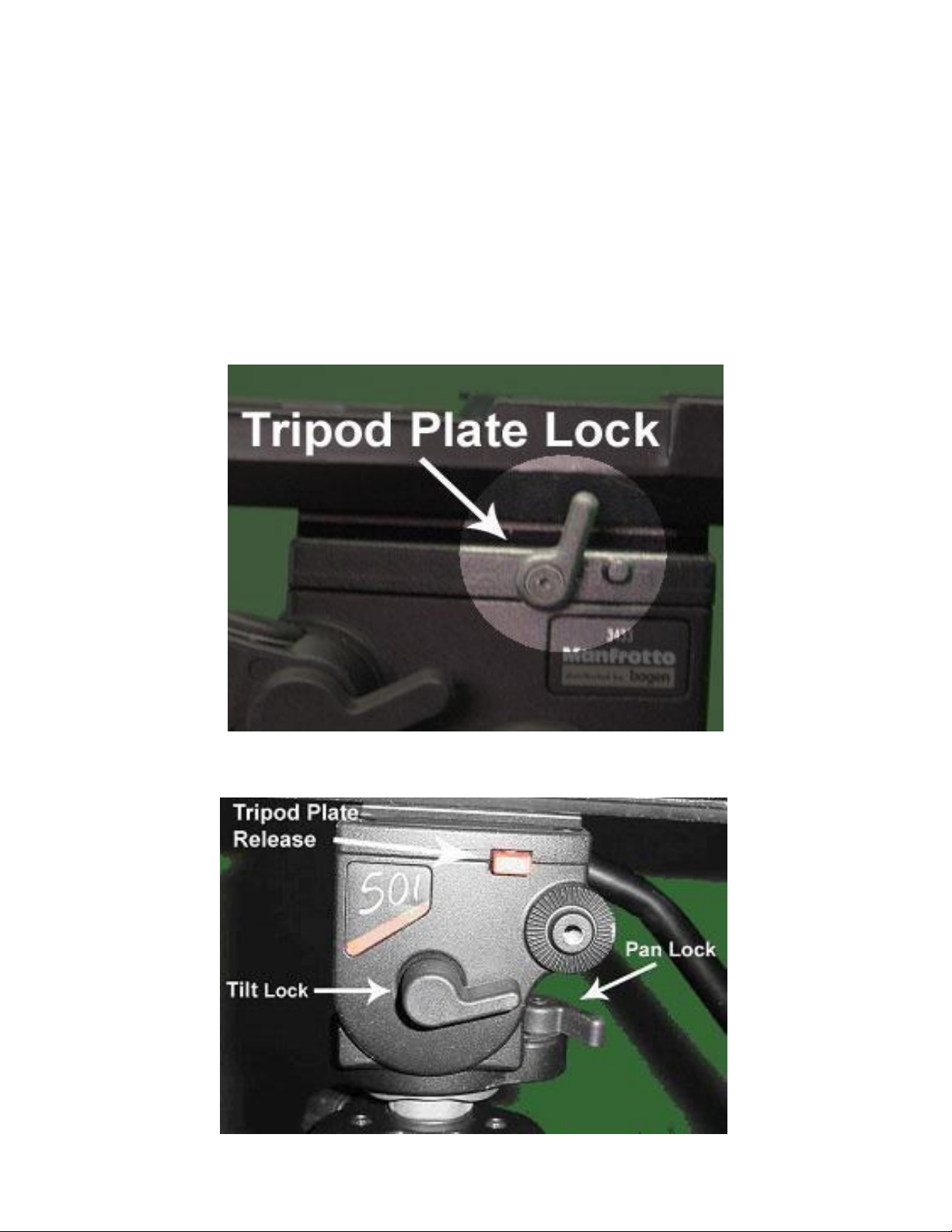

Tripod
The tripod is fairly simple to set-up. Once the tripod legs are extended to the
desired height, the “Tripod Plate” will need to be attached to the tripod. Attach
and lock tripod plate. Now the camera is ready to be attached to the Tripod Plate.
First, make sure Tilt & Pan levers are in the “locked” position so the camera will
not suddenly fall or move when being attached. Set the camera in place and slide
forward until it locks. When taking the plate off the tripod, use the “Tripod Plate
Release.”

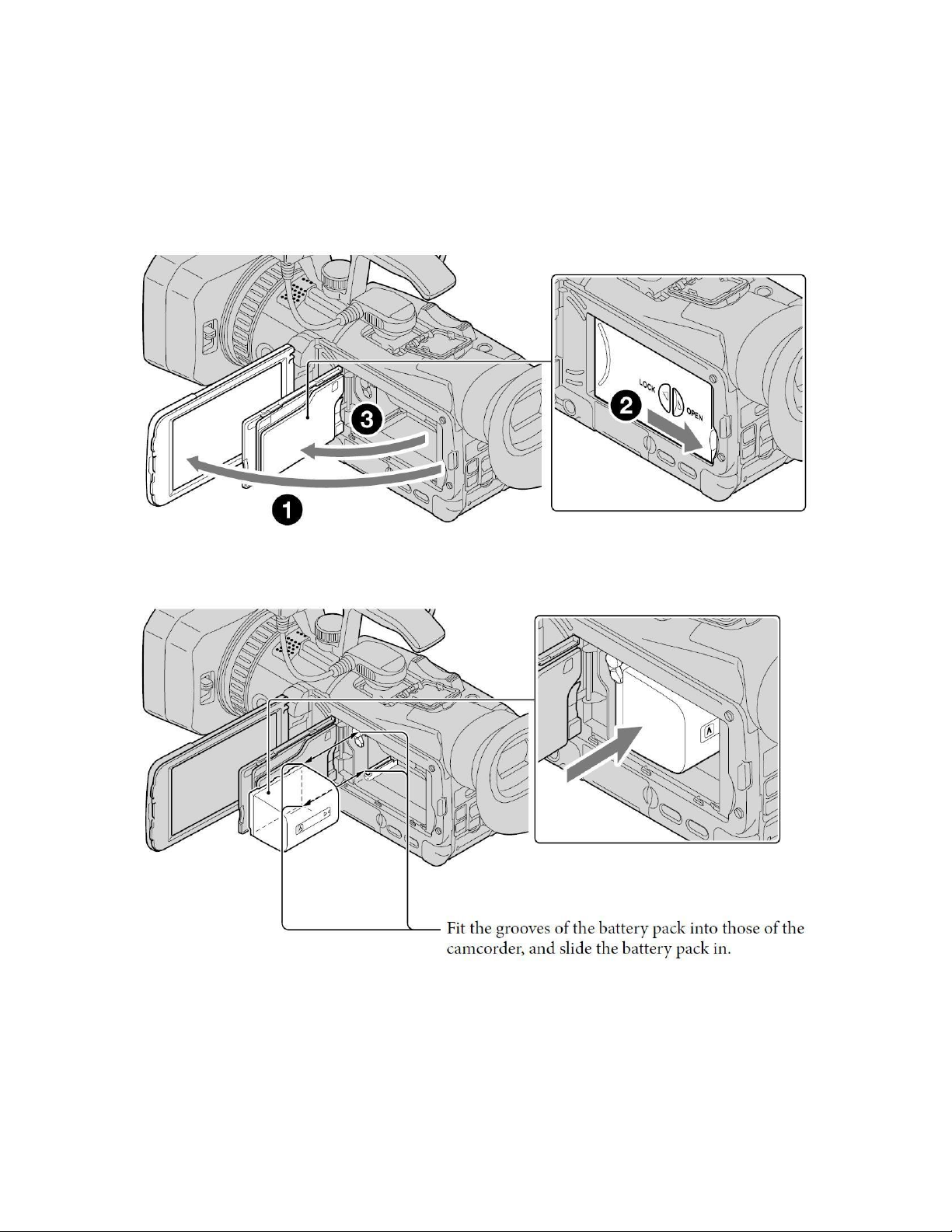

Inserting the battery
(1)
Open the LCD screen
(2)
Unlock the battery cover
(3)
Open battery cover

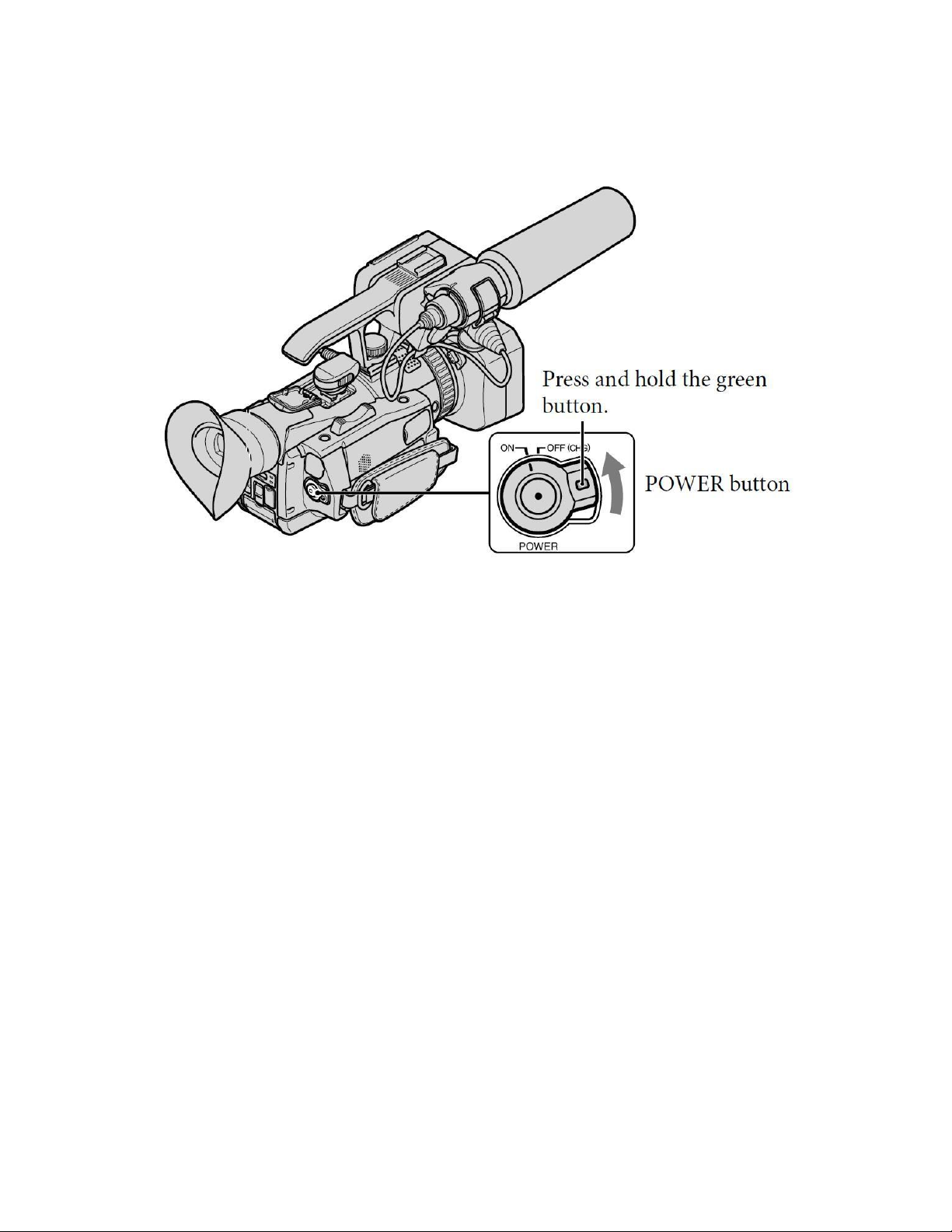

Turning the Camera On
Set the POWER switch to ON while pressing the small green button.
Adjusting Settings Manually

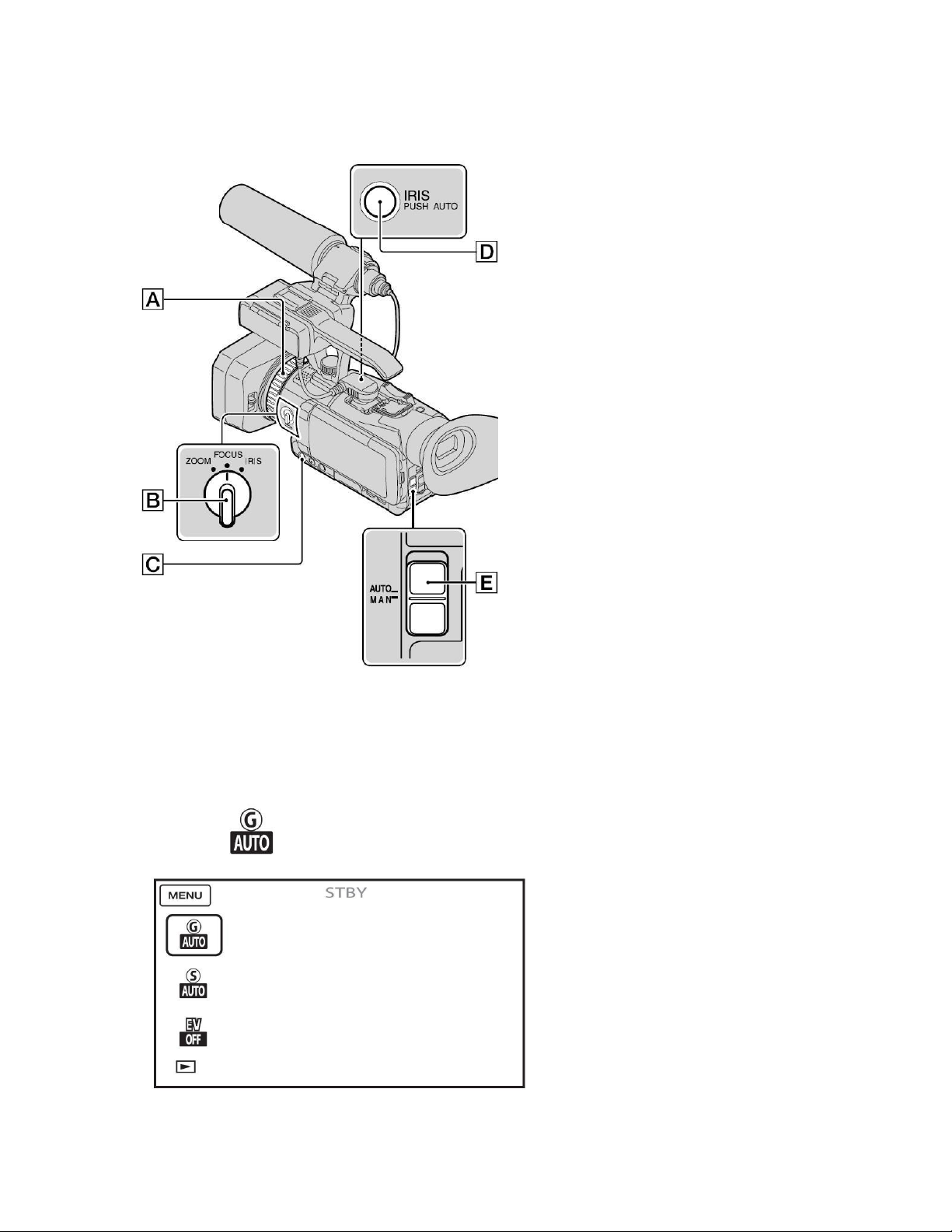

Adjusting the Iris
(1)
During recording or standby,
set the AUTO/MANUAL switch
[E] to MAN.
(2)
When the iris is automatically
adjusted, press the IRIS button
[C]
(3)
Set the ZOOM/FOCUS/IRIS
switch [B] to IRIS.
(4)
Adjust the iris with the manual
Ring [A]
To use automatic iris adjustment
temporarily keep pressing the
IRIS PUSH AUTO button [D]. The
iris is adjusted automatically while
the button is pressed.
To adjust the iris automatically
Press the IRIS button [C]
Adjusting the Gain
(1) During recording or standby, set the AUTO/MANUAL switch [E] to MAN.
(3) Select the gain value between 0 dB and 21 dB, and then touch [ OK ]
(2) Touch
and then [Manual]
Adjusting White Balance
(1)
During recording or standby, set the AUTO/MANUAL switch [E] toMAN.
(2)
Touch [MENU], [Camera/Audio], [Manual Settings], [White Balance]
(3)
Touch the desired setting.
Auto
The white balance is adjusted automatically.
Outdoor
The white balance is appropriately adjusted for the following recording
conditions:
-
Outdoors
-
Night views, neon signs andfireworks
-
Sunrise or sunset
-
Under daylight fluorescent lamps
Indoor
The white balance is appropriately adjusted for the following recording
conditions:
-
Indoors
-
At party scenes or studios where the lighting conditions changequickly
-
Under video lamps in a studio, or under sodium lamps or incandescent-like
color lamps
One Push
The white balance will be adjusted according to the ambient light.
(1)
Touch
(2)
Hold up an object that is pure white and zoom in on it until the white fillsthe
entire screen. Be sure to hold the white object where you plan to shoot your
subject so the camera is white balanced under the correct light source.
(3)Touch
Tip:
If you have changed the battery pack while [Auto] was selected, or taken your
camcorder outdoors after inside use (or vice versa), aim your camcorder at a
nearby white object for about 10 seconds for better color balance adjustment.

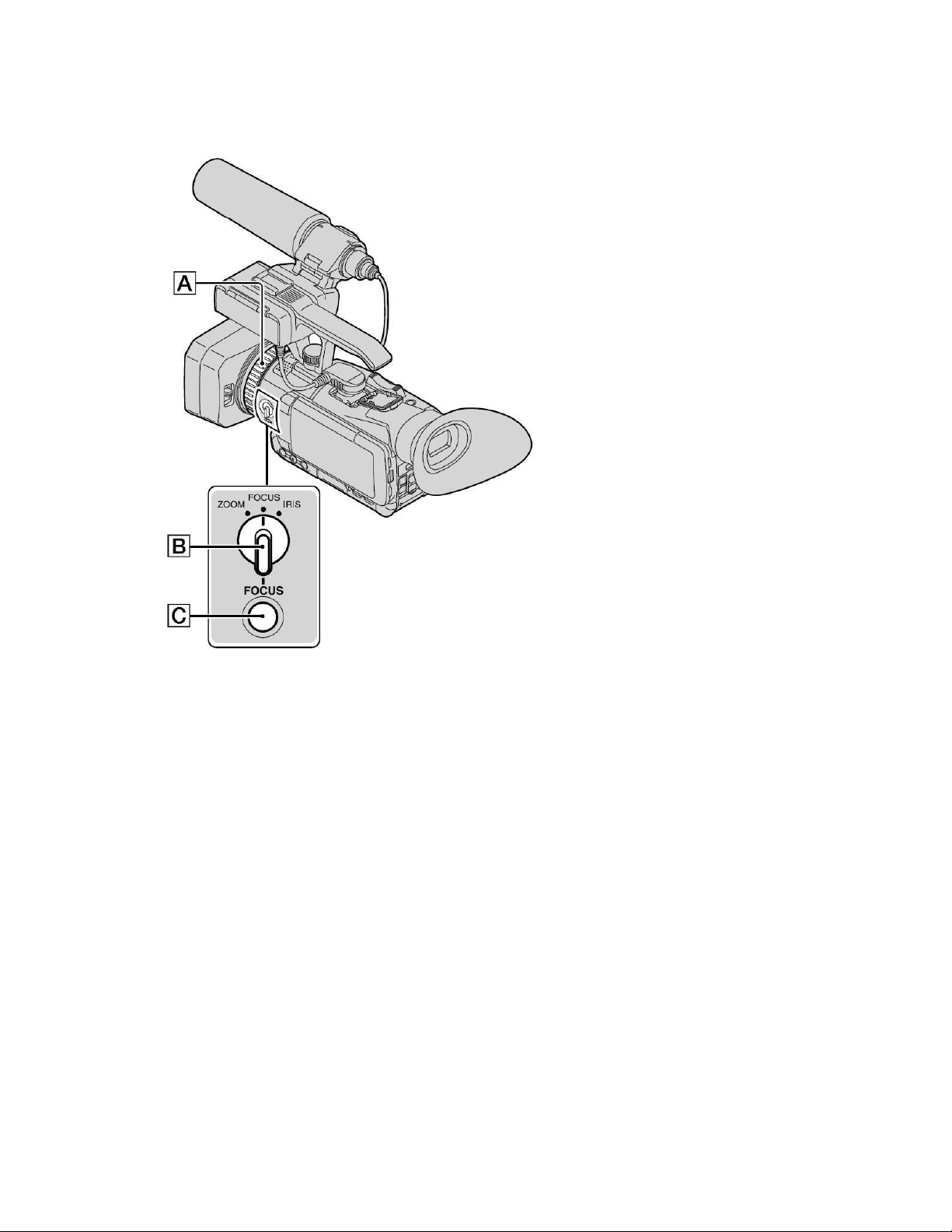

Adjusting Focus
To focus, simply zoom in all
the way on your subject, as
close as you can and
(1)
Push the FOCUS button
[C] until your subject is
perfectly in focus
Or
(1)
Set the
ZOOM/FOCUS/IRIS switch
[B] to FOCUS.
(2)
Rotate the manual ring [A]
until your subject is perfectly
in focus.
As long as the distance from
the subject to the lens does
not change, you will always
be in focus!

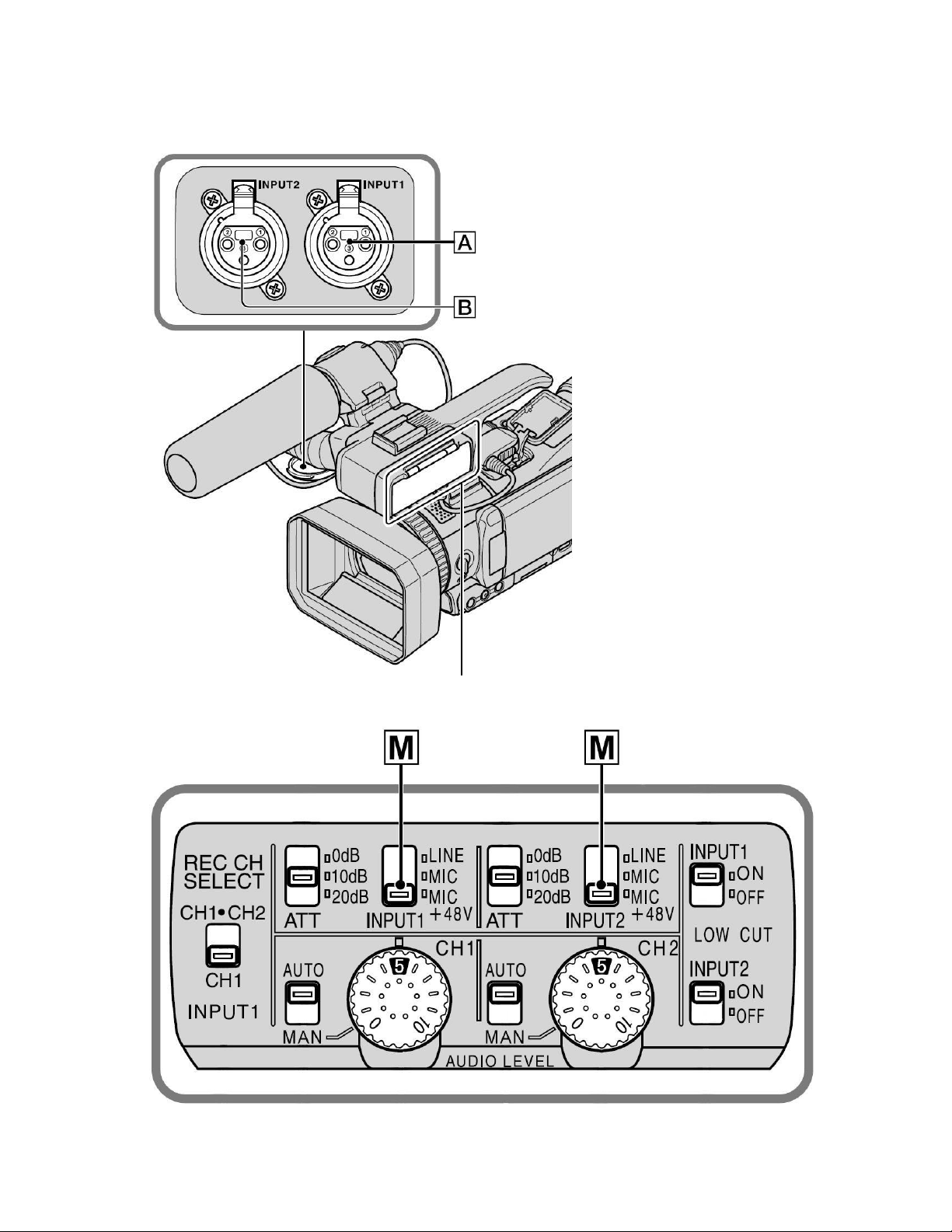

Audio
(1)
Connect the
microphone(s) to the
INPUT1 [A] and/or
INPUT2 [B] connectors.
(2)
Match all the settings
on the diagram below to
the camera’s settings.
(3)
When connecting a
microphone, or using
attached microphone set
[M] to MIC+48V (At the
bottom)
(4)
When connecting
audio equipment from a
mixing board or other
external source set [M]
to LINE.

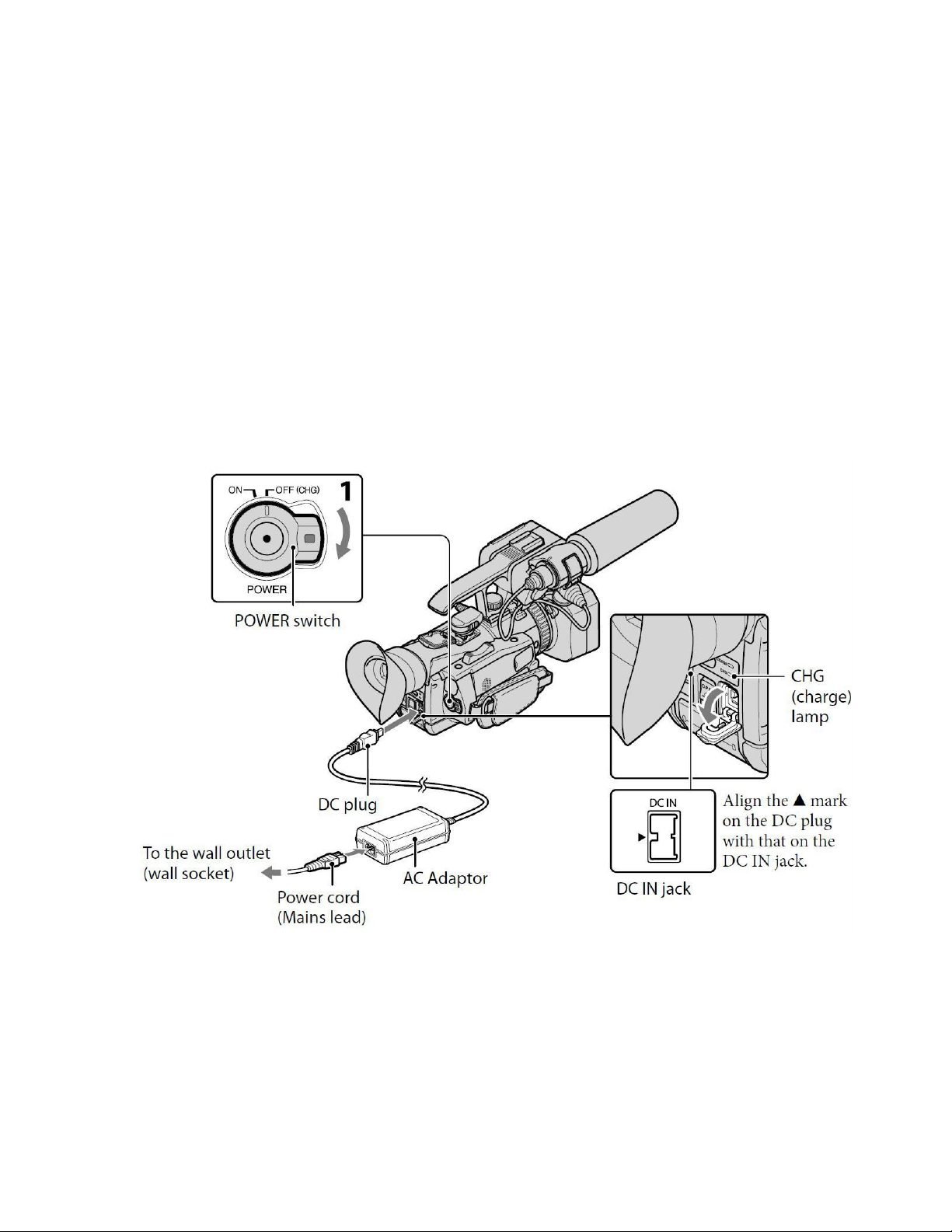

Charging
To charge the battery
(1)
Set the POWER switch to OFF
(2)
Open the DC IN jack cover
(3)
Connect the AC adapter to the DC IN jack with the plug’s arrow mark
facing toward the LCD panel.
(4)
Connect the power cord to the AC adapter and connect the power cordto
a wall outlet.
The battery will begin to charge. We ask that you return our equipment fully
charged so it is ready for the next member to use.
If you have any problems or questions,
please call us at (707) 257-0574.
