Sony Ericsson T630 User manual

This is the Internet version of the user's guide. © Print only for private use.

Contents 1

Contents

Getting to know your phone 4

Key functions, quick keys, entering letters and characters.

Personalizing your phone 17

Download settings or choose from the phone.

Calling 25

Use the Phonebook, voice control, call options.

Messaging 45

Text, picture, chat and e-mail.

Camera 55

Use the camera.

Setting up WAP and e-mail 58

All you need to know about setting up WAP and e-mail.

Using WAP 66

WAP browser, bookmarks.

Transferring and exchanging information 69

Bluetooth wireless technology, synchronization.

More features 74

Calendar, alarm clock, stopwatch, timer, games.

Security 82

SIM card lock, phone lock.

Troubleshooting 84

Why doesn’t the phone work the way I want?

Additional information 86

Safe and efficient use, warranty, declaration of conformity.

Icons 93

What do the icons mean?

Index 100

Sony Ericsson T630

This is the Internet version of the user's guide. © Print only for private use.

2 Contents

Sony Ericsson

GSM 900/1800/1900

First edition (September 2003)

This manual is published by Sony Ericsson Mobile

Communications AB, without any warranty.

Improvements and changes to this manual

necessitated by typographical errors, inaccuracies

of current information, or improvements to programs

and/or equipment, may be made by Sony Ericsson

Mobile Communications AB at any time and without

notice. Such changes will, however, be incorporated

into new editions of this manual.

©Sony Ericsson Mobile Communications AB,

2003

Publication number: EN/LZT 108 6685 R1A

Please note:

Some of the services in this manual are not supported

by all networks. This also applies to the GSM

International Emergency Number 112.

Please contact your network operator or service

provider if you are in doubt whether you can use

a particular service or not.

Please read the Guidelines for Safe and Efficient Use

and the Limited Warranty chapters before you use

your mobile phone.

The BLUETOOTH trademarks are owned by

Bluetooth SIG, Inc.

T9™ Text Input is a trademark or a registered

trademark of Tegic Communications.

T9™ Text Input is licensed under one or more of

the following: U.S. Pat. Nos. 5,818,437, 5,953,541,

5,187,480, 5,945,928, and 6,011,554;

Canadian Pat. No. 1,331,057;

United Kingdom Pat. No. 2238414B;

Hong Kong Standard Pat. No. HK0940329;

Republic of Singapore Pat. No. 51383;

Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR,

IT, NL, PT, ES, SE, GB; and additional patents are

pending worldwide.

Java and all Java based trademarks and logos

are trademarks or registered trademarks of Sun

Microsystems, Inc. in the U.S. and other countries/

regions.

End-user license agreement for Sun™ Java™

J2ME™.

This is the Internet version of the user's guide. © Print only for private use.

Contents 3

1. Restrictions: Software is confidential copyrighted

information of Sun and title to all copies is retained by

Sun and/or its licensors. Customer shall not modify,

decompile, disassemble, decrypt, extract, or

otherwise reverse engineer Software. Software may

not be leased, assigned, or sublicensed, in whole or

in part.

2. Export Regulations: Software, including technical

data, is subject to U.S. export control laws, including

the U.S. Export Administration Act and its associated

regulations, and may be subject to export or import

regulations in other countries/regions. Customer

agrees to comply strictly with all such regulations and

acknowledges that it has the responsibility to obtain

licenses to export, re-export, or import Software.

Software may not be downloaded, or otherwise

exported or re-exported (i) into, or to a national or

resident of, Cuba, Irak, Iran, North Korea, Libya,

Sudan, Syria (as such listing may be revised from

time to time) or any country/region to which the U.S.

has embargoed goods; or (ii) to anyone on the U.S.

Treasury Department's list of Specially Designated

Nations or the U.S. Commerce Department's Table

of Denial Orders.

3. Restricted Rights: Use, duplication or disclosure by

the United States government is subject to the

restrictions as set forth in the Rights in Technical Data

and Computer Software Clauses in DFARS 252.227-

7013(c) (1) (ii) and FAR 52.227-19(c) (2) as

applicable.

Part of the software in this product is copyright

Other product and company names mentioned herein

may be the trademarks of their respective owners.

Any rights not expressly granted herein are reserved.

This is the Internet version of the user's guide. © Print only for private use.

4 Getting to know your phone

Getting to know your phone

About this user’s guide

The “Getting to know your phone” chapter gives a

quick overview of the main functions of the phone,

shortcuts and general information.

More information and downloads are available at

www.SonyEricsson.com or wap.SonyEricsson.com.

Available services

Some services and functions described in this user’s

guide are network or subscription-dependent, which

means that all menus may not be available in

your phone.

This symbol indicates that a service or

function is network or subscription-

dependent.

Please consult your network operator for

more information about your subscription.

Assembly

Before you can use your phone you need to:

• Insert the SIM card.

• Attach and charge the battery.

See “SIM card and battery information” on page 5.

Note: Always turn off the phone and detach the

charger before you insert or remove a SIM card.

The SIM card

When you register as a subscriber with a network

operator, you get a SIM (Subscriber Identity Module)

card. The SIM card contains a computer chip that

keeps track of your phone number, the services

included in your subscription, and your Phonebook

information, among other things.

Note: Make sure that your information is saved

to the SIM card before you remove it from another

phone. For example, Phonebook entries may have

been saved in the phone memory.

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone 5

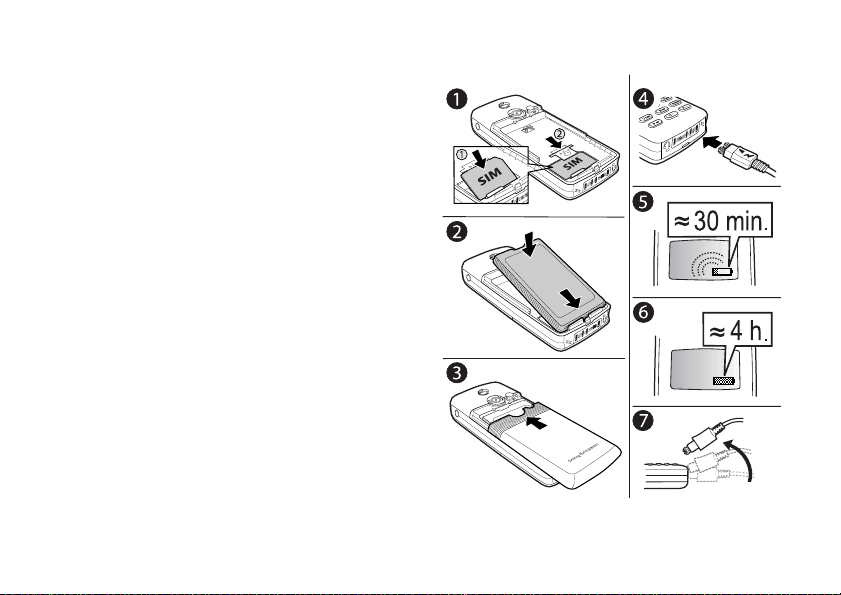

SIM card and battery information

It may take up to 30 minutes before an icon

appears when charging.

1. Insert the SIM card. Slide the silvery holder over the

SIM card to lock it in place.

2. Place the battery on the back of the phone with the

connectors facing each other.

3. Place the back cover as shown in the picture and

slide it into place.

4. Connect the charger to the phone at the flash symbol.

The flash symbol on the charger plug must face

upwards.

5. It may take up to 30 minutes before the battery

charging icon appears in the display.

6. Wait approximately 4 hours or until the icon indicates

that the battery is fully charged. If you do not see the

battery icon after this time, press any key or the

joystick to activate the display.

7. Remove the charger by tilting the plug upwards.

Note: You have to insert the SIM card and charge

the battery before you can use the phone.

This is the Internet version of the user's guide. © Print only for private use.

6 Getting to know your phone

Turning the phone on

To turn on the phone

Press the on/off button on the top of the phone.

• Enter your PIN (Personal Identity Number), if

you have one for your SIM card.

Your PIN is provided by your network operator.

If you make a mistake while entering your PIN,

delete the wrong number by pressing .

If your PIN starts with the same digits as an

emergency number, for example 112, the digits

are not hidden with an * when you enter them.

This is so that you can see and call an emergency

number without entering a PIN.

See “Making emergency calls” on page 26.

Note: If you enter the wrong PIN three times in a

row, the SIM card is blocked and the message PIN

blocked appears. To unblock it, you need to enter

your PUK (Personal Unblocking Key). Your PUK

is provided by your network operator.

To turn off the phone

Press and hold the on/off button at the top of

the phone.

on/off

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone 7

Navigating the menus

The main menus are shown as icons on the desktop.

To go to the desktop, press the joystick.

Example

To set an alarm

1. Use the joystick to scroll to Organizer, and press the

left key to select it.

2. Use the joystick to scroll down to Alarms, and press

the left key to select this function. Press the

left key again to select Alarm.

3. Enter the time and press the left key to save

your entry.

Throughout this user’s guide instructions such

as those above will be given in a shorter form,

as follows:

To set an alarm

1. Scroll to Organizer, Alarms, Alarm.

2. Enter the time, Save.

To make and receive calls from standby

• Enter the area code and phone number, press Call.

• Press End call to end the call.

• When the phone rings, press Yes to answer the call.

Desktop

Press to go back one

level in the menus.

Press and hold to

return to standby.

Press to select the

options shown above

these keys in the

display.

Press to go to

the desktop.

Move up,

down, left,

right through

menus.

Press to select

highlighted

items.

This is the Internet version of the user's guide. © Print only for private use.

8 Getting to know your phone

Key functions

Press once to activate camera

function. Press again to take

a picture.

Volume keys increase/decrease

the earpiece volume during a

call. Scroll through menus,

lists and text. Enter the Status

menu in standby. Press twice

to reject an incoming call.

Press once to turn off the ring

signal when receiving a call.

Press to select the options

that appear in the display

immediately above these keys.

Press once to go back one

level in the menus. Press

and hold to return to standby.

Enter *. Shift between lower/

upper case.

Infrared port.

Press and hold to switch the

phone on or off.

Press to go directly to

the Internet.

Move through the menus, lists

and texts.

Delete numbers, letters or an

item from a list. Press and hold

to turn off the microphone

(during calls) or turn off sound.

1-9, 0 Enter digits, 0-9, and letters.

Press and hold to enter

the international prefix +.

Enter # or a space.

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone 9

Quick keys

Useful key combinations are described below.

To... When in standby:

make an emergency call enter the emergency

number and press Call

enter Call contact press

enter Internet services press

voice dial press and hold a volume

key or say your magic

word

enter Call list press Calls

call your voice mail press and hold

enter the +sign press and hold

turn off the ring signal

when receiving a call press , or press

a volume key once

set the phone to silent press and hold

reach a contact beginning

with a specific letter press and hold any of

the keys -

reach a phone number at

a specific position. press the position number

and

speed dial press any of the number

keys - and

Call

write new message press

enter the main menu press or press the

centre of the joystick

enter the menu to see

today’s date, the profile

in use and the model

name of the phone

press a volume key once

change the language

to Automatic press 8888

change the language

to English press 0000

reject a call press No

To... When in standby:

This is the Internet version of the user's guide. © Print only for private use.

10 Getting to know your phone

To... During a call:

put a call on hold press Hold

retrieve a call press Retrieve

turn off the microphone press and hold

enter a quick

options menu press Joystick

To... When in the menus:

move through menus or

lists

press (and hold) a volume

key or use the joystick

delete an item press when in lists

go back to standby press and hold

To...

When entering

letters using multitap

text input:

reach the second letter or

character of a key press and hold the

volume key and press

any of the number keys

reach the third letter or

character of a key press and hold the

volume key and press

any of the number keys

shift between capital

and lower-case letters press , then the letter

enter numbers press and hold any of the

number keys

enter a space press

delete letters and numbers press

shift between multitap

or T9 Text input methods press and hold

shift between input

languages (including

character or numeric)

press and hold

To...

When entering letters

using T9 Text Input:

view alternative words press or

accept a word and add

aspace press

enter a full stop press

To...

When entering

letters using multitap

text input:

Other manuals for T630

Table of contents

Other Sony Ericsson Cell Phone manuals

Sony Ericsson

Sony Ericsson Walkman Phone User manual

Sony Ericsson

Sony Ericsson Z750a User manual

Sony Ericsson

Sony Ericsson G502 Quick reference guide

Sony Ericsson

Sony Ericsson T600 Quick reference guide

Sony Ericsson

Sony Ericsson P910a P910a P910a User manual

Sony Ericsson

Sony Ericsson XPERIA Service manual

Sony Ericsson

Sony Ericsson WALKMAN W205 User manual

Sony Ericsson

Sony Ericsson V800 SFR Quick start guide

Sony Ericsson

Sony Ericsson J100i User manual

Sony Ericsson

Sony Ericsson Xperia X10 Service manual

Sony Ericsson

Sony Ericsson Walkman W950 User manual

Sony Ericsson

Sony Ericsson Z300i User manual

Sony Ericsson

Sony Ericsson X1ASILVER User manual

Sony Ericsson

Sony Ericsson W100i Technical manual

Sony Ericsson

Sony Ericsson T230 User manual

Sony Ericsson

Sony Ericsson Xperia X10 mini Installation guide

Sony Ericsson

Sony Ericsson K790i User manual

Sony Ericsson

Sony Ericsson Walkman WT18i Quick reference guide

Sony Ericsson

Sony Ericsson Z600 User manual

Sony Ericsson

Sony Ericsson W880i User manual

Sony Ericsson

Sony Ericsson Walkman W200a User manual

Sony Ericsson

Sony Ericsson T618 User manual

Sony Ericsson

Sony Ericsson Amber TM506 User manual

Sony Ericsson

Sony Ericsson Xperia Arc S Service manual

Popular Cell Phone manuals by other brands

Zte

Zte BLADE A520 quick start guide

Nokia

Nokia Lumia 620 user guide

Blackbe;rry

Blackbe;rry KEYone Safety and product information

Bea-fon

Bea-fon X5 Premium quick guide

Blackbe;rry

Blackbe;rry 8707 Series user guide

Blackbe;rry

Blackbe;rry Storm Troubleshooting

LG LM-X420QN user guide

LifeWatch

LifeWatch V user guide

Bea-fon

Bea-fon SILVER LINE SL860 user guide

IKI Mobile

IKI Mobile KF4.5i user manual

Hitech

Hitech HT-850 user guide

Yezz

Yezz Fashion F10 user manual

Point Mobile

Point Mobile PM60 user manual

Blackbe;rry

Blackbe;rry Q10 user guide

Blackbe;rry

Blackbe;rry Bold 9900 user guide

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 user guide

LG LM-K420EMW user guide

ISAFE MOBILE

ISAFE MOBILE IS655.2 operating manual
