Sony Ericsson Spiro User manual
Sony Ericsson
Spiro™
User guide
This is the Internet version of the User guide. © Print only for private use.
Important information
Please read the Important information leaflet before you
use your mobile phone.
Experience more. Discover
how.
Fill it with pop and let it rock. Share your life in pictures. Or
why not go online for the latest updates? Your new phone is
the key to a wider world. And it's just around the corner.
Get started with this User guide. And join us online to get the
full picture. Music, games, apps, updates, downloads,
support and more. All in one place:
www.sonyericsson.com/spiro
Feedback on the User guide
Do you have any suggestions on how we can improve this
User guide? If so, then email us at
.
Please make sure to type the User guide name in the email
subject field. We highly value your feedback!
2
This is the Internet version of the User guide. © Print only for private use.
Getting started
SIM card
The SIM (Subscriber Identity Module) card,
which you get from your network operator,
contains information about your subscription.
Always turn off your phone and detach the
charger and battery (if inserted) before you
insert or remove the SIM card.
PIN
You may need a PIN (Personal Identification Number) to
activate the services and functions in your phone. Your PIN
is supplied by your network operator. Each PIN digit
appears as *, unless it starts with emergency number digits
such as 112 or 911. You can see and call an emergency
number without entering a PIN, if a network is available.
If you enter the wrong PIN three times in a row, the SIM
card is blocked. See SIM card lock on page 33.
3
This is the Internet version of the User guide. © Print only for private use.

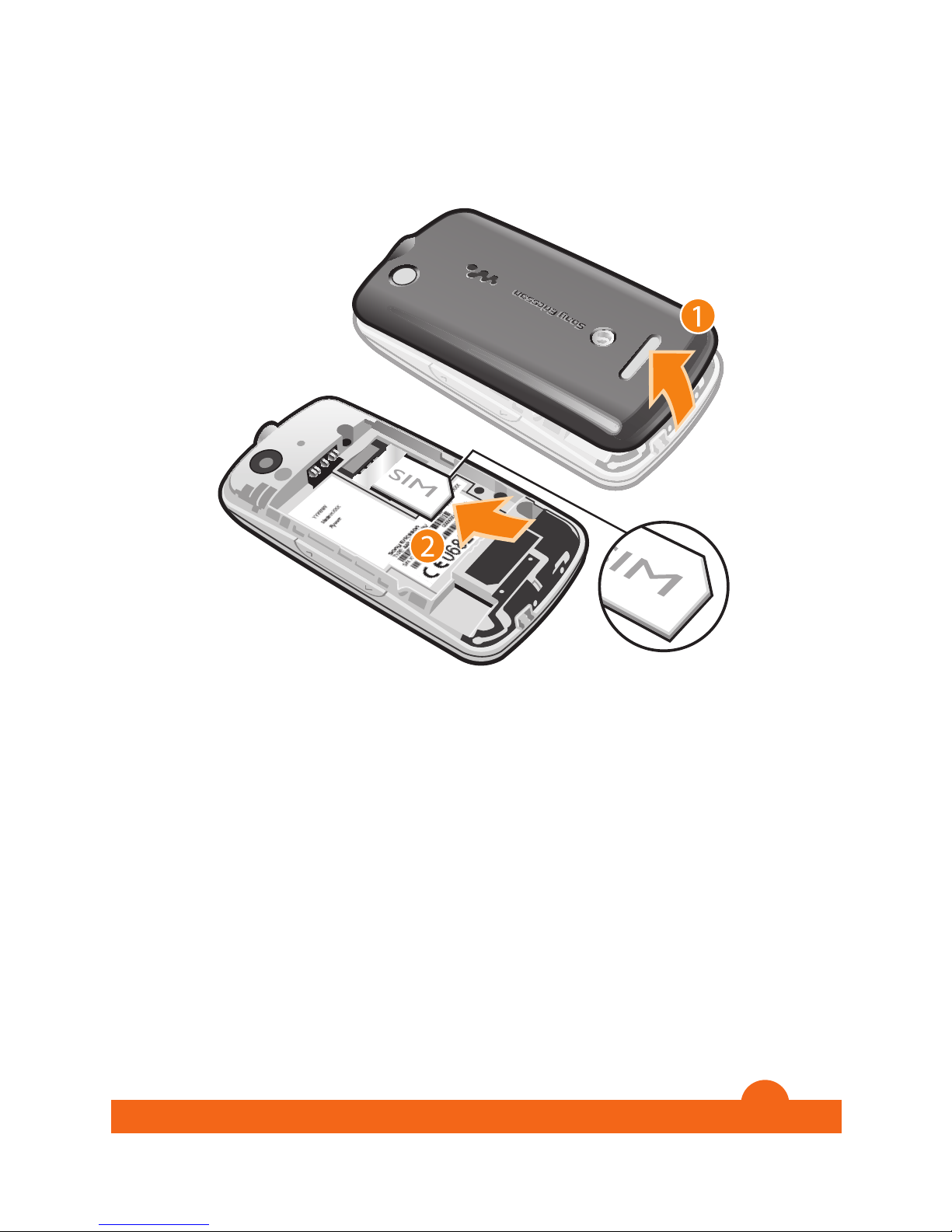

To insert the SIM card
1Remove the battery cover.
2Slide the SIM card into its holder with the gold-coloured
contacts facing down.
4
This is the Internet version of the User guide. © Print only for private use.
To insert the battery
1Insert the battery with the label side up and the
connectors facing each other.
2Slide the battery cover into place and lock it.
Turning on the phone
To turn on the phone
1Press and hold down .
2Open the slider and enter your PIN, if requested.
3Select OK.
4Select a language.
5
This is the Internet version of the User guide. © Print only for private use.
5Select Yes to use the setup wizard.
If you make a mistake when you enter your PIN, you
can press to delete numbers from the screen.
Standby
After you have turned on the phone and entered your PIN,
the name of the network operator appears. This view is
called standby. You phone is now ready for use.
To turn off the phone
•Press and hold down .
Before turning off the phone, you must return to
standby.
Memory card
You may have to purchase a memory card separately.
Your phone supports a microSD™ memory card, adding
more storage space to your phone. This type of card can
also be used as a portable memory card with other
compatible devices.
You can move content between a memory card and the
phone memory.
6
This is the Internet version of the User guide. © Print only for private use.

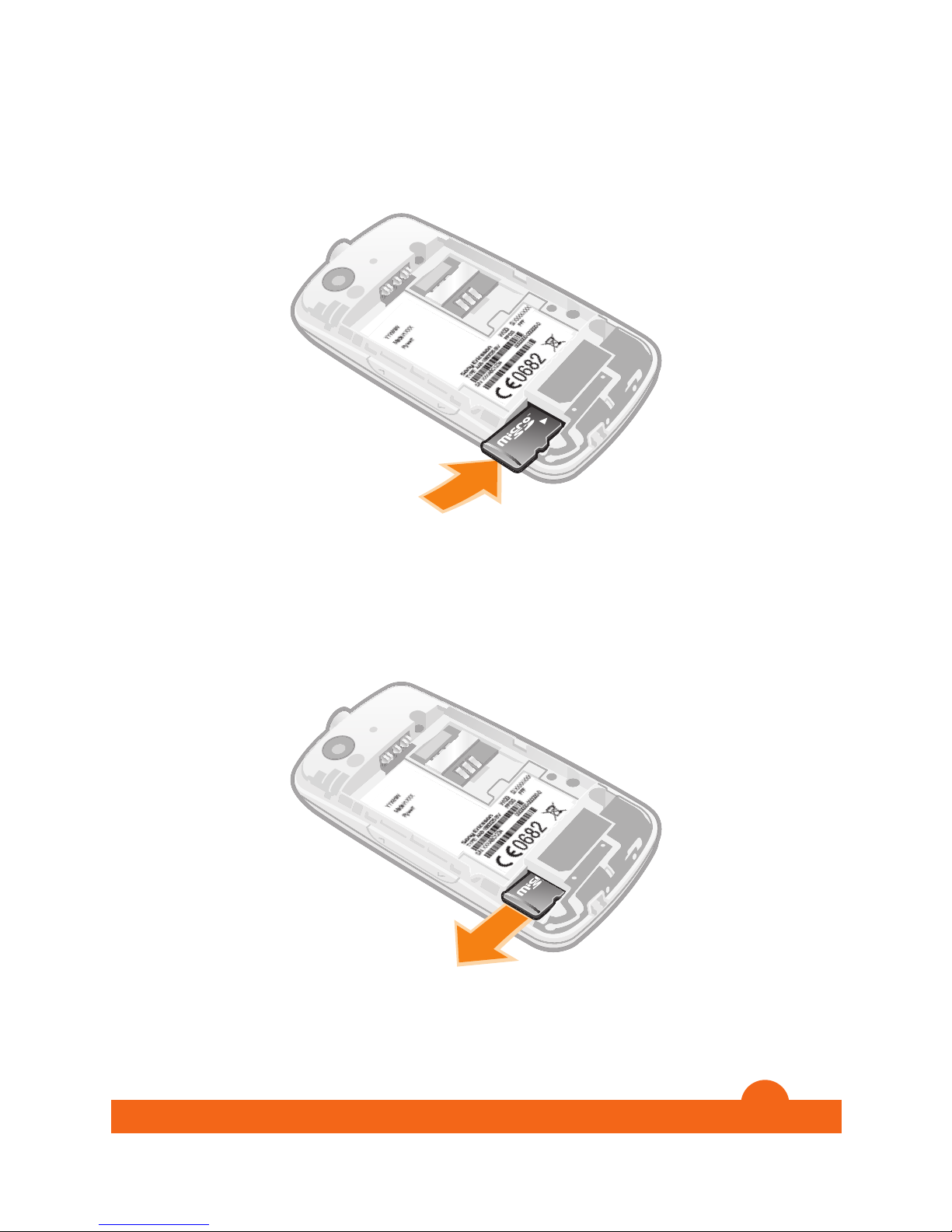

To insert a memory card
•Remove the battery cover and insert the memory card
with the gold-coloured contacts facing down.
To remove a memory card
•Remove the battery cover and slide the memory card to
remove it.
7
This is the Internet version of the User guide. © Print only for private use.
Phone overview
1 Ear speaker
1
2
3
5
6
4
7
8
9
10
2 Screen
3 Connector for charger
and USB cable
4 Selection keys
5 Call key
6 Shortcut key
7 Navigation key,
Walkman™ player
controls, TrackID™*
8 End key, On/off key
9 C key (Clear)
10 Silent key
8
This is the Internet version of the User guide. © Print only for private use.
11
12
13
14
11 Connector for
handsfree
12 Camera lens
13 Volume key
14 Loudspeaker
*The TrackID™ shortcut key may not be available in your
phone.
9
This is the Internet version of the User guide. © Print only for private use.
Screen icons
These icons may appear on the screen.
Icon Description
Missed call
Handsfree connected
Ongoing call
Text message received
Multimedia message received
Predictive text input activated
Phone set to silent
Radio playing
Alarm activated
Bluetooth™ function activated
10
