Sony Ericsson S302 User manual

S302

User guide

This is the Internet version of the User guide. © Print only for private use.

Thank you for purchasing a Sony Ericsson S302.For

additional phone content, go to www.sonyericsson.com/fun.

www.sonyericsson.com/myphone. For product support, go to

www.sonyericsson.com/support.

Instruction symbols

The following appear in this User guide:

> Use the navigation key to scroll and select

Press the centre selection key

Press the navigation key up

Press the navigation key down

Press the navigation key to the left

Press the navigation key to the right

Note

Tip

Warning

Indicates that a service or function is network- or

subscription-dependent. All menus or functions may

not be available in your phone. Consult your network

operator for more information.

This is the Internet version of the User guide. © Print only for private use.

SIM card

The SIM (Subscriber Identity Module) card, which you

get from your network operator, contains information

about your subscription. Always turn off your phone

and detach the charger and the battery before you

insert or remove the SIM card.

PIN code (SIM card lock)

The PIN (Personal Identification Number) code is a SIM card

lock that protects your subscription, but not the phone itself.

If the card is locked, you have to enter the PIN code when you

turn on your phone. To change your PIN code, see SIM card

lock on page 36.

Each PIN digit appears as *, unless it starts with emergency

number digits, for example, 112 or 911. You can call an

emergency number without entering a PIN.

You can save contacts on the SIM card before removing it

from your phone. You can also save contacts in the phone

memory. See Contacts on page 22.

If you enter the wrong PIN three times in a row, PIN

blocked appears. To unblock it, you need to enter your

PUK (Personal Unblocking Key).

This is the Internet version of the User guide. © Print only for private use.

Charging the battery

The phone battery is partly charged when you buy it. It takes

approximately 2.5 hours to fully charge the battery.

To charge the battery

1Connect the charger to the phone with the power icon on

the charger facing upwards. Press a key to illuminate the

screen and see the charging status.

2To remove the charger, tilt and pull the plug upwards.

The battery icon on the screen may not appear until the

phone has charged for 30 minutes.

You can use the phone during charging. You can charge

the battery for more or less than 2.5 hours. Interrupted

charging will not damage the battery.

This is the Internet version of the User guide. © Print only for private use.

Memory Stick Micro™

Your phone supports Memory Stick Micro™ (M2™). A memory

card adds more storage space to your phone, for example,

music, ringtones, video clips and pictures. You can share your

saved information by moving or copying it to other memory

card compatible devices.

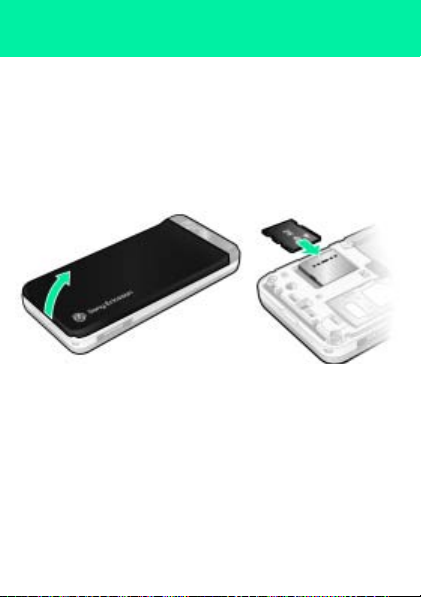

To insert Memory Stick Micro™ (M2™)

•Open the cover and insert the memory card (with the gold-

coloured contacts facing down).

To remove a Memory Stick Micro™ (M2™)

•Press the edge to release and remove.

This is the Internet version of the User guide. © Print only for private use.

Turning on the phone

To turn on the phone

1Press and hold down .

2Enter your SIM card PIN, if

requested.

3Select Yes to use the setup

wizard.

Standby

After you have turned on the phone and entered your PIN, the

name of your operator appears on the screen. This is called

standby. You can now make and receive calls.

To turn the phone off

•Press and hold down .

If you make a mistake when you enter your PIN, you can

press to delete numbers from the screen.

If your phone cannot turn on, attach the charger and

charge the phone for 2.5 hours.

If your phone turns itself off when being transported, turn

the automatic keylock on. This prevents things in your

pocket or bag from activating the on/off key accidentally.

This is the Internet version of the User guide. © Print only for private use.

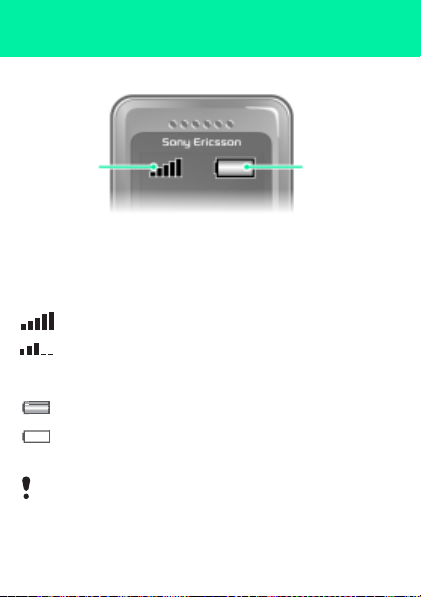

Network coverage

The network bars show the strength of the GSM network in

your area. Move to another location if you have problems

calling and network coverage is poor. No network means you

are not in range of a network.

Battery status

= Good network coverage

= Average network coverage

= The phone battery is fully charged

= The phone battery is empty

If you cannot turn on the phone, attach the charger

properly and try charging the phone until it has finished

charging.

Battery status

Network

coverage

This is the Internet version of the User guide. © Print only for private use.

Screen icons

These icons may appear on the screen.

Icon Description

Ongoing call

Missed call

Handsfree connected

Phone set to silent

Predictive text input activated

Text message received

Picture message received

Email message received

Voice message received

FM radio playing

Alarm activated

Bluetooth function activated

This is the Internet version of the User guide. © Print only for private use.

Phone overview

210

1 Ear speaker

2Musickey

3Screen

4Selectionkeys

5 Call key

6 Shortcuts menu key

Connector for

charger, handsfree

and USB cable

8 Navigation key

9 Centre selection key

10 Volume keys/camera

zoom keys

11 On/off key

End call key

12 C key (Clear)

13 Camera key/video

recorder key

14 Silent key

This is the Internet version of the User guide. © Print only for private use.

Key

Go to the main menus or select items

Scroll between the menus and tabs

Select options shown immediately above these keys

on the screen

Delete items, such as pictures, sounds and contacts.

On the side:

Press to stop or play music when in the Music player

mode

Press to mute or unmute the radio. Works only if an

audio accessory is connected

Press to move between the Music player and standby

My shortcuts – add your favourite functions to access

them quickly

From standby press to activate Camera and video

recorder

Press and hold down to turn the phone on/off

Press to end a call

Press to make a call after you gave entered the phone

number

This is the Internet version of the User guide. © Print only for private use.
