Sony Ericsson R306 User manual
R306
User guide
This is the Internet version of the User's guide. © Print only for private use.
2
Congratulations on your purchase of the Sony Ericsson
R306. For additional phone content, go to
www.sonyericsson.com/fun. Register now to get free online
storage and special offers at www.sonyericsson.com/myphone.
For product support, go to www.sonyericsson.com/support.
Instruction symbols
The following instruction symbols appear in this User guide:
> Use the navigation key to scroll and select.
Press the navigation key centre.
Press the navigation key up.
Press the navigation key down.
Press the navigation key to the left.
Press the navigation key to the right.
Note
Tip
Warning
Indicates that a service or function is network- or
subscription-dependent. All menus or functions may
not be available in your phone. Consult your network
operator for more information.
This is the Internet version of the User's guide. © Print only for private use.
3
Preparing the phone

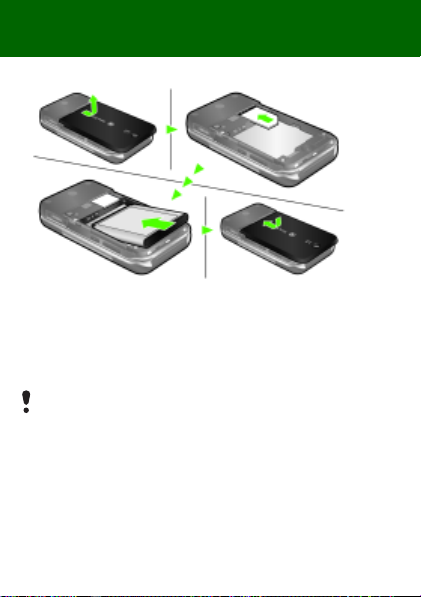

To insert the SIM card and battery
1Remove the battery cover.
2Slide the SIM card into its holder with the contacts facing
down.
3Insert the battery with the label side up and the connectors
facing each other.
4Replace the battery cover.
Do not force the battery cover into place. Slide the battery
cover carefully onto the phone and close it.
This is the Internet version of the User's guide. © Print only for private use.
4
To charge the battery
1The phone battery is partly charged when you buy it.
Connect the charger to the phone. It takes approximately
2.5 hours to fully charge the battery. Press a key to
illuminate the screen.
2To remove the charger, tilt the plug upwards.
You can use the phone during charging. You can charge
the battery for more or less than 2.5 hours. Interrupted
charging will not damage the battery.
This is the Internet version of the User's guide. © Print only for private use.
5
Turning on the phone

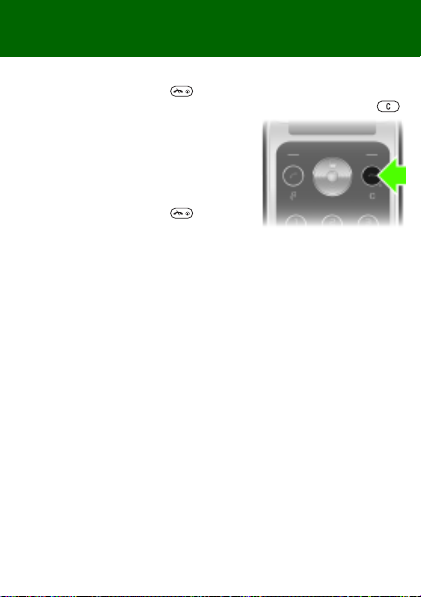

To turn on the phone
1Press and hold down .
2Enter your PIN if requested. To correct mistakes, press .
3Select OK.
4Select a language.
5Enter the time and date and select
Save.
To turn off the phone
•Press and hold down .
Standby
After you have turned the phone on and entered your PIN, the
name of your operator appears on the screen. This is called
standby. You can now make and receive calls.
This is the Internet version of the User's guide. © Print only for private use.
6
SIM and PIN
SIM card
The SIM (Subscriber Identity Module) card, which you
get from your network operator, contains information
about your subscription. Always turn off your phone
and detach the charger before you insert or remove
the SIM card.
PIN code
You may need a PIN (Personal Identification Number) to
activate the services in your phone. Your PIN is supplied by
your network operator. Each PIN digit appears as *, unless it
starts with emergency number digits, for example, 112 or 911.
You can call an emergency number without entering a PIN.
You can save contacts on the SIM card before removing
it from your phone. Contacts may also be saved in the
phone memory. See Contacts on page 14.
If you enter the wrong PIN three times in a row, this message
displays, PIN blocked. To unblock, enter your PUK code
provided by your network operator. To unblock it, you need
to enter your PUK (Personal Unblocking Key).
This is the Internet version of the User's guide. © Print only for private use.
7
Phone overview
Call key
Selection key
Selection key
Shortcut key
Centre
navigation key
Screen
C key
Ear speaker
Radio shortcut
key
Silent key
On/off key,
End key
This is the Internet version of the User's guide. © Print only for private use.
8
Volume keys
Camera
Connector for
charger, handsfree
and USB cable
Radio
preset keys
Channel up
& down keys
Stereo Speakers
Audio enhancer key
This is the Internet version of the User's guide. © Print only for private use.
9
Menu overview
Organizer File manager, Alarm, Calendar, Tasks,
Notes, Timer, Stopwatch, Calculator
Internet
Entertainment Games, TrackID™, Record sound
Camera
Messaging Write new, Inbox, Drafts, Outbox, Sent
messages, Saved msgs, Call voicemail,
Templates, Settings
Radio
Calls*
All Answered Dialled Missed
Contacts Myself, New contact
Settings*
General Sounds &
alerts
Display Calls Connectivity
Some menus and icons in this document may vary depending on
operator, network or subscription.
* You can use the navigation key to scroll between tabs in sub
menus.
This is the Internet version of the User's guide. © Print only for private use.
10
Screen icons
These icons may appear on the screen.
Icon Description
Battery icon. A completely green icon means that the
battery is fully charged
You have missed a call
Divert calls is activated
The phone is set to silent
You have received a new text message
You have received a new picture message
The handsfree is connected
An alarm is activated
Ongoing call
The loudspeaker is on
The radio is playing
The Bluetooth function is activated
Average network coverage. Five bars means the phone
is receiving a full signal
This is the Internet version of the User's guide. © Print only for private use.
