Sonoff DUALR2 User manual

User manual V1.0

2-Gang Wi-Fi Smart Switch

DUALR2

· FCC Warning------------ 41

· 中文 -----------------------1-5

· Deutsch --------------- - 11-15

· Français----------------- 21-25

· Русский язык----------31-35

· English--------------------6-10

· Español---------------- -16-20

· Italiano---------------- 26-30

· Português--------------36-40

SONOFF TECHNOLOGIES CO., LTD. 中文

使⽤说明

设备安装、故障维修请由专业资质电⼯操作，以免发⽣触电危险！

1.断电

2.接线

确保零⽕线接⼊⽆误。

灯󱯈󳰙线⽰󳞱󽘪

LIn

NIn

LOut2

LOut1

NLIn

NIn

LOut2

LOut1

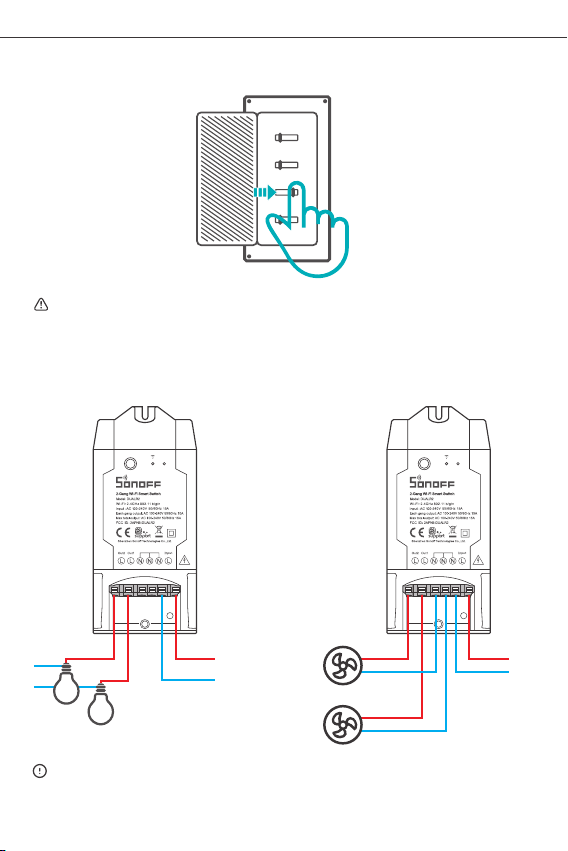

电器󳰙线⽰󳞱󽘪

ON O FF

3.下载“易微联”APP 易微联

eWeLink

Android™ & iOS

SONOFF TECHNOLOGIES CO., LTD. 中文

4.上电

通电后，设备⾸次使⽤，默认进⼊快速配⽹模式(Touch)。Wi-Fi指⽰灯呈“两短⼀⻓闪烁”。

三分钟内没有进⾏配⽹，设备将退出快速配⽹模式。如需再次进⼊，⻓按配对按钮5秒直到

Wi-Fi指⽰灯呈两短⼀⻓闪烁即可。

5.添加设备

快速添加

添加设备

WIF I 类设备，可使用该模式添加(请确

认)设备处于配网状态）

扫码添加

GSM 类设备和附带二维码的设备，

可使用该模式添加

声波添加

支持声波配对设备，可使用该模式添加

点击“+”，选择“快速添加”，再根据app提⽰进⾏操作。

如使⽤快速添加模式配⽹失败，请使⽤“兼容模式(AP)”进⾏配对。

兼容配⽹模式

1⻓按配对按钮5秒直到Wi-Fi指⽰灯呈“两短⼀⻓闪烁”状态，松开。再次⻓按配对按钮5秒

直到Wi-Fi指⽰灯呈“快闪”状态，此时设备进⼊兼容配⽹模式。

2在app界⾯，点击“+”，选择“兼容模式”。

先把移动设备连接上Wi-Fi账号为：ITEAD-******，密码为：12345678，然后回到

“易微联”app，点击“下⼀步”，等待配对完成。

SONOFF TECHNOLOGIES CO., LTD. 中文

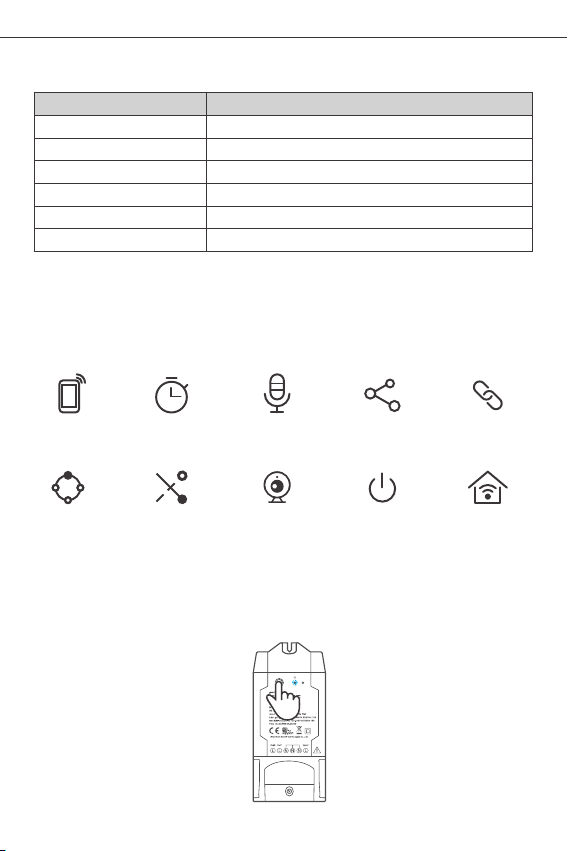

产品参数

型号

输⼊

输󱲠

⽀持平台

Wi-Fi

外壳材料

产品规格

DUALR2

100-240VAC50/60Hz

IEEE802.11b/g/n2.4GHz

PCV0

114.5x52x32mm

Android&iOS

最⼤负载 10A/2200W/󾓈󾓝15A/3500W/总负载

󾓈󾓝󳽈量双󾓈󾓝

⼯作温度 -10℃~40℃

产品介绍

设备重量＜1Kg，建议安装⾼度＜2⽶。

Wi-Fi信号指⽰灯(蓝⾊)

开关指⽰灯

配对按钮

保护盖

SONOFF TECHNOLOGIES CO., LTD. 中文

Wi-Fi信号指⽰灯状态说明

快速闪烁

快速配⽹模式

两短⼀⻓闪烁

常亮

兼容模式(AP)

设备已连接

快闪⼀下找不到路由

快闪⼆下连接上路由，但没连上外⽹

快闪三下升级中

状态描述

指⽰灯状态

产品特点

本设备为⼀款双通道的智能开关，⽤您的智能⼿机在任何地⽅打开或关闭家⾥的设备，设置

定时开/关、分享给您的家⼈⼀起控制等等。

远程控制智能定时/延时语⾳控制分享功能

点动模式局域⽹功能

󱛝锁模式

智能场景

添加摄像头上电状态设置

更换设备⽹络

设备更换新的⽹络环境使⽤时，需⻓按设备配对󳬝钮5󶋒󵸌󱳬Wi-Fi指⽰灯󲁢两󵾪⼀⻓闪烁，

󴋀开，此时设备进⼊快速配⽹模式，即可再󴤣添加。

SONOFF TECHNOLOGIES CO., LTD. 中文

常⻅问题

2.蓝灯2秒快闪两下：说明设备已连接到了Wi-Fi但没有连上外⽹。

请确认您的Wi-Fi当前连接外⽹是否稳定、正常。如时好时坏，频繁出现这种双闪情况，说明您

的⽹络不稳定，并⾮产品原因。

问：设备添加成功后，显⽰离线，⽆法控制？

答：设备刚添加成功后，需要1-2分钟时间连接您的路由器并连⽹。如果⻓时间还是显⽰不

在线，请根据Wi-Fi指⽰灯的状态来判断：

1.蓝灯2秒快闪⼀下：说明设备没有连上您的Wi-Fi。

①可能是Wi-Fi密码输⼊不正确.

②可能是设备离您的路由器太远，信号太弱，或环境有⼲扰。请先将设备靠近路由器，如

⽆改善，重新添加⼀遍.

③设备不能识别5G的Wi-Fi，请选择2.4G的Wi-Fi重新添加.

④检查您的路由器后台是否开启MAC地址过滤，如有，请关闭。

如果以上均尝试不能解决，请⽤⼀部⼿机开启个⼈热点，尝试重新添加。

恢复出⼚设置

在eWeLinkapp端“删除设备”，设备即恢复出⼚设置。

SONOFF TECHNOLOGIES CO., LTD. English

LIn

NIn

LOut2

LOut1

NLIn

NIn

LOut2

LOut1

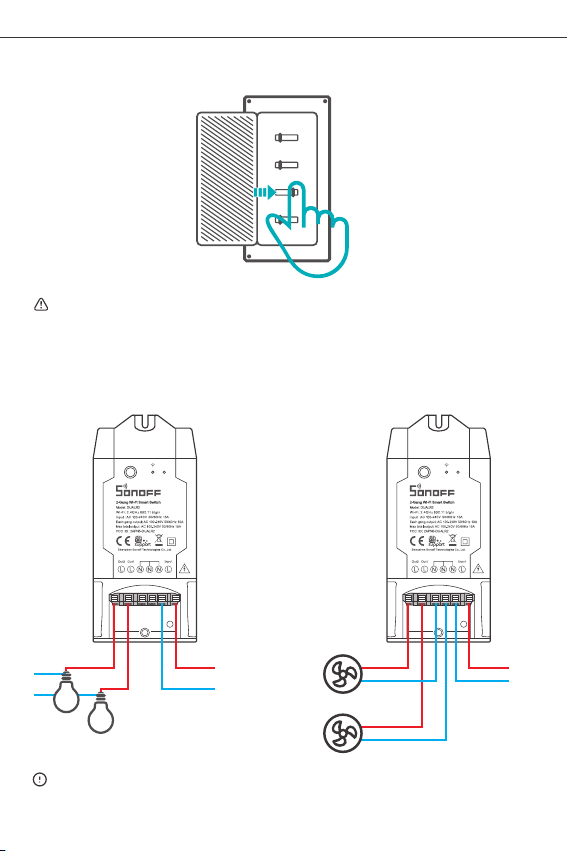

Appliance wiring instruction：

ON O FF

To avoid electric shocks, please consult the dealer or a qualiﬁed professional for

help when installing and repairing!

Make sure the neutral wire and live wire connection is correct.

1. Power oﬀ

2. Wiring instruction

Operating Instruction

Light ﬁxture wiring instruction:

3. Download APP

eWeLink

Android™ & iOS

4. Power on

Sou nd P air in g

Add dev ice in th is mode i f your

devic e s uppor t this fe atur e.

Sca n QR c ode

GSM dev ices an d devic es with Q R co

de can be a dded in t his mod e.

Quick Pairing

WIF I devic es can be a dded in t his mo

de( make su re the de vice is i n pairi ng

mod e) .

Add D evice

After powering on, the device will enter the quick pairing mode (Touch) during the

ﬁrst use. The Wi-Fi LED indicator changes in a cycle of two short and one long ﬂash

and release.

The device will exit the quick pairing mode (Touch) if not paired within 3mins. If you

want to enter this mode, please long press the manual button for about 5s until the

Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.

SONOFF TECHNOLOGIES CO., LTD. English

5. Add the device

Tap “+” and select “Quick Pairing”, then operate following the prompt on the APP.

Compatible Pairing Mode

If you fail to enter Quick Pairing Mode (Touch), please try “Compatible Pairing Mode ”

to pair.

Long press Pairing button for 5s until the Wi-Fi LED indicator changes in a cycle

of two short ﬂashes and one long ﬂash and release. Long press Pairing button

for 5s again until the Wi-Fi LED indicator ﬂashes quickly. Then, the device enters

Compatible Pairing Mode.

2Tap “+” and select “ Compatible Pairing Mode ” on APP.

Select Wi-Fi SSID with ITEAD-****** and enter the password 12345678, and then

go back to eWeLink APP and tap “Next”. Be patient until pairing completes.

SONOFF TECHNOLOGIES CO., LTD. English

DUALR2

100-240V AC 50/60Hz

IEEE 802.11 b/g/n 2.4GHz

PC V0

114.5x52x32mm

Android & iOS

10A/2200W/Gang 15A/3500W/Total

-10℃~40℃

Number of Gangs

Wi-Fi

Material

Dimension

Operating systems

Model

Input

Max.Load

Working temperature

Output

Specifications

SONOFF TECHNOLOGIES CO., LTD. English

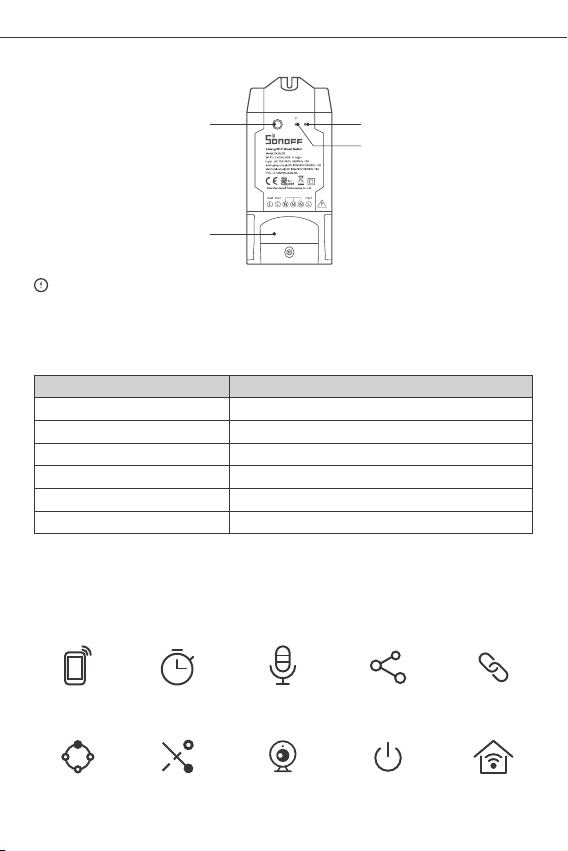

Wi-Fi LED indicator(Blue)

On/oﬀ LED indicator

Pairing button

Wire Fastener Cover

The device weight is less than 1 kg.

The installation height of less than 2 m is recommended.

Wi-Fi LED indicator status instruction

Status instruction

Wi-Fi LED indicator status

Quick Pairing ModeFlashes (one long and two short)

Device is connected successfully

Keeps on

Flashes quickly Compatible Pairing Mode

Unable to discover the router

Upgrading

Connect to the router but fail to connect to Wi-Fi

Flashes quickly once

Flashes quickly three times

Flashes quickly twice

Product Introduction

Features

LAN Control

Power-on State

Inching Mode

Remote Control Single/Countdown

Timing

Share Control Voice Control Smart Scene

Interlock

This device is a 2-gang Wi-Fi smart switch that allows you to remotely turn on/oﬀ the

device, schedule it on/oﬀ or share it with your family to control together.

Camera Linking
