Smithco Spray Star 1761 User manual

Spray Star 1761

(Manual System)

March 2014

Product Support: Hwy SS & Poplar Ave; Cameron WI 54822

1-800-891-9435 productsupport@smithco.com

Operator’s

Introduction Operation Maintenance SprayingProcedure Nozzle Charts Reference

CONTENTS

Introduction.............................................................................................. 1-10

Introduction .................................................................................................1

Symbols.................................................................................................. 2-3

GeneralSafePractices...............................................................................4

Safe Spraying Practices .............................................................................5

Specifications .............................................................................................6

OptionalSpray Equipment...........................................................................6

Set Up .................................................................................................... 7-8

Controls&Instruments .......................................................................... 9-10

Operation.................................................................................................11-17

Schematics............................................................................................. 18-19

HydraulicSchematic .................................................................................18

WiringSchematic......................................................................................19

Spraying Procedure .............................................................................. 20-26

SprayingIntroduction.................................................................................20

TurfManagement ......................................................................................20

Hose& Handgun Spraying ........................................................................21

Nozzles ............................................................................................... 21-22

CalibrationIntroduction .............................................................................23

TheNozzle Chart MethodofCalibration .............................................. 24-25

The“128”MethodofBoomSprayer Calibration................................... 25-26

Nozzle Charts ........................................................................................ 28-33

NozzlePerformance Chart#1 ...................................................................28

NozzlePerformance Chart#2 ...................................................................29

NozzlePerformance Chart#3 ...................................................................30

NozzlePerformance Chart#4 ...................................................................31

NozzlePerformance Chart#5 ...................................................................32

NozzlePerformance Chart#6 ...................................................................33

Reference ............................................................................................... 34-35

AbbreviationsandConversions ................................................................34

DeclarationofConformity

Introduction

PARTS MANUALSAVAILABLE ONLINEATsmithco.com

Information needed when ordering replacement parts:

1. Model Number of machine.

2. Serial Number of machine.

3. Name and Part Number of part.

4. Quantity of parts.

INTRODUCTION

Thank you for purchasing a product.

Read this manual and all other manuals pertaining to the Spray Star carefully as they have safety, operating,

assembly and maintenance instructions. Failure to do so could result in personal injury or equipment damage.

Keep manuals in a safe place after operator and maintenance personnel have read them. Right and left sides

are from the operator’s seat, facing forward.

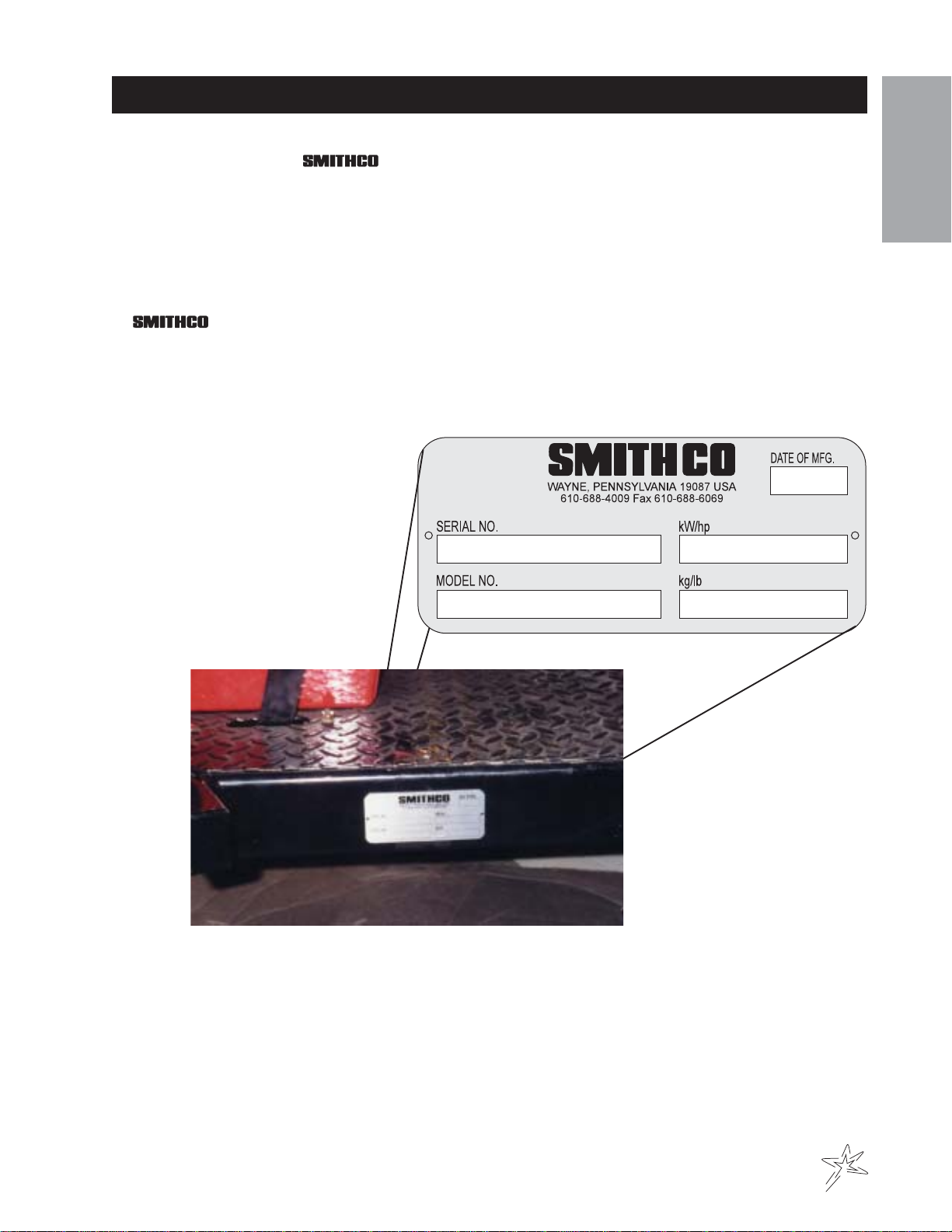

All machines have a Serial Number and Model Number. Both numbers are needed when ordering

parts. The serial number plate on the Spray Star is located on the front left side of the main frame. Refer to

engine manual for placement of engine serial number.

For easy access record your Serial and Model numbers here.

Introduction

PARTSMANUALSAVAILABLEONLINEATsmithco.com

SYMBOLS

Park Brake Park Brake

Release Hydraulic Oil

Level

Choke - OpenChoke - ClosedHand Throttle

Hour Meter Hour Meter Fuse

Glow PlugGlow Plug - OffGlow Plug - On

RPM Gasoline Diesel

Water

Temperature

Light

Engine Oil

Engine - Stop Engine - Start Engine - Run

No Electrical

Power

Electrical Power

Read

Operator’s

Manual

Introduction

PARTS MANUALSAVAILABLE ONLINEATsmithco.com

SYMBOLS

No Smoking Moving Parts Manual

Operation

Pinch Point Step Hot Surface

HydraulicFluid

Penetration Lift Arm Tractor

Engage Disengage PTO

Ground Speed Fast Slow

HHigh LLow FForward

RReverse NNeutral Warning

Danger

Caution

Up/RaiseDown/LowerUp/DownArrow

Introduction

PARTSMANUALSAVAILABLE ONLINEATsmithco.com

SAFEPRACTICES

1. It is your responsibility to read this manual and all publications associated with this machine.

2. Never allow anyone to operate or service the machine or its optional equipment without proper training

and instructions. Never allow minors to operate any equipment.

3. Learn the proper use of the machine, the location and purpose of all the controls and gauges before you

operate the equipment. Working with unfamiliar equipment can lead to accidents.

4. Wear all the necessary protective clothing and personal safety devises to protect your head, eyes, ears,

hands and feet. Operate the machine only in daylight or in good artificial light.

5. Inspect the area where the equipment will be used. Pick up all debris you can find before operating.

Beware of overhead obstructions and underground obstacles. Stay alert for hidden hazards.

6. Never operate equipment that is not in perfect working order or without decals, guards, shields, or other

protective devices in place.

7. Never disconnect or bypass any switch.

8. Carbon monoxide in the exhaust fumes can be fatal when inhaled, never operate a machine without

properventilation.

9. Fuel is highly flammable, handle with care.

10. Keep engine clean.Allow the engine to cool before storing and always remove the ignition key.

11. Disengage all drives and set park brake before starting the engine.

12. Never use your hands to search for oil leaks. Hydraulic fluid under pressure can penetrate the skin and

cause serious injury.

13. This machine demands your attention. To prevent loss of control or tipping of the vehicle:

A. Use extra caution in backing up the vehicle. Ensure area is clear.

B. Do not stop or start suddenly on any slope.

C. Reduce speed on slopes and in sharp turns. Use caution when changing directions on slopes.

D. Stay alert for holes in the terrain and other hidden hazards.

14. Before leaving operator’s position:

A. Disengage all drives.

B. Set park brake.

C. Shut engine off and remove the ignition key.

D. If engine has to run to perform any maintenance keep hands, feet, clothing and all other parts of

body away from moving parts.

15. Keep hands, feet and clothing away from moving parts. Wait for all movement to stop before you clean,

adjust or service the machine.

16. Keep the area of operation clear of all bystanders.

17. Never carry passengers.

18. Stop engine before making repairs/adjustments or checking/adding oil to the crankcase.

19. Use parts and materials supplied by only. Do not modify any function or part.

20. Use caution when booms are down as they extend out beyond the center line of the machine.

21. The tank is a confined space, take precaution.

This machine is intended for turf maintenance. Other use is forbidden.

Introduction

PARTS MANUALSAVAILABLE ONLINEATsmithco.com

SAFESPRAYINGPRACTICES

Personsengaged in thehandling, preparation orapplication of chemicals must followaccepted practices to

insure the safety of themselves and others,

1. WEAR protective clothing including: gloves, hat, respirator, eye protection and skin covering suitable for

protection from chemicals being used.

2. BATHE thoroughly after any exposure to chemicals, giving particular attention to eyes, nose, ears and

mouth.

3. CLEAN equipment and materials in accordance with employer, municipal and state regulations. Use

only approved areas and drains.

4. DISPOSE of chemicals and rinse solutions by approved and legal means.

5. PROVIDE methods and materials for operators to wash eyes and hands immediately during the spray-

ing process.

6. PROVIDE methods and materials for control, safe dilution and neutralization of chemical spills during

preparation, spraying, transporting and cleanup.

7. Always check and follow the directions and safety warnings of the chemicals to be used.

8. Secure the discharge lines before starting the pump.An unsecured discharge line may whip.

9. Periodically inspect the pump and the system components.

10. Check hoses for weak or worn condition before each use. Make certain that all connections are tight and

secure.

11. Do not operate unit with leaks, frayed, kinked hoses or tubing. Repair or replace immediately.

12. Use only pipe, hose and fittings rated for maximum pressure or pressure at which pressure relief valve

is set at. When replacing pipe, hose or fittings, use new product.

13. Do not operate a gasoline engine in an enclosed area. Be sure the area is well ventilated.

14. Do not use these pumps for pumping water or other liquids for human or animal consumption.

15. Do not pump flammable or explosive fluids such as gasoline, fuel oil, kerosene, etc.

Do not use in explosive atmospheres. The pump should be used only with liquids

compatible with the pump component materials.

16. Be sure all exposed moving parts are guarded and that all coupling devices are securely attached before

applyingpower.

17. Before servicing, disconnect all power, make sure all pressure in the system is relieved, drain all liquids

from the system and flush.

18. Protect pump from freezing conditions by draining liquid and pumping rust inhibiting antifreeze solution

through the system, coating the pump interior.

19. TRANSPORT - Machine must be stopped to raise or lower booms. Because of cam system, if booms

areraised in transitthey canfall forward orbackward when coming to astop or whiletraveling onuneven

terrain.

Introduction

PARTSMANUALSAVAILABLE ONLINEATsmithco.com

SPECIFICATIONS

SPRAYSTAR1760

WEIGHTS AND DIMENSIONS

Length 112" (285 cm)

Width 61" (155 cm) Width With Booms Down 230" (584 cm)

Height 50" (127 cm) Height With Booms Up 126" (320 cm)

Wheel Base 60" (152 cm)

Weight Empty 1200 lb (544 kg)

Weight Loaded 2500 lb (1134 kg)

SOUNDLEVEL AT3400RPM

At ear level 84 dB

At 3 ft. (0.914 m) 82 dB

At 30 ft (9.14 m) 68 dB

At 23 ft (7 m) pass by 70 dB

ENGINE

Make Kohler

Model# Command CH20S

Type / Spec# 64558

Horsepower 20.5 hp (15.08 kW)

Fuel Unleaded 87 Octane Gasoline Minimum

Cooling System Air cooled

Lubrication System Full pressure

Alternator 25 Amp

WHEELS&TIRE Front (2) 20 x 1000 x 10 Multi-rib 20 psi (1.4 bar)

Rear (2) 24 x 1300 x 12 Super Soft 18 psi (1.3 bar)

Ground Pressure: 8.2 psi with 160 gallons

SPEED

Working Speed 1st gear 0-3 m.p.h. (0-5 kph)

2nd gear 2-6 m.p.h. (3-10 kph)

Transport Speed 3rd gear 4-10 m.p.h. (6-16 kph)

Reverse Speed 0-3 m.p.h. (0-5 kph)

BATTERY Automotive type 24F-12 volt

BCI Group Size 24

Cold Cranking Amps 575 minimum

Ground Terminal Polarity Negative (-)

Maximum Length 10.25" (26 cm)

Maximum Width 6.88" (17 cm)

Maximum Height 10" (25 cm)

FLUID CAPACITY

Crankcase Oil 2.1 quart (2 liters) with filter

Fuel 6 gallon (22.7 liters)

Hydraulic Fluid 1 gallon (3.785 liters)

Grade of Fluid SAE 10W-40API Service SJ or higher motor oil

OPTIONALSPRAYEQUIPMENT

30-006 Fresh Water Wash Tank 14-600 Chemical Cleanload for 1761

14-601 Chemical Cleanload for 1762 14-602 Chemical Cleanload for 1764

14-603 Hose Reel Mount Kit 15-835 Tank Rinsing System

14-515 Water Meter Kit (gallons) 15-618 Water Meter Kit (liter)

17-585 18.5 ft HD Super Boom 17-601 15 ft HD Super Boom

14-283 Foam Marker System (Factory Installed) 14-585 Roll Bars

14-285 Foam Marker System (Dealer Installed)

16-906 Electric Rewind Hose Reel, 200-ft/61m 16-129 Manual Rewind Hose Reel, 200-ft/61m

Introduction

PARTS MANUALSAVAILABLE ONLINEATsmithco.com

SETUP

TheModel 1760Prime Moverarrives from setupand readyfor service. Dependingon freightcondi-

tions the tires, wheels and steering wheel may need to be installed.

The spray system is normally shipped attached to the 1760 Prime Mover. If a spray system is to be retrofitted to

a 1760 Prime Mover by a dealer or owner, assemble and attach the components in accordance with the parts

drawingsin theSpray Star 1760Parts/Service Manual.

1. Removethe top and sides fromthe shippingcrate then removethe bandingfrom the SprayStar.

Banding is under tension.

2. Lift front end using a hydraulic jack, taking care that the jack is not placed in a

location that would damage any steering system components, install front

wheels and torque nuts to 64-74 ft/lb (87-100 Nm). Then raise rear axle

using a hydraulic jack and install rear wheels and tires, torque lug nuts

to 64-74 ft/lb (87-100 Nm). Torque again after the first 10 hours and

every 200 hours thereafter.

3. Set park brake.

4. Check the tire pressure. The front tires are 20 psi (1.4 bar) and

the rear tires are 18 psi (1.3 bar).

5. Remove the tape holding woodruff key (Ref B) to the shaft. Put

steering wheel (RefA) on the shaft of the steering mechanism

(Ref C). Tighten nut to 30-40 ft/lb (41 - 54 Nm). Do not over

tighten.

6. Install the seat with the stud going through the engine cover and the flat washers, lock washers and

nuts. Use the front set of holes for shorter drivers and use the back set of holes for taller drivers.

7. Be sure battery (automotive type 24F-12 volt; 575 cold cranking

AMPS minimum; 10.25" (260 mm) long x 6.88" (175 mm) wide x

10" (254 mm) high maximum case) is installed in proper position

in the battery box, which is located on the left side of the engine

compartment. Battery posts should be to the rear. This is a

negative grounding system.

Connecting battery cables to the wrong post could

result in personal injury and/or damage to the electrical

system. Make sure battery and cables do not interfere or

rub on any moving part. Connect red positive (+) cable

(A) to battery first. When disconnecting remove black

negative (-) cable (B) first.

8. Check the engine oil and add as necessary. The dip stick is located in cutout hole behind the seat on the

left side. Oil fill is located on top of valve cover, use SAE 10W-40API Service SJ or higher motor oil. DO

NOT OVERFILL.

9. Fill fuel tank, located on right side, with Unleaded 87 Octane gasoline (minimum).

Gasoline is flammable, caution must be used when storing or handling it. Do not fill fuel tank

while engine is running or an enclosed area, fumes are explosive and dangerous to inhale.

DO NOT SMOKE while filling the fuel tank. DO NOT OVERFILL.

Introduction

PARTSMANUALSAVAILABLE ONLINEATsmithco.com

SETUP

(CONTINUED)

10. Checkbrake fluid inmaster cylinderby removing roundplug onfloorboard.Addbrake fluidif necessary.

DOT 3.

11. Check hydraulic fluid. The hydraulic power unit is located between the engine and the spray tank on the

left hand side. Remove breather plug and add SAE 10W-40 API Service SJ or higher motor oil if neces-

sary. Fluid level should be about 1.5" (38 mm) below top of tank when cold.

12. Check the transmission fill plug on the right hand side of the transmission and check the rear axle fill

plug located on the back side. They should be filled with SAE 80W-90 Gear Lube API Service GL-5, GL-

4 so that the level is even or a little below the bottom of the fill hole.

13. Machine shouldbe greasedbefore starting,refer to SprayStar1760 Parts/ServiceManualfor location.

14. Attach the Spray Boom and any other Optional Equipment to the Prime Mover, in accordance with

instructions in the Spray Star 1760 Parts/Service Manual. The nozzles must be the correct distance

above the turf as described in Spraying Procedure of this manual. The spray boom must operate

properly and the outer sections must break away safely if an object is struck by them, they must then

return to normal operation position.

15. Be sure to double check boom heights, nozzle spacing and displacement before spraying.

16. Fill tank with water and retighten the four bolts used to hold the tank in place.

17. Read operating instructions before starting.

Never allow pump to run dry! The valve on the suction side of the pump (between the pump

and tank) must be fully open whenever the pump is operated.

DAILYCHECKLIST

1. Check park brake adjustment. Adjust as required.

2. Check engine oil level. Add as needed. DO NOT OVERFILL.

3. Tire pressure should be 20 psi (1.4 bar) front and 18 psi (1.3 bar) rear maximum.

4. Inspect electrical system for loose connections or frayed wiring, including battery cables. Replace any

faulty equipment or tighten if loose.

5. Check hardware for loose or missing nuts, bolts, screws, etc., and tighten or replace as needed.

6. Inspect hydraulic lines for damage or leaks. Never use hands to inspect leaks.

7. Check brake fluid in master cylinder by removing round plug on floorboard. Add DOT 3 brake fluid if

necessary.

8. Check hydraulic fluid. The hydraulic power unit is located between the engine and the spray tank on the

left side. Remove breather plug and add SAE 10W-40API Service SJ or higher motor oil if necessary.

Fluid level should be about 1.5" (4 cm) below top of tank when cold.

9. Check the transmission fill plug on the right side of the transmission and check the rear axle fill plug

located on the back side. They should be filled with SAE 80W-90 Gear Lube API Service GL-5, GL-4 so

that the level is even or a little below the bottom of the fill hole.

10. Inspect steering, throttle and shift linkages for good hookups and clear travel.

11. Check anti-vibration mounts on engine frame.

12. Check controls for smooth, proper working operation. Lubricate as needed.

Table of contents

Other Smithco Paint Sprayer manuals

Smithco

Smithco Spray Star 1750 Series Quick start guide

Smithco

Smithco Spray Star 1750D Quick start guide

Smithco

Smithco 300G600 Quick start guide

Smithco

Smithco SPRAY STAR 1002 User manual

Smithco

Smithco Spray Star 1011 User manual

Smithco

Smithco Spray Star 3180 Quick start guide

Smithco

Smithco Spray Star 1710 User manual

Smithco

Smithco Spray Star 1750 Series User manual

Smithco

Smithco 300G255 Quick start guide

Smithco

Smithco Spray Star 2002 User manual

Smithco

Smithco Spray Star 3182 with Raven 440 System User manual

Smithco

Smithco 31-185-A Quick start guide

Smithco

Smithco Spray Star 1750 Series Quick start guide

Smithco

Smithco spray star 1008 Quick start guide

Smithco

Smithco V62-V Quick start guide

Smithco

Smithco 32-500 User manual

Smithco

Smithco 2000D Quick start guide

Smithco

Smithco Spray Star 3000 User manual

Smithco

Smithco Spray Star 2000 User manual

Smithco

Smithco SweepStar 48 Quick start guide

Smithco

Smithco Sweep Star 48H Quick start guide

Smithco

Smithco Spray Star 3184 with Raven 203 System User manual

Smithco

Smithco Spray Star 1764 User manual

Smithco

Smithco Star 1015 User manual

Popular Paint Sprayer manuals by other brands

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Operator's manual

Graco

Graco 246737 Repair and parts

Binks

Binks SV100 Service manual

Fimco

Fimco LG-4-3-1 owner's manual

AG SPRAY

AG SPRAY FS-ATV-25BL owner's manual

Nordson

Nordson MicroMax 2 manual

Bonide

Bonide 051 Operation and service instructions

zogics

zogics Z-DAS instruction manual

KISANKRAFT

KISANKRAFT KK-KBS-165 Operation manual

Matrix

Matrix SG 650 Translation of the original instructions

Anest Iwata

Anest Iwata SGA-3 Installation, use & maintenance instruction manual

paasche

paasche VV Instructions and parts list

Carlisle

Carlisle DeVilbiss JGA-510 Service manual

Gardena

Gardena 11120 Operator's manual

Conrad

Conrad Hobby Airbrush K3 operating instructions

wiwa

wiwa 14025 R/F operating manual

Graco

Graco EM 390 Instructions-parts list

DeVilbiss

DeVilbiss LUNA2i Operation manual
