Smeg SWM834E User manual

LAVABIANCHERIA

MANUALE DELL’UTENTE

WASHING MACHINE

USER MANUAL

mode d’emploi de machine

à laver électronique

SWM834E

SWM840E

SWM86E

THE CONTENTS

SECTION 1:BEFORE USING

xSafety warnings

xRecommendations

SECTION 2:INSTALLATION

xRemoval of transportation screws

xAdjustment of feet

xElectrical connection

xWater supply connection

xWater drain connection

SECTION 3:TECHNICAL SPECIFICATIONS

SECTION 4:CONTROL PANEL

xStart/Pause button

xFunction indicator lights

xFunction buttons

xSpin speed selector

xProgram knob

SECTION 5:WASHING YOUR LAUNDRY

xBefore washing

xRunning the machine

SECTION 6:MAINTENANCE AND CLEANING

xWater inlet filters

xPump filter

xDetergent drawer

xSiphon plug

xThe cabinet

xThe drum

xRemove of your machine from lime

SECTION 7: PRACTICAL INFORMATION

SECTION 8:AVOIDING MINOR FAULTS

SECTION 9:AUTOMATIC FAILURE DETECTION SYSTEM

SECTION 10:INTERNATIONAL WASHING SIGNS

SECTION 1:BEFORE USING

SAFETY WARNINGS

Do not use a multiple socket or extension cord.

xDo not insert a plug with damaged or broken cord into the socket.

xIf the cord is damaged it should be replaced by the manufacturer or

appointed service agent in order to avoid a hazard.

Never remove the plug from the socket by pulling from the cord

section. Remove the plug by holding.

Do not plug the power supply with wet hands.

Never touch the machine with wet hands or feet.

Never open the detergent drawer while the device is running.

Never force to open the door of the machine while the machine is

running.

Since the machine can reach high temperatures while running, do not

touch the drain hose and water during draining.

In case of any failure, first unplug the device and close the water tap.

Do not attempt to repair.Please apply to the nearest authorized

service station.

Do not forget that the packing material of your machine may be

hazardous for children.

Do not let your children play with the washing machine.

Keep your pet away from your machine.

Your machine should only be used by adults within the information

written in this manual.

Your machine is designed for use in house environment. Warranty

will be invalid if you use it for commercial purposes.

The appliance should not be put on a carpet which can block the air

ventilation on the bottom side.

RECOMMENDATIONS

The detergent or softener in contact with air for a long time will dry

and stick to your detergent drawer.To avoid this put your detergent

and softener into the detergent drawer just before washing.

It is recommended that you use pre-washing program for only very

dirty clothes.

Please do not exceed the maximum loading capacity.

The appliance is not intended for use by people (including children)

with reduced physical,sensor yor mental capabilities , or lack of

experience and knowledge , unless they have been given supervision

or instruction concerning use of the appliance by a preson

responsible for their safety.Children should be supervised to ensure

that they don’t play with the appliance.

If you will not use your machine for a long time, unplug your machine,

close the water supply and leave the door open in order to keep the

inside of the machine dry and for prevention from unpleasant odour.

As a result of the quality control procedures, a certain amount of

water may remain in your machine. This is not harmful for your

machine.

SECTION 2: INSTALLATION

You must pay attention to the following issues before using your washing

machine.

REMOVAL OF TRANSPORTATION SCREWS

Transportation screws, which are located at the back side of the

machine, must be removed before running the machine.

Loosen the screws by rotating counterclockwise by a suitable wrench.

(DIAGRAM-1)

Remove the screws by pulling them.(DIAGRAM-2)

To the holes where the transport screws have been removed, insert

the plastic transport screw taps found in the accessories bag.

(DIAGRAM-3)

The transportation screws, that have been removed from the machine

should be kept in hand for any other transportation necessities.

DIAGRAM-2

DIAGRAM-1 DIAGRAM-3

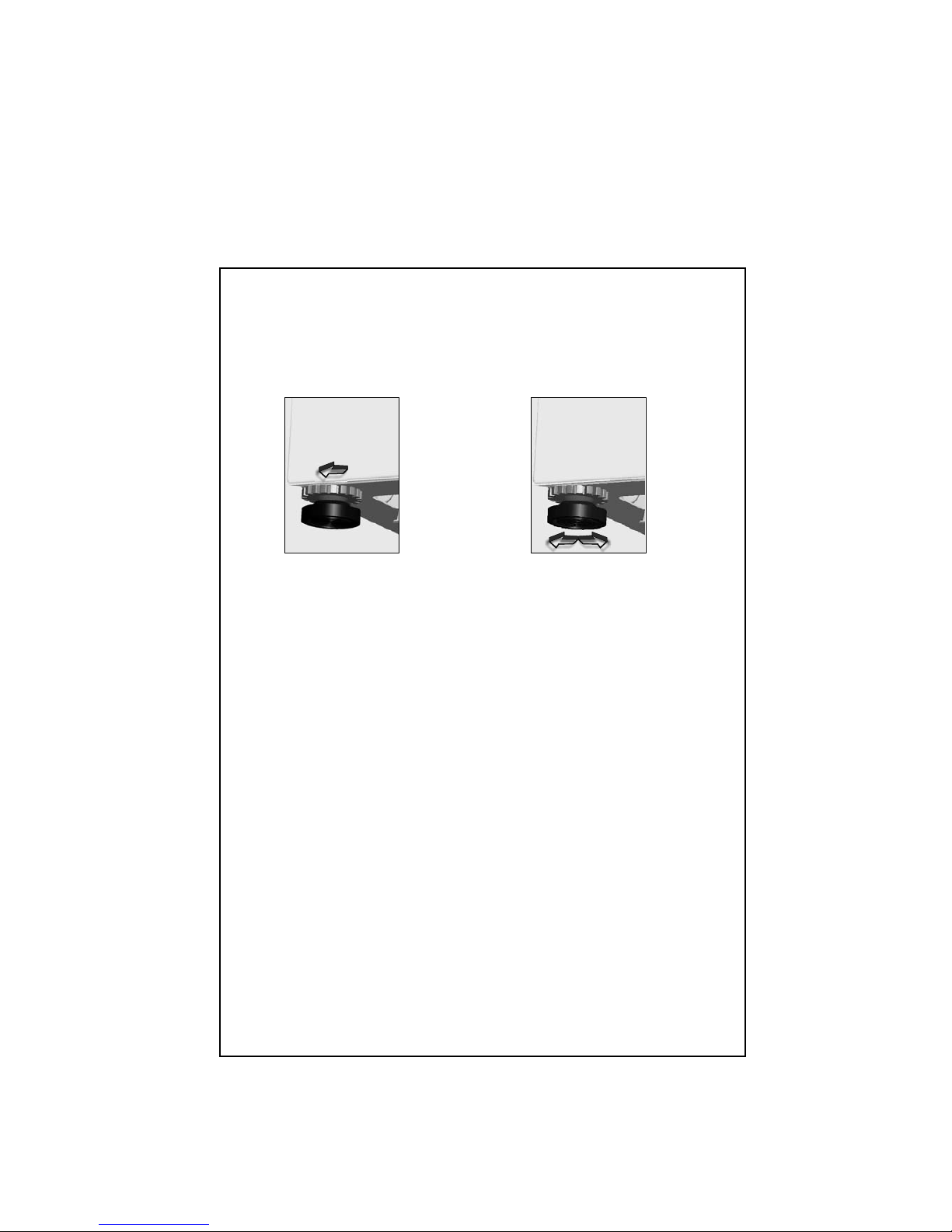

ADJUSTMENT OF FEET

Do not install your machine on rugs or similar surfaces.

For your machine to work silently and without any vibration, it should

be settled on a flat, non-slippery and tough ground.

You can adjust the balance of your machine from its feet.

First, loosen the plastic adjustment nut.

Adjust by rotating the feet upwards or downwards.

After the balance has been reached, tighten the plastic adjustment

nut again by rotating it upwards.

Never put cartons, wooden blocks or similar materials under the

machine to balance the irregularities on the level of the ground.

ELECTRICAL CONNECTION

Your washing machine works with 220-240V and 50Hz.

A special grounded plug has been attached to the network cable of

your washing machine. This plug must definitely be inserted to a

grounded socket with 10 ampere. The fuse flow value of the

electricity line attached to this should also be 10 ampere. If you have

no such sockets and fuses in your house, let it be made by a qualified

electrician.

xOur company will not be responsible for any damages that may

occur as a result of usage without grounding.

xInsert the machine’s plug to a grounded socket which you can

easly reach.

WATER SUPPLY CONNECTION

xDepending on the features your machine,may be with single water

inlet(cold) or double water inlet (cold/hot). The white headed hose is

for cold water inlet and red headed hose is for hot water inlet (valid

for machines with hot&cold water inlet).

xTo prevent leakage from the connection joints, 1 (valid for cold water

inlet) or 2 (valid for machines with hot&cold water inlet) seals are

included in the hose packing. Fit these seals at the end of water inlet

hoses on the tap side.

xConnect the white headed hose to the water inlet valve with white

filter and connect the red headed hose to the water inlet valve with

red filter (latter is valid in machines with hot&cold water inlet). Tighten

the plastic parts of the connections with your hand.Please call a

qualified plumber for safer connections.

xWater pressure of 0,1-1 MPa from your tap will enable your machine

to work more efficiently.(0,1 MPa pressure means water flow of more

than 8 liters in 1 minute from a fully opened tap)

xAfter connections are completed, check for the non-leakage of the

connection joints by turning on your tap completely.

xBe sure that water inlet hoses are not folded, broken or crushed.

xMount the water inlet hoses to a 3”/4, geared water tap.

Cold water inlet (White filter valve)

Hot water inlet (Red filter valve)

WATER DRAIN CONNECTION

xBe sure that water inlet hoses are not folded, twisted, crushed or

elongated by stretching.

xWater drain hose should be mounted at a height of minimum 60 cm,

maximum 100 cm from the ground.

xThe end of the water drain hose may directly be fitted to the dirty

water outlet hole or a special apparatus mounted on the outlet

bracket of the wash-stand.

xNever attempt to extend the water drain hose by adding extra parts.

SECTION 3:TECHNICAL SPECIFICATIONS

SWM834E SWM840E SWM86E

Maximum dry

laundry capacity

(kg) 456

Recommended

loading (kg) 3,5 4,5 5,5

Height (cm) 85 85 85

Width (cm))59,6 59,6 59,6

Depth (cm) 37 42 54

Maximum spin

cycle ( rpm ) 800 800 800

(*) Maximum spin cycles depend on the model you’ve chosen

SECTION 4:CONTROL PANEL

1 2 3 4 5 6

7 8 9

1-Detergent drawer 6-Start/pause light

2-Program knob 7-Program ready light

3-Program end light 8-Function buttons

4-Spin speed selector 9-Start/pause button

5-Function indicator lights

START/PAUSE BUTTON

Used to start a selected program or pause during running.

WARNING!

It is required for the program knob to be brought to O(off)

position before selecting the program or changing a continuing

program.

FUNCTION INDICATOR LIGHTS

When the start/pause button or any function button is pressed,the

corresponding light turns on.The light turns off when the function

button or start/pause button is re-pressed, or when the process

the selected function is completed.

The function indicator lights are also used in failure detection system

mentioned in section 9.

FUNCTION BUTTONS

Rinse hold

This function is recommended to be used when the clothes cannot

be taken immediately after the end of the program.This will

prevent occurrence of wrinkles. When this button is pressed, the

last rinsing water is not drained. For the program to continue from

the same point, repress the same button.

If you do not want your sensitive clothes to be spinned or you

want them to be spinned sensitively, turn the program knob to O

(off) position. Bring the program knob on one of the draining or

spinning programs you desire and press the start/pause

button. If the program you have selected is a drain program, your

machine will draining the water inside.If you have selected a

spinning program, your machine will perform a spinning operation

and then end the program.

Extra rinse

You can have one more rinsing done in addition to the rinses

which your machine has made in all washing programs by using

this function.

Easy ironing

By using this function, you can ensure your clothes to come out

less wrinkled after the washing.

WARNING!

Functions vary depending on the model you have chosen.If you

forgot to use additional function and your machine starts to wash

push the additional function button. If the indicator light is on the

additional function will be activated, if not, the additional function

cannot be activated.
