Sitecom WL-346 User manual

WL-346

Wireless Broadband

modem/router 150N

(ADSL2+, 802.11B/G/N draft 2.0)

User Manual

Version: 1.0

TABLE OF CONTENTS

1KEY FEATURES ................................................................................................................................... 4

2PACKAGE CONTENTS ...................................................................................................................... 5

3PRODUCT LAYOUT ............................................................................................................................ 6

4NETWORK + SYSTEM REQUIREMENTS ..................................................................................... 8

5WL-346 PLACEMENT ......................................................................................................................... 8

6SETUP LAN WAN ................................................................................................................................ 9

7PC NETWORK ADAPTER SETUP (WINDOWS XP) ................................................................... 10

8BRINGING UP THE WL-346 ............................................................................................................ 12

9 INITIAL SETUP WL-346 .................................................................................................................. 12

10 CONFIGURATION WIZARD ........................................................................................................ 22

11 WIRELESS SETTINGS ................................................................................................................... 24

12 FIREWALL SETTINGS .................................................................................................................. 35

13 ADVANCED SETTINGS ................................................................................................................ 41

14 TOOLBOX SETTINGS .................................................................................................................. 53

Introduction

Con ratulations on your purchase of the WL-346 Wireless Network Broadband

modem/Router. The WL-346 is compliant with draft 802.11n v2.0 and up to 6

times faster than standard 802.11 based routers while still bein compatible

with 802.11 & 802.11b ad ets. The WL-346 is not only a Modem or

Wireless Access Point, but also doubles as a 4-port full-duplex Switch that

connects your wired-Ethernet devices to ether at.

For data protection and privacy, the WL-346 encodes all wireless

transmissions with WEP, WPA, and WPA2 encryption.

With an inbuilt DHCP Server & powerful SPI firewall the WL-346 protects your

computers a ainst intruders and most known Internet attacks but provides

safe VPN pass-throu h.

1Key Feat res

Features Advanta es

Incredible Data Rate up to

150Mbps**

Heavy data payloads s ch as

MPEG video streaming

IEEE 802.11n draft 2.0 Compliant

and backward compatible with

802.11b/

F lly Interoperable with IEEE

802.11b / IEEE802.11g

compliant devices with legacy

protection

Four 10/100 Mbps Fast Switch Ports

(Auto-Crossover)

Scalability, extend yo r network.

Firewall supports Virtual Server

Mappin , DMZ, IP Filter, ICMP

Blockin , SPI

Avoids the attacks of Hackers or

Vir ses from Internet

Support 802.1x authenticator,

802.11i (WPA/WPA2, AES), VPN

pass-throu h

Provide m t al a thentication

(Client and dynamic encryption

keys to enhance sec rity

Integrated modem (Annex A) F lly compatible with the

fastest ADSL2+ connections p-

to-date.

** Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset

used. Actual throughput ma var . Network conditions and environmental factors

lower actual throughput rate. All specifications are subject to change without notice.

2 Package Contents

Open the packa e carefully, and make sure that none of the items listed

below are missin . Do not discard the packin materials, in case of return;

the unit must be shipped back in its ori inal packa e.

1. WL-346 modem/router

2. 220V ~ 240V Power Adapter

3. Quick Install Guide

4. CD (User’s Manual)

5. Warranty card

6. UTP cable

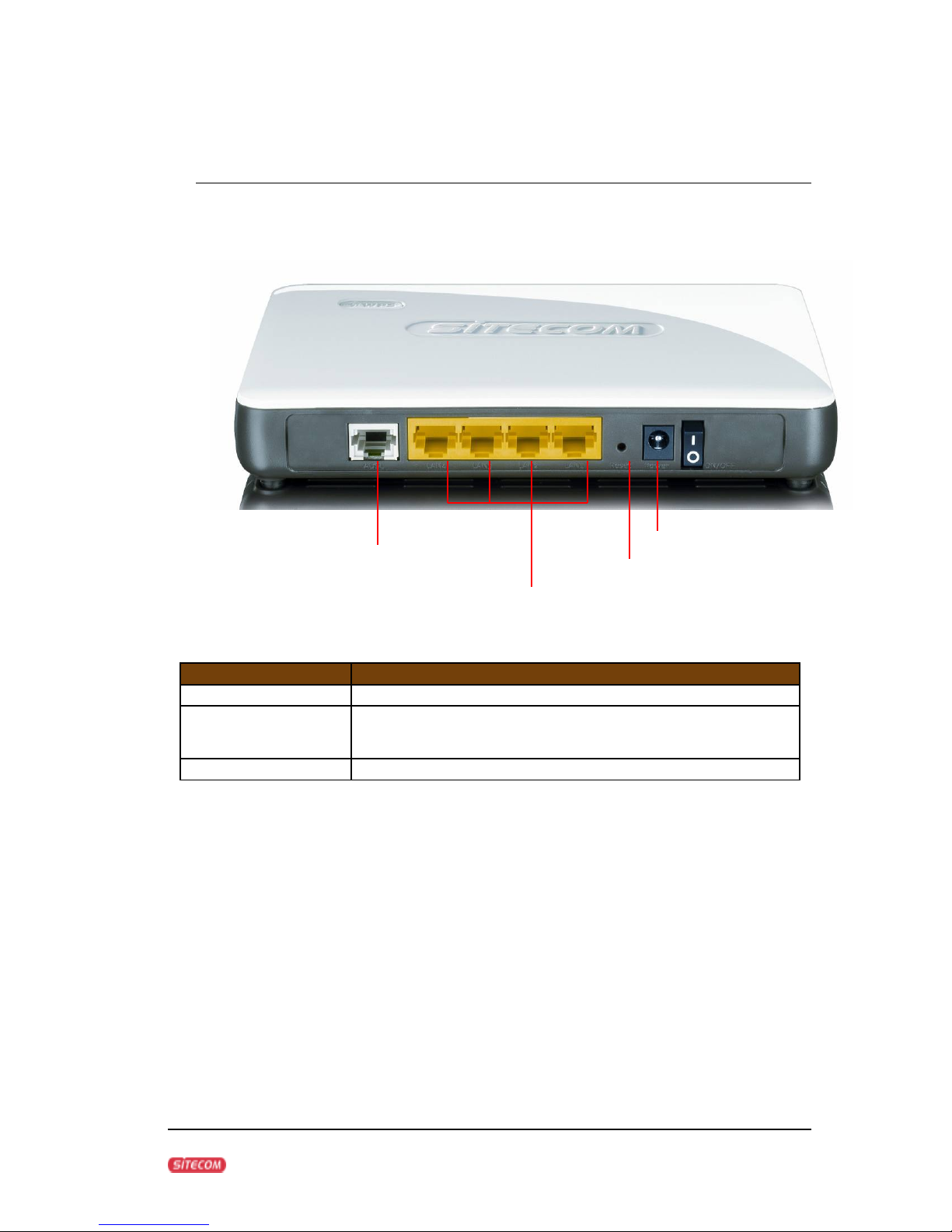

3 Prod ct Layo t

Port Description

ADSL Connect your telephone/ADSL cable this port

LAN

Connect the cable from your PC’s or network

devices to this port

Power connector Blinks on traffic for specific LAN PORT

Reset button

Power connector

LAN / computer connections

Modem connection

Front panel

The front panel describes the correspondin LED indications and port

functionality.

LED Description

POWER Li hts up when powered ON. Blinks

on TEST/RESET

Wan Li hts up when an ADSL cable is

connected.

Online Li hts up when internet connection is

UP.

WLAN Li hts up in Blue when WLAN is

enabled. Blinks on traffic

WPS Blinks when WPS mode is on

Lan1 - Lan4 When a lan cable is connected the

correspondin li ht li hts up.

4Network + System Req irements

To be in usin the WL-346, make sure you meet the followin as

minimum requirements:

•PC/Notebook.

•Operatin System – Microsoft Windows XP/2000/VISTA

•1 Free Ethernet port.

•Wi-Fi card/USB don le (802.11 b/ /n) – optional.

•Annex A, ADSL internet connection.

•PC with a Web-Browser (Internet Explorer, Safari, Firefox, Opera)

•Ethernet compatible CAT5 cables.

5WL-346 Placement

You can place the WL-346 on a desk or other flat surface, or you can

mount it on a wall. For optimal performance, place your Wireless

Broadband Modem/Router in the center of your office (or your home)

in a location that is away from any potential source of interference,

such as a metal wall or microwave oven. This location must be close to

a power connection and the ADSL/phone line should not be over 2

meters lon .

6 Set p LAN, WAN

LAN / computer connectionsModem connection

7PC Network Adapter set p

(Windows XP)

•Enter [Start Menu]  select [Control panel]  select [Network].

•Select [Local Area Connection]) icon=>select [properties]
