Sitecom WL-366 User manual

WL-366

Wireless Broadband Router

(802.11b/g/n)

User Manual

TABLE OF CONTENTS

1KEY FEATURES ................................................................................................................................... 4

2PACKAGE CONTENTS ...................................................................................................................... 5

3PRODUCT LAYOUT ............................................................................................................................ 6

4NETWORK + SYSTEM REQUIREMENTS ..................................................................................... 8

5WL-366 PLACEMENT ......................................................................................................................... 8

6SETUP LAN WAN ................................................................................................................................ 9

7PC NETWORK ADAPTER SETUP ................................................................................................. 10

8BRINGING UP THE WL-366 ............................................................................................................ 14

9 INITIAL SETUP WL-366 .................................................................................................................. 14

10 CONFIGURATION WIZARD ........................................................................................................ 22

11 WIRELESS SETTINGS ................................................................................................................... 24

12 FIREWALL SETTINGS .................................................................................................................. 35

13 ADVANCED SETTINGS ................................................................................................................ 41

14 TOOLBOX SETTINGS .................................................................................................................. 47

Revision: 1

Introduction

Congratulations on your purchase of the WL-366 Wireless Networ Broadband

Router. The WL-366 is compliant with 802.11n v2.0 and up to 6 times faster

than standard 802.11g based routers while still being compatible with 802.11g

& 802.11b devices. The WL-366 is not only a Wireless Access Point, but also

doubles as a 4-port full-duplex Switch that connects your wired-Ethernet

devices together.

At 300 Mbps wireless transmission rate, the Access Point built into the Router

uses advanced MIMO (Multi-Input, Multi-Output) technology to transmit

multiple streams of data in a single wireless channel, giving you seamless

access to multimedia content. Robust RF signals travel farther, eliminating dead

spots and extending networ range. For data protection and privacy, the WL-

366 encodes all wireless transmissions with WEP, WPA, or WPA2 encryption.

With an inbuilt DHCP Server & powerful SPI firewall the WL-366 protects your

computers against intruders and most nown Internet attac s but provides safe

VPN pass-through. With the incredible speed and the QoS function of 802.11n,

the WL-366 is ideal for media-centric applications li e streaming video, gaming,

and VoIP telephony to run multiple media-intense data streams through the

networ at the same time, with no degradation in performance.

1Key Features

Features Advantages

Incredible Data Rate up to

300Mbps*

Heavy data payl ads such as

MPEG vide streaming

IEEE 802.11n draft 2.0 Compliant

and bac ward compatible with

802.11b/g

Fully Inter perable with IEEE

802.11b / IEEE802.11g

c mpliant devices with legacy

pr tecti n

Four 10/100 Mbps Fast Switch Ports

(Auto-Crossover)

Scalability, extend y ur

netw rk.

Firewall supports Virtual Server

Mapping, DMZ, IP Filter, ICMP

Bloc ing, SPI.

Av ids the attacks f Hackers

fr m Internet.

Support 802.1x authenticator,

802.11i (WPA/WPA2, AES), VPN

pass-through

Pr vide mutual authenticati n

(Client and dynamic encrypti n

keys t enhance security)

WDS (Wireless Distributi n

System)

Make wireless AP and Bridge

m de simultane usly as a

wireless repeater.

* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used.

Actual throughput ma var . Network conditions and environmental factors lower actual

throughput rate. All specifications are subject to change without notice.

2 Package Contents

Open the pac age carefully, and ma e sure that none of the items listed below

are missing. Do not discard the pac ing materials, in case of return; the unit

must be shipped bac in its original pac age.

1. WL-366 Router

2. 220V~240V Power Adapter

3. Quic Install Guide

4. CD (User’s Manual)

5. Warranty card

6. UTP cable

3 Product Layout

Port Description

Power connector Connect the DC adapter here.

WAN[Blue] Connect the cable from your ADSL/Cable modem

to this port.

LAN[Yellow] Connect the cable from your PC’s or networ

devices to this port.

Back label

The bac label describes the corresponding LED indications and port

functionality.

LED Description

WLAN

Lights up in yellow when WLAN is enabled, blin s

yellow when WPS is set and lights up blue when

WLAN is connected.

LINK/ACTIVY Blin s on traffic for specific LAN PORT

WAN

Lights up in yellow when WAN port is connected,

lights up in blue when internet connection is

established.

WPS BUTTON

Press 2 seconds for WPS mode

Press 10 seconds to reset the router

Press 15 seconds to reset the router to factory

defaults.

4Network + System equirements

To begin using the WL-366, make sure you meet the following as minimum

requirements:

•C/Notebook.

•Operating System – Microsoft Windows X /2000/VISTA/7.

•1 Free Ethernet port.

•WiFi card/USB dongle (802.11 b/g/n) – optional.

•External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45).

•C with a Web-Browser (Internet Explorer, Safari, Firefox, Opera).

•Ethernet compatible CAT5 cables.

5WL-366 Placement

You can place the WL-366 on a desk or other flat surface, or you can mount it on a

wall. For optimal performance, place your Wireless Broadband Router in the center

of your home (or your office) in a location that is away from any potential source of

interference, such as a metal wall or microwave oven. This location must be close

to a power connection and your ADSL/Cable modem.

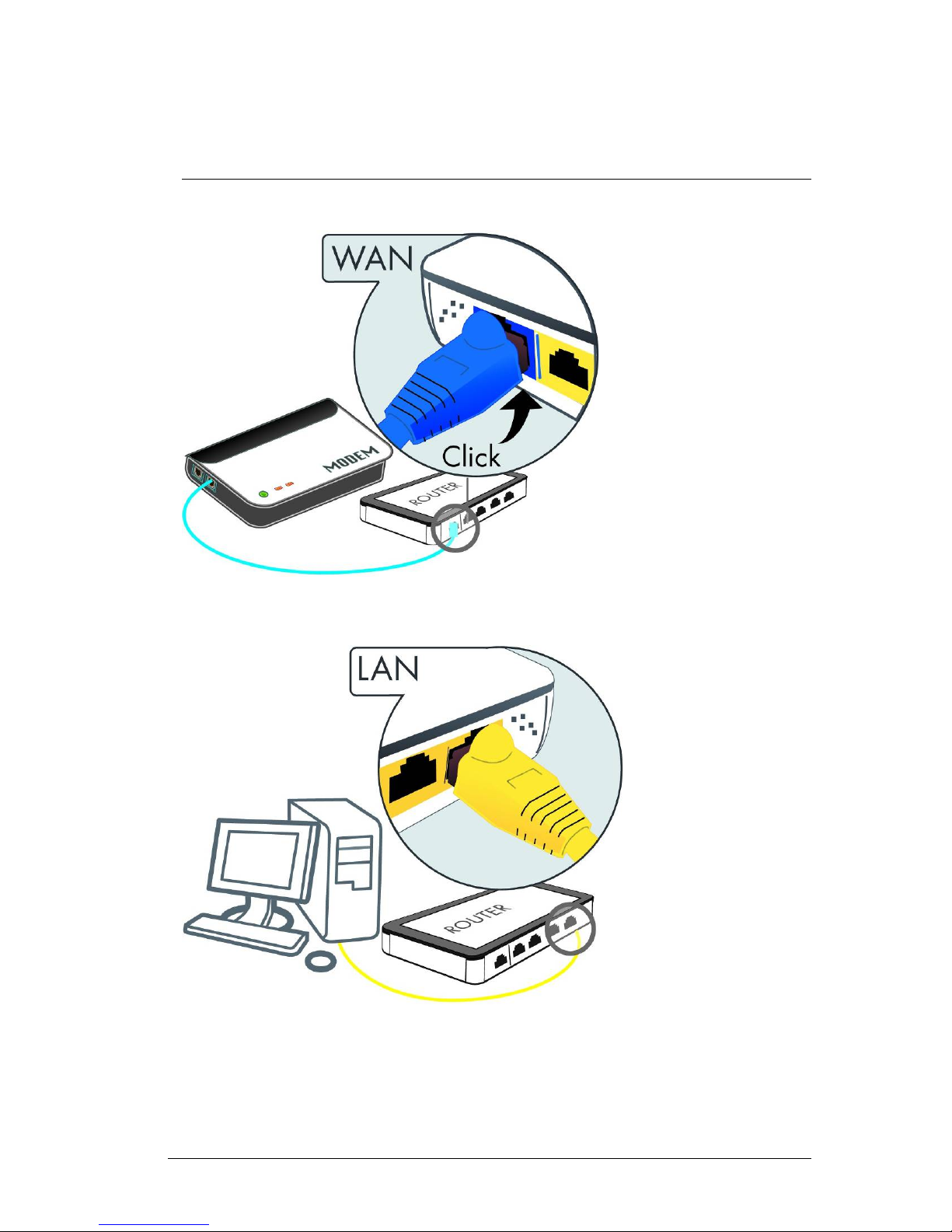

6Setup LAN, WAN

WAN connection:

LAN connection:

7 PC Network Adapter setup

Windows XP

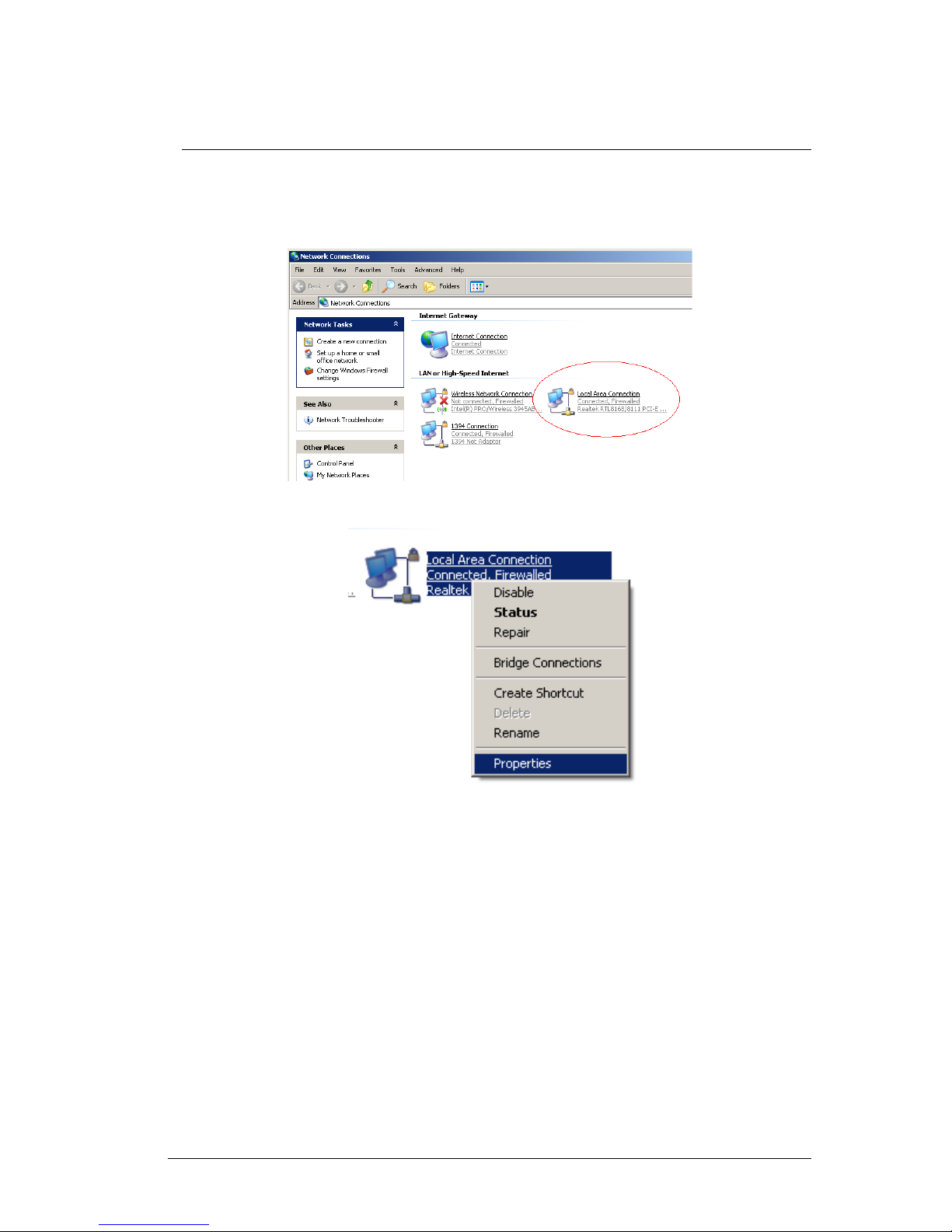

•Enter [Start Menu]  select [Control panel]  select [Networ ].

•Select [Local Area Connection]) icon=>select [properties]
