SIRETTA routeCONNECT MICA LTE Quick user guide
MICA Series
3G & 4G Industrial Router Range
Hardware Reference Manual
Rev 1.5
A member of the Olancha Group Ltd
Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
fax
email
web
+44(0)118 976 9014
+44(0)118 976 9020
www.siretta.co.uk
2
MICA Series
Hardware Reference Manual
Table of Contents
Page
Introduction 3
About Siretta 4
General Description 5
Features 6
Specications 6
MICA Series Interface 7
Ordering Information 8
Dimensions 9
MICA Series Images 10
MICA Series LED Indicators 11
Interfaces 12
LAN / WAN Port 12
SIM Socket 13
SIM Requirements 13
Antenna Connectors 14
Main Antenna Connector 15
GPS Antenna Connector 15
WiFi Antenna Connector 15
GPS 16
GPS Performance (MICA-G Variants) 16
WiFi 16
WiFi Performance (MICA-W Variants) 16
Power 17
Power Connector 17
Power Supply Requirements 18
Switching the Router ON/OFF 18
Installation 19
Considerations for Installations
Incorporating the Router
19
Power Supply Installation 20
Securing the Router 20
Safety and Product Care 21
General Precautions 21
SIM Card Precautions 21
Antenna Precautions 22
Exposure to RF Energy 22
Safety Recommendations 24
Approvals 25
Disclaimer 26
Denitions 27
A member of the Olancha Group Ltd
Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
fax
email
web
+44(0)118 976 9014
+44(0)118 976 9020
www.siretta.co.uk
3
MICA Series
Hardware Reference Manual
This document is intended to provide guidance when adding a router from the
routeCONNECT MICA Series to your system.
The MICA Series is a range of UMTS / LTE routers enabling mobile broadband and
machine to machine (M2M) industrial communication.
This document is aimed at engineers and describes the electrical characteristics,
hardware and software operation of the MICA router.
Introduction
A member of the Olancha Group Ltd
Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
fax
email
web
+44(0)118 976 9014
+44(0)118 976 9020
www.siretta.co.uk
4
MICA Series
Hardware Reference Manual
Siretta, located in Reading, United Kingdom have been manufacturing antennas,
cable assemblies and cellular modems for over 10 years. We supply our products
globally to many of the world’s leading organisations.
Whether you require an off the shelf or custom solution, Siretta has a wide portfolio of
antenna, RF cable assemblies and modems to t your application.
Our extensive knowledge and experience in the wireless market allows us to support
a wide range of customer applications, focusing on frequencies typically within the
75MHz - 5.8GHz range. These encompass the HF, VHF, ISM, GSM/GPRS/3G/4G
and GPS frequencies as well as industrial WLAN and VHF/UHF antenna/Wi-Fi
antenna solutions.
With a heavy emphasis on design, we have a team of dedicated Application
Engineers and Product Managers, backed up by Field Sales Engineers, who
specialise in wireless applications.
We have made signicant investments in R&D facilities which boast GPS hardware
development equipment and a GSM Pico Cell on site, as well as development
software and a comprehensive suite of Industrial, Scientic and Medical band, and
non ISM band frequency products. We have many technology partners enabling us to
keep at the forefront of the communications industry and offer class leading wireless
solutions.
About Siretta
A member of the Olancha Group Ltd
Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
fax
email
web
+44(0)118 976 9014
+44(0)118 976 9020
www.siretta.co.uk
5
MICA Series
Hardware Reference Manual
General Description
The Siretta MICA router series is a range of high speed industrial cellular routers in
a compact enclosure. The MICA series is offered in 3G / UMTS and 4G / LTE forms
giving reliable, secure and high speed wireless connectivity.
The MICA router series is a quality range designed for use in industrial environments
needing high performance and a robust hard enclosure as standard.
The MICA router series has been designed for remote management, telemetry,
condition monitoring, CCTV, ATMs, vending machine and other M2M applications.
The MICA router series is an ideal wireless data transfer device for high speed data
applications transferring large amounts of data.
The MICA series, using the UMTS / 3G and 4G LTE networks, gives fast transfer
speeds reaching up to 21Mbps download and up to 5.76Mbps upload for 3G and
50M upload and 100M download for 4G. The MICA router series has dual port
Ethernet capability and a single SIM as standard, with 150Mbs data rate Wi and
GPS engine as optional versions.
This makes the compact MICA router series ideal for eet tracking and device access
management. In addition, the MICA router series is available with industrial grade
VPN as an option, enabling a virtual private network service through the 3G / 4G
connection and directly access the industrial server environment.
A member of the Olancha Group Ltd
Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
fax
email
web
+44(0)118 976 9014
+44(0)118 976 9020
www.siretta.co.uk
6
MICA Series
Hardware Reference Manual
»Global 3G / UMTS bands
»European 4G / LTE bands
»High speed data via UMTS & LTE networks
»Strong resistance to electromagnetic interference
»Built-in watch dog, multi-link detection
»Compact industrial design
»Good heat and radiation endurance
»Supports DHCP server
»Supports DNS proxy and Dynamic DNS (DNSS)
»Supports timing operation
»Supports LED status indication
»Supports APN and VDPN wireless private network access
»Supports 802.11b/g/n WiFi, 150Mbps data rate
»Local and remote management
»SNMP network management, NTP support
»WAN supports PPOE, Static IP DHCP Client (with 1 x WAN and
1 x LAN option)
Features
Specications
MICA UMTS MICA LTE
3G frequency band: 850, 900, 1900, 2100MHz 850, 900, 1900, 2100MHz
4G frequency band: 800/850, 900, 1800, 1900, 2100, 2600MHz
Dimensions: 103mm x 73.5mm x 23.5mm 103mm x 73.5mm x 23.5mm
Weight: 300g 300g
Supply voltage: 7.5 - 32VDC 7.5 - 32VDC
Operating temperature range: -30 to 70°C -30 to 70°C
Antenna interface: SMA Female 2 x SMA Female
Table 1. Specications of MICA Series routers
A member of the Olancha Group Ltd
Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
fax
email
web
+44(0)118 976 9014
+44(0)118 976 9020
www.siretta.co.uk
7
MICA Series
Hardware Reference Manual
MICA Series Interface
Standard Router Features
Hardware
The MICA Series routers come with the following interfaces:
»2 x 10/100Mb Ethernet LAN
»1 x 3G SMA Female antenna interface
»2 x 4G SMA Female antenna interface
»1 x standard SIM/R-UIM interface
»1 x standard DC power interface
Optional Router Features
Optional Technologies
The MICA Series have the following optional technologies available:
»UMTS (Global 3G)
»LTE (European 4G)
Optional Interfaces
The MICA Series have the following optional interfaces available:
»1 x 10/100Mb Ethernet LAN, 1 x 10/100Mb Ethernet WAN
»1 x GPS OR WiFi SMA female antenna interface*
*WiFi and GPS are not available on a MICA simultaneously
A member of the Olancha Group Ltd
Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
fax
email
web
+44(0)118 976 9014
+44(0)118 976 9020
www.siretta.co.uk
8
MICA Series
Hardware Reference Manual
Ordering Information
Part Numbering Examples
»MICA-11-UMTS = Global UMTS Industrial Router with 1 x Ethernet LAN, 1 x Ethernet WAN and 1 x SIM
Port Interfaces
»MICA-W21-LTE = European LTE Industrial Router with 2 x Ethernet LAN and 1 x SIM Port Interfaces, with
WiFi
MICA X X X XXXX
Number of SIM Ports
1 = 1 x SIM Port
Range Identier
MICA = Industrial Router Range
Number of Ethernet Ports
1 = 1 x Ethernet LAN Port, 1 x Ethernet WAN Port
2 = 2 x Ethernet LAN Ports
Technology
UMTS = Global 3G
LTE = European 4G
Optional Antenna Interfaces*
G = GPS
W = WiFi
*WiFi and GPS are not available on a MICA simultaneously. If you do not require an
additional antenna interface, leave this blank.
A member of the Olancha Group Ltd
Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
fax
email
web
+44(0)118 976 9014
+44(0)118 976 9020
www.siretta.co.uk
9
MICA Series
Hardware Reference Manual
Dimensions
All dimensions are shown in mm.
Figure 1. MICA Series front - dimensions
Figure 2. MICA Series side - dimensions
A member of the Olancha Group Ltd
Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
fax
email
web
+44(0)118 976 9014
+44(0)118 976 9020
www.siretta.co.uk
10
MICA Series
Hardware Reference Manual

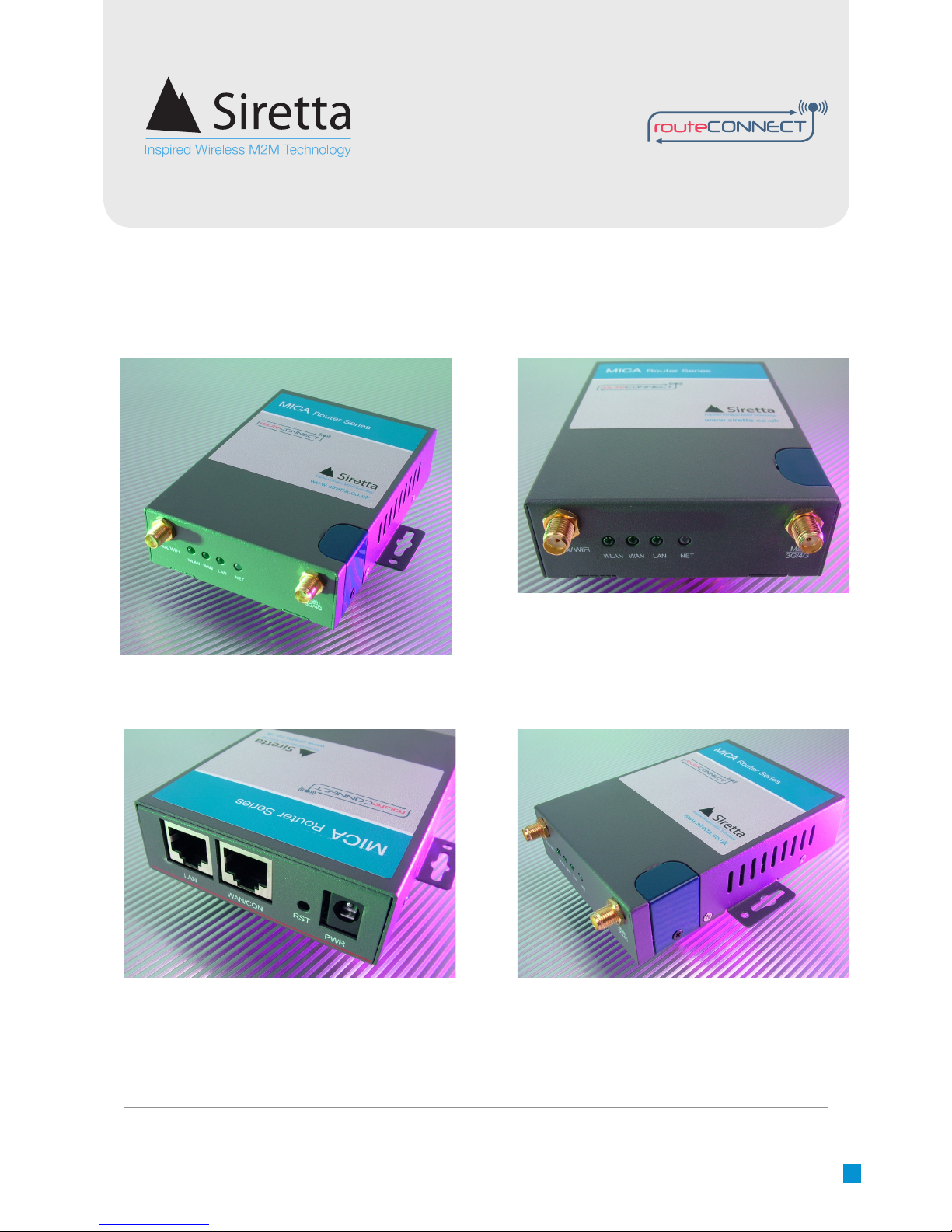

MICA Series Images
Figure 3. 3D view of the MICA Router
Figure 5. LAN, WAN/CON, Reset and Power Interfaces
Figure 4. Antenna and LED’s
Figure 6. SIM Cover
