SIRETTA QUARTZ User manual
Siretta Routers
Quick Start Guide
Rev 1.0
Whats in the Box?
This quick start guide is intended for all Siretta routers.
For reference, we have used a QUARTZ-GW22-UMTS (EU) 3G QUARTZ router.
As standard, you will receive one of the following routers:
If you ordered a router with accessories, you will also receive the following items:
QUARTZ MICA MICA-Compact
Common Accessories
Ethernet Cable Power Adaptor
NOTE - For LTE routers, the kit may be supplied with an additional cellular antenna. This means
the router is capable of MIMO (Multiple Inputs, Multiple Outputs) cellular communication.
Cellular
Antenna
Power Cable and Connector
(QUARTZ Series only)
DIN Rail Adaptor
(QUARTZ and MICA-Compact
Series only)
DIN Rail Adaptor
(MICA Series only)
If you ordered a router with accessories and have opted for either WiFi and/or GPS
variants, then you will also receive one or both of the following items:
Optional Accessories
You will require the following items for conguring your router:
»3G or 4G SIM card with APN details
»Screwdriver to open the SIM cover
»PC to congure the router
Additional Items
NOTE - Please ensure your antenna and SIM card are appropriate for the router you are using.

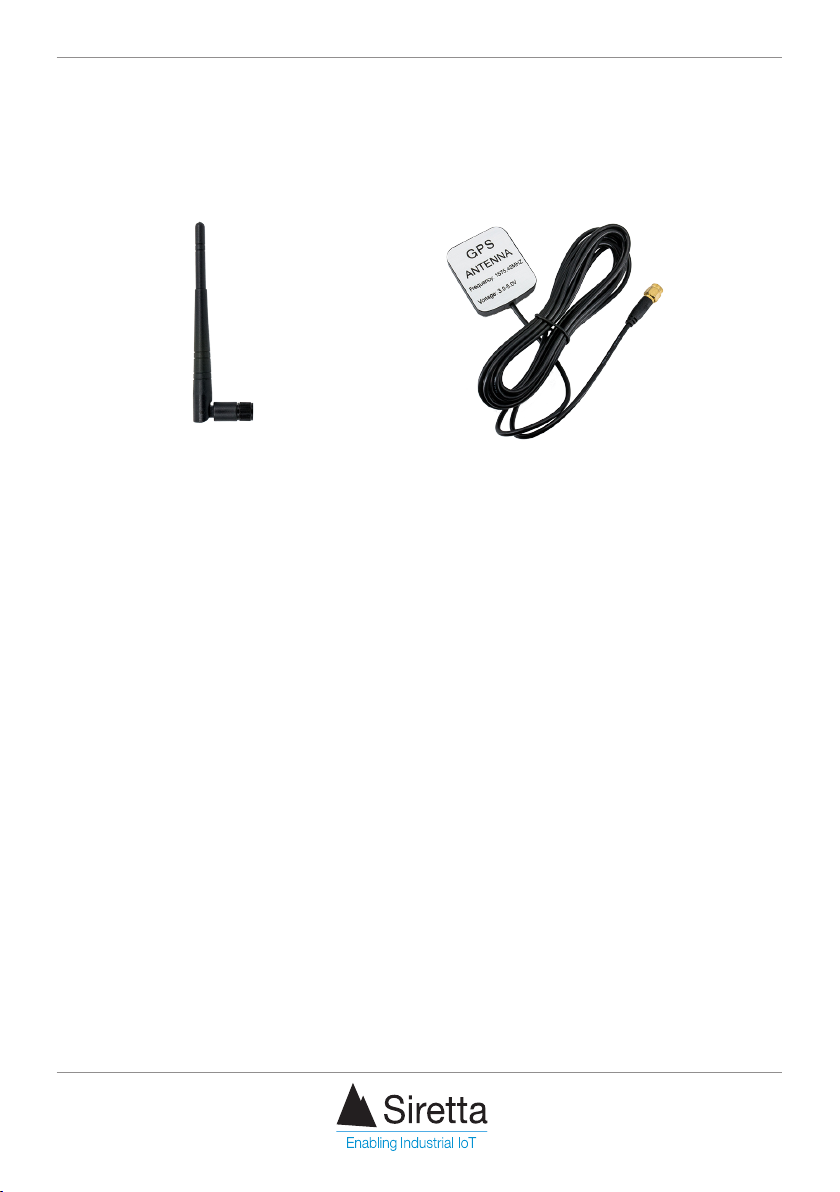

WiFi Antenna
(For routers with WiFI option)
GPS Antenna
(For routers with GPS option)
Step 1. Use a screwdriver to open the SIM cover on your router.
Step 2. Insert a SIM card fully into the SIM slot. Close the SIM cover, ensuring it is
screwed back into place.
Step 3. Screw the cellular antenna to the main antenna connector on the router. Twist
the antenna connector clock-wise until the antenna is rmly connected.
If you have a WiFi router, connect the WiFi antenna to the WiFi antenna connector
on the router.
If you have a GPS router, connect the GPS antenna to the GPS antenna connector
on the router.
If you have an LTE router that has been supplied with a 2nd cellular antenna for
MIMO, then attach this to the AUX connector on the router.
Main
WiFi
GPS
AUX
Step 4. Connect one end of the Ethernet cable into the router LAN port, connect the
other end of the cable into an Ethernet port on your PC.
Step 5. For MICA & MICA-COMPACT: Plug the plug-top power supply into your router
using the 2.1mm centre pin connector.
For QUARTZ: Plug the green power connector on the QUARTZ power adapter cable
into the router as shown below. Plug the 2.1mm centre pin connector from the plug-
top power supply in to the other end of the QUARTZ power adapter cable.
LED colour State
PWR Green
when ON
If this LED is OFF, ensure power adaptor is connected correctly
and mains power is switched on.
WLAN Green
when ON
Router WiFi is enabled. If this LED is OFF, WiFi is not enabled or
supported.
ERR Red
when ON
Router is not registered to the network. Check the SIM card is
inserted correctly.
Signal Strength
Green when ON
If only one LED is on, check the antenna position or try a
different location.
Green LAN
when ON
LAN cable is connected. If this LED is OFF, check both ends of
the LAN cable are connected properly.
Table 1. Router LED indication
Step 6. Select connector type for your power adaptor depending on your
geographical location (UK/EU/USA/AU). Plug the power adaptor to the mains.
Step 7. Switch on the power. See table below for LED indications when router is
powered on.
Step 8. Obtain the IP address of your router. You can nd this on the silver label on the
back of your router. Type the IP address of your router into your PC browser. When
prompted for your user name and password use the following:
User name: admin
Password: admin
These credentials are factory defaults. You can set your own user name and password
in the router settings.
Step 9. On successful login, navigate to the Basic Network > Cellular tab.
When you arrive at the ‘Cellular Settings’ page, you will need to enter the APN details
for the network provider of your SIM card.
In the image below, we have used the APN details relevant for “EE”. These being:
• APN: everywhere
• Username: eesecure
• Password: secure
You are not required to enter any ‘Proxy’ or ‘Port’ details.
