Simrad StructureScan LSS-1 Assembly instructions

www.simrad-yachting.com A brand by Navico - Leader in Marine Electronics

Manual

Simrad StructureScan™ LSS-1

Sonar Module

English

Disclaimer

As Navico is continuously improving this product, we

retain the right to make changes to the product at any

time which may not be reflected in this version of the

manual. Please contact your nearest distributor if you

require any further assistance.

It is the owner’s sole responsibility to install and use the

instrument and transducers in a manner that will not

cause accidents, personal injury or property damage.

The user of this product is solely responsible for

observing safe boating practices.

NAVICO HOLDING AS AND ITS SUBSIDIARIES,

BRANCHES AND AFFILIATES DISCLAIM ALL LIABILITY

FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY

CAUSE ACCIDENTS, DAMAGE OR THAT MAY VIOLATE

THE LAW.

Governing Language: This statement, any instruction

manuals, user guides and other information relating

to the product (Documentation) may be translated

to, or has been translated from, another language

(Translation). In the event of any conflict between any

Translation of the Documentation, the English language

version of the Documentation will be the official version

of the Documentation.

This manual represents the product as at the time

of printing. Navico Holding AS and its subsidiaries,

branches and affiliates reserve the right to make

changes to specifications without notice.

Feedback from you

Your feedback is important and helps Navico ensure

that this manual is a valuable resource for all marine

technicians. E-mail your comments or suggestions about

this manual to the following address:

tech.writing@navico.com

StructureScan LSS-1 Installation manual | 1

2 | StructureScan LSS-1 Installation manual

Compliance Statements

The StructureScan™ LSS-1 complies with the following

regulations:

• FCC Part 15

• CE compliant per EN60945

• C - Tick

For more information please refer to our website:

www.simrad-yachting.com.

Warning

The user is cautioned that any changes or modifications

not expressly approved by the party responsible for

compliance could void the user’s authority to operate the

equipment.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant

to Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

the interference will not occur in a particular installation.

If this equipment does cause harmful interference to

radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna•

Increase the separation between the equipment and•

receiver

Connect the equipment into an outlet on a circuit•

different from that of the receiver

Consult the dealer or an experienced technician for•

help

StructureScan LSS-1 Installation manual | 3

Contents

Introduction .................................................. 4

Parts included in package...............................4

Required tools and supplies ............................5

LSS-1 Indicator lights ....................................5

Installation and wiring .................................. 6

Selecting mounting location ...........................6

Mounting the LSS-1 module............................7

Wiring .........................................................7

Connecting the LSS-1 to your display.......7

Connecting the transducer .....................7

Power connection ..................................8

Specications .............................................. 10

Spare parts and accessories........................ 11

Spare parts ........................................ 11

Assessories ........................................ 11

Drawings ..................................................... 12

LSS-1 dimensions ....................................... 12

4 | StructureScan LSS-1 Installation manual

Introduction

This document describes how to install the

StructureScan™ LSS-1 and connect the unit to

transducers and display units.

Separate installation instruction for transducers are

included with the transducer package.

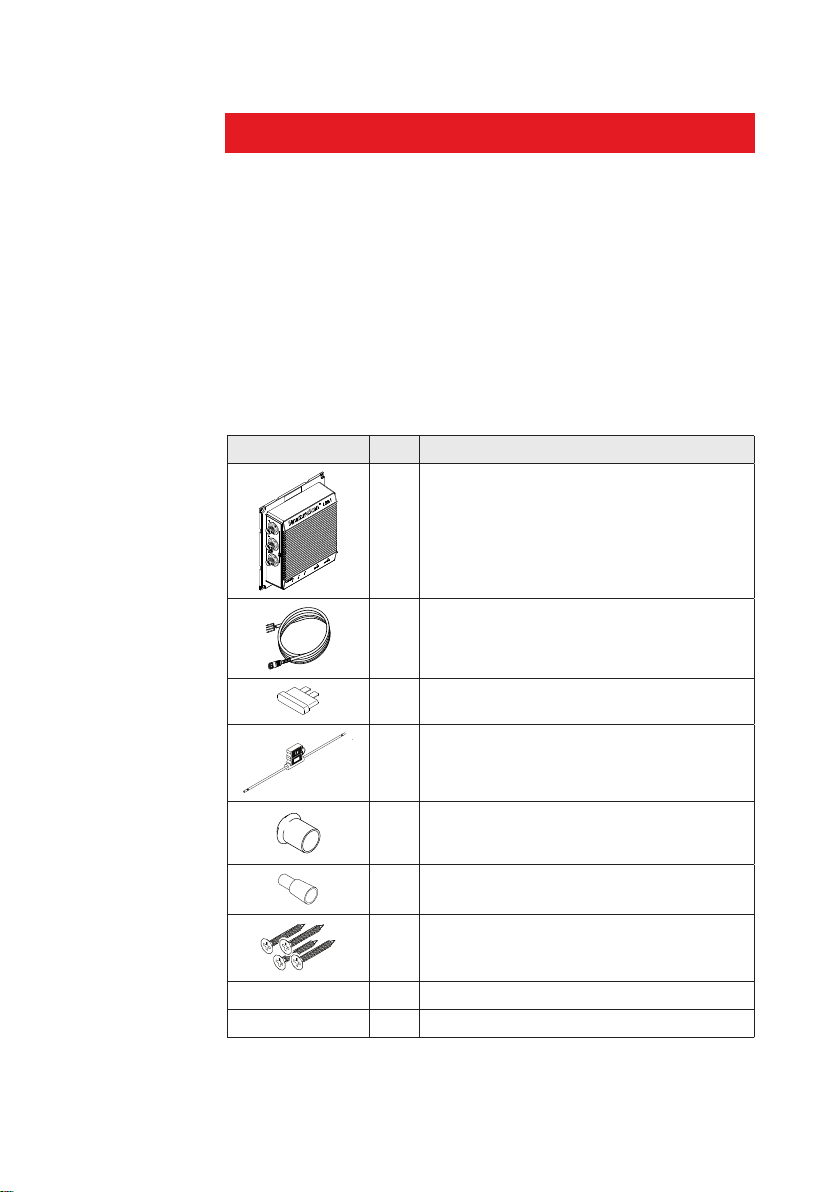

Parts included in package

For spare parts and part numbers, see Parts list page

11.

Item No. Description.

1 LSS-1 Black box module

14 pin power cable

1 Fuse, 3A Automotive Type

1 Fuse holder

2 Yellow Ethernet caps

1 Close end crimp connector

4Phillips stainless steal screws (#8)

1Warranty

1 This manual

StructureScan LSS-1 Installation manual | 5

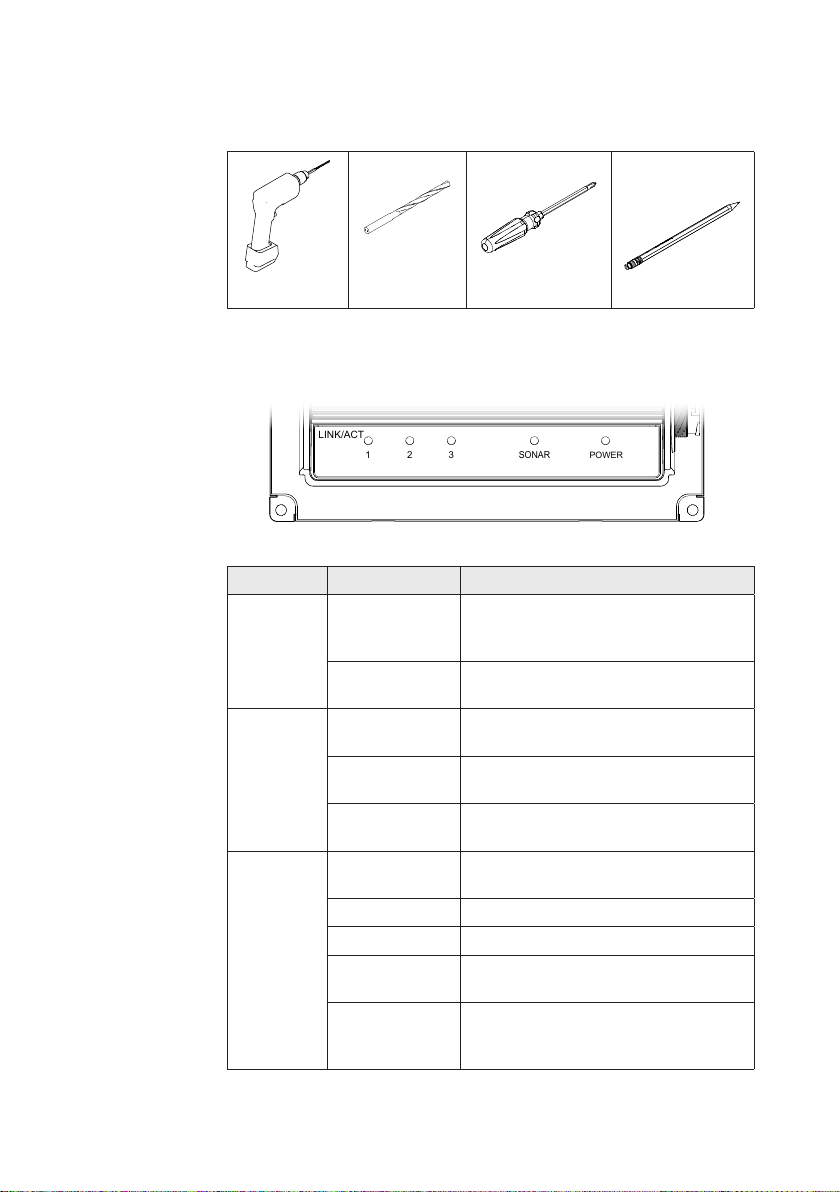

Required tools and supplies

Drill

2 mm

(5/64”)

Drill Bit

Phillips screw

driver Pencil

LSS-1 Indicator lights

IND. STATUS DESCRIPTION

1, 2 and 3

Off

No Ethernet communication

(cable unplugged, bad cable or

remote unit not powered)

Flashing -

yellow

Ethernet communication is

working (link/active light)

Sonar

Off Transducer not connected or

cable/transducer is broken

On - Green Transducer detected/locked on to

bottom

Flashing -

green

Transducer detected/not locked

on to bottom

Power

Off No power or not switched on

(check yellow wire)

On - Red System booting

On - Green System operating

Slow ashing

- Red/green

Product in factory mode;

Ethernet communication working

Fast ashing -

Red/green

Product in factory mode; no

Ethernet communication (cable

unplugged or bad cable)

LINK/ACT

1 2 3

SONAR

POWER

6 | StructureScan LSS-1 Installation manual

Installation and wiring

The LSS-1 connects between the transducer and display

unit, or via a network switch.

Before installing the LSS-1, consider location and cable

runs necessary to connect the module to the display unit

and power source.

Do not run the transducer cabling near the LSS-1 DC

power cables or any VHF antenna coax or power cables

for the VHF.

The LSS-1 conforms to the appropriate Electromagnetic

Compatibility (EMC) standards; but proper installation is

required to get the best use and performance from this

product.

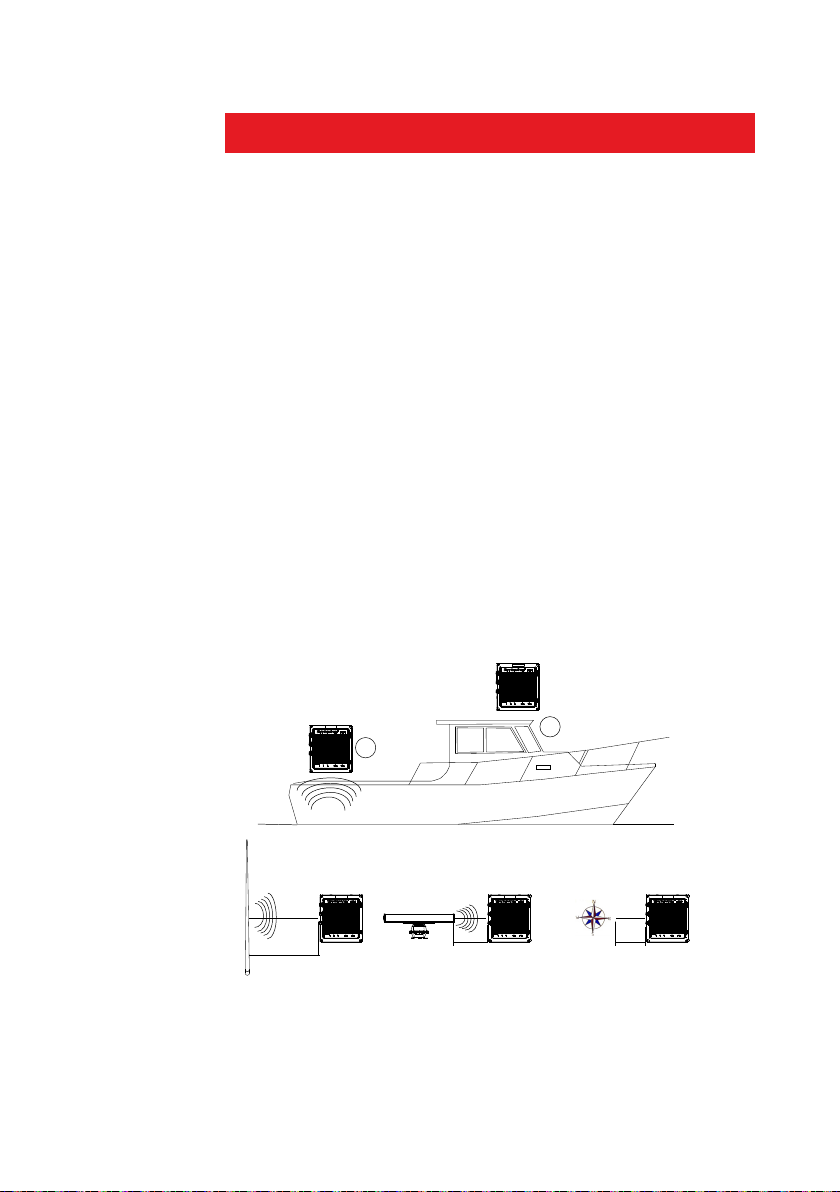

Selecting mounting location

When installing the module certain factors that could

affect its operation should be considered. Ensure you

have as much separation as possible between different

electrical equipment, (see diagram).

Make sure the transducer cable is long enough to

connect to the LSS-1. If not, an extension cable is

available. For transducer cable length see Spare parts

and accessories, page 11.

Electromagnetic interference

Gasoline fumes

Vibration

Heat

Sunlight

Salt spray

Physical damage

2.0 m (6.5 ft) Min 1.8 m (6 ft) Min

1.5 m (5 ft) Min

RADAR

Radio or AIS Transmitter

Compass

StructureScan LSS-1 Installation manual | 7

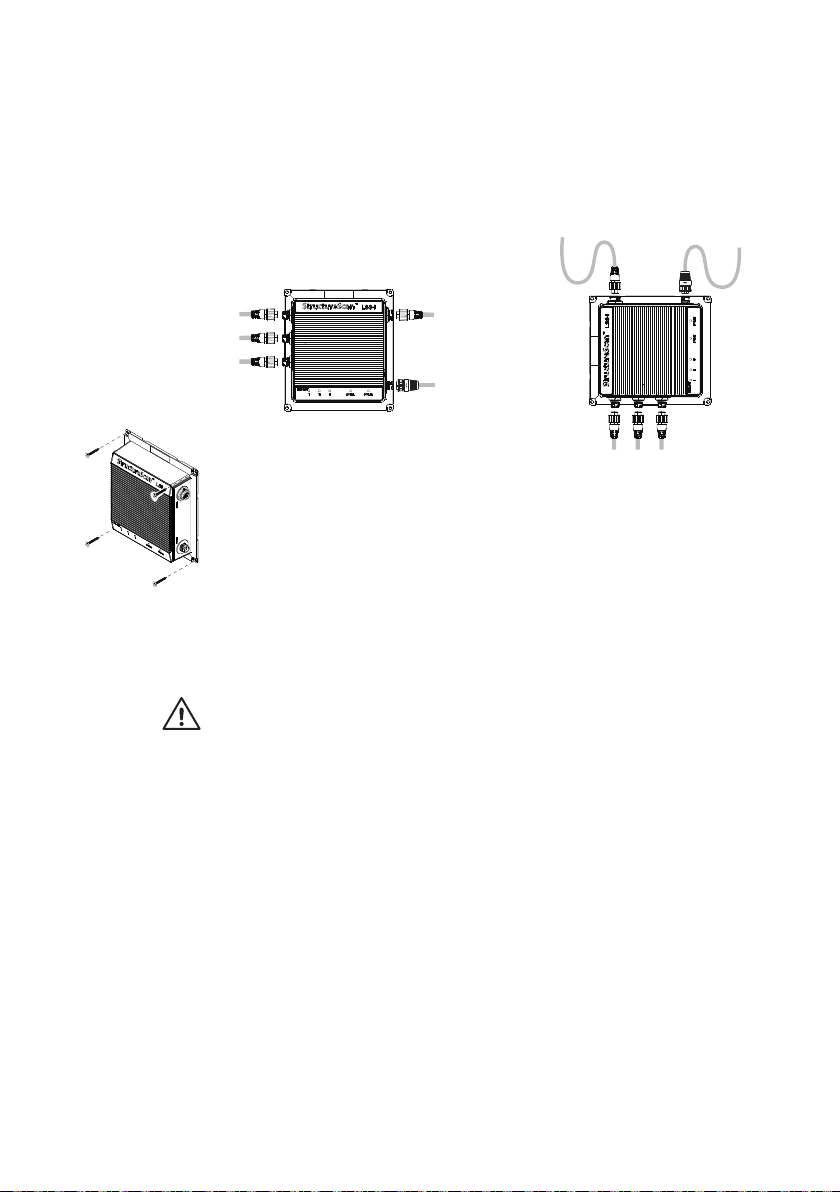

Mounting the LSS-1 module

Preferably mount the LSS-1 module on a vertical surface

so that cables exit sideways. If that is not feasable,

create drip loops to prevent moisture entering the

connectors.

Fasten the LSS-1 by using the screws included with the

unit.

Secure cables and ensure to not put strain in the

connectors.

Wiring

Refer to the Wiring diagram on page 9.

Removing the transducer cable from the LSS-1

while the module is powered on can cause sparks.

Remove the transducer cable only after the module

has been disconnected from its power source.

Connecting the LSS-1 to your display

The LSS-1 connects to your display over an Ethernet

network, either directly or via an Ethernet network

switch.

Connecting the transducer

The StructureScan transducer connects to the LSS-1

with the cable supplied with the transducer.

8 | StructureScan LSS-1 Installation manual

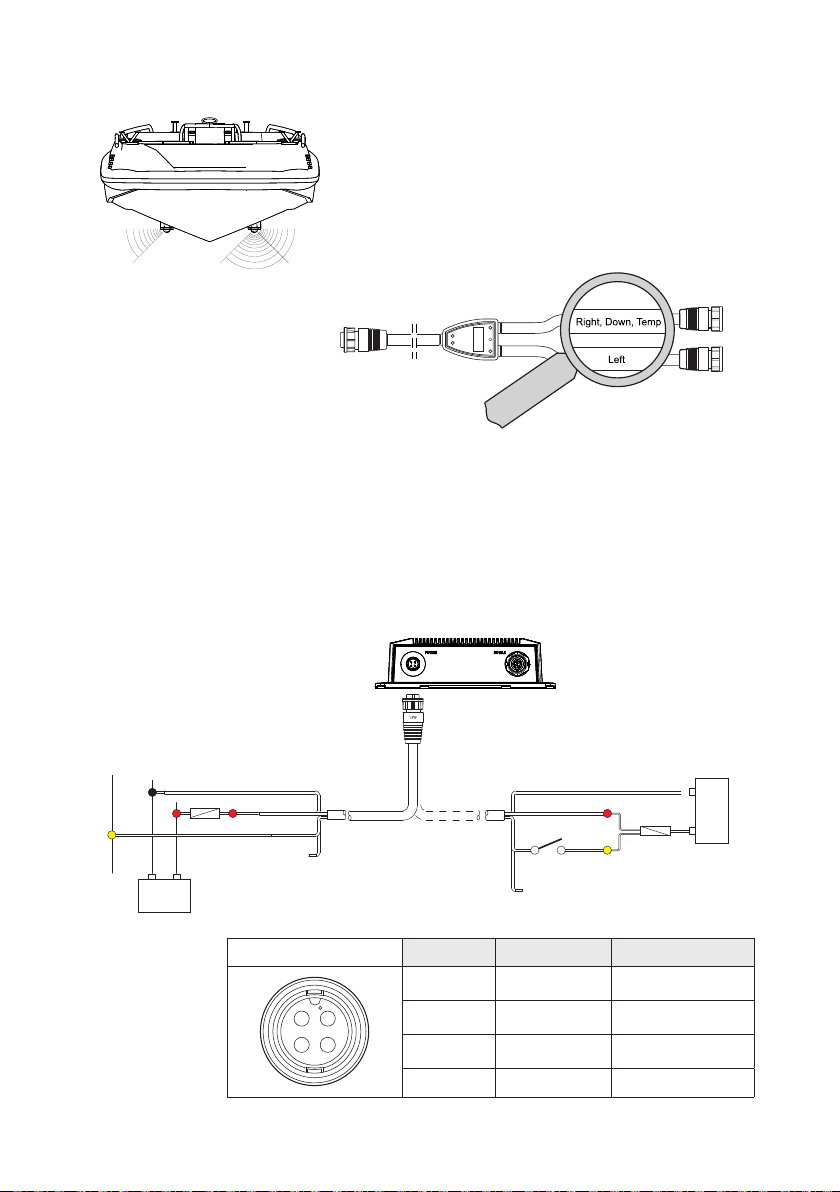

On boats with large dead rise angle two

StructureScan transducers can be used.

They are connected to the LSS-1 by using

the optional Y cable.

Connect the transducers according to the

labeling on the Y-cable.

Power connection

The unit will turn on when power is applied.

It is recommended to connect the LSS-1 to NSE Power

control bus (A), and set NSE to power control master.

Alternatively the unit can be powered directly from the

vessel’s battery (B).

Pin Color Signal

1Black 12 V battery -

2Blue NC

3Red 12V battery +

4Yellow Ignition sense

Red

Fuse

Black

NSE

Power

Control

bus

Black

Yellow

Red

Yellow

Switch

Blue

(no connect)

Blue

(no connect)

12 V DC

LTWLTW

LTW
