Furuno CSH-83 User manual

COLOR SCANNING SONAR

MODEL CSH-83/84

Back

The paper used in this manual

is elemental chlorine free.

FURUNO Authorized Distributor/DealerFURUNO Authorized Distributor/Dealer

9-52 Ashihara-cho,9-52 Ashihara-cho,

Nishinomi

a 662-8580, JAPANNishinomi

a 662-8580, JAPAN

Tele

hone :Tele

hone : 0798-65-21110798-65-2111

FaxFax 0798-65-42000798-65-4200

FIRST EDITION :FIRST EDITION : OCT.OCT. 19971997

Printed in JapanPrinted in Japan

ll ri

hts reserved.

ll ri

hts reserved.

H3H3 :: OCT.OCT. 05, 200605, 2006

Pub. No.Pub. No. IME-13090-H3IME-13090-H3

00080806812

(( TATATATA )) CSH-83/84CSH-83/84 * 0 0 0 8 0 8 0 6 8 1 2 ** 0 0 0 8 0 8 0 6 8 1 2 *

IME

13090

IME

13090

IME

13090

IME

13090

* I M E 1 3 0 9 0 H 3 0 ** I M E 1 3 0 9 0 H 3 0 *

WARNING

Turn off the power at the switchboard

before beginning the installation.

Fire or electrical shock can result if the

power is left on.

Do not install the equipment where it

may get wet from rain or water splash.

Water in the equipment can result in fire,

electrical shock or equipment damage.

Be sure no water leaks in at the trans-

ducer installation site.

Water leakage can sink the vessel. Also

confirm that the transducer will not loosen

by ship’s vibration. The installer of the

equipment is solely responsible for the

proper installation of the equipment.

FURUNO will assume no responsibility for

any damage associated with improper

installation.

Do not open the cover

unless totally familiar with

electrical circuits and

service manual.

High voltage exists inside the

equipment, and a residual

charge remains in capacitors

several minutes after the

power is turned off. Improper

handling can result in electri-

cal shock.

WARNING

Install the specified transducer tank

in accordance with the installation

instructions. If a different tank is to be

installed the shipyard is solely respon-

sible for its installation, and it should

be installed so the hull will not be

damaged if the tank strikes an object.

The tank or hull may be damaged if the

tank strikes an object.

If a steel tank is installed on a wooden

or FRP vessel, take appropriate

measures to prevent electrolytic

corrosion.

Electrolytic corrosion can damage the

hull.

Be sure that the power supply is

compatible with the voltage rating of

the equipment.

Connection of an incorrect power supply

can cause fire or equipment damage. The

voltage rating of the equipment appears

on the label above the power connector.

CAUTION

Observe the following compass safe

distances:

Ground the equipment to

prevent electrical shock and

mutual interference.

Display unit

for CSH-83

Display unit

for CSH-84

Standard Steering

0.9 m 0.68 m

1.7 m 1.3 m

SAFETY INSTRUCTIONS

Processor

unit 1.70 m 1.05 m

TABLE OF CONTENTS

1. SYSTEM CONFIGURATION......................................................... 1-1

2. EQUIPMENT LISTS ...................................................................... 2-1

3. MOUNTING THE EQUIPMENT

3.1 Mounting the Hull Unit and Receiver Unit................................................................3-1

3.2 Mounting the Display Unit and Sub-Display Unit (option) .......................................3-7

3.3 Mounting the Transmitter Unit...................................................................................3-8

3.4 Mounting the Power Unit ...........................................................................................3-8

3.5 Mounting the Interface Unit .......................................................................................3-8

3.6 Mounting the FNZ Joint Box .....................................................................................3-8

3.7 Grounding the Equipment ..........................................................................................3-9

4. WIRING

4.1 Cable Configuration ...................................................................................................4-1

4.2 How to Use the Crimping Tool and Pin Extractor .....................................................4-2

4.3 Location of Connectors ..............................................................................................4-3

4.4 Cable Fabrication and Connector Assembling in Display and Interface Units ..........4-4

4.5 Cable Fabrication and Connector Assembling in Power Unit....................................4-7

4.6 Cable Fabrication and Connector Assembling in Transmitter Unit ...........................4-9

4.7 Cable Fabrication and Connector Assembling in Hull Unit (incl. receiver unit) .....4-11

4.8 Connection of Transducer Cables ............................................................................4-13

4.9 Connection of Interface Unit....................................................................................4-14

4.10 Connection of Sub-Display Unit (option) ..............................................................4-19

4.11 Connection of Remote Display Unit (option) ........................................................4-20

4.12 Synchronizing Transmission with Other Sonars or Echo Sounders.......................4-21

4.13 Interlocking Operation with Other Sonars .............................................................4-22

5. CHANGING POWER SPECIFICATIONS

6. INSTALLATION OF FRP RETRACTION TANK

6.1 Before Beginning the Installation ..............................................................................6-1

6.2 Installation of the FRP Retraction Tank .....................................................................6-1

iii

7. ADJUSTMENT AND CHECK

7.1 Hull Unit Check....................................................................................................7-1

7.2 Heading Adjustment.............................................................................................7-2

7.3 DIP Switch Setting in the Display Unit.................................................................. 7-3

7.4 Setting and Adjustment in the Interface Unit.........................................................7-5

8. WHEN SHIP’S MAINS IS 24 VDC.................................................................................8-1

9. PROCESSOR UNIT CSH-835 (BLACKBOX TYPE FOR CSH-83)................................9-1

SPARE PARTS, INSTALLATION MATERIALS, ACCESSORIES......................................A-1

OUTLINE DRAWINGS...................................................................................................... D-1

INTERCONNECTION DIAGRAMS....................................................................................S-1

This page is intentionally left blank.

1-1

1. SYSTEM CONFIGURATION

STANDARD OPTION

REMOTE CONTROL BOX

CSH-116

DISPLAY UNIT

CSH-830 (CSH-83)

CSH-8400 (CSH-84)

MONITOR (MU-151C)

COMMERCIAL MONITORSUB DISPLAY *

CSH-236

STEP-DOWN

TRANSFORMER

PT-400

INTERFACE UNIT

CS-120A

VI-1100A

INTERFACE UNIT

FNZ JOINT BOX

CS-170

TRANSMITTER UNIT

CSH-810

RECEIVER UNIT

CSH-820

SHIP'S MAINS

100 VAC, 1φ,

50/60 Hz

HULL UNIT

CSH-81080 (800 mm stroke)

CSH-81120 (1200 mm stroke)

110/115/220/230 VAC,

1φ, 50/60 Hz

SPEED LOG

NAVIGATOR

CURRENT INDICATOR

COLOR VIDEO SOUNDER

AD CONVERTER

ECHO SOUNDER, COLOR

VIDEO SOUNDER

NET SONDE

SHIP'S MAINS

100 VAC, 1φ,

50/60 Hz

POWER

SUPPLY UNIT

CSH-880

SHIP'S MAINS

100/110/220 VAC, 1φ,

50/60 Hz

* : CSH-83

only

PROCESSOR UNIT *

CSH-835

2-1

2. EQUIPMENT LISTS

Standard Supply

Name Type Qty Remarks

CSH-830 For CSH-83Display Unit

CSH-8400 For CSH-84

Processor Unit CSH-835

Select

one

Blackbox type for CSH-83

Transmitter Unit CSH-810 1

Receiver Unit CSH-820 1 w/hull unit

CSH-81080 stroke 800mmHull Unit

CSH-81120

stroke 1200mm

Power Unit CSH-880 1

Remote Control Box CSH-116 1

Interface Unit CS-120A 1

CP10-03010CP10-03000 1 set

6 pair cable

For CSH-83

CP10-03610CP10-03600 1 set

6 pair cable

For CSH-84

CP10-06610

Installation Materials

CP10-06600 1 set

6 pair cable

For processor unit

FP10-01801

FP10-01201

FP10-01203

FP10-02400 1 set

Nylon cover

RAM card

For CSH-83

FP10-01201

FP10-01203

FP10-01901

FP10-01900 1 set

Nylon cover

RAM card

For CSH-84

FP10-01203

Accessories

FP10-03000 1 set

RAM card

For processor unit

SP10-02000 1 set For CSH-83/84Spare Parts

SP10-03600 1 set For processor unit

2-2

Optional Equipment

Name Type Code No. Remarks

Sub-Display Unit CSH-236 - CSH-83 only

Inverter TR-2435 -

TR Inverter TR-24100 -

Step-down Transformer PT-400 - 200-230 VAC

37-core Cable 10S1258 000-101-006 Specify length

7-core Cable 10S1259 000-101-007 Specify length

16 Twisted Pair Cable CO-SPEV-SB-C 0.5x16P 000-101-008 Specify length

E/S Interface Unit VI-1100A -

FNZ Joint Box CS-170 -

Mounting Fixture OP10-9 006-990-040 For CSH-116

Current Limiter Box CSH-1400 - See page 8-1.

Extension Cable Set CSH-1300 000-069-996 For extending

transceiver cable

FRP Retraction Tank OP10-1 000-068-861

Retraction Tank SHG-0001 006-904-340

Hood FP10-01801 006-027-830 For CSH-83

Filter OP10-11 006-997-710 For CSH-83

Filter FP10-02000 000-908-560 For CSH-84

ROM Option Kit A OP10-15 006-998-620

ROM Option Kit B OP10-18 006-998-650

Optional Tools

Name Type Code No. Remarks

Crimping Tool

Pin Extractor

Guide Pin Setting Tool

06-1001-016

06-1877-04

10-910-0179-0

000-519-595

3-1

3. MOUNTING THE EQUIPMENT

3.1 Mounting the Hull Unit and Receiver Unit

Location of hull unit

Determine the mounting location through consultation with the shipyard and shipowner. When

deciding the location, consider the following points:

• Select an area where propeller noise, cruising noise, air bubbles and interference from turbu-

lence are minimal. Generally, the point at 1/3 to 1/2 of the ship’s length from the bow on or

near the keel is optimum. On-the-keel installation is advantageous for minimizing oil con-

sumption in comparison with off-the-keel. If the hull unit can not be installed on the keel, the

center of the retraction tank should be within 600 mm of the keel to prevent a rolling effect.

Within 600 mm

1/3 1/2

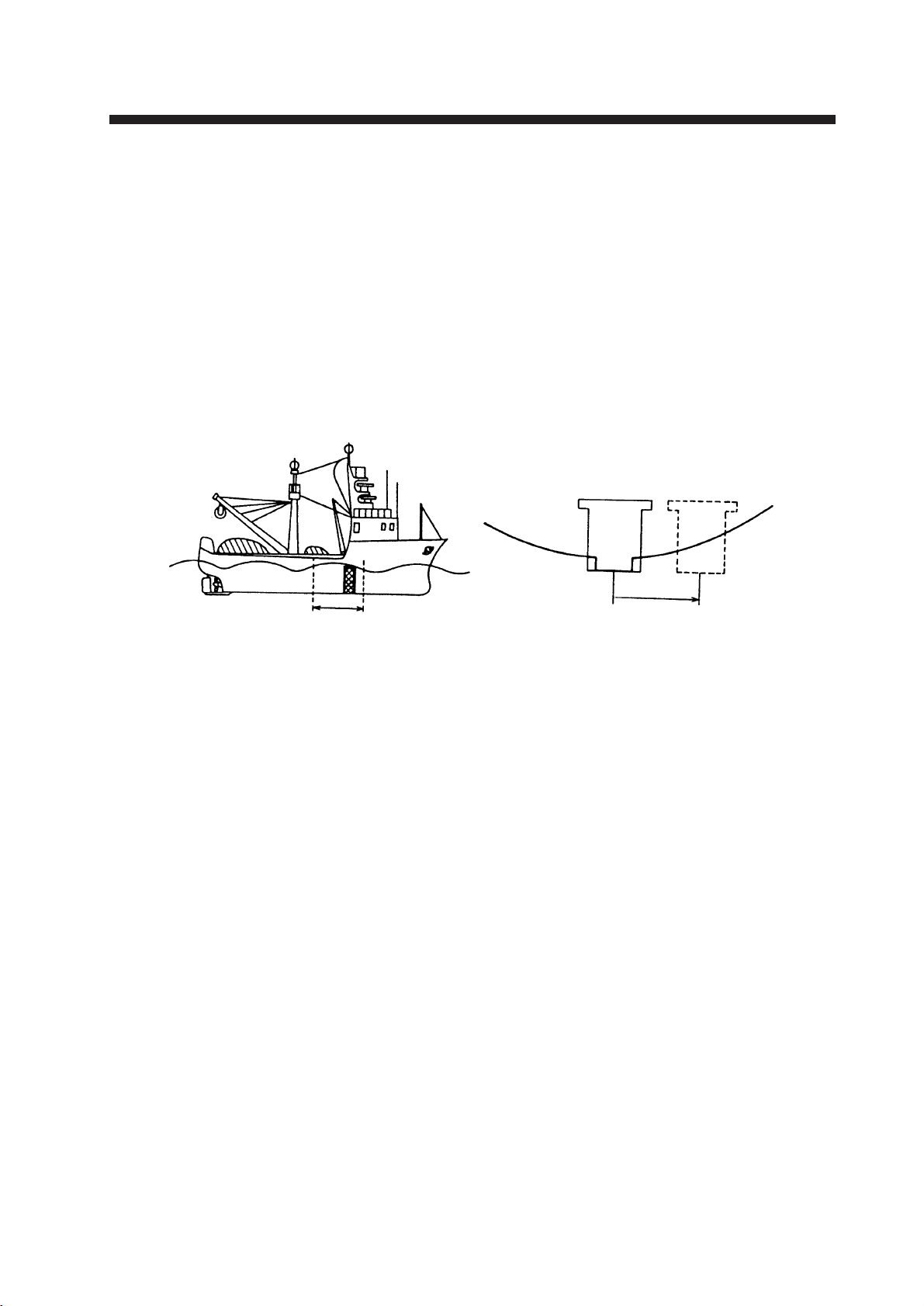

Figure 3-1 Hull unit mounting location

• Select a place where the hull bottom is flat and the draft is sufficiently deep. Normally, the

transducer should protrude at least 500 mm beyond the keel to minimize the effect of air

foam and bubbles.

• Select a place where interference from other equipment is minimal. Locate the hull unit at

least 2.5 m away from the transducers of other equipment.

• No obstacle should be in the fore direction since it causes a shadow zone and aerated water,

resulting in poor sonar performance.

• Secure sufficient space for wiring and maintenance. Refer to the hull unit outline drawing

for recommended wiring and maintenance space.

• If the ambient temperature of the hull unit is below 0°C, provide the sonar compartment with

a heater to keep the temperature above 0°C.
