Simplicity 1694153 Setup guide

Rev. 03/2002

TP-400-2616-00-AT-SMA

ATTACHMENT

ILLUSTRATED

PARTS LIST

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

ATTACHMENT

Mfg. No. Description

1694153 Turbo Clean Sweep Twin Catcher

TP 400-2616-00-AT-SMA

Cover & Bag Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

983952

The above parts group applies to the following Mfg. Nos.:

1694153 Turbo Clean Sweep Twin Catcher

789

25 26

TP 400-2616-00-AT-SMA

Cover & Bag Group

1 1704615 1 TUBE ASSEMBLY Support (Incl. Ref. Nos. 2, 3, 4, 5, 6, 8, 9 & 11)

2 1960381 7 RIVET, Pop

3 1704075 1 SUPPORT, Tube

4 1704135 1 SEAL, Cover

5 1704508 3 BRACKET, Seal

6 1960399 1 SCREW, Round Head, #8-32 x 7/8

7 1930642 5 LOCKNUT, Flange, 1/4-20

8 1960096 2 WASHER

9 1704507 1 STRAP, Tube Support

10 1927428 2 SCREW, Taptite, 1/4-20 x 3/8

11 1960077 2 NUT, Hex, Lock, #8-32

12 1960252 5 CARRIAGE BOLT, 1/4-20 x 5/8

13 1703822 1 CROSS ASSEMBLY.

14 1921966 4 CAPSCREW, Hex Head, 3/8-16 x 7/8

15 1928352 4 NUT, Hex, Whizlock, 3/8-16

16 1960221 2 CLIP, Hairpin

17 1703700 1 SCREEN

18 1917372 4 NUT, Hex, 5/16-18

19 1917356 4 LOCKWASHER, 5/16

20 1672023 2 CLAMP

21 1703807 2 HANGER

22 1931333 4 CARRIAGE BOLT, 5/16-18 x 3/4

23 1703855 2 HOOP, Bag

24 1703764 2 BAG, Grass

25 1675707 2 TUBE CLIP, Grass Bag

26 1704057 1 SEAL, Clip

27 1930531 2 SCREW, Truss Head, #10-32 x 1/2

28 1675043 4 RIVET, Pop

29 1703853 1 HANDLE, Latch

30 1928919 2 NUT, Hex, #10-32

31 960367 2 PIN, Round Head

32 1910531 4 WASHER

33 1667248 6 CLIP, Canoe

34 1704405 1 DECAL, Safety

35 1704033 1 COVER

36 1704180 2 WINDOW

37 1933886 1 NUT, Speed

38 1705876 1 CABLE, Double Loop

39 1921319 1 WASHER, 1/4

40 1960400 1 SCREW, Self-tapping, #10-12 x 5/8

41 1704056 1 COVER ASSEMBLY (Incl. Ref. Nos. 17, 26, 28, 32, 37, 38, 39 & 40)

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1694153 Turbo Clean Sweep Twin Catcher

TP 400-2616-00-AT-SMA

Hitch Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986032

The above parts group applies to the following Mfg. Nos.:

1694153 Turbo Clean Sweep Twin Catcher

Conquest, 1700, 2700 Series

Prestige, 1800, 2800 - Series

Broadmoor, 1600, 2600 - Series

For Use With

Tiller

16 15

TP 400-2616-00-AT-SMA

Hitch Group

1 1960462 4 CAPSCREW, Hex Head, 1/2-13 x 2-1/2

2 1924361 4 WASHER

3 1668662 4 SPACER

4 1960355 4 LOCKNUT, Hex, 1/2-13

5 1916950 6 NUT, Hex, 3/8-16

6 1916965 6 LOCKWASHER, 3/8

7 1707526 1 SUPPORT, Upright

8 1921210 6 CAPSCREW, Hex Head, 3/8-16 x 1

9 1703744 1 BRACKET, Lower Hitch

10 1723067 2 SUPPORT, Side Hitch

11 1920415 6 CAPSCREW, Hex Head, 3/8-16 x 1-1/4

12 1723044 2 PLATE, Side

13 1960033 2 CLIP, Hair Pin

14 1931348 4 CARRIAGE BOLT, 3/8-16 x 3/4

15 1723065 1 CLAMP, Hitch

16 1723064 1 CLAMP, Plate

17 1917372 2 NUT, Hex, 5/16-18

18 1917356 2 LOCKWASHER

19 8271015 2 PIN, Round Head, Drilled

20 1960236 2 SPACER

21 1960223 2 CARRIAGE BOLT, 5/16-18 x 1-1/4

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1694153 Turbo Clean Sweep Twin Catcher

TP 400-2616-00-AT-SMA

Tube Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

T986032

The above parts group applies to the following Mfg. Nos.:

1694153 Turbo Clean Sweep Twin Catcher

Turbo required

Conquest, 1700, 2700 Series

Prestige, 1800, 2800 - Series

Broadmoor, 1600, 2600 - Series

TP 400-2616-00-AT-SMA

Tube Group

1 1933896 2 NUT, Hex Nylock, #10-32

2 1960096 6 WASHER

3 1707710 1 ELBOW, Upper, (Broadmoor, 1600, 2600 - Series)

4 1704283 1 ELBOW, Upper, (Conquest, 1700 2700, Prestige, 1800, 2800 - Series)

5 1960404 2 SCREW, Truss Head, #10-32 x 1/2

6 910542 2 RIVET

7 1705063 1 CLIP, Spring

8 1707712 1 TUBE & SPRING ASSEMBLY (Incl. Ref. Nos. 2, 6, & 7)

9 1960252 1 CARRIAGE BOLT, 1/4-20 x 5/8

10 1930641 1 NUT, Hex Flange Lock, 1/4-20

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1694153 Turbo Clean Sweep Twin Catcher

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

Hardware Identification & Torque Specifications

Common Hardware Types

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

01/4 3/4

1/2 11/4 3/4

1/2 21/4 3/4

1/2 31/4 3/4

1/2 4

Table of contents

Other Simplicity Lawn Mower Accessories manuals

Simplicity

Simplicity 2623 User manual

Simplicity

Simplicity SNAPPER 250 Z User manual

Simplicity

Simplicity 1690041 User manual

Simplicity

Simplicity ZT Series User manual

Simplicity

Simplicity 210 User manual

Simplicity

Simplicity 46" Single Stage Snowthrower - Body & Setup guide

Simplicity

Simplicity 1600197 User manual

Simplicity

Simplicity 1694958 Setup guide

Simplicity

Simplicity TP 100-400 User manual

Simplicity

Simplicity 688 User manual

Simplicity

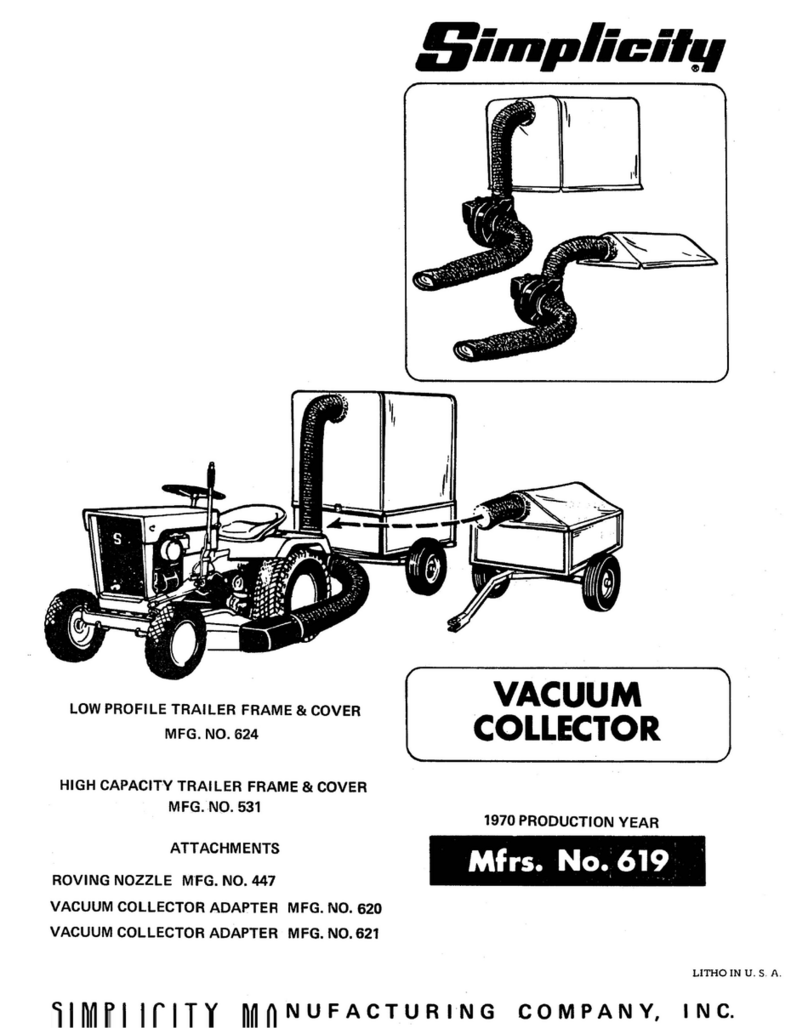

Simplicity 619 User manual
