Simplicity 1694919 Setup guide

Attachment

Illustrated

Parts List

Rev. 04/2007

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

. No. Descri

tion

Attachment

1694919 42" Snow Blade

1734853

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

42" Snow Blade Group ......................................................................................................................................... 4

42" Snow Blade Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1694919

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694919 - 42" Snow Blade

TP 400-4569-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

42" Snow Blade Group

Footnotes

ROD, 1/2 Diameter, 10.95 LG Angle w/Flat1 1731380SM 1

PIN, Quick2 1918196SM 9

NUT, Hex Flange, 5/16-18 ESNA3 1960686SM 7

CAPSCREW, Hex Head, 5/16-18 x 14 1921333SM 7

ROD, 1/2 Diameter Angle w/Flat Top 49.2LG5 1732871SM 1

JOINT, Ball6 1702779SM 3

NUT, Hex Jam, 1/2-207 1919262SM 3

ROD, 1/2 Diameter 5.85 LG, Latch 1/2-20 x 1-1/28 1732149SM 1

NUT, Hex Lock ESNA Light 3/8-16NC3B9 1919439SM 1

WASHER, 3/810 1924356SM 1

SPACER11 1663752SM 1

LEVER, Latch 7GA 42" Snow Blade12 1732147ASM 1

CAPSCREW, Hex Head, 3/8-16 x 7/813 1921966SM 2

NUT, Hex Flange 3/8-16 Whiz Lock Small14 1931211SM 17

BRACKET, Cross, 42" Snow Blade, 10GA15 1732594ASM 1

ROD & BRACE ASSEMBLY, Lift, 42" Blade16 1732144ASM 1

CLIP, Hair Pin17 1960033SM 1

WASHER, 5/818 1924366SM 1

PIVOT, Lift19 1732358SM 1

LOCKWASHER, Spring20 1916965SM 1

EYEBOLT, 1/4-2021 2172162SM 1

NUT, Hex Lock ESNA Light 1/4-2022 1920397SM 1

SUPPORT/BRACE ASSEMBLY, Rod 42"23 1732176ASM 1

ROD, 5/8 10.8 LG, Bellcrank24 1730080SM 1

NUT, Push for 1/2 Diameter Stud Capped25 1960519SM 1

ROD, 1"Diameter, 12.50 LG, Frame Latch26 1732420SM 1

REACH, 42" Snow 12GA27 1730076ASM 1

ROD, 1/2" Diameter 7.62LG28 1713578SM 1

ROD, Latch29 1731414SM 2

HITCH, Lift 12GA30 1730077ASM 1

CAPSCREW, Hex Head 3/8-16 x 1-1/4 G531 1920415SM 1

SPACER32 1666697SM 3

CAPSCREW, Hex Head 1/2-13 x 1.3533 1921176SM 1

BRACKET/BRACE ASSEMBLY, 42" Blade34 1732454ASM 1

CARRIAGE BOLT, 3/9-16 x 3/435 1931348SM 4

SPACER36 1719683SM 1

SPACER37 1667812SM 1

PLATE, Wear38 1732764SM 1

RIVET, Pop39 1928707SM 4

LATCH, Blade40 1732756ASM 1

SPACER41 1703900SM 1

WASHER, 3-5/1642 1919381SM 1

COTTER PIN43 1918447SM 2

LINK44 1732355SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694919 - 42" Snow Blade

TP 400-4569-00-AT-SMA

42" Snow Blade Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1694919

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694919 - 42" Snow Blade

TP 400-4569-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

42" Snow Blade Group

Footnotes

WASHER, 1/248 1918431SM 3

HITCH, Pivot49 1730078ASM 1

SPACER50 1709235SM 2

CARRIAGE BOLT, 3/8-16 x 151 1931350SM 12

CAPSCREW, Hex Head, 1/2-13 x 1.3552 1921176SM 2

PLATE, Backer53 1730079ASM 1

SHOE, Skid54 1731352ASM 2

BAR, Scraper55 1731351ASM 1

BLADE, Snow56 1730075ASM 1

NUT, Hex 5/16-1857 1917372SM 2

EYEBOLT, 5/16-1858 1675198SM 1

SPRING59 2101126SM 1

ROD, 5/8" Diameter60 1731354SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694919 - 42" Snow Blade

TP 400-4569-00-AT-SMA

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

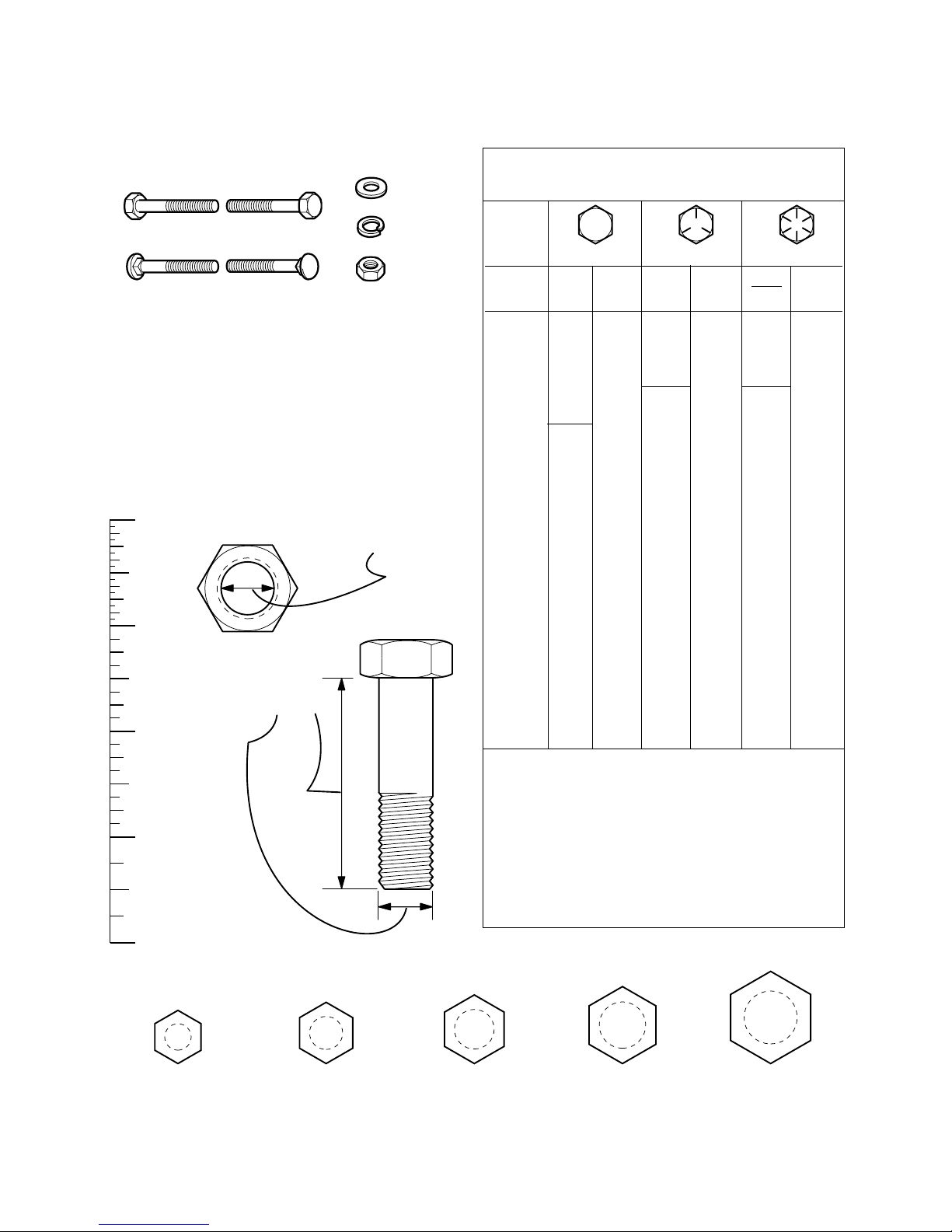

Hardware Identification & Torque Specifications

Common Hardware Types

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2
