Simplex 4002 User manual

Simplex

4002 Fire Alarm

Pocket Servict

Instructions

Technical Manuals Online! - http://www.tech-man.com

firealarmresources.com

Technical Manuals Online! - http://www.tech-man.com

firealarmresources.com

TABLE OF CONTENTS

Description Page No.

CPU.. .................................................................................... .2

Test Points ................................................................... .2

Microprocessor (U23) ................................................... 2

Terminal Blocks.. .......................................................... .2

Fuses ........................................................................... .4

DIP Switches.. .............................................................. .6

Jumpers ....................................................................... .8

Enhanced CPU ................................................................... 10

Requirements ..:........................................................... 10

Special Features.. ....................................................... 10

4-Point Zone Module.. ......................................................... 12

Terminal Block.. ........................................................... 12

Connectors.. ................................................................ 12

Jumpers ...................................................................... 12

8-Point Zone Module.. ......................................................... 14

Terminal Blocks.. ......................................................... 14

Connectors.. ................................................................ 14

Connections (SPRl and SPR2). ................................. 14

Jumpers ...................................................................... 14

Signal Expansion Module.. .................................................. 16

Terminal Block.. ........................................................... 16

Connectors.. ................................................................ 16

Fuses .......................................................................... 16

Jumper.. ...................................................................... 16

Auxiliary Relay Board.. ........................................................ 17

Terminal Blocks.. ......................................................... 17

Connectors.. ................................................................ 17

Fuses .......................................................................... 17

Jumper.. ...................................................................... 17

Zone Disconnect/Suppression Module ............................... 18

Terminal Block.. ........................................................... 18

Connector ................................................................... 18

Jumpers ...................................................................... 18

Switches.. .................................................................... 18

For Fan Control Module and RCUs/SCUs,

see Publication FA4-51-154.

Technical Manuals Online! - http://www.tech-man.com

firealarmresources.com

CPU (see Figure 1)

TEST POINT 1 +5 Volts

TEST POINT 2 + 24 Volts

TEST POINT 3 24 Volt Common

MICROPROCESSOR U23

Terminal Blocks

TBl

8 Initiating Device Circuits (monitor zones) (TBl-1 thru TBl-

16)

Style B (formerly Class B) (f.w.d. 841-669, pg. 6) Terminate

with 3.3k E.O.L. resistor

Style D (formerly Class A) (f.w.d. 841-669, pg. 8)

If coded manual station exists on zone 1, cut JW-11 (f.w.d.

841-669, pg. 21)

Water/sprinkler supervisory wiring (f.w.d. 841-669, pg. 21)

Remove the appropriate jumper if the zone is connected to a:

Zone Disconnect Module

Zone Suppression Module

Combination Zone Disconnect/Suppression Module

TB2

4-Wire Detector Power, TB2-I thru -3 & Annunciator

Outputs, TB2-4 thru -12 (see Figure 2)

120 Volt detectors bring 120 Volts into TB2-1 (Cut

JW-10)

24 Volt detectors use TB2-2 (+ ) and TB2-3 (-)

JW 10

ER - POWER

TBi-1

DETECTOR

28 v

TBZ-2 (9+

TB2-3 -

FIGURE 2

TB2-4 thru -11 is a pulse (-) for the zone in alarm

If Supervised Annunciator (See pg. 7)

LED annunciator wiring (f.w.d. 841-669, pg. 18)

Incandescent lamp annunciator (f.w.d. 841-669, pg.

19)

TB2-12 is a (+ ) voltage 2

Technical Manuals Online! - http://www.tech-man.com

firealarmresources.com

TB2 TBl

TEST POINT 1 \ TEST POINT 2

TEST POINT 3 MICROPR&ESSOR

FIGURE I

Technical Manuals Online! - http://www.tech-man.com

firealarmresources.com

CPU (cont’d)

See Figure 3

TB3

City Box Wiring (f.w.d. 841-669, pg. 20)

Reverse polarity, TB3-1 & -4 (Jl - 2,4,5,8,9 In)

Local energy, TB3-1 & -3 (Jl - 2,3,7,9,11 In)

City shunt, TB3-1 & -2 (Jl - 1,5,11 In)

Form C, TB3-1 & -3 (Jl - 1 In)

TB4

Remote reset (TB4-24)

+24 Volts in will reset the system

Remote acknowledge (TB4-23)

+ 24 Volts in will acknowledge the system

System trouble output (TB4-22)

0 Volts out when system trouble until reset

Serial bus (TB4-20 & TB4-21)

You may have 16 addresses on this bus (0 thru 15)

Address 15 is reserved for 2120 communications

Aux 1 8 2 (TB4-14 thru TB4-19)

N.O. & N.C. contacts with center strap fused (f.w.d. 841-

669, pg. 16)

Cutting JW12 causes relay

to act as a nonsilenceable

trouble relay (JW-20 on rev. A boards)

Trouble relay (TB4-11 thru TB4-13)

Picks until system trouble is cleared

Indicating appliance circuits 1 & 2 (signals) (TB4-3 thru TB4-

10)

Style Y (formerly Class B) (f.w.d. 841-669, pg. 13)

Style Z (formerly Class A) (f.w.d. 841-669, pg. 14)

Terminate with 10k E.O.L. resistor.

24 Volts and common (TB4-1 & TB4-2)

CAUTION: This power is not fused.

TB5

AC input terminals (TB5-1 thru TB5-3)

AC power wiring (f.w.d. 841-669, pg. 22)

Fuses

Fl 3 Amp for annunciator power

F2 8 Amp for main power

F3 8 Amp for battery power

F4 3 Amp for aux relay 2 (K5)

F5 3 Amp for aux relay 1 (K4)

F6 3 Amp for signal 1 output (Kl)

F7 3 Amp for signal 2 output (K2)

F8 5 Amp hardwired UL fuse on the power supply

(not shown)

F9 3 Amp for resettable + 24 VDC (K3)

FlO 5 Amp hardwired UL fuse on the power

supply

(not shown)

Technical Manuals Online! - http://www.tech-man.com

firealarmresources.com

1 rl..xL 0 0Wm49S ON OYbOS “d3

Technical Manuals Online! - http://www.tech-man.com

firealarmresources.com

CPU (cont’d)

See Figure 4

DIP Switches

(For detailed information, see FA4-21-151).

NOTE: Setting the switch OFF selects the function.

SW1 -1 Alarm verification

-2 Coded input

-3 Waterflow

-4 Sprinkler supervision

-5 Time limit cutoff

-6 & -7 Silence inhibit

-8 2120 connection

SW2 -1 System walk test

-2 Manual evacuation

-3,-4 & -5 Signal coding

-6 & -7 Selective coding

-8 Expanded Simplex Programming

SW3 Indicates the number of supervised modules

connected to the serial port. NUMBER OF

ANNUNCIATOR

SW3-4 SW3-3 SW3-2 SW3-1 MODULES

C&OSE CLOSE CLOSE CLOSE 0

CLOSE CLOSE CLOSE OPEN 1

CLOSE CLOSE OPEN CLOSE 2

CLOSE CLOSE OPEN OPEN 3

CLOSE OPEN CLOSE CLOSE 4

CLOSE OPEN CLOSE OPEN 5

CLOSE OPEN OPEN CLOSE 6

CLOSE OPEN OPEN OPEN 7

OPEN CLOSE CLOSE CLOSE 8

OPEN CLOSE CLOSE OPEN 9

-OPEN CLOSE OPEN CLOSE 10

OPEN CLOSE OPEN OPEN 11

OPEN OPEN CLOSE CLOSE 12

OPEN OPEN CLOSE OPEN 13

OPEN OPEN OPEN CLOSE 14

OPEN OPEN OPEN OPEN 15

SW4 System reset

SW5 Alarm silence

SW6 Trouble silence

SW7 Manual evacuation

SW8 City bypass

SW9 Aux 1 bypass

SW10 Aux 2 bypass

SW1 1 Selects annunciator supervision

Technical Manuals Online! - http://www.tech-man.com

firealarmresources.com

SUPERVISED LED/

ANNUNCIATOR LAMP

SWll-1 ZONE 1

-2 ZONE 2 (RlO)

-3 ZONE 3

W2)

-4 ZONE 4 (RI41

-5 ZONE 5

(R16)

-6 ZONE 6

W8)

-7 ZONE 7

0-0)

-8 ZONE 8

NOTE: Remove the resistor if annunciator is LED-type.

DO NOT remove the resistor if annunciator is LAMP-type

annunciator.

FIGURE 4

Technical Manuals Online! - http://www.tech-man.com

firealarmresources.com

CPU (cont’d)

See Figure 5

Jumpers

Jl is for City Connection (See pg. 4)

JW2 thru JW9 Zone Disconnect and/or Suppression

(See Pg. 2)

JWiO REMOVE if External Supply Connected to TBZ-1

(See Pg.

JWll REMOVE if zone 1 is used for Coded Input (See

Pg. 2)

JW12 REMOVE to make AUX 1 become a Trouble Relay

(See Pg. 4)

JW13 REMOVE when an expansion board is added to

the system

JW14 REMOVE when an expansion power supply is

added to

the system

Technical Manuals Online! - http://www.tech-man.com

firealarmresources.com

Other manuals for 4002

Table of contents

Other Simplex Fire Alarm manuals

Simplex

Simplex SafeLINC 4100 User manual

Simplex

Simplex Saturn 2500 User manual

Simplex

Simplex SafeLINC 4100 Operating instructions

Simplex

Simplex 4906-9253 User manual

Simplex

Simplex 4606-9102 User manual

Simplex

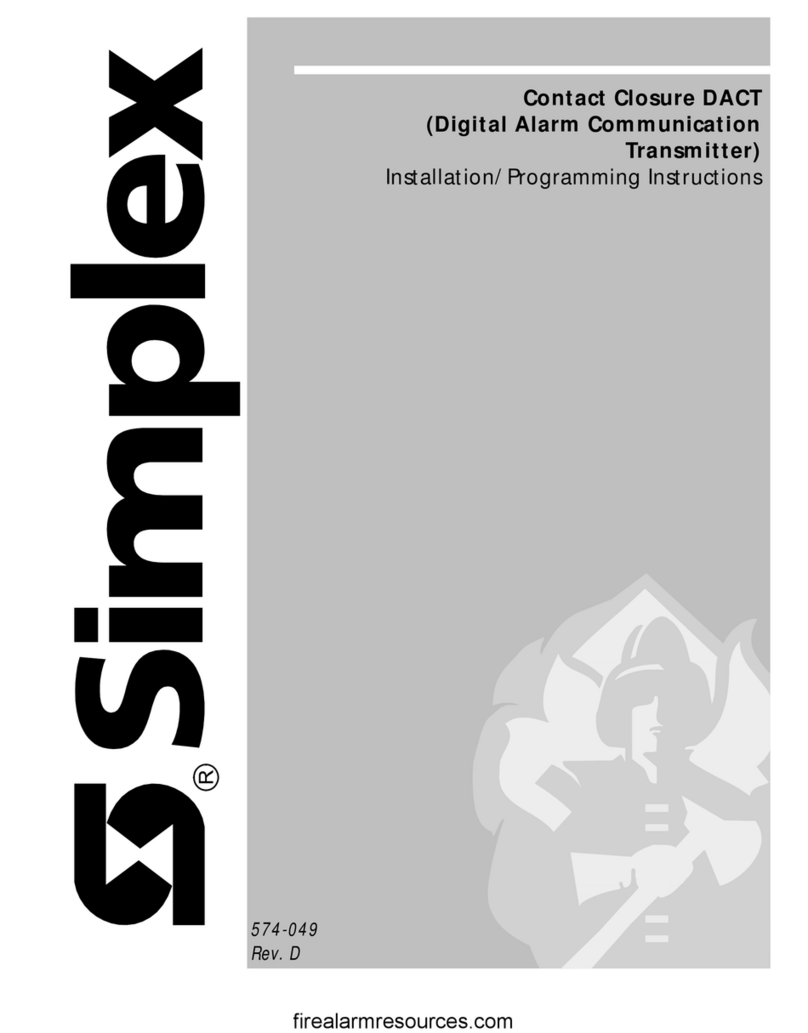

Simplex Contact Closure DACT Technical specifications
