Sim-Lab P1-X User manual
Copyright 2020 - SimLab | Revision 0.9 (April 2020)
INSTRUCTION MANUAL
Thank you for purchasing a Sim-Lab P1-X sim racing chassis! On
the following pages you will find a detailed instruction howe to build
this cockpit. Assembling requires a set of simple tools, and general
knowledge of how to use them and a bit of technical insight.
There are 12 Variant of the P1-X sim racing cockpit. Every variant is
covered in this manual. Take care to find the illustrations that are
applicable to the one you chose. Generally it takes about 3-4 hours
to build this cockpit. Before starting please check contents and
make sure all the parts are accounted for in the packages.

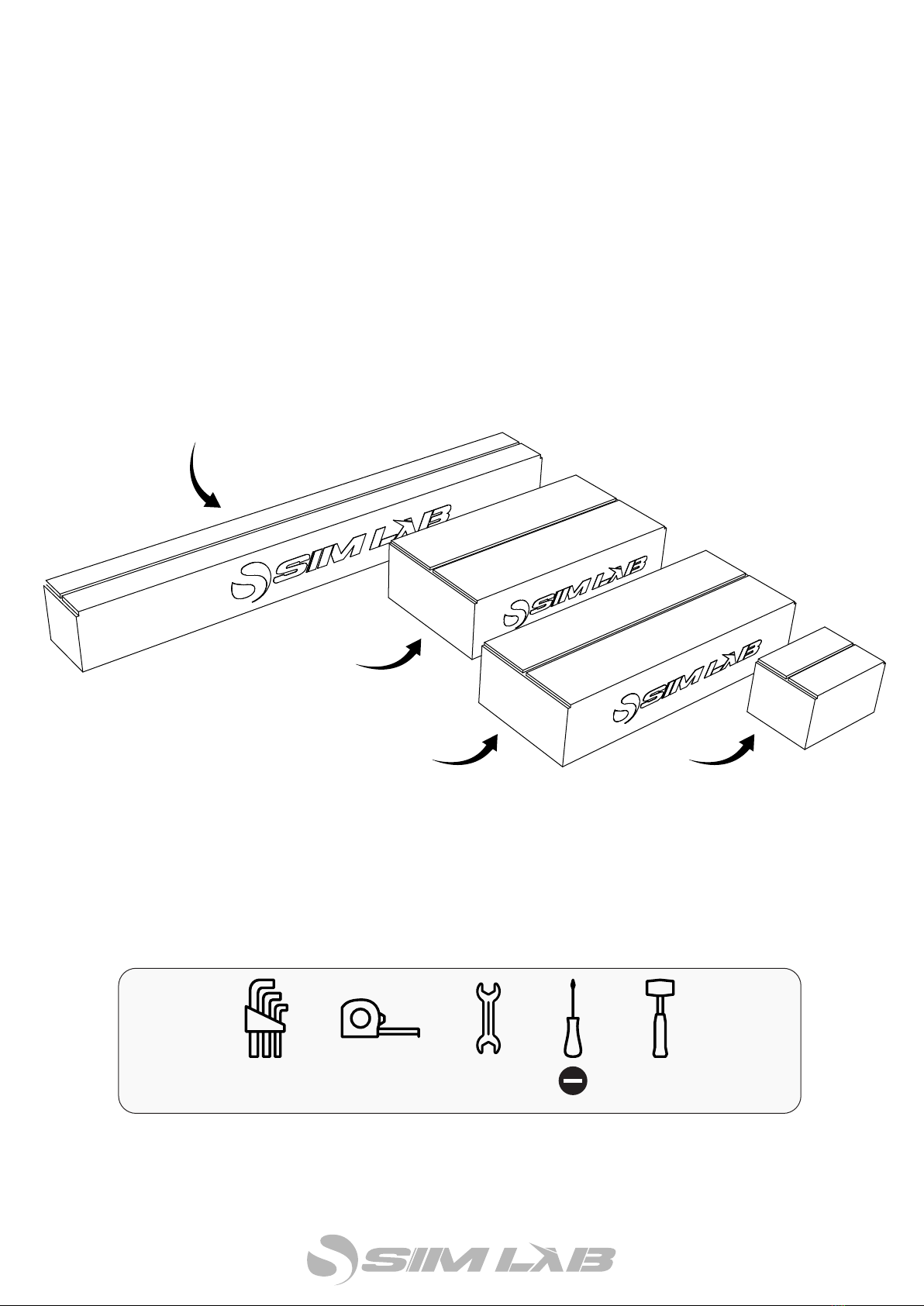

BOX B (Hardware kit)
BOX C
(Pedal tray)
BOX D
(Feet)
BOX A (Profile kit)
5/6 mm 11 mm
Required tools:

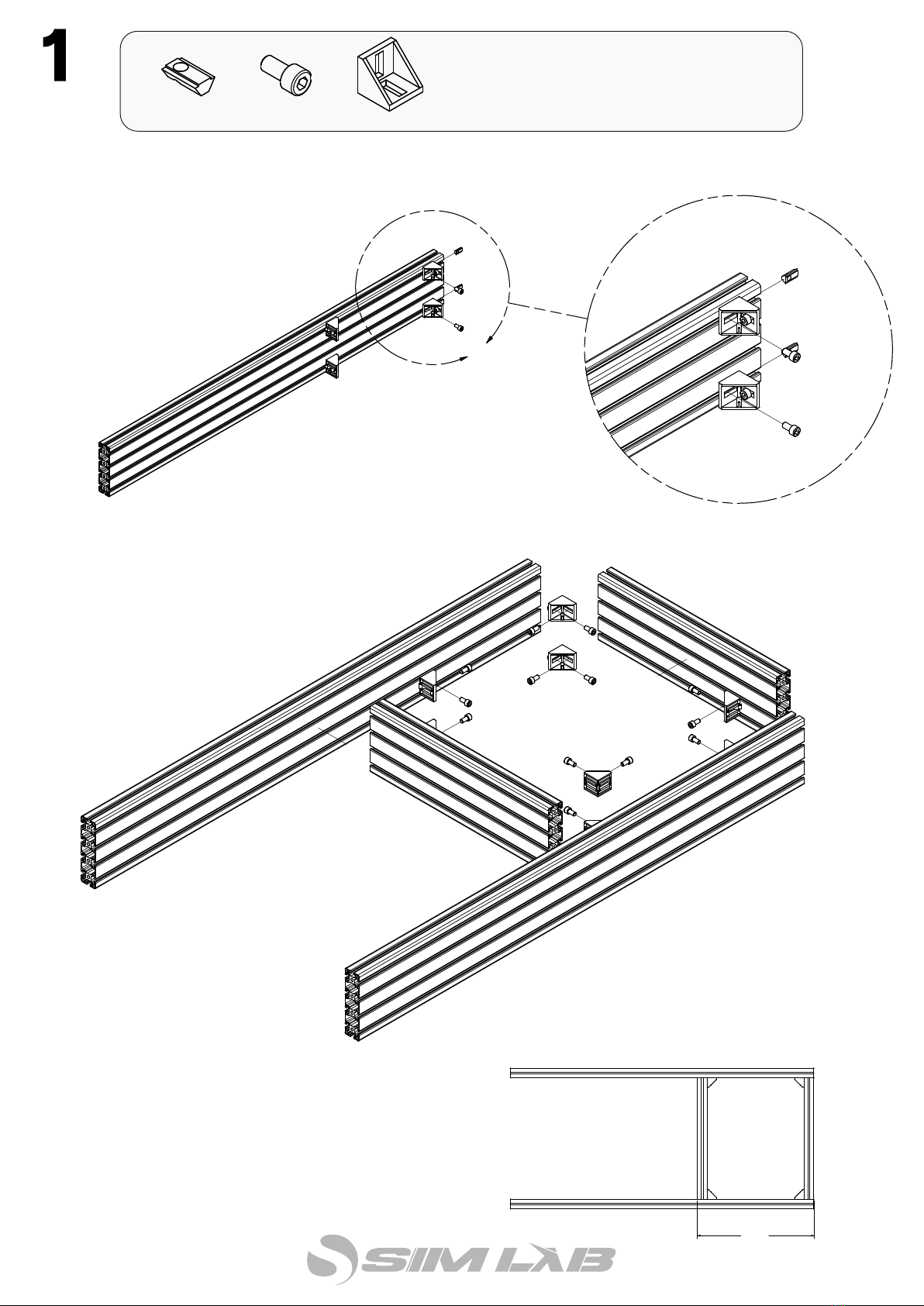

500
B7 B13 B25
2b
2a
B7 B13
B8 B14
B2 (4x)
F5
F1, F2, F3, F4
3
*break off the lip on the connector bracket
B7 B13 B25B16
B26
5
4
B7 B17 B15
B12
C11
C12
6a
*break off the lip on the connector bracket
FR1
FR2
FR3
FR10
FR13
FR14
FR5
Front mount assembly
6b Wheeldeck assembly
WH5, WH6 (6x)
6c Fanatec Podium bracket assembly
DD7
DD8
DD8
Parts list - Main kit
BOX A Base Profiles (Black/Grey)
A1 Profile 40 mm slot 8 (Black/Grey, 40x160L) - 1350mm 2 Units
A2 Profile 40 mm slot 8 (Black/Grey, 40x160L) - 500mm 2 Units
A3 Profile 40 mm slot 8 (Black/Grey, 40x120L) - 780mm 2 Units
BOX B Hardware kit + Profiles (Black/Grey)
B1 Cover cap for corner bracket (40x40) 20 Units
B2 Rubber feet 4 Units
B3 End cap profile (40x40L) 9 Units
B4 End cap profile (40x80L) 1 Units
B5 End cap profile (40x120L) 4 Units
B6 End cap profile (40x160L) 4 Units
B7 Slot 8 nut (M8) 70 Units
B8 Slot 8 nut (M6) 20 Units
B9 Slot 8 nut (M4) 4 Units
B10 Slot 8 nut (M5) 4 Units
B11 Washer (Black steel, M8, Plain black) 8 Units
B12 Sandwich plate small 40x40 1 Units
B13 Bolt - DIN 912 (Galvanised, 16mm, M8) 50 Units
B14 Bolt - DIN 912 (Galvanised, 20mm, M6) 4 Units
B15 Bolt - DIN 7991 (Black steel, 25mm, M8) 12 Units
B16 Bolt - DIN 7991 (Black steel, 20mm, M8) 20 Units
B17 Bolt - DIN 912 (Black steel, 25mm, M8) 8 Units
B18 Bolt - DIN 912 (Black steel, 20mm, M8) 10 Units
B19 Bolt - DIN 912 (Black steel, 20mm, M6) 4 Units
B20 Bolt - DIN 912 (Black steel, 12mm, M6) 4 Units
B21 Profile 40 mm slot 8 (Black/Grey, 40x40L) 500mm 2 Units
B22 1 Units
B23 2 Units
B24 1 Units
B25 Corner Bracket (40x40) 20 Units
B26 Sandwich plate P1-X 2 Units
Profile 40 mm slot 8 (Black/Grey, 40x40L) 320mm
Profile 40 mm slot 8 (Black/Grey, 40x40L) 200mm
Profile 40 mm slot 8 (Black/Grey, 40x80L) 580mm
BOX C P1-X Pedal tray (Black/Grey)
C1 Slot 8 nut (M5) 12 Units
C2 Slot 8 nut (M6) 12 Units
C3 Slot 8 nut (M8) 10 Units
C4 Washer (Black steel, M8, Plain black) 4 Units
C5 Bolt - DIN 912 (Galvanised, 16mm, M6) 12 Units
C6 Bolt - DIN 7991 (Black steel, 25mm, M8) 10 Units
C7 Bolt - DIN 912 (Black steel, 25mm, M8) 10 Units
C8 Bolt - DIN 912 (Black steel, 16mm, M5) 12 Units
C9 Profile 40 mm slot 8 (Black/Grey, 40x160L) 2x M8 Thread - 470mm 1 Units
C10 Profile 40 mm slot 8 (Black/Grey, 40x80L) 2x M8 Thread - 470mm 1 Units
C11 P1-X pedal plate (Left) 1 Units
C12 P1-X pedal plate (Right) 1 Units
