MULTI-BAND RADIO KH2022
Intended use
This device is intended for receiving generally approved radio transmissions
in all countries (world receiver) and only for household use.
This appliance is NOT intended for use as a component in a safety-radio facility
e.g. on board sporting boats or for applications in commercial or industrial
areas. It is also not intended for climate zones outside of the ranges specified
under Technical Data.
Items supplied
1 x Shortwave radio
1 x Storage bag
1 x Earphones
2 x Batteries, Mignon 1.5V Type AA
1 x Operating instruction
• Check to ensure that the appliance is undamaged, all component parts
are present and that all packaging remnants are removed from it.
Note: An adaptor for mains operation is not supplied, but can be obtained
from a specialist shop. Take note of the details listed for the mains power
adaptor in the section "Technical data".
IB_KH2022_DT32963_LB4B.qxd 07.05.2009 16:30 Uhr Seite 2
- 3 -
Technical data
a) Reception ranges:
FM: 87.5 – 108 MHz
AM: 520 – 1620 kHz
SW (1-7): 5.95 – 15,6 MHz
Sensitivity : FM switchable to 2 levels
b) Restrictions for climatic zones:
Temperatures : -5 – +40 °C
Relative humidity : 20 – 80% RMH
c) Miscellaneous:
Earphone connection: 3,5 mm Stereo jackplug socket
Max. output level f.
earphone socket: 200 mV
Batteries: 2 x 1.5 V Type “AA” Mignon
Mains adaptor: optional, DC 3.6 V / 200 mA
Connection for mains
adaptor: Barrel plug 3.5/1.3mm, plus innen
Dimensions: 118 x 34 x 75 mm
Weight : 150 g (Radio, without batteries), 20 g Storage bag
d) Earphone
Wideband characteristic
voltage (WBCV): 201 mV
Type: KH 2022E
Impedance: 32 Ω
CE- Conformity
This device has been tested and approved in accordance with the basic require-
ments and other relevent regulations of the EMV directive 2004/108/EC.
IB_KH2022_DT32963_LB4B.qxd 07.05.2009 16:30 Uhr Seite 3
- 4 -
Appliance description

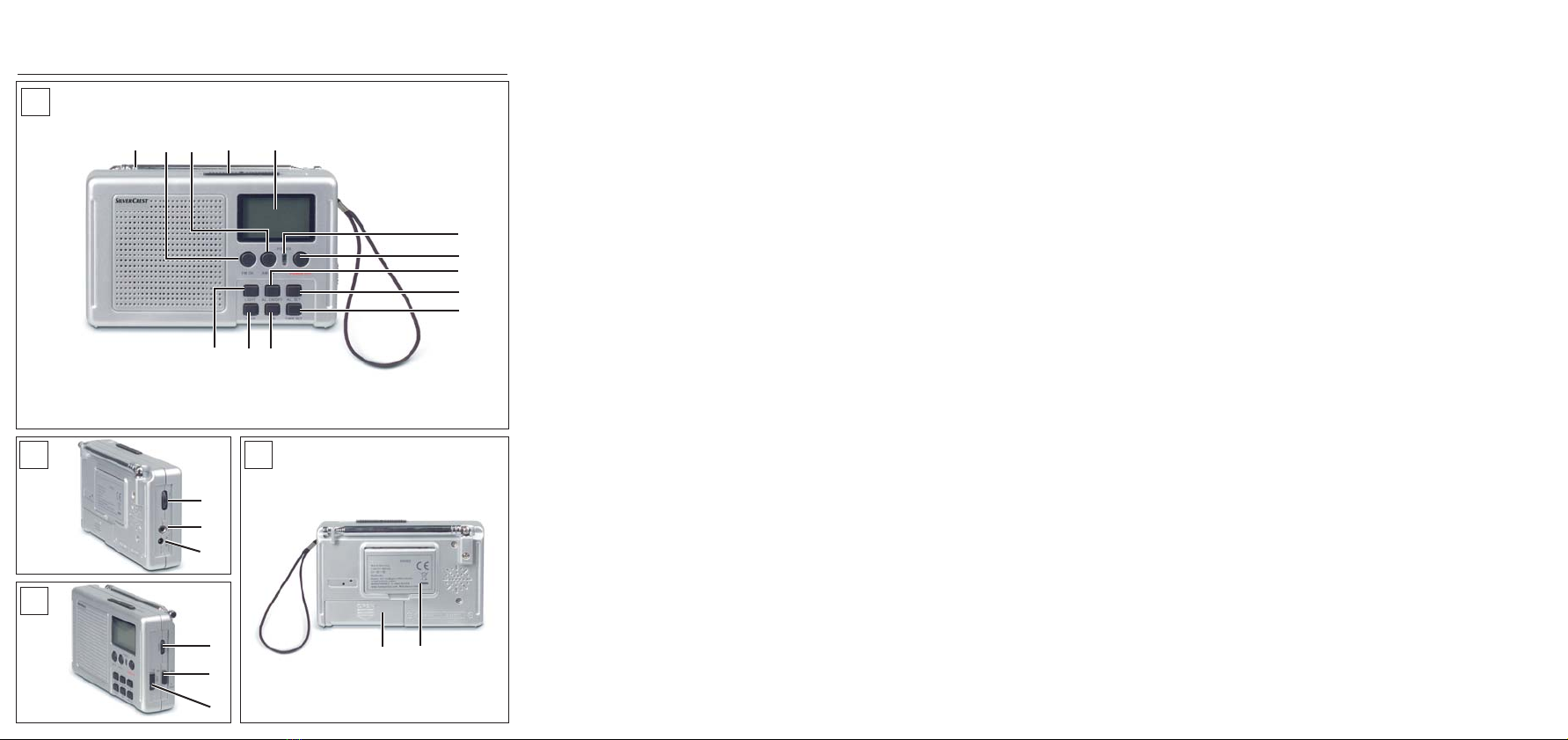

Fig. A:
Telescopic aerial
Operation button “FM ON”: Switch on and select FM
Operation button “AM ON”: Switch on and select AM
Waveband selector:Select the AM reception range (MW, SW 1-7)
Display
LED “POWER” glows when the appliance is switched on
Button “POWER OFF”: To switch the appliance off
Button “AL. ON/OFF”: To switch the alarm function on or off
Button “AL. SET”: Setting the alarm time
Button “TIME SET”: Setting the time
Button “MIN”: Adjustment of minutes
Button “HOUR”: Adjustment of hours
Button “LIGHT”: For switching the display illumination on
Fig. B:
Volume regulator “VOL”
Earphone connection socket
Power supply socket for mains adaptor (optional)
Fig. C:
Tuning regulator “TUNING”
Slider switch “LOCAL / DX”: Sensitivity with FM reception
Slider switch “HOLD”: Button-lock on/off switch
Fig. D:
Support: To slant the appliance
2! Battery compartment
IB_KH2022_DT32963_LB4B.qxd 07.05.2009 16:30 Uhr Seite 4
- 5 -
Safety instructions
• Take note that in some countries, different national regulations may apply
with regard to the radio frequency ranges that may be freely received.
Please note that information received from outside of the assigned radio
frequency ranges may not be exploited, passed on to third parties or
otherwise misused.
• Transportable world receivers are used in a wide range of climate zones.
Pay heed, especially when used outdoors, that the climatic restrictions (see
Technical data) are not exceeded. Electronic devices can be damaged
by moisture. Extremely dry air can initiate static charges that could lead to
faulty functions. Very high temperatures (e.g. direct sunlight) or very low
temperatures (e.g. outdoors in winter) can permanently darken the liquid
crystal display.
• Transportable appliances are particularly at risk from accidental damage.
Protect the appliance against heavy stresses, such as impacts and falls.
Select a location in your travel luggage where it cannot be damaged, or
switched on, by other hard objects.
• Protect the appliance against drip and spray water. Do not place water-
filled receptacles, such as flower vases, on or next to the appliance.
• Never submerge the appliance in water or other liquids. This could damage
it irreparably!
• Batteries may not be thrown into a fire, taken to pieces or short circuited.
Additionally, do not attempt to recharge batteries. There is a chance that
they could explode.
• Always store batteries at a location that in inaccessible for small children
and infants. Should a battery be swallowed, seek medical attention
IMMEDIATELY.
IB_KH2022_DT32963_LB4B.qxd 07.05.2009 16:30 Uhr Seite 5
• Check to ensure that the appliance is in a serviceable condition before
taking it into use. Should there be visible damage to the appliance, do not
take it into use. Arrange for it to be checked for safety by Customer Services.
Attention!
Listening to music with earphones for long periods and at high
volume levels can lead to hearing damage!
• Use only the supplied headphones of Type KH2022E. When using head-
phones, the built-in loudspeakers are switched off.
Power supply
a) Inserting the batteries:
• Open the battery compartment 2! on the rear of the appliance and insert
two batteries as shown on the markings next to the battery compartment.
Close the battery compartment. The appliance is now ready for use.
• When a battery symbol appears in the display , always replace both
batteries with the types detailed under Technical Data. In this regard, also
take note of the notices contained in the sections “Maintenance” and
“Disposal”.
b) Connecting the mains adaptor:
A mains adaptor is not supplied. If you have one available that conforms
with the specifications given under Technical Data:
• Connect the mains adaptor to the power supply socket . The installed
batteries are thereby isolated.
- 6 -
IB_KH2022_DT32963_LB4B.qxd 07.05.2009 16:30 Uhr Seite 6
Setup
• Unfold the telescopic aerial and draw it out to its full length.
• Push out the support if you wish to position the appliance at an angle.
Then turn the telescopic aerial to a slanted upward angle.
Receive Mode
a) Switching the appliance on/off, button lock
• To switch the appliance on, press on the ...
– button “FM ON” , if you wish to receive VHF transmissions.
– button “AM ON” , if you wish to receive MW or SW 1-7 transmissions.
• The green LED “POWER” glows for as long as the appliance is
switched on.
• To switch the appliance off, press the button “POWER OFF” .
• With the sliding switch ”HOLD” you can block all buttons against
adjustment (ON), or have them free for adjustment (OFF).
b) Adjusting the reception
• If you have switched the appliance on using the receiving mode button
“AM ON”, first of all select either the reception range MW (Medium
Wave) or SW 1-7 (Short Wave). For this, push the waveband selector
into the relevant position.
• Then search for the desired radio station by slowly turning the tuning re-
gulator “TUNING” until you have clear reception. In the display
the frequency just received is shown digitally, together with the unit
“MHz” (Megahertz) or “kHz” (Kilohertz).
- 7 -
IB_KH2022_DT32963_LB4B.qxd 07.05.2009 16:30 Uhr Seite 7
c) Adjusting volume and sensitivity
• Set the desired volume level using the volume regulator “VOL” .
• With FM reception you can make adjustments to the reception sensitivity.
Slide the switch “LOCAL/DX” to the position “LOCAL” if you only want to
receive powerful local transmissions. In the position “DX” the receiver is
adjusted for worldwide reception.
d) Switching the display illumination on
• Hold the button “LIGHT” pressed down to switch on the display illumi-
nation.
Time and alarm function
The appliance can switch itself on under timed control, e.g. as an alarm func-
tion. The requirements are that the clock is correctly adjusted, an alarm time
is programmed in and the alarm function is switched on. Additionally,
a radio station should be selected and a sufficiently loud volume level be set.
Notice: To adjust the time and alarm settings the appliance must be
switched off.
a) Setting the clock
• To set the hour indicator, press and hold the button “TIME SET” and,
at the same time, press the button “HOUR” .
• To set the minute indicator, press and hold the button “TIME SET” and,
at the same time, press the button “MIN” .
b) Programming the alarm time
• To set the hour indicator, press and hold the button “AL.SET” and,
at the same time, press the button “HOUR” .
• To set the minute indicator, press and hold the button “AL.SET” and,
at the same time, press the button “MIN” .
- 8 -
IB_KH2022_DT32963_LB4B.qxd 07.05.2009 16:30 Uhr Seite 8
