JULIET-MICRO™

COMPACT MAGNIFIER

OPERATOR’S MANUAL

Please visit sigsauer.com for Owners Manual downloads.

INTRODUCTION

The SIG SAUER®JULIET-MICRO line of Compact Magnifiers provides red dot and

holographic sight users extended range capabilities in an ultra-small, lightweight

package. When mounted behind a SIG SAUER ROMEO Red Dot sight the flip-to-side

JULIET-MICRO Magnifier allows users to quickly change from close to long distance

engagements. JULIET-MICRO Magnifiers are covered by the SIG SAUER Electro-

Optics Infinite Guarantee.

CONTENTS:

• JULIET-MICRO Compact Magnier

• 1.41” Absolute Co-Witness Push-Button, Flip-to-Side Mount (installed)

• 1.54” Sight Height Spacer kit

• 1.63” Lower 1/3rd Co-Witness Spacer Kit

• Hex Tool

• Bikini Lens Cover

• Lens Cloth

KEY FEATURES:

• High Performance Lens Coatings including Dielectric Coated Prism for excellent

clarity and contrast

• Push-Button, Flip-to-Side Mount with durable industry standard 1/2” hex keeper

• Ultra-compact size and weight

• IPX7 Waterproong

• Bikini Lens Cover, and spacers to achieve (3) sight heights: absolute co-witness

1.41”, 1.54” and lower 1/3rd co-witness 1.63” sight heights.

• SIG SAUER® Electro-Optics Innite Guarantee™

PRODUCT IDENTIFICATION

A. 1/2” Hex Keeper

B. Ocular Housing with Adjustable Diopter

C. Elevation Adjustment

D. Windage Adjustment

E. Push-Button, Flip-to-Side Mount

ENSURE YOUR FIREARM IS UNLOADED AND CLEARED OF ALL AMMUNITION

AND THE SAFETY IS ENGAGED PRIOR TO INSTALLING OR REMOVING THE

JULIET-MICRO.

OPERATION

Installation

Step 1 - Sight Height

Your JULIET-MICRO comes configured for 1.41” absolute co-witness, but also includes

spacer kits for 1.535” and 1.63” lower 1/3rd co-witness. Determine the sight height

of your red dot and adjust your JULIET-MICRO sight height accordingly by using the

spacer kits provided. The 4 mounting screws should be torqued to

13 in-lbs.

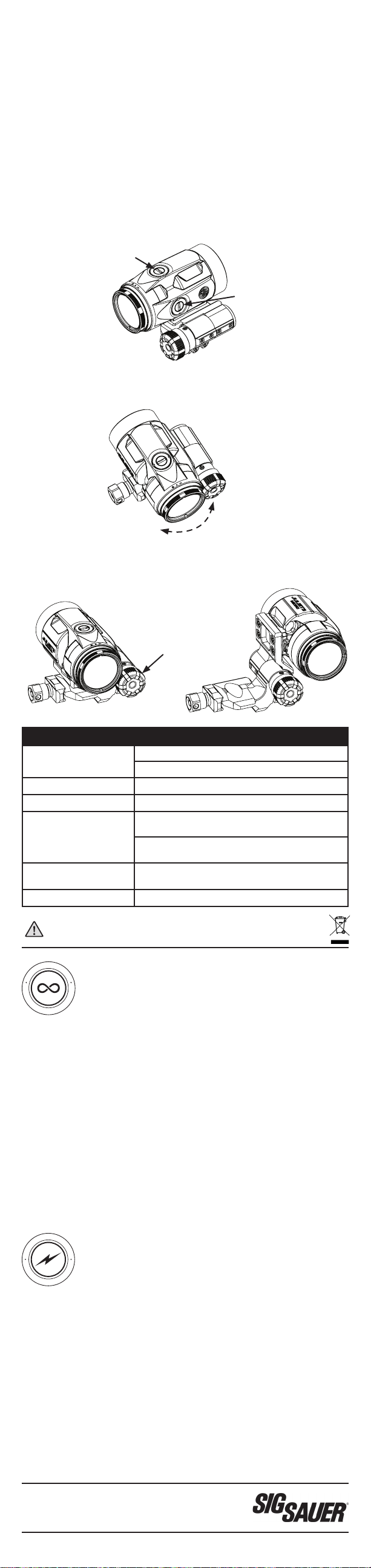

SPACER INSTALLATION

DIOPTER ADJUSTMENT

MAGNIFIER ENGAGED

MAGNIFIER FLIPPED-TO-SIDE

WINDAGE & ELEVATION ADJUSTMENT

PRODUCT IDENTIFICATION

SPECIFICATIONS JULIET3-MICRO JULIET5-MICRO

Magnification 3X 5X

Clear Aperture 22 24

Field of View 6.8° 4.0°

Eye Relief 63 mm 60 mm

Diopter Range ± 2Dpt ± 2Dpt

Waterproof IPX-7 IPX-7

Length 81 mm 79 mm

Weight 277 g 273 g

WARNING UNLOAD/CLEAR

SPACER INSTALLATION

DIOPTER ADJUSTMENT

MAGNIFIER ENGAGED

MAGNIFIER FLIPPED-TO-SIDE

WINDAGE & ELEVATION ADJUSTMENT

PRODUCT IDENTIFICATION

13 in-lbs

65 in-lbs

Step 2 - Install on Rail

Locate your JULIET-MICRO behind your red dot under the following considerations:

1. Charging handle should be accessible

2. Eye relief is optimal when rearm is shouldered

3. Magnier does not interfere with red dot or other accessories while using ip-to-

side feature

Once the correct rail position is determined for the JULIET-MICRO you may need to

move the red dot.

Once both positions of the JULIET-MICRO and your red dot are determined, torque

the 1/2” hex nut to 65 in-lbs. If your red dot was removed or repositioned during this

process, re-install per manufacturer’s specifications.

Step 3 - Center Elevation & Windage

Ensure that your red dot is zeroed.

Using the JULIET-MICRO elevation and windage adjustments, rotate one at a time

until the red dot is centered in the field of view.

Note: The JULIET-MICRO adjustments will not affect Point of Aim (POA). You will need

to make those adjustments on the red dot.

Step 4 - Set Diopter

JULIET-MICRO comes with an adjustable diopter. To adjust diopter, rotate the eyepiece

until the red dot reticle is crisp and clear.

Step 5 - Flip-to-Side Mount

JULIET-MICRO magnifier comes installed to a push-button, flip-to-side mount. Simply

press the button to go from engaged to disengaged.

SIG SAUER ELECTRO-OPTICS INFINITE GUARANTEE®/LIMITED LIFETIME WARRANTY

SIG SAUER®has manufactured the most rugged, dependable, high-performance

firearms for more than two centuries. Our heritage of design, engineering, and precision-

manufactured quality predates the existence of any other optics company worldwide. We

understand the importance of quality in the line of fire, at the shooting range or on your

next hunt. SIG SAUER Electro-Optics had to earn the right to wear that badge and the

Infinite Guarantee has your back, forever. Period.

We will repair or replace your SIG SAUER product in the event it becomes damaged or

defective, at no charge to you. If we cannot repair your product, we will replace it with a product in perfect

working order of equal or better physical condition.

SIG SAUER®Infinite Guarantee®

• Unlimited Lifetime Guarantee

• Fully Transferable

• No Warranty Card Required

• No Receipt Required

• No Time Limit Applies

• No Charge

Please note that our Infinite Guarantee excludes coverage for intentional damage, misuse, cosmetic damage

that does not affect the performance of the optic, loss, theft, or unauthorized repair or modification. Excludes

electronic and Tritium components.

Customers seeking warranty coverage must first obtain a Return Merchandise Authorization (RMA) by

contacting SIG SAUER Customer Service, and return the product unloaded and freight prepaid.

ANY WARRANTIES IMPLIED BY LAW, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY

OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. REPAIR, ALTERATION,

OR REPLACEMENT AS PROVIDED HEREIN IS YOUR EXCLUSIVE REMEDY FOR ANY DEFECTIVE

PRODUCT. IN NO EVENT SHALL SIG SAUER OR ANY COMPANY AFFILIATED WITH SIG SAUER BE

LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND ARISING

OUT OF THE PURCHASE OR USE OF THIS PRODUCT, WHETHER BASED UPON CONTRACT, TORT,

STATUTE, OR OTHERWISE. Some states do not allow the exclusion or limitation of implied warranties, or

the exclusion or limitation of incidental or consequential damages, so some or all of the above limitations or

exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other

rights which vary from State to State.

THIS WARRANTY APPLIES TO COMMERCIAL CUSTOMERS ONLY, AND DOES NOT APPLY TO

GOVERNMENT, MILITARY, LAW ENFORCEMENT, OR NON-US CUSTOMERS. NON-US COMMERCIAL

CUSTOMERS MUST PURCHASE PRODUCT THROUGH AN AUTHORIZED SIG SAUER DEALER WITHIN

THEIR COUNTRY OF RESIDENCE FOR THIS WARRANTY TO APPLY.

SIG SAUER®ELECTRONIC COMPONENT LIMITED 5-YEAR WARRANTY

SIG SAUER warrants that the electronic and tritium components of the enclosed product

were originally manufactured free of defects in workmanship, material, and mechanical

function. For a period of five (5) years from the date of manufacture, SIG SAUER agrees

to correct any defect in these components by repair, adjustment, or replacement, at

SIG SAUER’s option, with the same or comparable quality components (or by replacing

the product at SIG SAUER’s option); provided however that a Return Merchandise

Authorization (RMA) is first obtained by contacting SIG SAUER Customer Service, and that

the product is returned unloaded and freight prepaid.

This limited warranty is null and void if the product has been misused, damaged (by accident or otherwise),

damaged through failure to provide reasonable and necessary maintenance as described in the user’s manual,

or if unauthorized repair or any alteration, including of a cosmetic nature, has been performed on the product.

This limited warranty does not apply to normal cosmetic wear and tear of any parts.
