Siemens OpenStage 60/80 User manual

Communication for the open minded

Siemens Enterprise Communications

www.siemens.com/open

Documentation

HiPath 500, HiPath 2000, HiPath 3000, HiPath 5000

HiPath 4000, HiPath OpenOffice ME

OpenStage 60/80

OpenStage 60/80 T

Quick Reference Guide

oi.book Seite 1 Dienstag, 12. Februar 2008 4:54 16

Using Your Telephone

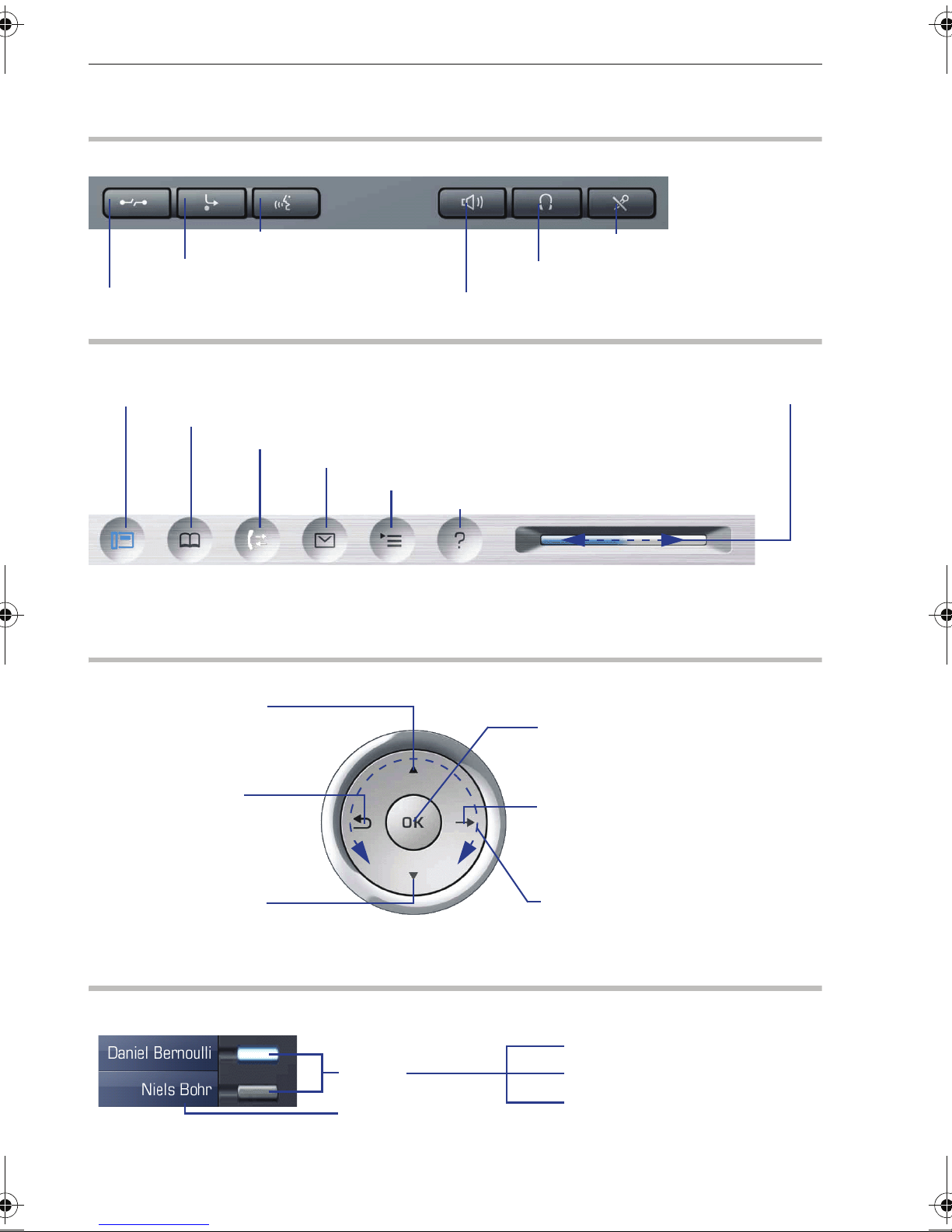

Function Keys and Audio Keys

Mode keys and TouchSlider

Shining blue: mode is active

Shining white:

for call lists: new entry in call list

for voicemails: new voicemail

TouchGuide

Programmable sensor keys on the display

qStart voice dialing

rActivate/deactivate forwarding

sEnd (disconnect) call

pTurn microphone on/off

oTurn headset on/off

nTurn speaker on/off

tTelephony interface

uPhonebooks

wCall lists

xVoicemails

vService/Applications menu

yHelp function

Run finger over TouchSlider:

Depending on situation, set

volumes for ringer or

speaker

Press mkey:

- Scroll upwards

Hold down:

- Scroll to beginning of list

Press lkey:

- Scroll downwards

Hold down:

- Scroll to end of list

Press gkey:

- Call up the context menu

- Go down a level

Press hkey:

- Cancel function

- Delete character

left of cursor

- Go up a level

Press ikey:

- Confirm input

- Perform action

Run finger over inner edge of ring W:

- Scroll through lists and menus

- Adjust volume

Keys

Label

S inactive

R lit

T flashing

oi.book Seite 2 Dienstag, 12. Februar 2008 4:54 16

Using Your Telephone

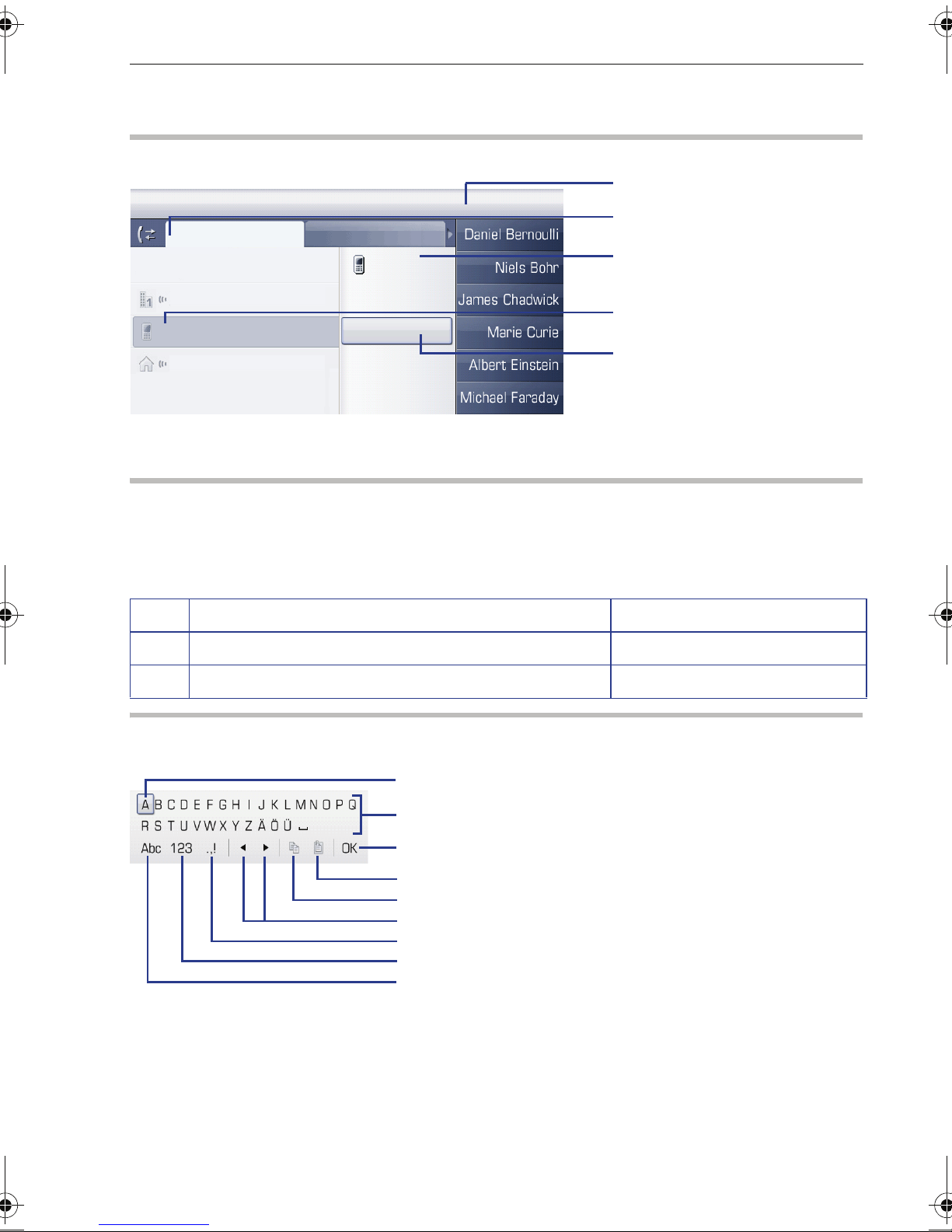

Display

Components

Entering Phone Numbers and Text

Keypad

In situations where text entry is possible, you can use the dial keys to enter text, punctua-

tion and special characters. To do this, press the numerical keys repeatedly.

Extra asterisk and pound key functions:

Display keyboard

Depending on the context, the display keyboard is displayed with different elements.

Using the display keyboard:

WShift focus to another element

gShift focus to "OK"

iSelect element

Key Function during text input Function when held down

*Write special characters Deactivate the ring tone.

#Switch between upper/lower case and digit entry. Activate telephone lock.

Status bar

Ta b ( a c t ive )

Selected entry

(e.g. call lists)

Context menu

Selected entry

in context menu

Missed Dialed

10:23 Mon 10/23/06 54321

Dial

Details

Delete

List options

Marie Curie

Einstein, A

Joseph von Fr.

Element in focus

Letters, digits, punctuation or special characters

Changes

Switch to number input

Switch to upper/lower case

Copy content of active field to the clipboard

Move cursor left/right

Switch to punctuation and special characters

Insert clipboard contents at cursor position

oi.book Seite 3 Dienstag, 12. Februar 2008 4:54 16

Important Operating Procedures HiPath 4000

Important Operating Procedures

HiPath 4000

In Idle State

Answering a call with the handset

ZZ^

Answering a call in speakerphone mode

ZZn

Dialing from the caller list

w("Missed" tab, press repeatedly for "Dialed", "Received", "Forwarded")

Zf desired entry i

Activating callback

j destination phone number iZif no answer or busy: f"Callback" i

Saving a phone number to a key

SHold down programmable key Zf"Assign function" iZf"Change?" i

Zf"Selected dialing?" iZf"Save?" iZDZIn "Settings" tab f"User" i

Zf"Service menu" iZf"Destinations?" iZf"Selected dialing?" i

ZSpress programmable key Z"Enter new number?" iZj phone number

Z"Completed?" iZ"Use Destination Number?" iZ"Save?" i

Dialing a saved number

Ssaved phone number Z^

^Lift handset jEnter text or number

\Replace handset fSelect entry

[Conduct call gOpen context menu

ZRing tone/call waiting tone ZNext step in procedure

oi.book Seite 4 Dienstag, 12. Februar 2008 4:54 16

HiPath 4000 Important Operating Procedures

Saving a function to a key

SHold down programmable key Zf"Assign function" iZf"Change?" i

Zfselect function iZf"Save?" i

Redialing a number

^or nZf"Last number redial?" iZ^

Programming call forwarding

rZf"Edit call forwarding" iZfselect desired forwarding type (all calls, busy, no

reply, fixed, internal calls, external calls, busy/no reply) iZf"Destination" i

Zjphone number iZfselected forwarding, e.g. "all calls" iZf"On" i

Zf"Save & exit" i

Turning fixed call forwarding on/off for all calls

oi.book Seite 5 Dienstag, 12. Februar 2008 4:54 16

Important Operating Procedures HiPath 4000

During Calls with a Party A

Switching to speakerphone mode

Hold down nZ\(US only: nZ\)

Consultation

gZ"Consultation?" iZ

phone number for party B

iZ[party B Zg

Z"Release and return?" iZ[party A

Accepting call waiting

Zcall waiting tone Zf"Answer camp-on?" iZ[party B Zfparty B Zg

Zf"Release and return?" iZ[party A

Start conference

gZ"Consultation" iZ

phone number for party B

iZ[party B Zg

Zf"Conference?" iZ[party A and B

Start conference on call waiting

Zcall waiting tone Zf"Answer camp-on?" iZ[party B Zg

Zf"Conference?" iZ[party A and B

Blind transfer

gZf"Consultation?" iZjdestination phone number Z\

Transfer after consultation

gZ"Consultation?" iZ

phone number for party B

Z[party B Z\

oi.book Seite 6 Dienstag, 12. Februar 2008 4:54 16

HiPath 500/2000/3000/5000, HiPath OpenOffice ME Important Operating Procedures

HiPath 500/2000/3000/5000,

HiPath OpenOffice ME

In Idle State

Answering a call with the handset

ZZ^

Answering a call in speakerphone mode

ZZn

Rejecting a call

ZZf"Reject call" i

Dialing from the caller list

w("Missed" tab, press repeatedly for "Dialed", "Received", "Forwarded")

Zf desired entry i

Activating callback

j destination phone number iZif no answer or busy: f"Callback" i

Saving a phone number to a key

SHold down programmable key Zf"Assign function" iZf"Change key?" i

Zf"Destinations" iZf"Station no." iZStn number: jphone number i

Z"Save" iZ"Exit" i

Dialing a saved number

Ssaved phone number Z^

Saving a function to a key

SHold down programmable key Zf"Assign function" iZf"Change?" i

Zfselect function iZf"Exit" i

Programming call forwarding

rZf"Edit call forwarding" i

Zfselecting forwarding type (all calls, internal calls, external calls) i

Zf"Destination" iZjphone number iZfselected forwarding, e.g. "all calls" i

ZgZf"On" iZf"Save & exit“ i

Turning call forwarding on/off for all calls

oi.book Seite 7 Dienstag, 12. Februar 2008 4:54 16

Important Operating Procedures HiPath 500/2000/3000/5000, HiPath OpenOffice ME

During Calls with a Party A

Consultation

gZ"Consultation" iZ

phone number for party B

iZ[party B Zfparty B Z

gZ"Release and return" iZ[party A

Start conference

gZ"Start conference" iZ

phone number for party B

iZ[party B Zg

Zf"Conference" iZ[party A and B

Blind transfer

gZf"Consultation?" iZjdestination phone number Z\

Transfer after consultation

gZ"Consultation?" iZ

phone number for party B

Z[party B Z\
