1 Concept of the MN7002 power supply 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Converter B2F020 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 Battery charging module E3C021 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1 Programming switches, jumpers 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2 LED display block 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3 Floating charging voltage in function of temperature 7. . . . . . . . . . . . . . . . . . . .

3.4 Connections of E3C021 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Application examples 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.1 Conventional power supply 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.2 Extended emergency power capacity 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.3 Power splitting 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 Mounting possibilities 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.1 In danger management system DMS7000 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.2 On L-section plate of the Z1B050 mounting set 12. . . . . . . . . . . . . . . . . . . . . . . . .

5.3 In CZ10 fire detection system control unit 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.4 In CC60 gas warning system control unit 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.5 In CZ1-02 extinguishing system control unit 15. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fire & Security Products

Siemens Building Technologies Group

04.2002

e1493d

Fire & Security Products

Siemens Building Technologies Group 04.2002

1 Concept of the MN7002 power supply

nConverter B2F020,

nBattery charging module E3C021,

nBatteries, depending of required emergency power capacity.

2×12V

≤40Ah

Control unit

various

loads

E3C021

29VDC

≤6A 2×12V

≤40Ah

Control unit

various

loads

E3C021

29VDC

≤6A

2×12V

≤40Ah

various

loads

E3C021

2×12V

≤40Ah

various

loads

E3C021

B2F020

115VAC

230VAC

≤10A B2F020

115VAC

230VAC

≤10A

115/230VAC mains voltage Ü29.6VDC system voltage, ≤6A continuous current:

current limitation, short-circuit proof,

requires no special cooling,

temperature fuse,

metal housing.

for emergency power lead batteries 2×12V ≤40Ah (24h charge):

charging current up to 1.7A,

selectable charging caracteristics depending on battery model,

symmetry monitoring,

automatic battery load test,

temperature compensation for battery charging voltage via external temperature sen-

sor.

a) Battery operation and symmetry monitoring

b) Battery operation without symmetry monitoring

c) Operation with external voltage (instead of battery)

d) Operation without battery or external voltage

Choice of earth according to equipment supplied,

– earth-free,

– positive to earth,

– negative to earth (not recommended).

Additional surge protectors are only required in special cases e.g. where there is a partic-

ular lightning hazard, overhead power lines etc. (see Z3I04, Z3I121).

The mains feeder must have an own and clear labelled fuse up to 10A.

Consists of

B2F020 converter

E3C021 battery charging

module

Operating modes

Earthing

Overvoltage protection

Mains back-up fuse

e1493d

Fire & Security Products

Siemens Building Technologies Group 04.2002

B2F020 and all E3C021 must be installed in the same housing (or in permanently joined

housings).

Batteries larger then 40Ah per E3C021 are not possible, if the recharging of a discharged

battery must be carried out according to regulations (to 80% capacity within 24h).

40

B2F020

E3C021

130

210

B2F020 470588 Converter 115/230VAC Ô29.6VDC 6A

E3C021 505408 Battery charging module

with module chassis and terminals

Z1B050 496630 Mounting set

L-section plate for mounting of one B2F020 + two E3C021

Z3I840 496533 Cable set „short”:

– PTC with 0.8m cable,

– battery cables (blue, red, green) 0.8m

– connection cable B2F020 – E3C021 (blue, red) 0.3m

– connection cable E3C021 – control unit 0.8m, with AMP T-connector

– earth wire 0.5m

Z3I850 496588 Cable set „long”:

– PTC with 2.5m cable,

– battery cables (blue, red, green) 2.2m

– connection cable B2F020 – E3C021 (blue, red) 0.3m

– connection cable E3C021 – control unit 2.0m, with AMP T-connector

– earth wire 0.5m

– prolongation „Monitoring signals” 2.0m

Z3B220 496504 Interconnecting cable

connection of monitoring signals (K3+K4) between two E3C021, 0.3m

AX1210 475570 Battery 12V / 15Ah

AX1201 225487 Battery 12V / 24Ah

AX1209 462936 Battery 12V / 38Ah

R1P061 496711 Power supply rack

delivered as a complete wired unit, without batteries

Limitations

Modules

Electronics

Accessories

Batteries

DMS7000

refer to page 12

e1493d

Fire & Security Products

Siemens Building Technologies Group 04.2002

2 Converter B2F020

115VAC

230VAC Mains voltage change-over:

1. Remove converter cover.

2. Change cable connect position.

Default = 230VAC

115/230VAC

29.6VDC Fixing point for

mains cable

Disconnect mains

voltage before open-

ing converter cover!

Key data B2F020

Mains voltage 115 / 230VAC ±15% 50...60Hz

Power consumption 40...220VA

Mains fuse 3.15A slow-blow (can only be changed at factory)

Output current up to 6A continuous

Output voltage 29.6VDC +2%

Residual ripple max. 300mVpp

Quiescent current on battery

operation 0mA

Temperature fuse automatic switch-off at >90°C

Cooling no special cooling required

Temperature range 0...+55°C

Standard prEN54-4

Dimensions 120 (100) x 42 x 204mm

Wire range max. 4mm2

Connections of B2F020

B2F020

–

Input voltage

(115VAC) 230VAC / 50...60Hz

max. 220VA

Output voltage

29.6VDC / max. 6A

Mains

E3C021

Opt

–

–S

+ S

Jumpers inserted ex factory

(essential, do not remove)

≤10A

e1493d

Fire & Security Products

Siemens Building Technologies Group 04.2002

3 Battery charging module E3C021

F11

F13

F12 X2

S2S3

S10

E3C021

R67

R66

F1...F3 Output fuses 2A slow-blow

F11...F13 Battery fuses 6.3A slow-blow, with high breaking capacity

H1, H2 LED display block „Power supply state”(page 6)

K3, K4 Monitoring signals connector (K3 = to control unit, K4 = from external)

R66, R67 Resistors „Operating mode”

S2 Switch „Battery type”

S3 Switch „Monitoring signals”

S10 Push button „Start-up without mains voltage”

X1 Jumper, for function see connection diagram of E3C021, page 8

X2 Jumper „Door contact simulation”(not inserted ex works)

Key data E3C021

Input voltage 29.6VDC ±2%, from B2F020 module

Charging section

Battery 2 x 12V / 6...40Ah, lead battery

Charging characteristics Can be adjusted to different makes of battery using pro-

gramming switch ”S2”

Charging current up to 1.7A (current limitation)

Temperature compensation of

battery charging voltage with external temperature sensor

Battery monitoring battery presence test every 55sec

Symmetry monitoring asymmetry >1V = trouble

Battery test automatic battery load test

(3A for 10sec, 1 times every 23h)

EMI-protection battery line no

Supply voltage outputs

Monitored load 1, load 2, load 3: each 24VDC <2A

Not monitored 24VDC to the control unit

Quiescent current 30mA when on emergency power operation

50mA when on mains operation without battery charge

Print dimensions 100 x 200 x 30mm

Wire range max. 2.5mm2

e1493d

Fire & Security Products

Siemens Building Technologies Group 04.2002

3.1 Programming switches, jumpers

Battery type: S2

To set temperature compensation according to information from the various battery

manufacturers.

Possible battery variants Programming switch S2

Var. Battery manufacturer Battery model S2-1 S2-2 S2-3 S2-4

0 off off off off

1 on off off off

2 Varta

Shin-Kobe (Hitachi)

Kobe PSD (Power Storage

Germany)

CF 12-24 (VM 1224)

HP..-12

off on off off

3 Genesis G12V120W15 on on off off

4 Sunrise

Panasonic LCL 12V24S

LCL 12V..P off off on off

5Phoenix (Korea) FNC 12..0 on off on off

6 Yuasa NP..-12B off on on off

7Sonnenschein Dryfit A212/..G5 on on on off

8 Power-Sonic PS12..0 off off off on

9Hagen Drysafe HDS-12..0NB on off off on

10 Sonnenschein Dryfit A512/..G5 off on off on

11 ALARMCOM (FIAMM) 1) FG... on on off on

12 off off on on

13 on off on on

14 off on on on

15 on on on on

”S2”is set to variant 11 (ALARMCOM) at the factory

1) available from index ’AA’onwards

Monitoring signals: S3

For settings refer to the „Application examples”, chapter 4

Operating mode: R66, R67

Operating mode: R66 R67

a) Battery operation and symmetry monitoring

b) Battery operation without symmetry monitoring –

c) Operation with external voltage (instead of battery) –

d) Operation without battery or external voltage – –

Door contact simulation: X2

Without door contact: insert jumper X2 at first E3C021.

Factory settings →

without jumper ex factory →

e1493d

Fire & Security Products

Siemens Building Technologies Group 04.2002

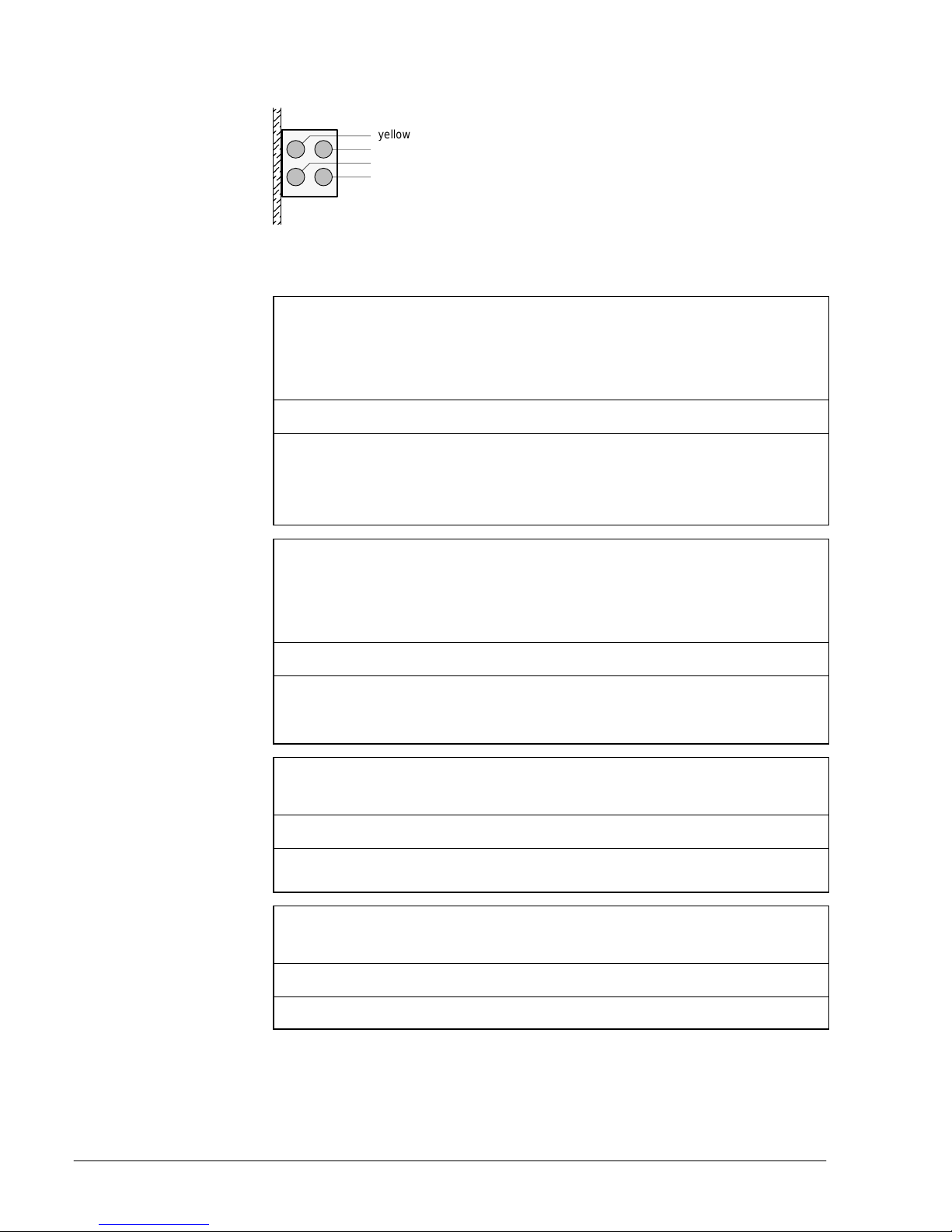

3.2 LED display block

yellow ”Trouble power supply”

green ”Mains operation”

yellow ”Trouble battery”

yellow unused

Indicators vary in meaning according to operating mode:

LED ”Trouble power supply”

–Fuse F1 / F2 / F3 blown

–Input voltage >31.0V →converter malfunction

–Battery voltage >29.5V or <25V →charging module malfunction

–Battery charging module malfunction

–Temperature sensor open line / short circuit

–Temperature sensor measures >55°C

–EEPROM check sum error

LED ”Power on”

–Input voltage >28.5V

LED ”Trouble battery”

–Battery voltage <23V

–Asymmetry >1.0V or fuse F12 blown

–Eventually cell short circuit

–Open line to battery or fuse F11 / F13 blown

–Autom. test to indicate battery presence negative

–Autom. battery load test negative

LED ”Trouble power supply”

–Fuse F1 / F2 / F3 blown

–Input voltage >31.0V →converter malfunction

–Battery voltage >29.5V or <25V →charging module malfunction

–Battery charging module malfunction

–Temperature sensor open line / short circuit

–Temperature sensor measures >55°C

–EEPROM check sum error

LED ”Power on”

–Input voltage >28.5V

LED ”Trouble battery”

–Battery voltage <23V

–Open line to battery or fuse F11 / F13 blown

–Autom. test to indicate battery presence negative

–Autom. battery load test negative

LED ”Trouble power supply”

–Fuse F1 / F2 / F3 blown

–Input voltage >31.0V →converter malfunction

–EEPROM check sum error

LED ”Power on”

–Input voltage >28.5V

LED ”Trouble battery”

–Battery voltage or external voltage <23V or >31.0V

–Autom. presence test (external voltage) negative or fuse F11 / F13 blown

LED ”Trouble power supply”

–Fuse F1 / F2 / F3 blown

–Input voltage >31.0V →converter malfunction

–EEPROM check sum error

LED ”Power on”

–Input voltage >28.5V

LED ”Trouble battery”

–no function

a) Battery operation and

symmetry monitoring

b) Battery operation without

symmetry monitoring

c) Operation with external

voltage (instead of battery)

d) Operation without battery

or external voltage

Table of contents

Other Siemens Power Supply manuals

Siemens

Siemens SIMATIC PS307 User manual

Siemens

Siemens SIMATIC Ident Administrator guide

Siemens

Siemens SITOP PSU8600 User manual

Siemens

Siemens 7XV5810-0BA00 User manual

Siemens

Siemens SPCP332 User manual

Siemens

Siemens SITOP PSU8200 24 V/20 A User manual

Siemens

Siemens SITOP modular 20 User manual

Siemens

Siemens PSR-1 User manual

Siemens

Siemens SITOP power 20 User manual

Siemens

Siemens SIMATIC IOT2000 Series User instructions

Siemens

Siemens 7XV5810 0BA00 User manual

Siemens

Siemens SINAMICS S120 User manual

Siemens

Siemens SITOP PSU100C 6EP1321-5BA00 User manual

Siemens

Siemens SIMATIC ET200SP PS 6EP7133-6AB00-0BN0 24 V/5... User manual

Siemens

Siemens SITOP SEL1200 8 x 5 A Technical Document

Siemens

Siemens SITOP PSU8600 Parts list manual

Siemens

Siemens SITOP Power 20 6EP1 536-2AA00 User manual

Siemens

Siemens SPCP432 User manual

Siemens

Siemens FP1801-A2 User manual

Siemens

Siemens SITOP PSU8200 User manual

Siemens

Siemens SINAMICS S120 Instructions for use

Siemens

Siemens Simatic ET200pro User manual

Siemens

Siemens 4AV2102-2EB00-0A User manual

Siemens

Siemens SINAMICS G120P PM330 Operating and maintenance instructions

Popular Power Supply manuals by other brands

Monacor

Monacor PS-12CCD instruction manual

VOLTIMA

VOLTIMA MagicBox 15 Installation and operating instructions

Agilent Technologies

Agilent Technologies 6032A Service manual

Miller

Miller Auto Deltaweld 452 owner's manual

BCP

BCP PUOUBK How to install

HC 2210 manual

Puls

Puls CT5.241 installation manual

OCZ

OCZ ZX1250W Technical specifications

iseg

iseg ECH 238 manual

Power

Power XXL A Series instruction manual

Agilent Technologies

Agilent Technologies 6631B Service manual

Renogy

Renogy PHOENIX 300 user guide

HP 6200B Operating and service manual

Epson

Epson Stylus Scan 2500 Product information sheet

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 manual

Puls

Puls MiniLine ML50.100 instruction manual

Puls

Puls AS-Interface SLA4.100 installation manual

Kenwood

Kenwood PS-60 instruction manual
