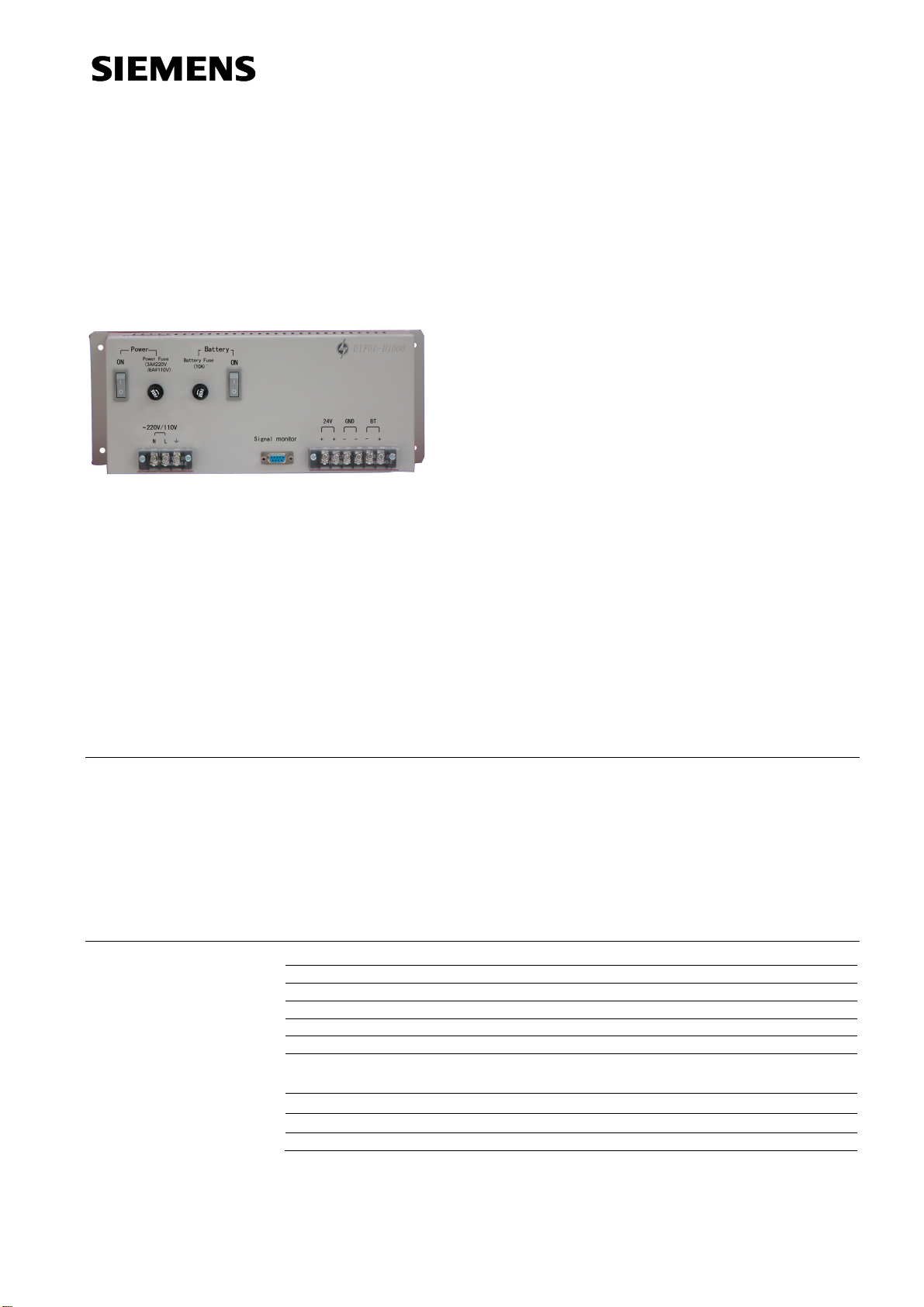

Siemens FP1801-A2 User manual

Building Technologies

Fire Safety & Security Products

FP1801-A2

DYF01-B1000 Power Supply

Product Manual

Overview

-Stable and reliable DC output

-Auto switch between main power and battery

-Alternative AC power switch

-Charge and protect battery

-Monitor main power, battery, trouble status

-Auto recoverable current protection circuit for overload and short circuit

Technical Data

Input voltage 110/220 VAC

Input frequency 60/50 Hz

Output voltage 24 VDC

Output current 10A

AC fuse capacity 110VAC: 6A 220VAC:3A

DC fuse capacity 10A

Operating temperature 0 ~ +40℃

when it is over 40℃, output power will reduce half

Storage temperature -20 ~ +60℃

Humidity ≤95% (40±2℃)

Size 326*130*88 mm

2

Building Technologies A6V10322583_a_en_--

Fire Safety & Security Products 08.2010

Installation

Screw power supply to the

housingusing 4 screws

Fig. 1 Installation

Fig. 2 Connection

Connect external

AC input

Connect to port “Pwr

Status

” on main unit

Connect to port” PS”

on main unit and line

card

Connect to battery

Beijing Siemens Cerberus Electronics Limited

No.1,Fengzhidonglu, Xibeiwang, HaiDian District,

Beijing, 100094, China

Tel: +10 6476 8806

Fax: +10 6476 8899

© 2010 Copyright by

Beijing Siemens Cerberus Electronics Ltd.

Data and design subject to change without notice.

Doc. No. A6V10322583_a_en_-- Version a Manual FC18

Date 08.2010 100954074

Fig. 3 AC input switch

Dimension (in:mm)

Order Information

Type Material No. Part No. Description Weight

FP1801-A2 S54420-C20-A1 100935680 DYF01-B1000 power supply 2.1Kg

Switch between

220VAC and 110VAC

This manual suits for next models

1
