Siemens SANTIS-ab User manual

User Manual for

SANTIS-ab

Subscriber Access and

Network Termination for ISDN Services

2

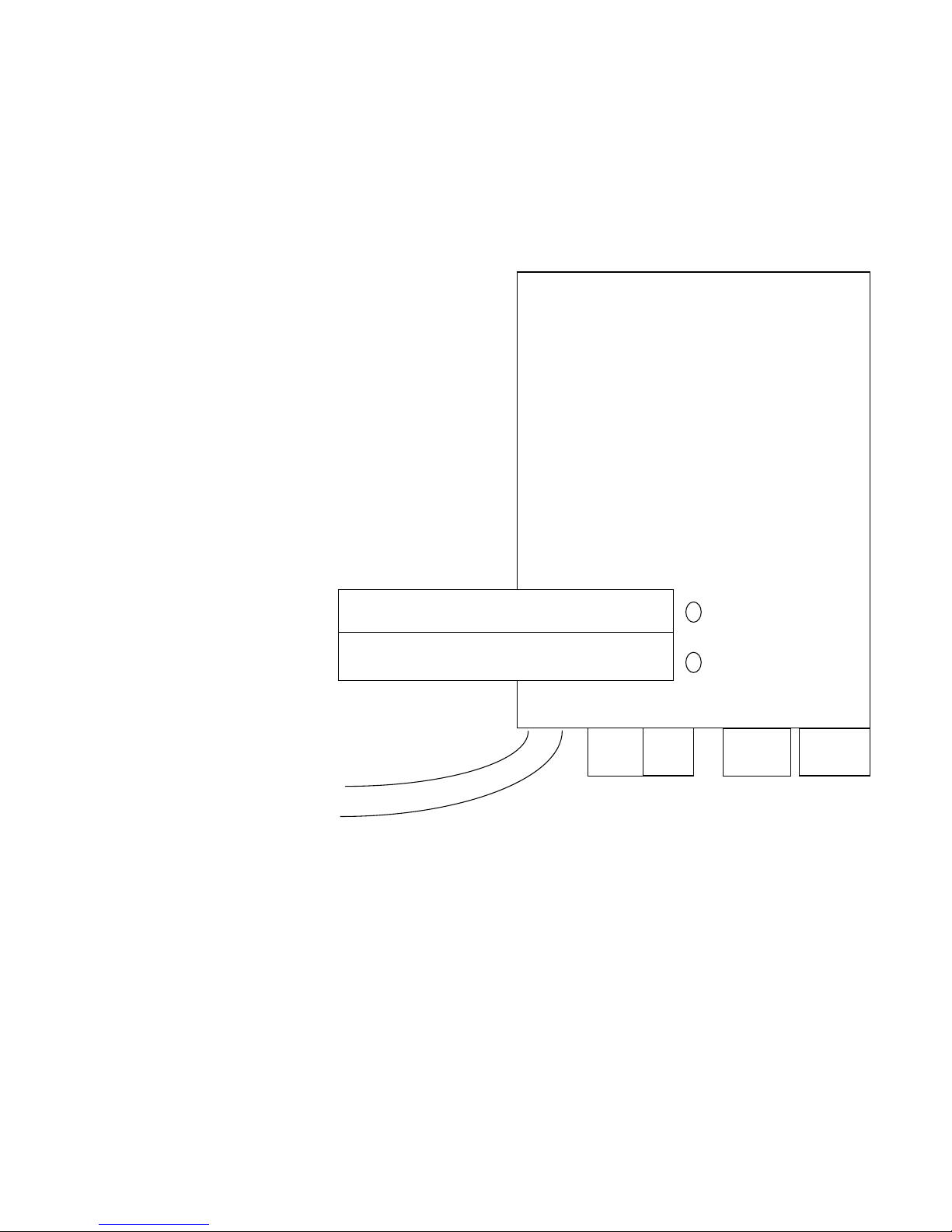

U

mains

230VAC / 50Hz

LED for local feeding

SIEMENS

LED for remote feeding

a/b1 a/b2

S S

3

Contents

1. Safety Instructions.....................................................................4

2. Operating Modes .......................................................................5

3. Installation.................................................................................6

4. Configuration ............................................................................8

5. Table of Configuration Commands......................................... 12

6. Troubleshooting ......................................................................26

7. Pin Allocations of the Sockets ................................................27

4

1. Safety Instructions

•Place the SANTIS-ab near a 230 V outlet.

•Do not open the case.

•Clean the case only with dry or moist cloth.

Never immerse into water.

•If the SANTIS-ab is damaged, inform immediately your

network provider.

5

2. Operating Modes

The connection to the public telephone network as well as the

selection of one of the following three operating modes must be

done by an authorized person, e.g. telecom staff:

1. NT+2ab S- and a/b-interfaces available

2. NTBA Only S-interface available

3. Pairgain Only a/b-interfaces available

6

3. Installation

•If both the green LEDs light steadily, the SANTIS-ab is ready

for operation (see figure on page 2).

The following installation-steps can be done by everyone.

•The SANTIS-ab can be wall-mounted or placed on the desk

(piling of more units is also possible). In case of wall

mounting, drill the holes into the wall according to the

enclosed drawing, insert dowels with wood screws and hang

on the SANTIS-ab.

7

•Connection of the terminal equipments:

The sockets for the analog equipments (e.g. telephones, gr.2/3

fax machines, modems) are designated with «a/b1» and

«a/b2», those for the ISDN terminal equipments with «S»

(e.g. ISDN-telephones, PC with ISDN-card, gr.4 fax

machines). See figure on page 2.

8

4. Configuration

•There are only parameters for the a/b-interfaces. Thus there is

only a need for a configuration, if the a/b-interfaces are

available (NT+2ab mode and Pairgain mode; see chapter 2).

The configuration remains stored, even after a power failure.

•The configuration is done by means of an analog telephone

set equipped with tone dialing, having both ∗and #keys.

Remark:

In normal use SANTIS-ab recognizes both pulse and tone

dialing.

•If the NT+2ab mode is selected, all the configuration

commands can be set from both the a/b-interfaces without

any restrictions.

9

If the configuration access (CA) is restricted (can be set and

changed by authorized persons, e.g. telecom staff), the

configuration for the a/b1-interface can only be done via the

a/b1-interface and vice versa for the a/b2-interface.

This mode is called NT+2ab/CA restr.

If the Pairgain mode is selected, the configuration access is

automatically restricted, i.e. the configuration for the a/b1-

interface can only be done via the a/b1-interface and vice

versa for the a/b2-interface.

10

The settings are executed as follows. See also flow chart on next

page.

1. Hook off and wait for dial tone

2. Dial ∗∗→The dial tone is switched off

3. Dial the command number and parameter value according to

the tables in chapter 5.

4. Dial #→If the parameter has been programmed

successfully, a permanent tone is switched on.

Otherwise a busy tone will be switched on.

5. Proceed with step 3. if necessary for setting other parameters

or hook on.
