Dear customer,
Congratulations on your choice. Thank you for purchasing one of our
appliances. This practical, modern and functional appliance is manufactured
using materials of the highest quality which are subject to strict Quality
Control checks throughout the entire manufacturing process. The appliance
is meticulously tested to ensure that it meets your demands and produces
perfect cooking results.
Do not remove the appliance from its protective packaging until it is installed
in the unit.
Please read these instructions carefully before proceeding to install and use
the appliance. The information contained in these instructions is essential for
the correct operation of the appliance and, more importantly, for your safety.
The packaging of your appliance has been manufactured using only the
materials which are strictly necessary to guarantee efficient protection
during transport. These materials are 100% recyclable, thus reducing the
environmental impact. You can also contribute to caring for the environment,
by following the advice below:
- dispose of the packaging in the appropriate recycling bin,
- before you get rid of an old appliance, make sure you disable it. Contact
your local authority to find out the address of your nearest recycling centre
to dispose of your appliance,
- do not pour used oil down the sink. Collect it in a sealed container and
take it to an appropriate collection point or, failing that, place it in the rubbish
bin (it will end up in a controlled dump; this is probably not the best option,
but it will avoid contaminating ground water).
IMPORTANT:
In the unlikely event that the appliance should arrive damaged or not meet
your expectations in terms of quality, please inform us as soon as possible.
For the warranty to be valid, the appliance must not have been tampered
with, or used inappropriately.
4
Safety precautions
Read these instructions carefully. Reading these
instructions will enable you to use your appliance safely
and effectively.
All operations relating to installation, regulation and
conversion to other types of gas must be carried
out by an authorised installation engineer, respecting
applicable regulations, standards and the specifications
You are recommended to contact the Technical
Before installing your new hob, ensure that it is being
installed according to the assembly instructions.
This appliance can only be installed in a well ventilated
place in accordance with existing regulations and
ventilation specifications. The appliance must not be
connected to a combustion product removal device.
This appliance has been designed for home use only.
This appliance cannot be installed on yachts or in
caravans.
The place in which the appliance is installed must have
fully-functioning ventilation, in accordance with the
regulations.
Do not subject the appliance to draughts. These might
This appliance leaves the factory set to the type of gas
Do not tamper with the appliance’s interior.
If necessary, call our Technical Assistance Service.
These operating and installation instructions should be
retained, and passed onto the buyer if the appliance is
sold.
that is indicated on the specifications plate. If this must
blow out the burners.
be changed, read the Assembly instructions.
5
Gas appliances used in Hong Kong SAR; under the
Gas safety (Registration of Gas installers and Gas
of the gas and electricity providers.
(registered to the appropriated class) employed by
registered gas contractors can personally carry out gas
Assistance Service to convert to another type of gas.
installation, regulation.
Contractors) regulations, only register gas installers
cover.
Please do not use additional fitting, such as aluminum
The surfaces of cooking appliances heat up during
use. Care must be taken when using these appliances.
Keep children well away from the appliance.
This appliance is only intended for cooking purposes,
not as a heating system.
Fat or oil which is overheated can catch fire easily. Do
not leave oil or fats to heat up unattended. If oil or fats
do catch fire, never use water to put the fire out. Risk
of burns! Put the fire out by covering the pan with a lid
and switch off the hotplate.
In the event of a malfunction, turn off the appliance’s
gas and electricity supply. For repairs, call our Technical
Assistance Service.
If one of the controls will not turn, do not force it. Call
the Technical Assistance Service immediately, so that
they can repair or replace it.
Never place unstable pans on the hob or the burners,
as they may accidentally tip over.
Do not clean the specifications plate using a steam
cleaner. Risk of electrocution!
This appliance is class 3 type, according to the EN 30-
1-1 regulation for gas appliances: built-in appliance.
Do not store or use corrosive chemicals, products
which produce fumes, flammable materials or non-food
products below or near this domestic appliance.
The graphics in this instruction manual are given as a
guide only.
The manufacturer is exempt from all responsibility if this
the requirements of this manual are not complied with.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
kÉîÉê=äÉ~îÉ=íÜÉ=~ééäá~åÅÉ=ìå~ííÉåÇÉÇ=ÇìêáåÖ=çéÉê~íáçåK=
6
Do not switch on the appliance if it is damaged in any
way. Contact our Technical Assistance Service.
Your new appliance
These individual appliances can be combined and/or with conventional hobs of the
same make, using the joint accessory. See the catalogue for details.
Burner (up to
Burner (up to
1,9 kW)
Double flame
burner (up to
6 kW
Control knob
Control knob
Pan support
Pan support
Double flame
burner (up to
6 kW
Control knob
Pan support
2,8 kW)
7
1. Press the chosen burner control and turn it
anticlockwise to the required setting.
2. Use any type of lighter or flame (cigarette lighter,
matches, etc.) and bring it close to the burner.
There are indications to show which burner each
control knob operates. Fig. 1.
The gas burners
Switching on manually
It is essential to ensure that all the burner parts
and the pan supports are correctly installed for the
Operation
Fig. 4
Fig. 1
Fig. 2
Fig. 3
appliance to work correctly. Fig. 2-3-4-5.
Fig. 5
8
Power levels
Turn the corresponding control clockwise to the 0
setting.
Switching off a burner
If your hob features the automatic ON function
(ignition sparkers):
1. Press the chosen burner control and turn it
anticlockwise to the maximum power setting.
While the control is still pressed down, sparks are
produced on all burners. The flame ignites (it is no
longer necessary to press down the control).
2. Turn the control to the required setting.
If it does not come on, turn the control to the off
setting and repeat the steps above. This time,
press and hold the control for longer (up to 10
seconds).
Warning! If after 15 seconds have elapsed, the
flame does not ignite, switch off the burner and
open a nearby window or door. Wait at least one
minute before trying to switch the burner back on.
Switching on
automatically
The progressive controls can be used to control
the power needed, from minimum to maximum
power.
Depending on the model, your hob may have a
safety system (termopar) that prevents the flow of
gas if the burners accidentally switch off. To ensure
that this device is active, switch on the burner as
usual and, without releasing the control, press and
hold it down firmly for 4 seconds after lighting the
flame.
Safety system
Termopar Ignition sparker
Setting
Large flame
Economy
flame
Control off
Maximum capacity or
aperture and electricity
on
Minimum capacity or
aperture
9
It is normal to hear a whistling noise while the burner
is operating.
When it is first used, it is normal for the burner to give
off fumes; this does not pose any risk and does not
indicate a malfunction; they will disappear in time.
A few seconds after switching off the burner, it will
make a sound (thud); this is not a fault - this means
that the safety device is no longer operating.
Keep the burner as clean as possible. If the ignition
sparkers are dirty, they will not light properly. Clean
them periodically using a small non-wire brush. Bear
in mind that the ignition sparkers must not suffer any
serious impacts.
An orange-coloured flame is normal. This is caused
by the presence of dust in the atmosphere, spilt
liquids, etc.
Warnings
For dual double flame burners, the inner and outer
flames can be controlled separately.
The available power levels are as follows:
Inner and outer flame on full power.
Outer flame on minimum, inner flame on full power.
Inner flame on full power.
Inner flame on minimum.
10

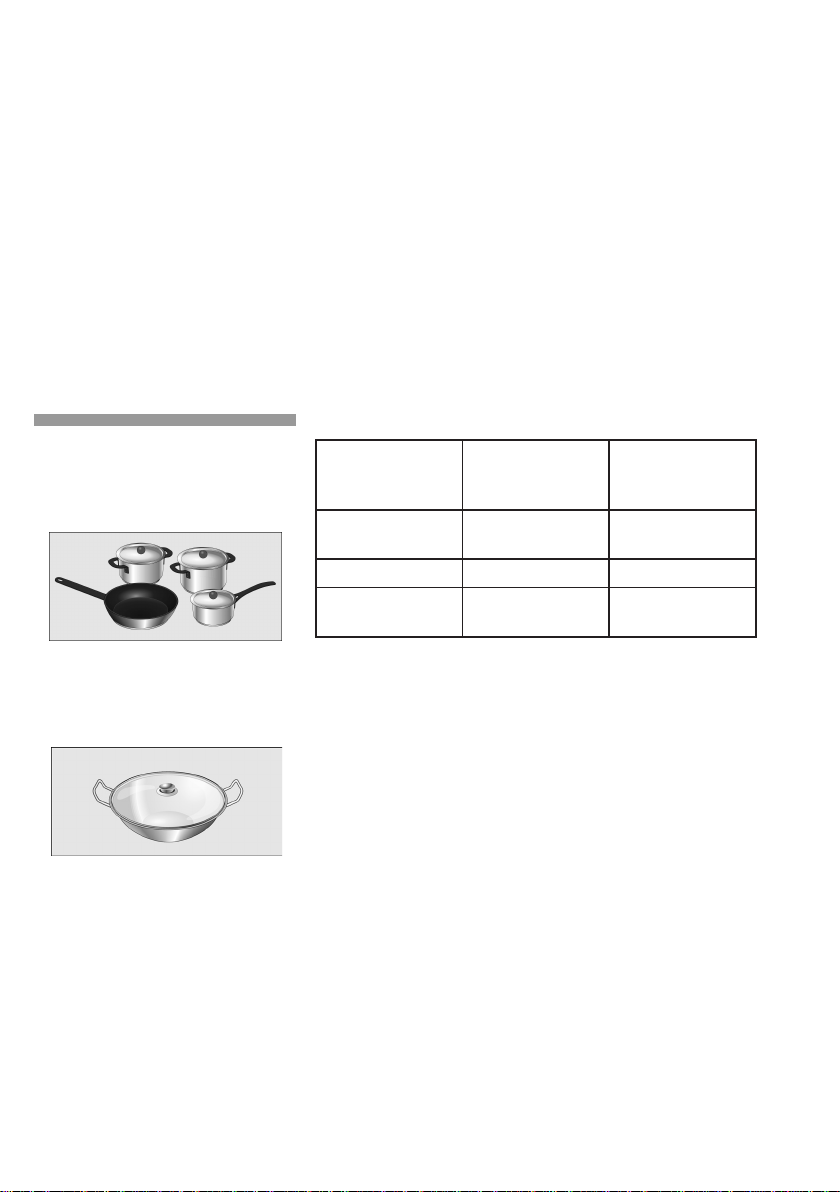

Suitable pans
The kitchen will become hot and humid when this
gas appliance is used. You must therefore ensure that
the kitchen is well-ventilated. Either keep the natural
ventilation apertures open, or install an extractor
hood.
If using the appliance intensively for prolonged periods
additional ventilation may be required, for example,
by opening a window; more effective ventilation may
also be required, for example, by increasing the hob’s
ventilation, if possible.
If the burner flames are accidentally blown out, switch
off the burner operating control and do not try to
relight it for at least one minute.
Wok pan
Food can be prepared in various ways in a wok: it can
be stewed, stir fried, cooked on a low heat, pan-fried,
or steamed. It could be said that woks serve as both
as a saucepan and a frying pan and, owing to their
shape and size, they can be used to cook quite large
ingredients.
When cooking with a wok, heat is diffused more
uniformly and gently; the intense heat which
accumulates means that food takes less time to
cook and also requires less oil, making it one of the
quickest and healthiest ways of cooking. Always
follow the manufacturer’s instructions when cooking
with a wok.
A wok is a cooking vessel originating in China; it is
a kind of deep, round, lightweight pan with handles
and a flat or concave base.
Burner
Minimum
pan diameter
Maximum
pan diameter
Double flame
burner 22 cm
22 cm 26 cmRapid burner
Semi-rapid
burner 14 cm 20 cm
11
This manual suits for next models
1
Table of contents
Other Siemens Hob manuals
Siemens
Siemens ET8..SC Series User manual
Siemens
Siemens ET13051 User manual
Siemens
Siemens EH675TK11E Setup guide
Siemens
Siemens ET8 Series User manual
Siemens
Siemens ED FQ2 Series User manual
Siemens
Siemens EO6..P.8 Series User manual
Siemens
Siemens EP7A Series User manual
Siemens
Siemens EH9 MD Series User manual
Siemens
Siemens ET6 HE17 Series User manual
Siemens
Siemens EH HEB Series Specification sheet
Siemens
Siemens EP9A QB90 Series User manual
Siemens
Siemens ET8 Series User manual
Siemens
Siemens ER17254NL User manual
Siemens
Siemens EH8 BE15 Series Specification sheet
Siemens
Siemens EF6 HNA Series User manual
Siemens
Siemens EH8 LV Series User manual
Siemens
Siemens ER95351HK Owner's manual
Siemens
Siemens EC6A5IB90A User manual
Siemens
Siemens EH Series User manual
Siemens
Siemens EX977KXX5E User manual
