Siemens MEM-1 User manual

P/N 315-093943-5

Installation Instructions

Model MEM-1

MXL Memory Expansion Module

1. Install the new IC107

A new IC107 (20-pin IC) for the MMB-1 is re-

quired to support the MEM-1. This new IC107

replaces the existing IC107 which is in a socket

just above and to the left of the expansion con-

nector P7 (See Figure 1).

a. Remove the old IC107 from the socket

and replace it with the new IC107 in the

MEM-1 kit.

b. Be sure that pin 1 of the new IC107 is

pointing down (toward P7).

2. Install the MEM-1

The MEM-1 installs into P7 on the MMB-1. P7 is

a 40-position DIP socket labeled Expansion

Connector which is located at the bottom center

of the MMB-1. The MEM-1 installs into this socket

and spans IC101 which is the large square

device to the right of P7. The MEM-1 has an

adhesive backed nylon standoff that supports the

right side of the module. This standoff must be

installed.

a. Remove the paper on the standoff to

expose the adhesive.

b. Insert the 40 pin header (P1) into P7 on

the MMB-1 being careful to align all of the

pins. You may have to adjust the standoff

so that it clears IC101.

c. Once the header is fully inserted, press

down on the right side of the module to

adhere the standoff to the MMB-1.

OPERATION

The Model MEM-1 Memory Expansion module

kit provides the MXL System with the additional

memory required to support MMB firmware

revisions 7.0 and higher. If your MXL System is

being upgraded to an MMB firmware revision

of 7.0 or higher and the MMB-1 does not have

a factory installed MEM-1, then you must install

the MEM-1.

INSTALLATION

CAUTION:

Remove all system power before

installation, first battery and then AC.

NOTE: If the MKB-1 in your MXL System

straddles the MMB-1 board, remove

the MKB-1 before proceeding.

NOTE: If your MXL System has an IEC-1

module, remove it before installing the

MEM-1.

The installation kit for the MEM-1 includes the

following items:

1. New IC107 (replaces IC107 on MMB-1)

2. MEM-1

3. Nylon standoff

Siemens Industry, Inc.

Building Technologies Division

Florham Park, NJ

Siemens Building Technologies, Ltd.

Fire Safety & Security Products

2 Kenview Boulevard

Brampton, Ontario

L6T 5E4 Canada

3. Set the Jumper on the MEM-1

The MEM-1 has a configuration jumper P2 (See

Figure 2) that must be set to work with the

MSU-1K kit that contains the new firmware. Refer

to the MSU-1K Installation Instructions, P/N 315-

092542, for the proper setting of the jumper.

4. Install the EPROM on the MEM-1

Included in the MSU-1K kit is an EPROM labeled

U2. This EPROM goes into the U2 socket on the

MEM-1. Refer to the MSU-1K Installation Instruc-

tions, P/N 315-092542, for the procedure to install

the EPROM.

5. Re-install the IEC-1

If the IEC-1 was removed before installing the

MEM-1, re-install it now.

6. Re-install the MKB-1

If the MKB-1 was removed before installing the

MEM-1, re-install it now.

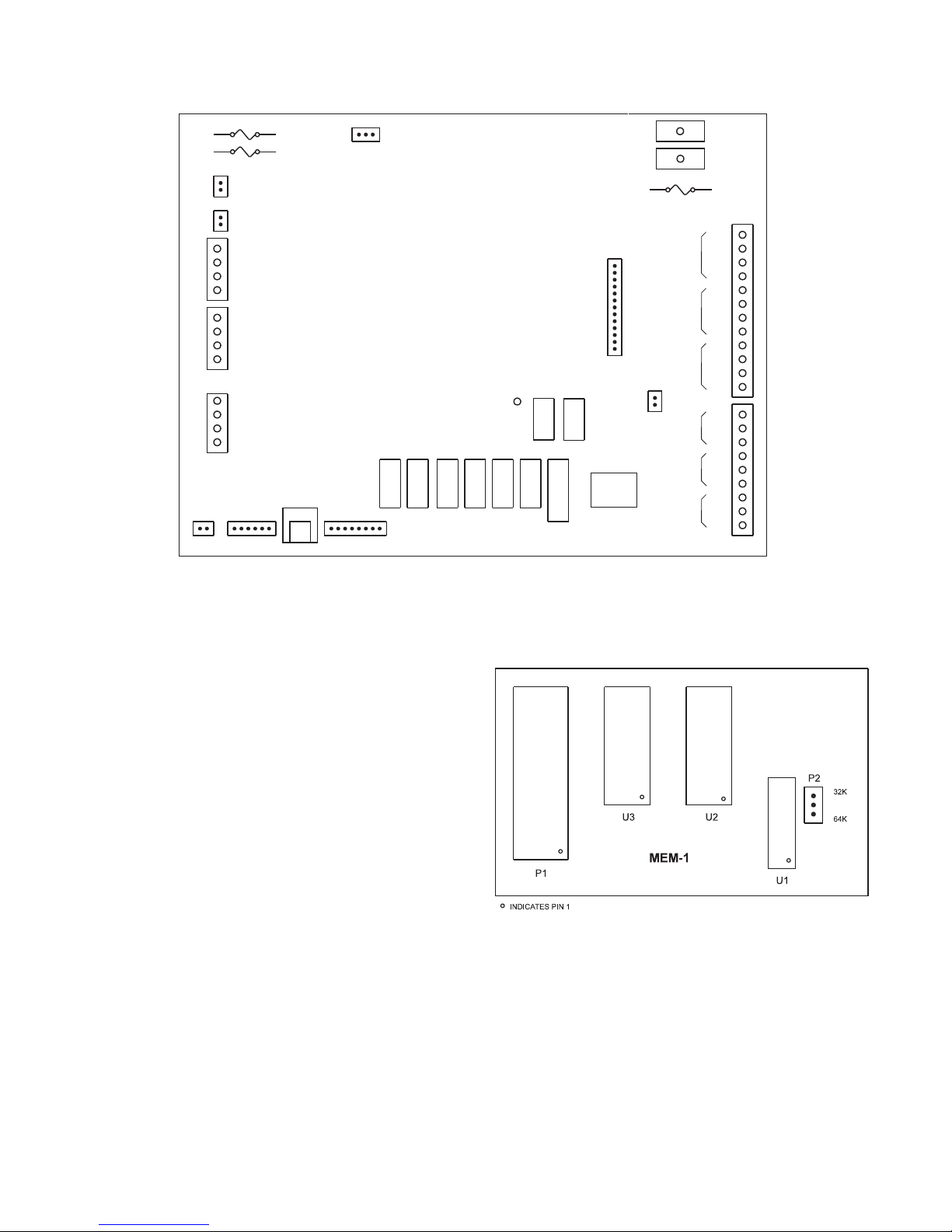

Figure 2

The MEM-1

ELECTRICAL RATINGS

5VDC, 100mA

Figure 1

The MMB-1

P/N 315-093943-5

CB1

NAC1

POWER

AC INPUT

BATTERY

20A

BATTERY F5 CZM-1 POWER

CB2

NAC2

CZM-1

POWER

TB3

POWER TO MOM-4

2 AMP MAX.

ANALOG

LOOP 2

NAC 2

NAC 1

TO ANN-1, P1

(ON BACK OF MKB)

POLLING

TB2

ANALOG

LOOP 1

NETWORK SPV

TAMPER

SWITCH

TRBL

IC 101

TB1

PROGRAMMER

P10

D2300CP PRINTER

MOM-4 1

P6 111111

EXPANSION

ALR

MMB-1
