Shelti Pro Foos II User manual

Assembly Instructions

Thank you for purchasing a Shelti product. All of us at Shelti want you to be completely satised with

your Pro Foos game, so feel free to contact us for help with the assembly of your product, Shelti parts,

or other information you may require.

Tools Required:

1/2" Wrench

3/4" Wrench

Hammer

Phillips screwdriver

Level

STEP #1

Remove the following parts from the Pro Foos II accessory box.

Description Part Number Quantity

Shelti Soccer Leg Assembly CS-SSL-0 4

Goalie Rod Assembly CS-GRA-0 2

5 - ManRod Assembly CS-5RA-0 2

3 - ManRod Assembly CS-3RA-0 2

2 - ManRod Assembly CS-2RA-0 2

C - AccessoriesBag CS-ASA-0 1

C - AssemblyInstructions 210-0001-0 1

Shelti RubberBumper 203-0001-0 16

Shelti Soccer ManRed 201-0001-0 13

Shelti Soccer Man Black 201-0005-0 13

Spirol Pin 205-0006-0 26

5/16" Flat Washer 303-0002-0 8

5/16" Hex Nuts 302-0002-0 8

Score Posts 201-0006-0 4

Score Rods 205-0007-0 2

Red Score Beads 003-0002-0 5

Black Score Beads 003-0003-0 5

#8 x 2" WoodScrew 304-0005-0 4

Spirol Pin Punch 210-0012-0 1

Super LubeTube 210-0002-0 1

Balls 201-0007-0 3

Rod Block 102-0070-0 1

CS-B-FM

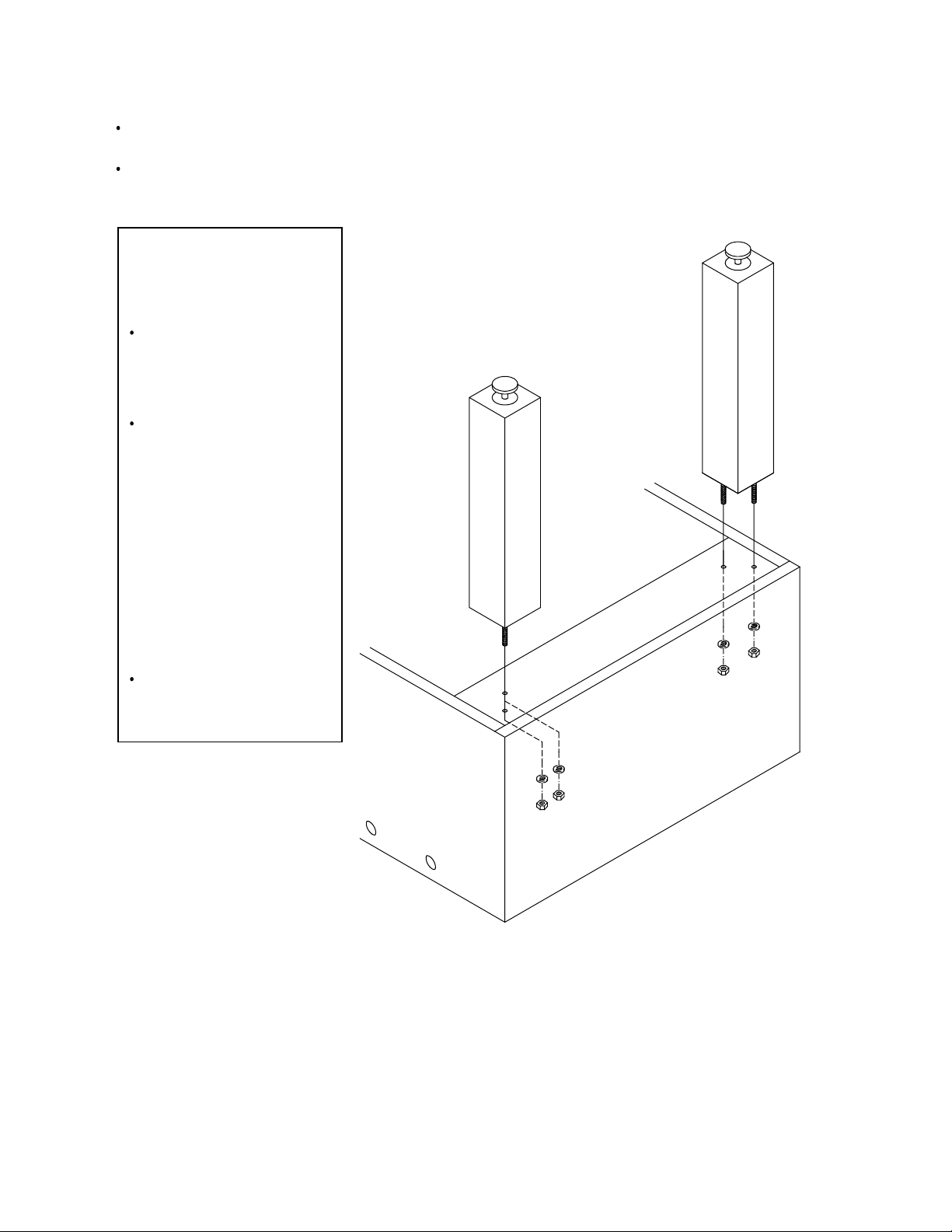

STEP #2 – Leg Assembly

Carefully lay the table upside down on a cushionedsurface (carpeting, blanket, etc.) to prevent

damaging the cabinet laminate.

Assemble the legs using the holes in the leg pads. Tighten nuts with a 1/2" wrench.

For Installing Optional

Commercial Duty

3½" x 3½" Legs

Carefully lay the table upside

down on a cushioned surface

(carpeting, blanket, etc.) to

prevent damaging the

cabinet laminate.

Viewing the table from either

long side (the sides with rod

holes), install a left leg

(coded "L") on the left hand

side of the table by inserting

the leg's threaded studs into

and through the mounting

pad holes. Then secure with

a at washer/split-lock

washer/ hex nut (see

drawing). Install a right leg

(coded "R") in the same

manner on the other end of

the same long side.

Move to the other long side

of the table and repeat the

process.

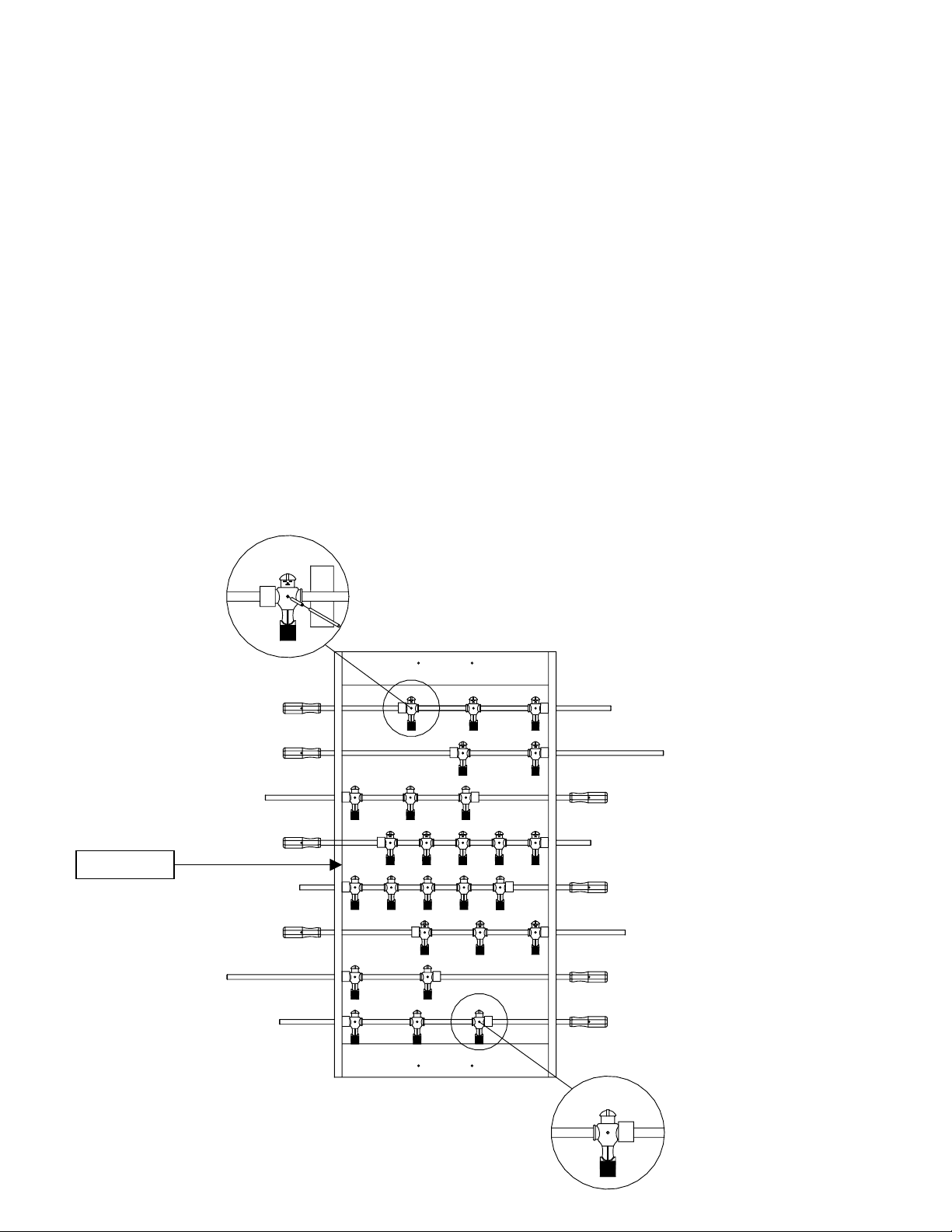

STEP #3 – Rods, Bumper And Men Assembly

• Once the table legs are secure, (using two people) pick the table up and turn it over onto its legs.

• Locate the five man rods… These two rods will be located in the center of the game as illustrated

below. Note… The men are designed with a slight press fit onto the rods in order to maximize

playability.

Place the five man rod through the bushing in one wall… Slide on the first bumper making sure

that the larger hole in the bumper is away from the wall and toward the man. This will allow

the bumper to snap onto the shoulder of the outside man.

Slide on the five men and the second bumper and slide the rod through the bushing hole in the

far wall… Note that the red and black men face in opposite directions as shown in the

illustration. In some cases you may need to add a small amount of lubricant inside the

shoulder hole of the man to ease the sliding of the man onto the rod.

Align each man over a hole in the rod and drive in a spirol pin. Note: place the rod block under

the rod before hammering in the spirol pins.

Snap the bumpers onto the shoulder of the outside men. This can be done by pulling/pushing

the men into the side walls until the bumpers are securely seated.

• Repeat these operations for the 3-man, 2-man, and goalie rods. Note: the 3-man and goalie rods

both have three holes. The goalie rod is the shorter rod.

Goalie Rod – Shorte

Than Three Man Rod

Two Man Rod –

Longest Rod

Black Men

Five Man Rod

Black Men

Three Man Rod – Longe

Than Goalie Rod

Black Men

Ball Return

Red Man

Three Man Rod – Longer

Than Goalie Rod

Red Man

Five Man Rod

Red Man

Two Man Rod –

Longest Rod

Goalie Rod – Shorter

Than Three Man Rod

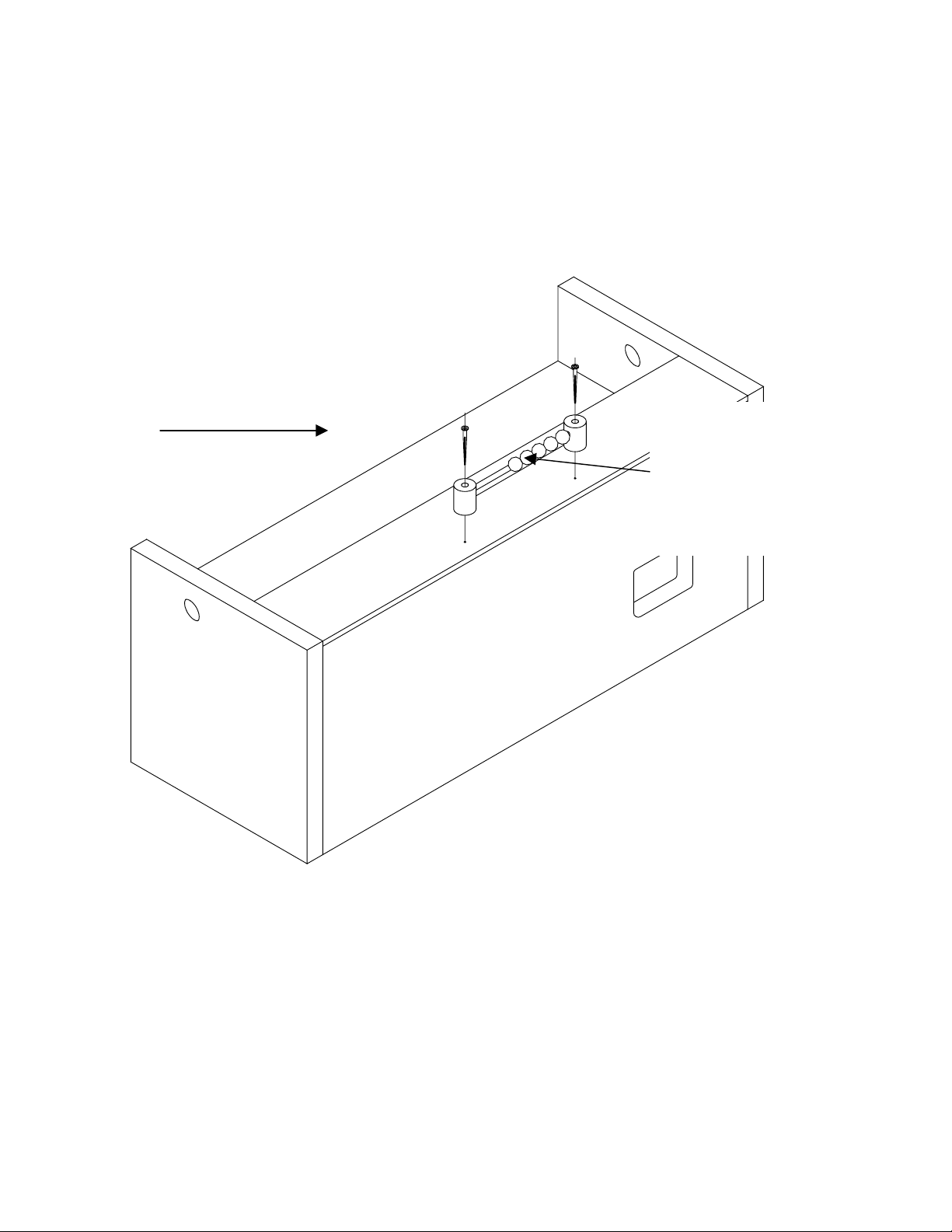

STEP #4 – Score Post & Rod Assembly

• Assemble the score posts - score rod - beads.

• Screw the score posts to the top of the game.

• The black scoring assembly contains 4 black beads and 1 red bead and should be placed at the end

of the table where the black goalies are located. The odd colored bead signifies the final point and

should be placed so that it is the last bead pulled toward you (the black team). The red team

scoring assembly on the other side is just the opposite.

Black Goalie End Of Game

4 – Black Beads

1 – Red Bead

Opposite End Of Game

4 – Red Beads

1 – Black Bead

STEP #5 – Level The Game

• Turn the leg levelers in or out of the leg until the ball rolls true on the play surface.

• For more precise leveling, use a level. Place the level horizontally on the playing surface pointing

toward the goal openings. Be sure all the levelers are screwed all the way in as a starting point.

Turn the leg levelers up equally on one end until you are horizontally level. Then turn your level

90° so it is pointing toward the ball server holes. Now turn the levelers up on one side of the table

until you are vertically level.

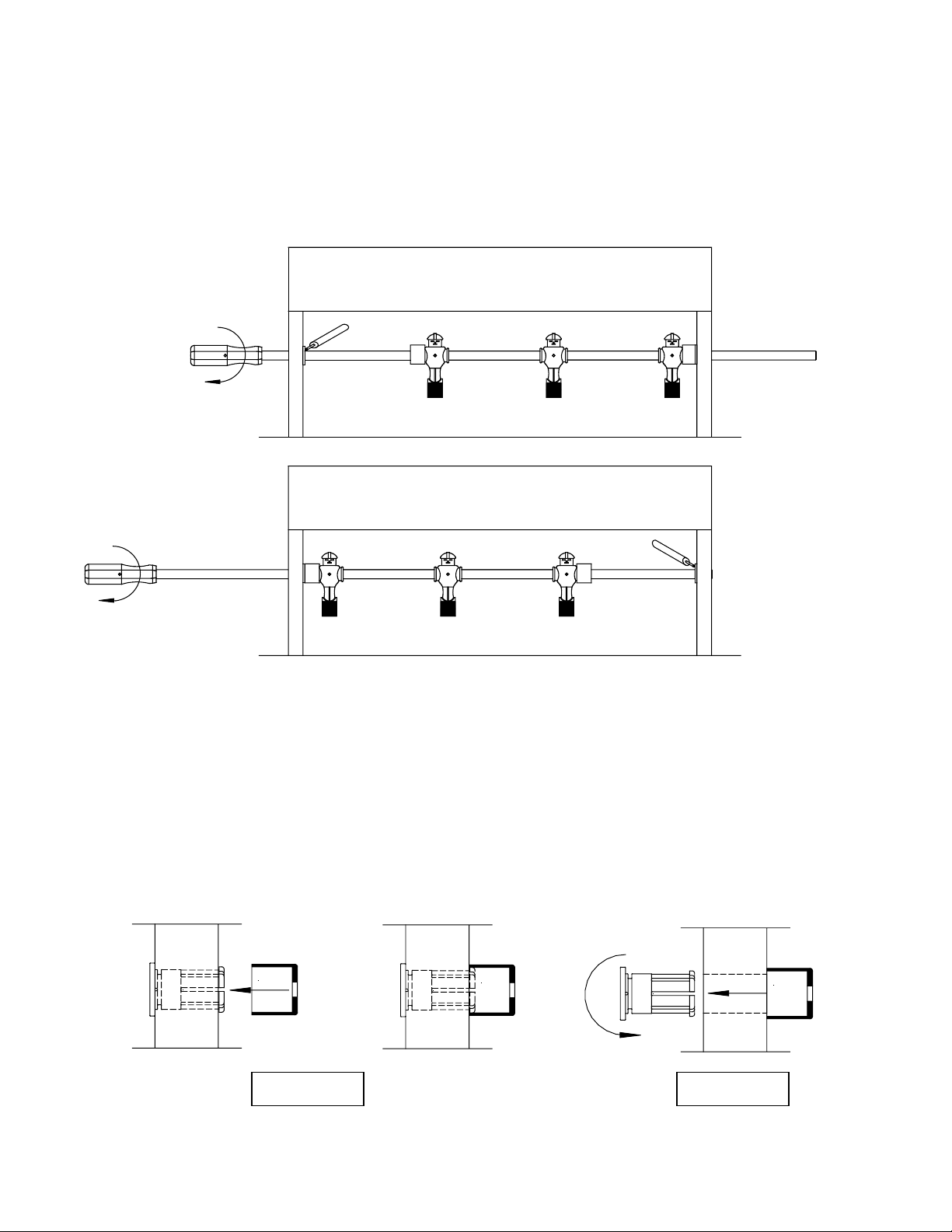

STEP #6 – Lubricate The Rods / Bearings

• Push the rod away from you until the bumper hits the opposite wall. Apply two or three drops of

lubricate on the face of the bearing and rod using the Super Lube Tube furnished with the game.

Rotate the rod while pulling the rod toward you to evenly spread the lubricant on the rod. Perform

the same operation on the opposite bearing face and rod. Repeat as needed.

STEP #7 – Rotating The Bushings

• Once a year the bushings should be rotated 180 degrees to assure an even wear of the bushing

surface. To accomplish this rotation remove the rods from the game and push a 7/8" socket head

over the bushing fingers (Drawing - A). Push the bushing out of the hole and rotate the bushing

180 degrees (Drawing - B). Snap the bushing back into place and return the rod and men to the

game.

7/8 " 7/8 " 7/8 "

Drawing - A Drawing - B
