Swinks Stern Pinball Ghostbusters User manual

Stern Pinball

Ghostbusters (GB)

Containment Mod

for Pro Level Machines!

Thank you for your support and I hope you will enjoy this mod for many years to come. This is a

KIT manual as you basically purchase the parts and assembly yourself - which is very easy to do.

Please note that this manual is based oﬀthe v1 of the mod and the Shapeways parts are actually

v2 in which the face of the cabinet was improved as well as the lighting mounting improved so the

manual will be a combination of photos and 3d models. Also ignore the colours of the domes as

in real life the colours are not as washed out as per the photos shown.!

Proudly Designed and Manufactured by

www.swinks.com.au

Page of 1 19

Rev 1 - manual

26-4-21

1. Purchase your Parts

All parts are purchased directly from Shapeways who are in the USA or The Netherlands,

please use the link below or search swinkscontainment at Shapeways.

https://www.shapeways.com/marketplace?q=swinkscontainment&sort=

Note 1: I will have a ghost trap coming soon which will slide into the door compartment.

Note 2: prices shown below are in USD on the 25-4-21 - these may increase or decrease -

depending of Shapeways pricing system.

Page of 2 19

Rev 1 - manual

26-4-21

2. Part Preparation

No parts need to be painted if you don’t want to, though you can enhance features with a

little bit of paint if desired and if you have the skills to do so.

2 parts are made up of a few parts in one print:

-The black containment base also has a pin built in which is a separate part

-The containment bulb set

Use a pair of side cutters or a sharp hobby knife to separate and then trim the small joining

branch off the parts so it is ready to be used.

Page of 3 19

Rev 1 - manual

26-4-21

Now before installing the mod please practice assembling the mod so you understand the

locking pin. Align these parts to practise the ﬁtting together.

Slide the top over the base and then drop the pin into the hole.

Page of 4 19

Rev 1 - manual

26-4-21

Then use a coin in the pin slot and turn the pin 90 degrees which will then lock the

containment unit to the base.

Now get the front containment door which will have 2 holes in it.

Page of 5 19

Rev 1 - manual

26-4-21

Then install the door with the 2 brackets with holes onto the pins inside of the cabinet and

push down - do not force it - if tight STOP and remove and take a small drill and drill

through the holes to make it fractionally larger so just a nice ﬁt.

Note 3: I will soon provide an option for a ghost trap to ﬁt into the door.

Now disassemble the mod parts so you can install your mod into your game.

Page of 6 19

Rev 1 - manual

26-4-21

Now back to preparing the parts for ﬁnally assembly. Take the individual bulb domes and

install in the top of the containment unit and drop a dab of superglue or hot glue to ensure

they stay in place.

Note 4: v2 of the mod will not have a pin there it will have a hole where a screw is installed

to hold all the parts (Stern’s LED Boards).

Note 5: v2 bulbs are different in the way that the bases have 2 different thicknesses - use

the thicker base into the higher rimmed hole on the LHS.

Page of 7 19

Rev 1 - manual

26-4-21

Here is a 3D model view of how the v2 will look in which you can see the differences in the

bulb domes the remaining recess is ﬁlled in with the coloured inserts.

It will look like this from the front once the bulb domes are installed.

Page of 8 19

Rev 1 - manual

26-4-21

Here is the view of the v2 as per 3D Model image. You will notice the slight differences in

the 2 panels with some button markings now as well as bolts around the outer side of the

cabinet. Also the handle does not move.

Page of 9 19

Rev 1 - manual

26-4-21

3. Remove Parts from your Game

You need to ﬁrst power off your game and then remove the Spot Light Post as well as the

Storage Facility Plastic which has the LED panels as part of the plastic - this will be re-

used in your new mod.

Remove the spotlight from it’s post as this gives you better access to the screw for the

plastic removal and new mod installation.

Page of 10 19

Rev 1 - manual

26-4-21

Other manuals for Stern Pinball Ghostbusters

Other Swinks Arcade Game Machine manuals

Swinks

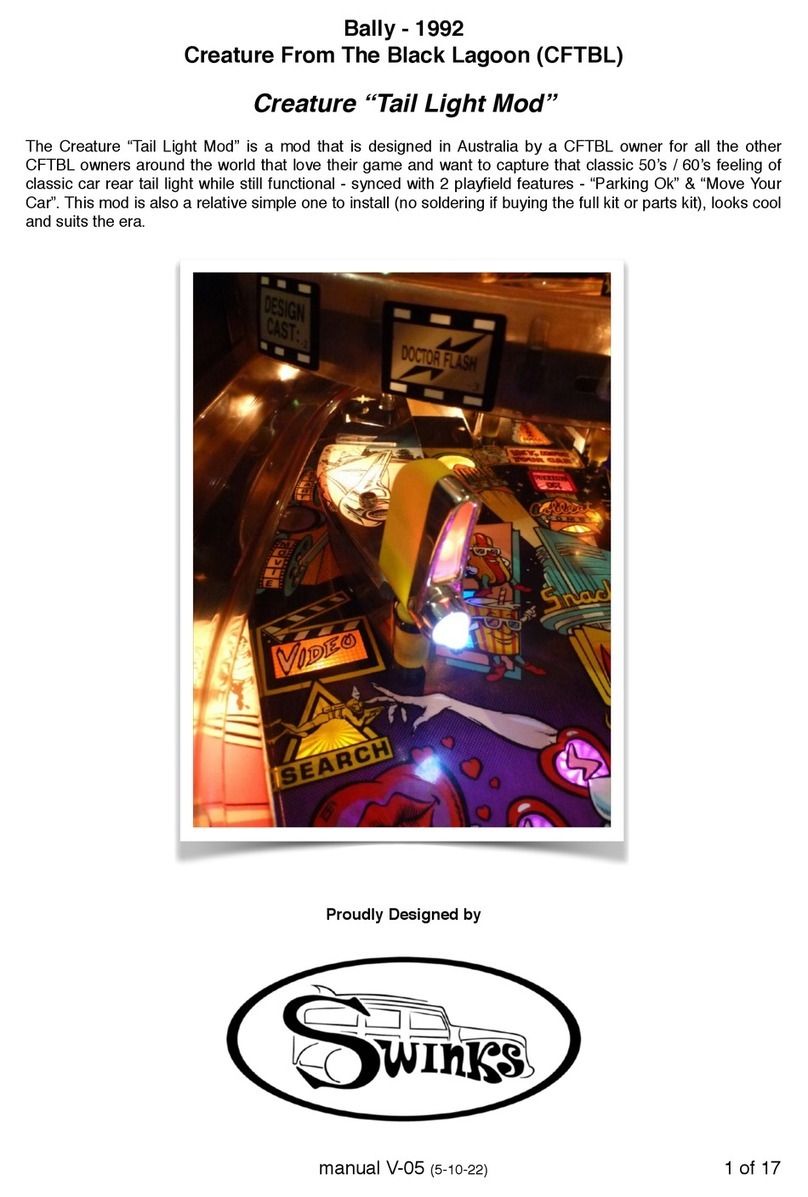

Swinks Tail Light Mod User manual
