ShelterLogic 27273 User manual

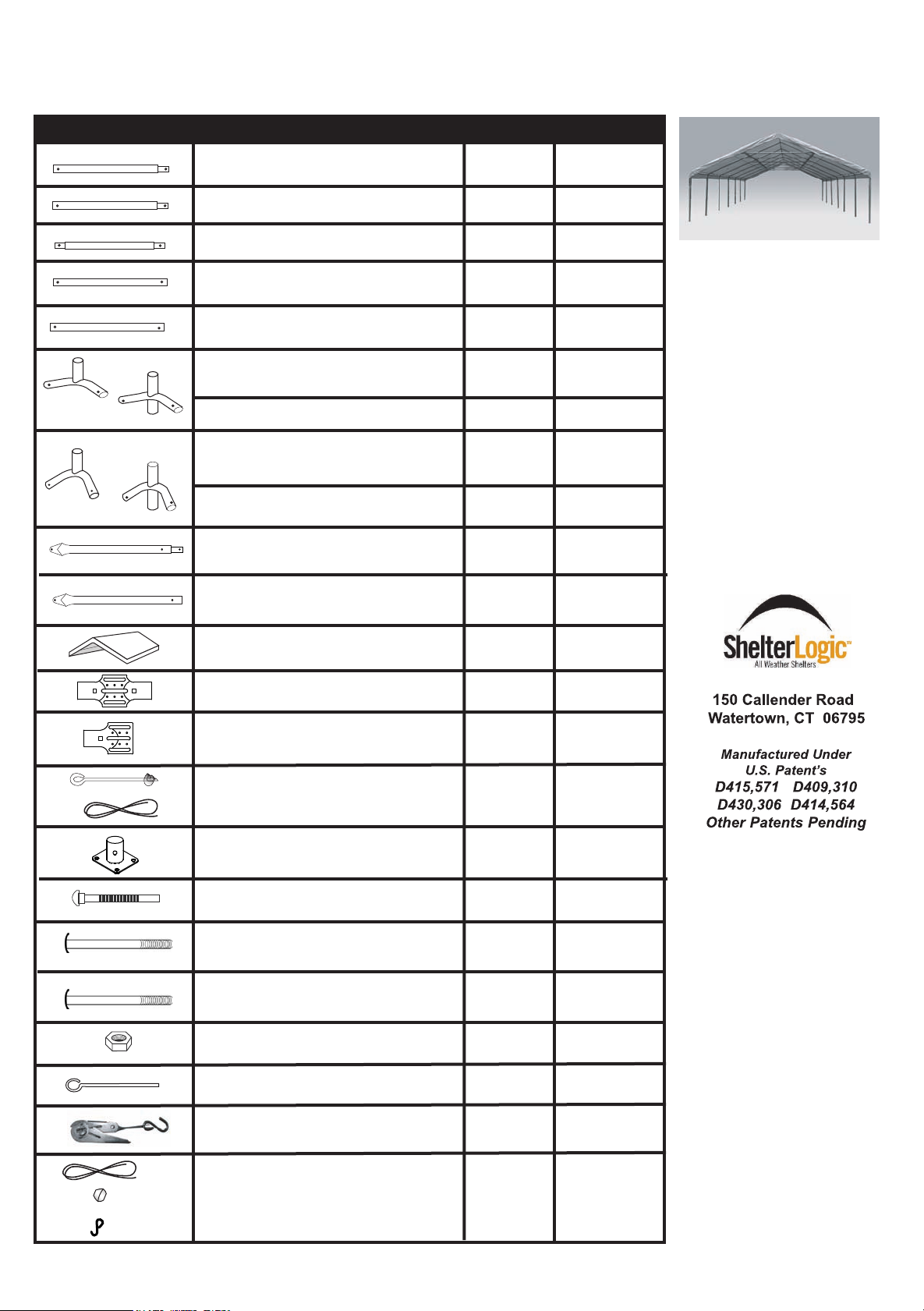

Description Qty. Part #
(Top Bend, shallow bend)
(Side Bend, sharp bend)
24'x 40' ULTRA MAX PEAK CANOPY
#27273
Please read instructions completely before assembly
PAGE 1
05-27273-0A 01/10/07
2
5
4
10
1
800091
3-Way Frame Connectors
800093
4-Way Frame Connectors
800092
3-Way Frame Connectors
800094
4-Way Frame Connectors
800235
4800216
24 800095
14 800096
Support Tube 72 3/8"
Common Tube 72 3/8"
Oblique Tube 72 3/8"
18 800098
Cross Rail 77 1/8"
12 800230
Pocket Pipe 77 3/8"
All-Weather Cover
4-Way Cover Rail Clamp 800221
20
3-Way Cover Rail Clamp 800220
8
Temporay 15 ”Auger Anchor s 18 10014
Wind Brace (Swedged Ends)
Wind Brace (Flat Ends)
8001047
8001037
Ropes 10437
18
5/16"x 2 1/4" Bolts
24
Nuts 5/16" 137
11130
00690
4
Ratchet 10040
800217
43
70
5/16" x 2" Round Head Bolts
800218
5/16" x 3" Round Head Bolts
14
Base Feet 800105
56 10431
Anchor
"S" Hook
White Rope
Rope bead
4
2
4
800225
800233
10465
Model : 24'x40'
1-800-524-9970
CONSUMER SUPPORT
FOR MISSING,
REPLACEMENT PARTS
OR
QUESTIONS
PLEASE CONTACT
WARNING!
Use CAUTION when assembl-
ing this unit. Be aware of poles
over your head during assembly
that may not be secured, and
could fall and cause injury.

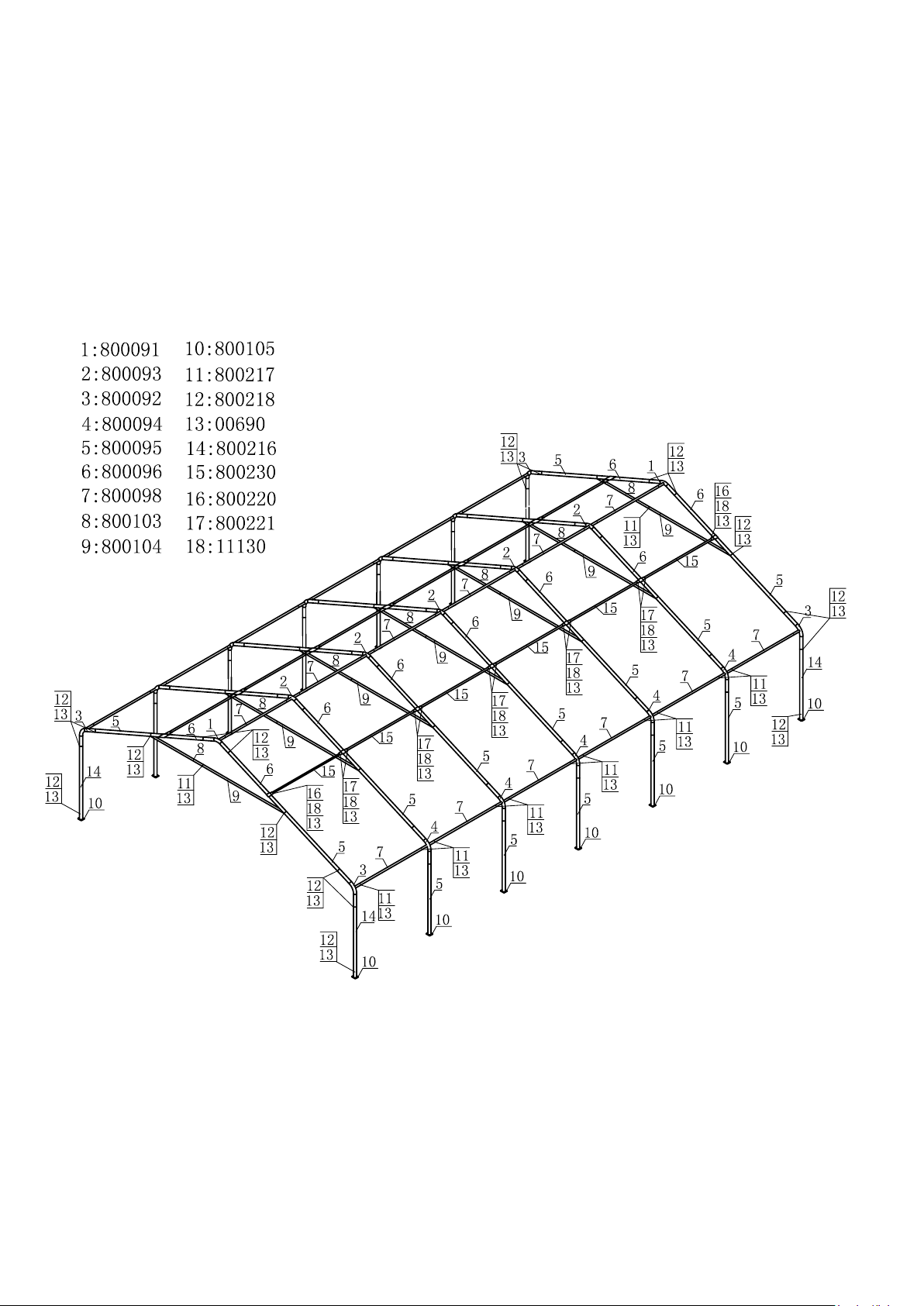

Frame Assembly Overview
PAGE 2
PAGE 3

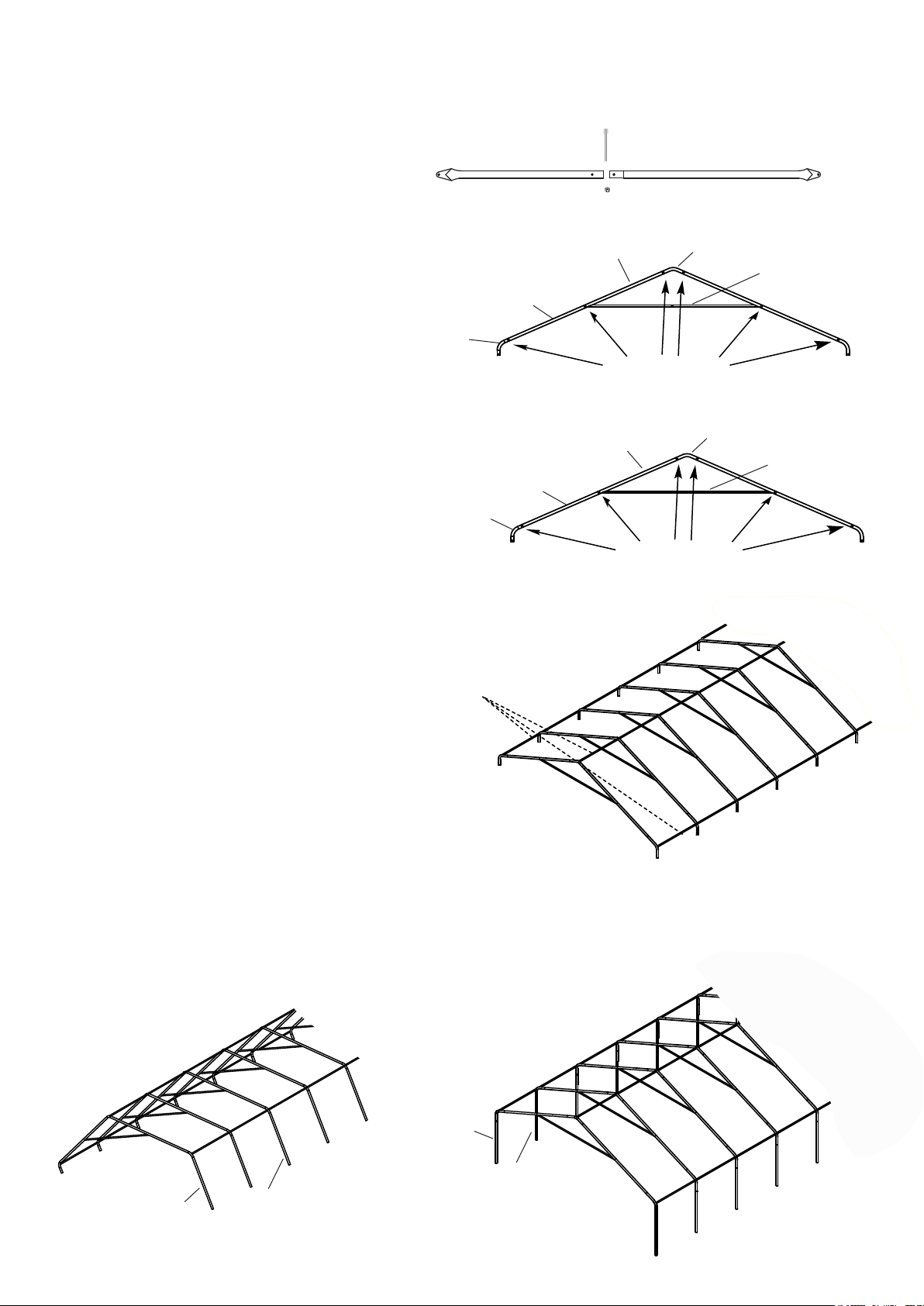

Basic Frame Assembly
STEP 1
STEP 2
STEP 3
STEP 4
Assemble the wind brace set as shown in the
illustrations.
Step 2A
Fit together the end rib using the following parts
(1) #800091 3-Way Top Connectors
(2) #800096 Rafter Poles
(2) #800095 Common Tubes
(2) #800092 3-Way Side Connectors
(1) Wind Brace set
Step 2B
Fit together the middle rib using the following parts
(1) #800093 4-Way Top Connectors
(2) #800096 Rafter Poles
(2) #800095 Common Tubes
(2) #800094 4-Way Side Connectors
(1) Wind Brace set
Using (6) #800218 (5/16" x3" Bolts) and (6) Nuts securely
fasten these tubes. Lay these ribs on the ground at the rear
of your shelters designated location.
Fig. 4BFig. 4A
NOTE: Be sure that all of the heads of the bolts are
facing toward the outside of the rib.
Repeat step 2A/2B for all the other ribs.
Using #800098 Cross Rails, #800217
(5/16" x 2" Bolts) and Nuts to connect
these ribs.
800098
800216
800216
800095
800095
Assemble (2) #800216 Corner Support Tubes and (4) # 800095 middle support tube as shown in Fig. 4A and set aside.
Assemble other side Support Tubes as shown in Fig. 4B and connect the middle support tubes with #800218 (5/16" x 3"
Bolts) and nuts. Repeat this step at opposite side.
Note: #800218 Bolts are required for middle support tube connections. Bolts are not inserted to the corner legs
(#800216) at this step.
#800217
#00690
#800103
#800104
Fig. 2A
Fig. 1
Fig. 2B
2 End Ribs
800095
800092
Wind brace
800096 800091
Middle Ribs
800095
800094
Wind brace
800096
800093
#800218(5/16"x3"Bolt)
#800218(5/16"x3"Bolt)
STEP 7
STEP 6

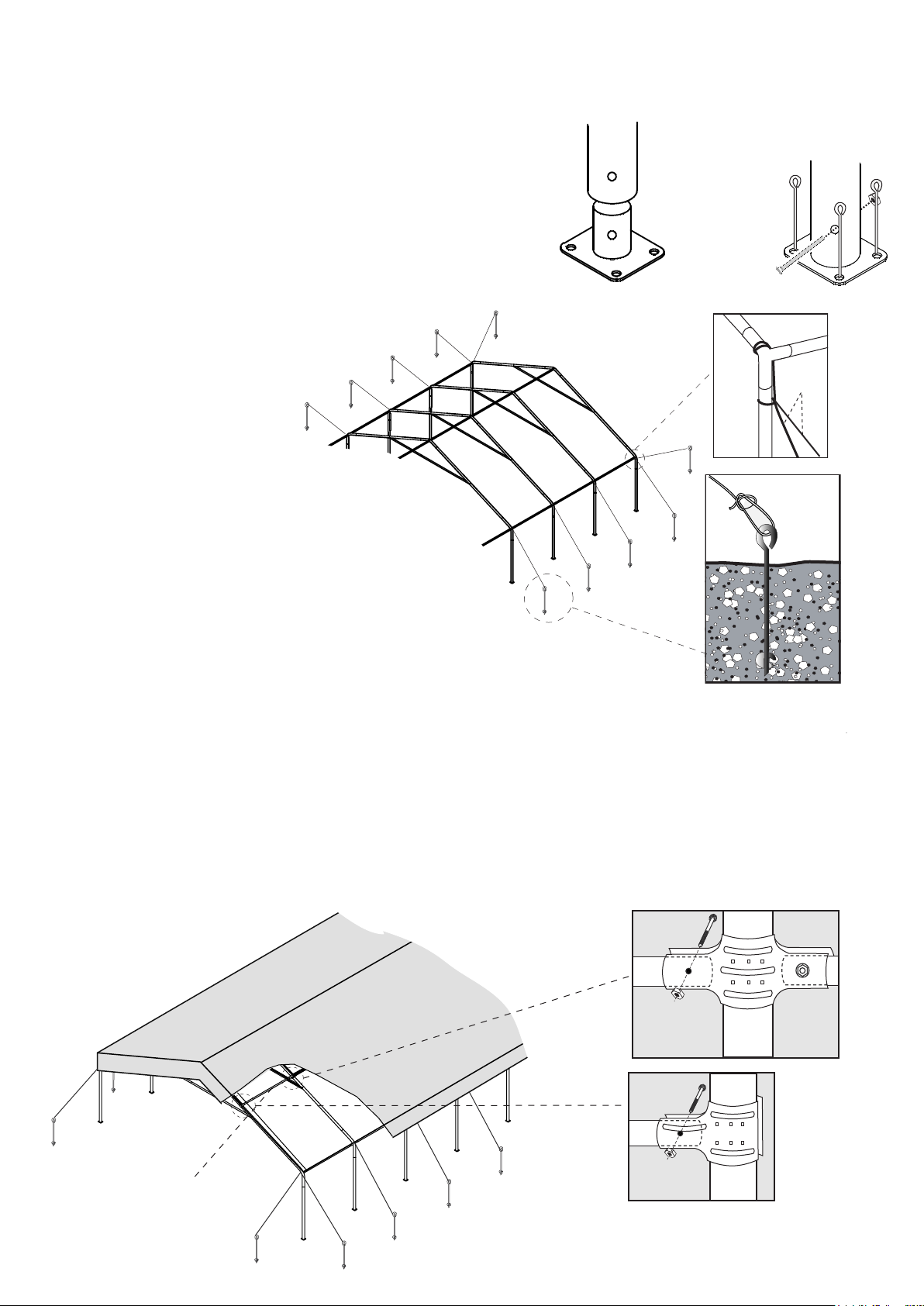

Depending on the model you have purchased, your
base feet will either fit onto the outside of the leg poles,
or slide inside the leg poles. After installing Base Feet
Plates onto bottom of Support leg Poles, be sure to
line up the predrilled hole in the leg with the predrilled
hole in the base foot. Insert 5/16" x 3" bolts all the way
through leg and foot to other side, secure with nuts.
Note: Don't insert the bolt to the corner legs at this step.
Fig. 5A
Fig. 5B
Locate a suitable location to place 4 anchors as shown
in the illustration into each of the base feet until
the round end of the anchor touches the base feet.
STEP 5
Position the cover on the side of the frame with the side with the grommets parallel to the frame and facing down.
Go to the opposite side of the frame and throw at least three ropes over the frame (evenly spaced along the length
of the frame). Tie the ropes to the grommets on the cover and use the rope to pull the cover over the frame (the
more people and ropes you have to pull the cover over the easier it is to do). Position the cover so that the valance
is even front to back and side to side.
corner
clamps
11130
690
800220
Fig.7B
middle
clamps
11130
800221
690
Fig.7A
Fig.7
Pocket Pipe
Fig.6 Fig.6A
Fig.6B
Rope
PAGE 4
Slide the pocket pipes into the cover pockets between the cutouts. Attach the pocket pipes to the frame using the
3 & 4 way clamps (800220 & 800221) and the 5/16 X 2 #11130 bolts and nuts. Check that the pocket pipes are
evenly spaced on both sides of the top pipe. Slide the pocket pipe down the length of the rafters to tighten the top
section of the cover. When the cover is pulled tight secure the bolts and nuts in the sliding clamps to hold them in
place.
Tie a loop into the end of the
rope. Feed the loop over the
top of the rafter pole and feed
the other end of the rope through
the loop and run the rope down
the leg at least 12" and wrap
the rope around the leg and
feed the loose end over the
rope (Fig.6A).
Take the loose end of the robe
and secure it to the auger an-
chor already secured in the ground
(Fig.6B).Repeat these steps for the
remaining legs on the canopy.

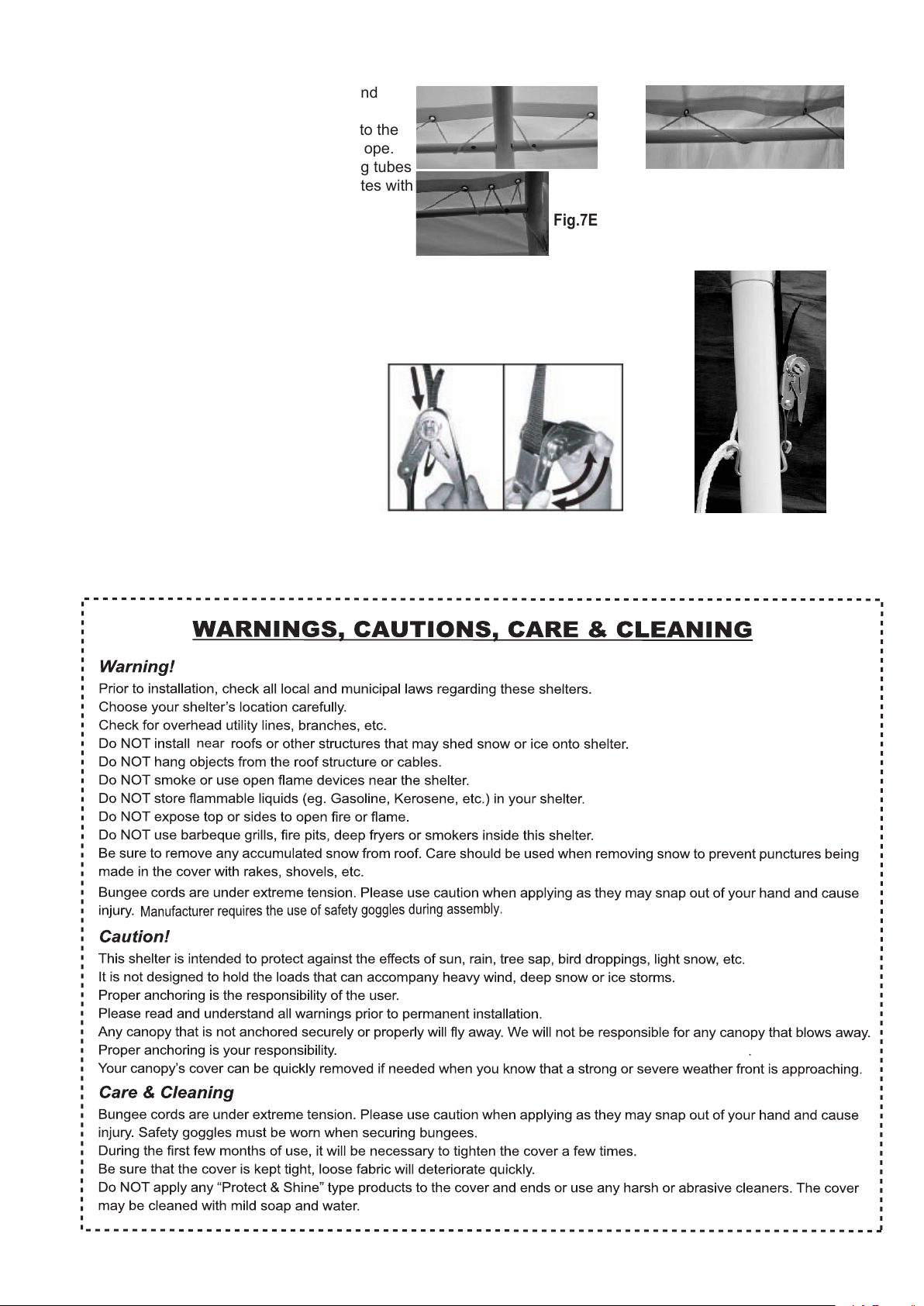

STEP 8
PAGE 5
Fig.8A Fig.8B
Slide the rope through the grommets and around
the side extention tubes at both sides shown
in Fig.7C, Fig.7D & Fig.7E. Insert the 'S' hook to the
corner leg tube, then 'twist' the leg to tight the rope.
After tighting the rope, secure the (4) corner leg tubes
#800216 to the corner connectors and feet plates with
#800218 (5/16" x 3" Bolts) and nuts.
Use the (4) Ratchets as shown in Fig.8A.
Adjust the cover so there is equal overhang
on the front and rear. With the webbing and
ratchets pull the cover snug but not tight.
When all of the half clamps and rope are
secured tight finish tightening the (4) Ratchets
to make final adjustment to the cover.
Fig.7C
Fig.7E
Fig.7D
