ShelterLogic 25730 User manual

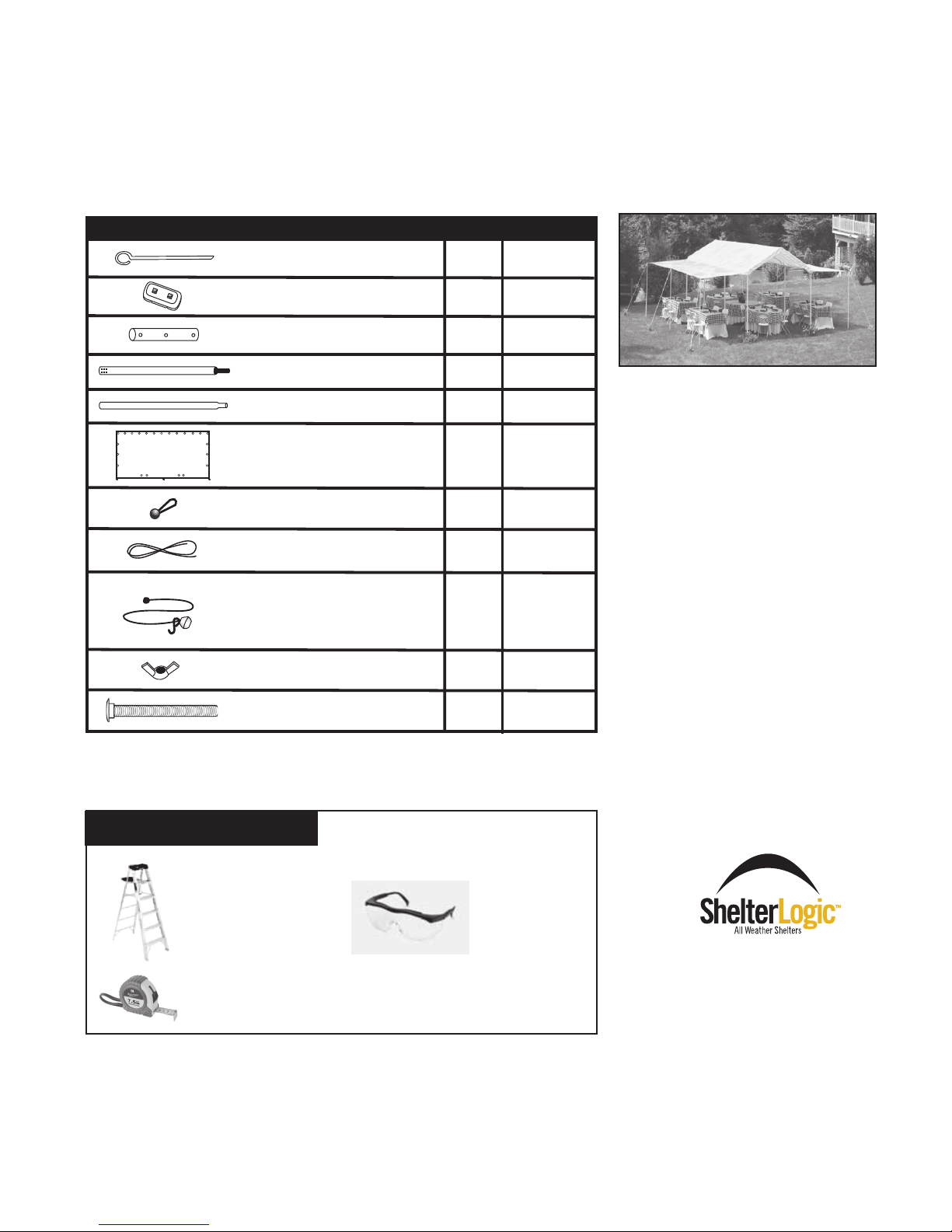

Description Qty. Part #

Bungee Cords 50 10066

810462

04-25730-0C 07/16/07

Model #25730

Tent Pole 6

Guy Ropes 11' 104376

Rope Toggle 10436

10458

Tent Pole Swedged 610459

Side Wall 2 12082

"S" Hook

Clamp

4 10464

Tetherball 4 10465

Anchors 10447

Ropes 3' 104634

Wing Nut

Bolts 1/4" x 1 1/2"

70008

30258

WARNING!

Use CAUTION when assembling this unit.

Manufacturer requires the use of safety

goggles during assembly. Bungees are

under extreme tension and may snap out

of your hand and cause injury. Be aware

of poles over your head during assembly

that may not be secured, and could fall

and cause injury.

Do not assemble near electrical over head

wires.

Two or more persons are recommended to

assemble this shelter.Estimated assembly

time:3 hrs.

Manufactured Under

U.S. Patents

D415,571 D409,310

D430,306 D414,564

Other Patents Pending

150 Callender Road

Watertown, CT 06795

800.524.9970

www.shelterlogic.com

ATTENTION:

FOR MISSING OR

REPLACEMENT PARTS

QUESTIONS

PLEASE CONTACT

CUSTOMER SERVICE:

1.800.524.9970

Assembly Manual Parts List

10'x20' Canopy Extension Kit

Step Ladder

Tape measure

Recommended Tools

Safety Glasses

STEP 1. ATTACH WINGS

PAGE 1

PARTY WING KIT TO THE

FRAME

# 10458

# 10459

STEP 2. PARTY TENT CONVERSION

After attaching the walls, assemble the six tent poles

as shown to the right. Lay these off to the side for later.

10436

Tie a knot in the end of each rope and thread it thru

the rope clamp and anchor. These anchor assemb-

lies will be used later.

Knot

Fig. A Fig. B

Cover

Twist this

way !

Cover

At the (4) corners of the canopy release the tension

on the corner ropes and remove them from the leg

poles, so the side valence is loose. Secure the loose

rope and "S" Hook to a bungee cord inside the roof

of the canopy.

Following figures A & B attach the ropes and "S" Hooks

provided in the kit to the ends of the canopy's main cover

using the clamps, bolts and nuts. The clamp should be

mounted approximately 6" to 10" up from the corner. Ins-

ert the "S" Hook into the corner upright and twist to tens-

ion the main cover.

NOTE: Be sure the clamp holds the rope inside the

pocket on the cover end.

Rope in

Pocket

6" 10"

Top

Bottom

Before You Start

• 4 or more persons recommended to assemble

• Estimated assembly time = 3 hours

CAUTION!!!

Bungee Cords are under extreme tension. Use Caution

when installing. The use of safety glasses is

recommended to prevent injury.

Walls attach to unit by Bungee Cords. Thread bungee cord

through grommets in wall and wrap around pole. If using more

than one wall, attach all the walls at the top first, then work your

way around the unit wrapping the bungee cords through both

corners of the walls and legs.

ATTENTION:

FOR MISSING OR

REPLACEMENT PARTS

OR QUESTIONS,

PLEASE CONTACT

CUSTOMER SERVICE:

1.800.524.9970

Page 2

# 10459

# 10458

Fig. D

TOP VIEW OF ANCHORING WING KIT

Wing Wing

While lifting one wing out and up at the middle

insert an extension pole into the tab at the middle

of the wing. Make a knot in the end of one of the

ropes and place it over the tab and pole end as

shown in Figures C & D. Place the anchor

securely in the ground about 3' from the

extension pole. (Fig. E)

Slide the rope clamp up the rope to tighten the wing.

Proceed to each of the two corners of the wing and

secure the anchors approximately 3' diagonally

from the corner. (see anchoring top view)

Repeat for the opposite side wing.

Fig. C Fig. E

Caution, Care & Cleaning

Bungee cords are under extreme tension. Please use caution when applying as they may snap out of your hand and

cause injury. Safety goggles must be worm when securing bungees.

During the first few months of use, it will be necesssary to tighten the cover a few time. Be sure that the cover is kept

tight. Loose fabric will deteriorate quickly. Do NOT apply any “protect & shine” type products to the cover and ends or use

any harsh abrasive cleaners. The cover may be cleaned with mild soap and water.
