Sharp IV-08MTV User manual
Version 1.3
Created in December 2004
Instruction Manual
for
IV-08MTV
LCD Color Monitor
Thank you for purchasing our IV-08MTV LCD
Color Monitor.
Before using it, read this manual carefully to
become familiar with its functions and proper
use.
Notes
- This manual was written with the utmost care. However, if you have any questions
or inquiries concerning the product, please feel free to contact our dealers or service
agents.
- Copying all or part of this booklet is prohibited.
- The contents of this manual may be revised or modified for improvement without
prior notice.
- 1 -
Safety Precautions
Read this user's manual and the attached documents carefully before installing, operating, or performing any
maintenance, in order to keep the machine working correctly. Make sure you understand all of the equipment
details, safety information, and cautions before using this machine. In this user's manual, the safety
precautions are categorized as "Caution."
Caution : Improper handling may cause dangerous situation, moderate or light injury, or damage
to equipment.
Even when only a Caution is given, serious results may occur depending on the circumstances. In all
cases, important points are described. Be sure to follow the advice given.
The following symbols are used to prohibit or explain required action.
: This means do not do what is described. For example, prohibited disassembly is shown as .
(1) Installation
Caution
- Use only in the environments specified in the leaflet, or instruction manual.
Electric shock, fire or malfunction may result if used in high temperature, high humidity,
dusty or corrosive environments, or if excessive vibration or impact occurs.
- Install the equipment only as described in the instruction manual.
An improper installation may cause the equipment to fall, breakdown, or malfunction.
- Never leave wire cuttings or any other foreign matter lying about.
A fire, breakdown or malfunction may result from inappropriate objects left near the equip-
ment.
(2) Connection
Caution
- To provide power to the IV-08MTV, use only the specialized AC cord and adapter that
come with the monitor.
- The included AC power cord is for plugging the monitor into a 100 VAC outlet.
- If you need to plug the monitor into a 200 VAC outlet, please contact our sales division or
the shop where you purchased the monitor.
- Do not use the specialized AC cord and adapter that come with the IV-08MTV to power
any other devices.
(3) Maintenance
Prohibit
- Don't disassemble or modify the Monitor.
Fires, breakdowns or malfunctions may occur, if the monitor is disassembled.
- 2 -
1. Outline / Features
The IV-08MTV (or simply the Monitor) is a compact, 8.4" screen liquid crystal color monitor.
- It meets the IP65 regulations (when installed in a frame) making it suitable for FA use.
- The Monitor's brightness, color, and contrast can be adjusted and the display language can be
switched between Japanese and English.
- An external monitor can be connected to its video output terminal.
The Monitor has an NTSC video output terminal so a separate monitor can be used to check the settings
on IV series controllers or for remote monitoring.
- NTSC video input and analog RGB input terminals are standard
The Monitor can be used as a display monitor for any equipment with an NTSC output, such as the
SHARP IV-S30 series, IV-C35M etc., and it can be used as a monitor for the SHARP IV-S51M (analog
RGB output) or as a monitor for a personal computer.
- 3 -
2. Precautions for Use
Please note the following points when handling the Monitor.
(1) Installation location and environment
- The Monitor should be used in a location with an ambient temperature of 0 to 45 oC and a relative
humidity of 90%RH or less.
If the ambient temperature is higher than the maximum temperature above, install a fan for forced air
cooling or an airconditioner to conditioning the space to bring the ambient temperature within the
specified range.
- Do not install the Monitor in a location subject to condensation due to rapid temperature changes.
- Do not install the Monitor in a location exposed to direct sunlight.
- Do not install the Monitor in a location directly subject to vibration or mechanical shock.
- Do not install the Monitor in a location exposed to corrosive or combustible gas, or to solvents or
coolants.
Do not install it in a location where there is lots of dust, salt in the air or metal powder.
(2) Installation
- Allow adequate ventilation space. If the ventilation area is blocked the internal temperature of the
Monitor may increase enough to cause a fire.
- Do not install the Monitor in a panel that contains high-voltage equipment. Install the Monitor at least
200 mm away from high voltage lines or power lines.
(3) Use
- Use only the AC cord and adapter that come with the Monitor. Using any other cord or adapter may
cause a fire.
- If the Monitor will not be not used for a long time, unplug cord from the AC outlet.
- If a fault or error occurs in the Monitor (overheating, abnormal odor, or smoke), stop operation
immediately and contact the shop where you purchased the Monitor or contact our service company.
- Glass is used in the display. Therefore, do not drop it or bang it.
- In a dry atmosphere, static electricity may build up on your body. If the static electricity is discharged
by touching the display, the electronic parts inside the Monitor may be damaged. Discharge any static
electricity in your body by touching a grounded metal object before touching the Monitor.
(4) Maintenance
- Only authorized service personnel are allowed to remove the back cover on the Monitor.
Some parts in the Monitor use high voltage and you may receive an electric shock or damage the
Monitor if you are not trained.
- Turn OFF the power before cleaning the Monitor. Wipe off any dirt using a dry, soft cloth. Use of any
thinner or other chemicals may damage the frame or screen and may cause color changes. If the
cloth is too hard, it may scratch the display surface.
- 4 -
3. System Configuration
Adj. POWER
Monitor cable *2
IV-S30 series
IV-C35
*1
*1
IV-08MTV
(cable length: 2 m)
Adj. POWER
IV-08MTV
LINK
RX
RGB
ANALOG
EXP
TERMINATOR
USB
USB
LAN
IV MONITOR
ONLY
COM
IV-S51M
POWER
CAMERA2
CAMERA1
X15
X14
X13
X12
X11
X10
X9
X8
X7
X6
X5
X4
X3
X2
X1
X0
C(+)
+
0
V
+24V
C(-)
HALT
RDY
Y15
Y14
Y13
Y12
Y11
Y10
Y9
Y8
Y7
Y6
Y5
Y4
Y3
Y2
Y1
Y0
FG
IV-S51M
Analog RGB cable
(Commercially available item)
Video cable
(Commercially available item:
Less than 10 m)
Personal
computer
(Commer-
cially
available
item)
[For simultaneous monitoring
at another location]
*2: The monitor cable comes as an accessory with the IV-S30 series (controller),
and the IV-C35M.
If you need a cable longer than 2 m, purchase a standard cable locally.
*1: The Monitor is compatible with the following IV-S30 series controllers.
Product name Controller (model name)
IV-S31M, IV-S32M, IV-S33M
IV-S31MX, IV-S32MX, IV-S33MX
IV-C35M
IV-S51M
Compact color image sensor camera
Compact image sensor camera
(IV-S30 series)
Image sensor camera
- 5 -
4. Name and Function of Each Part
220.6
(7) Mounting holes
(4 positions: two at bottom)
[Top view]
Adj. POWER
(6) Power key
(5) Power lamp
Adj key
235
192
177.6
[Front view] [Side view]
ANALOG
RGB
VIDEO
OUT
VIDEO
IN DC24V
(1) DC input terminal
(4) Analog RGB connector
(2) Video input terminal
(3) Video output terminal
[Rear view]
53.3
(Unit: mm)
(8) M4 Screw hole
(4 positions: For the mounting stand)
(9) Cable clamp
key
key
36
36
- 6 -
FunctionName
Terminal used to supply power to the Monitor.
- Connect the cable from AC adapter here (Monitor accessory).
Terminal used to supply an NTSC video signal (from an IV-S30/C35M etc.)
to the Monitor.
- Connect a monitor cable here (IV-S30/C35M accessory).
Power lamp (POWER) Lights when power is supplied to this Monitor.
Cable clamp Secure the AC adapter cord (Monitor accessory).
Turn the power to this Monitor ON/OFF.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
DC input terminal
(24 VDC)
Video input terminal
(VIDEO IN)
Terminal used to output an NTSC video signal from the Monitor.
- Connect another video monitor here (or IV-08MTV) to see the same
image elsewhere at the same time.
Video output terminal
(VIDEO OUT)
Mounting hole (for the
mounting bracket)
Holes (4 positions) to install the Monitor using the mounting bracket
(Monitor accessory).
Screw hole (for a
support stand)
Screw holes (4 positions) for installing the Monitor on a specialized support
stand (custom order item).
Terminal used to input analog RGB signals from an IV-S51M, or a personal
computer.
- Connect an analog RGB cable here (available locally).
[Adj] key
Press the [Adj] key and the adjustment menu will appear on the display.
- Select items (brightness etc.) on the adjustment menu. Then set the value
using the / keys. Confirm the setting with the [Adj] key.
Analog RGB
connector (ANALOG
RGB)
Power key
[Adj] key
key
key
- 7 -
53.3 mm
5.6 mm
Mounting bracket
Mounting screw
Max. 7 mm
Installation section
(Cross-section from position A in the figure above)
Mounting holes of the mounting brackets
(totally 4 including top and bottom sides)
235
mm
192
mm
Max. 7 mm
Installation section
IV-08MTV
A
(See the cross section view below)
Mounting hole in the
mounting bracket
(4, including 2 on
the bottom)
5. Installation Method
Secure the Monitor using the mounting bracket (Monitor accessory) in the mounting holes on the Monitor
housing (4 positions). For specific external dimensions, see Section 4. "Name and Function of Each Part",
in this manual.
1) Cut a rectangular hole (222±0.5 x 179±0.5 mm) in the control panel (thickness: Max. 7 mm) and
install the Monitor housing in this hole.
2) Insert a mounting bracket (2 each at the top and bottom) into each mounting hole on the housing, and
secure the mounting brackets using the mounting screws.
- 8 -
[Rear view when mounting the Monitor using the mounting brackets]
220.6
235
177.6
192
(Unit: mm)
198.8
10.6 10.6
- 9 -
■Dimensional drawings when the Monitor is installed on the stand
Install the Monitor on the specialized stand (custom order item). Then the Monitor can be used in a
standalone configuration.
IV-08MTV
Stand
Rotation center
230
230
Plan view of the stand
127.5
1252.5
192
230.7
1252.5
127.5
148
235
235
53.3
125
130
5.2
8
23.522.9
Mounting holes
(4 positions)
Mounting screws on
the Monitor housing
(stand accessories)
When using the specialized stand
Table of contents
Other Sharp Monitor manuals
Sharp
Sharp PN-L601B Release note
Sharp

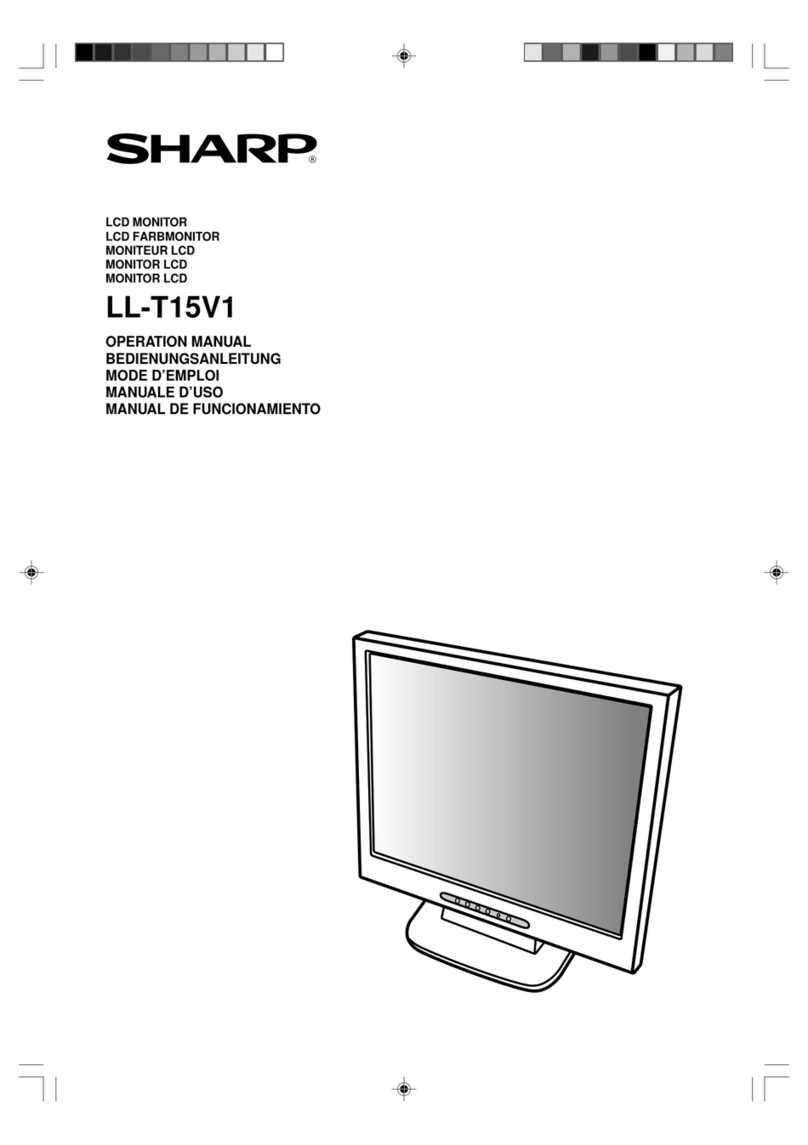

Sharp T19D1-H - LL - 19" LCD Monitor User manual
