Shadow-Caster SCM-TT-6 User manual
Shadow-Caster LED Lighting, © 2014 Page 1
SCM-TT-4, 6 & 10
Trim Tab Mounting Kit Instructions
Rev 1.20
Shadow-Caster LED Lighting, © 2014 Page 2
This is an illustrational guide for installation of the Shadow-Caster Trim Tab Mounting Kit.
Please refer to the parts list and illustration on pages 5 and 6 for detail component information.

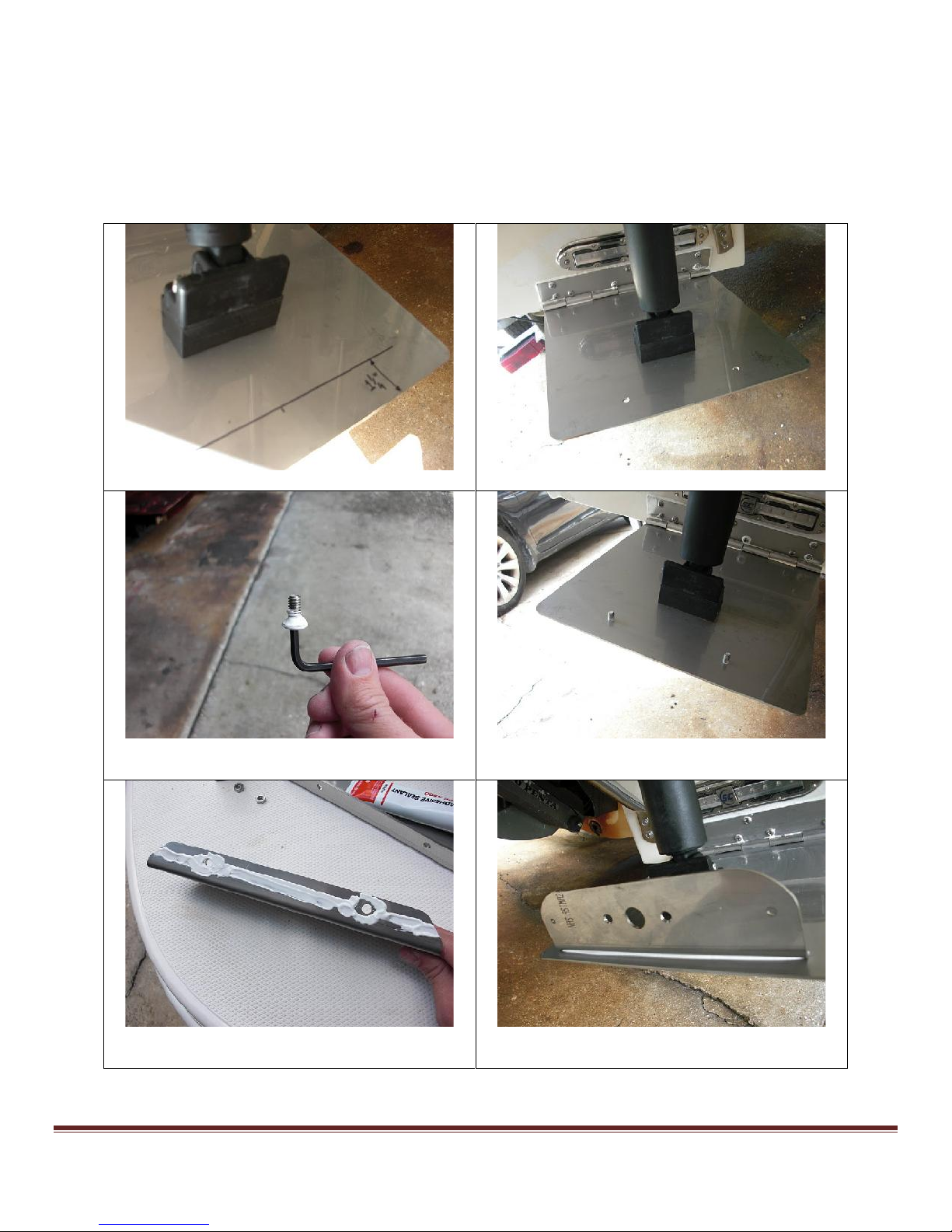

1) Measure 1 ¼” back from tab edge
2) Drill holes for mounting screws
3) Apply sealant to underside of screw heads
(prevents crevice corrosion)
4) Sealant will hold screws into the tab
5) Apply sealant to mounting surface of light
bracket (prevents crevice corrosion)
6) Install light bracket on tab
Shadow-Caster LED Lighting, © 2014 Page 3
7) Light bracket installed on tab
8) Install cable backshell with sealant on o-
ring (not shown)
9) Mount light to light bracket
10) Drill holes in transom.
Chamfer to prevent cracks in gel coat
11) Temporarilly Mount Transom fitting and
cut hose to proper length. Hose should
be routed near trim tab hinge.
12) Route cable through hose and install
transom fitting with seal washer and
4200 sealant.
Shadow-Caster LED Lighting, © 2014 Page 4
Locate and install cable clamps as shown
Trim Tab Mounting Kit installation is complete!
Install wiring per ABYC guidelines.
Shadow-Caster LED Lighting, © 2014 Page 5
Parts List
ITEM NO.
QTY.
DESCRIPTION
1
1
SC-1031 TRIM TAB BRACKET, REV B
2
1
SC-1032 TRIM TAB CABLE EXIT
3
1
SC-1033 TRANSOM SINGLE CABLE EXIT
4
1
STAINLESS HOSE BARB FITTING
5
1
Norprene Hose (5-8 OD x 1-2 ID)
6
2
Cable Clamp (black Polyethylene)
7
1
O-RING (EPDM)
8
1
POLYURETHANE FLAT WASHER
9
2
#10 WASHER 316SS
10
6
#8 WASHER 316SS
11
2
#8 X 1.5" PAN HEAD MOUNTING SCREW 316SS
12
2
BUTTON HEAD SCREW 1/4-20 X 1/2" 316SS
13
2
BUTTON HEAD SCREW 8-32 X 3/4" 316SS
14
2
FLAT HEAD SOCKET SCREW 10-24 X 5/8" 316SS
15
4
BUTTON HEAD SCREW 8-32 X 1/2" 316SS
16
2
LOCKING NUT 1/4-20 316SS
17
6
LOCKING NUT 8-32 316SS
18
2
LOCKING NUT 10-24 316SS
Shadow-Caster LED Lighting, © 2014 Page 6
Illustration
