Sensea NEO User manual

NEO

Notice de Montage -

Utilisation - Entretien

Instrucciones de Montaje,

Utilización y Mantenimiento

Instruções de Montagem,

Utilização e Manutenção

Istruzioni per il Montaggio,

l'Uso e la Manutenzione

Εγχειρίδιο συναρμολόγησης,

χρήσης και συντήρησης

Instrukcja Montażu,

Użytkowania i Konserwacji

Руководство По Сборке

и Эксплуатации

Assembly - Use -

Maintenance Manual

FR ES PT IT

EL PL

UA Manual asamblare,

utilizare și întreținere

RO BR

RU KZ

EN

2021/09-V02

Жинау, пайдалану және

техникалы ызмет

крсету н с аулы ы

Керівництво По Збірці

і Експлуатації

Instruções de Montagem,

Utilização e Manutenção

5

YEAR

Guarantee*

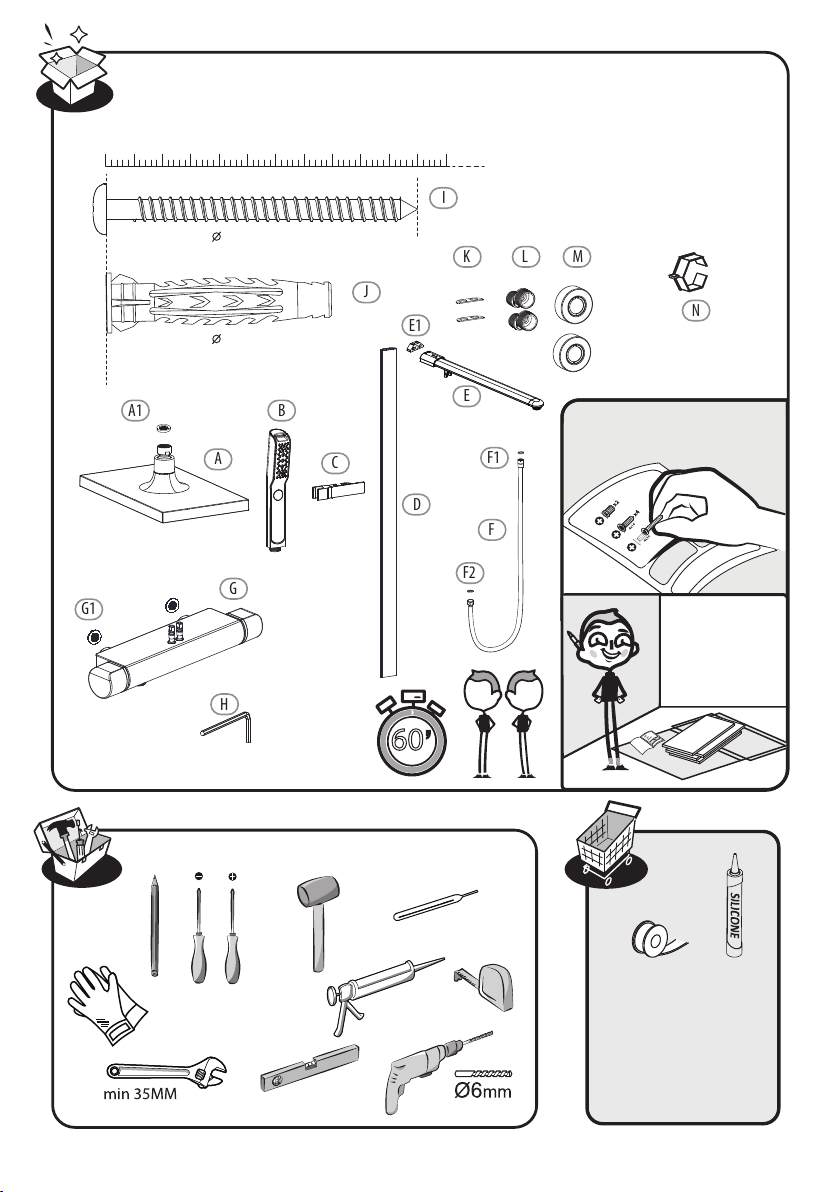

x4

x2

x3

4x16

4x30

0 1 2 3 4 5 6 cm

x2

x2

x2

D

E

B

F

F1

F2

A

G1

C

I

J

A1

4.0x55mm

6.4x40mm

2.5mm

H

G

K

L

M

E1

N

60

5 14

19 23

15 18

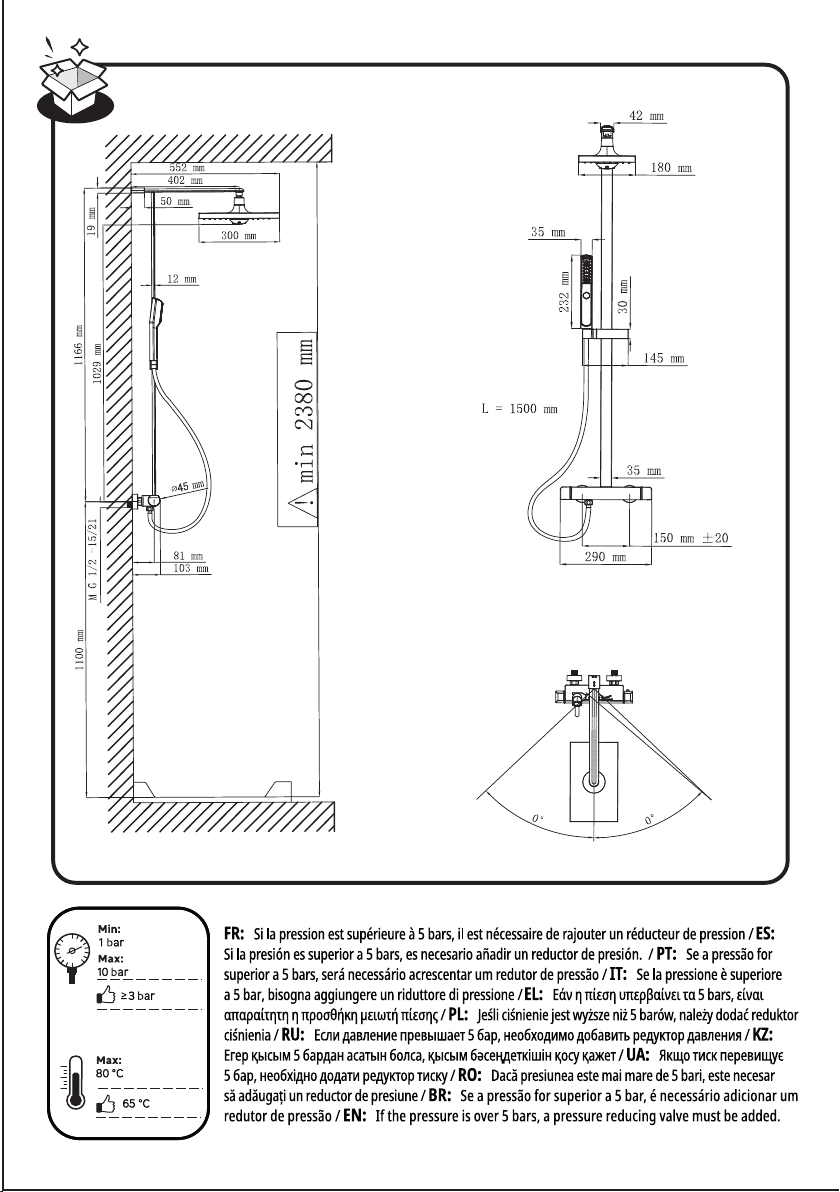

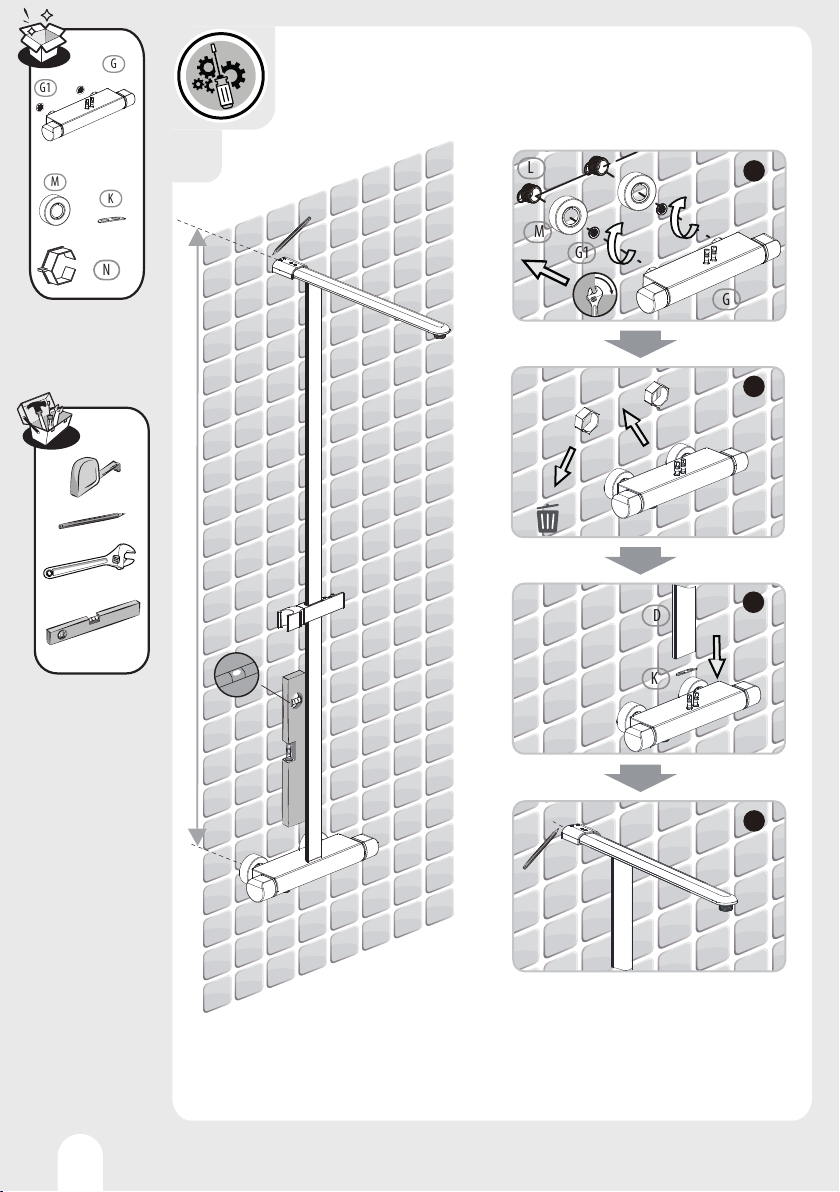

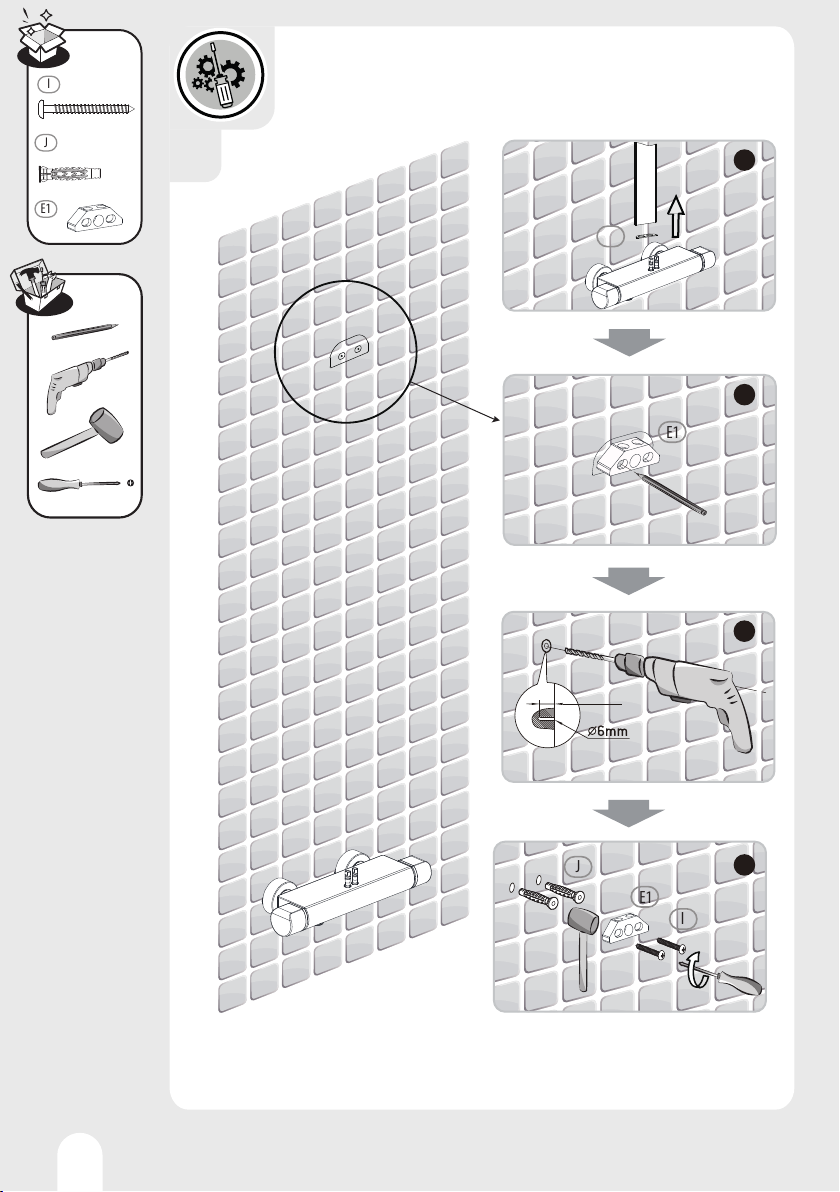

FR:Montage / ES: Montaje / PT:Montagem / IT:Montaggio / EL:Συναρμολόγηση /

PL:Montaż / RU:Сборка / KZ: Монтаждау / UA: Збiрка / RO:Montaj / BR:Montagem /

ZH: / EN: Assembly

FR:Utilisation / ES: Utilización / PT:Utilização / IT:Uso / EL:Χρήση /

PL:Użytkowanie / RU:Использование / KZ: Пайдалану / UA: Використання / RO:Utilizare / BR:Utilização /

ZH: / EN: Use

FR:Entretien / ES: Mantenimiento / PT:Manutenção / IT:Manutenzione / EL:Συντήρηση /

PL:Konserwacja / RU:Уход / KZ: Және техникалы ызмет к рсету / UA: Догляд / RO:Întreţinere /

BR:Manutençã / ZH: / EN: Maintenance

FR:Correct /ES:Correcto/PT:Correto /IT:Corretto /EL:Σωστό /PL:Dobrze /RU:Правильный/ KZ: рыс/

UA:Правильно/RO:Corect /BR:Correto /ZH: /EN:Correct

FR:Incorrect / ES: Incorrecto/PT:Incorreto/ IT:Errato / EL: Λάθος/ PL: Źle / RU: Неправильный/

KZ: Д рыс емес/UA:Неправильно/ RO: Incorect /BR:Incorreto /ZH: /EN: Incorrect

FR: Maintenance/ ES: Mantenimiento/ PT: Manutenção/ IT: Manutenzione/ EL: / PL: Utrzymanie/

RU: / KZ: Техникалы ызмет к рсету/ UA: Технічне обслуговування/

RO: / BR: Manutenção / ZH: / EN: Maintenance

FR:Attention danger/ES:Atención: Peligro/PT:Atençãoperigo/IT:Attenzionepericolo/EL: Προσοχήκίνδυνος/

PL:Uwaganiebezpieczeństwo/RU:Внимание! Опасно!/KZ: ары /UA:Увага! Небезпечно!/

RO:Atenţie, pericol/BR:Atençãoperigo /ZH: /EN: Caution danger

1

2

3

5

ON

2

2’

FR:Montage / ES: Montaje / PT:Montagem / IT:Montaggio / EL:Συναρμολόγηση /

PL:Montaż / RU:Сборка / KZ: Монтаждау / UA: Збiрка / RO:Montaj / BR:Montagem /

ZH:  / EN: Assembly

OFF

4

5

7

FR:Montage / ES: Montaje / PT: Montagem / IT: Montaggio / EL: Συναρμολόγηση /

PL: Montaż / RU: Сборка / KZ: Монтаждау/ UA: Збiрка / RO: Montaj / BR: Montagem /

EN: Assembly

150

27-33

1

3

2

A

L

4

6

5

2.5mm

H

K

D

D

E

E

H

E1

H

C

7

C

E

D

K

8

7

1166mm

G

M

K

G1

M

G1

G

L

4

1

3

K

D

2

x2

x2

N

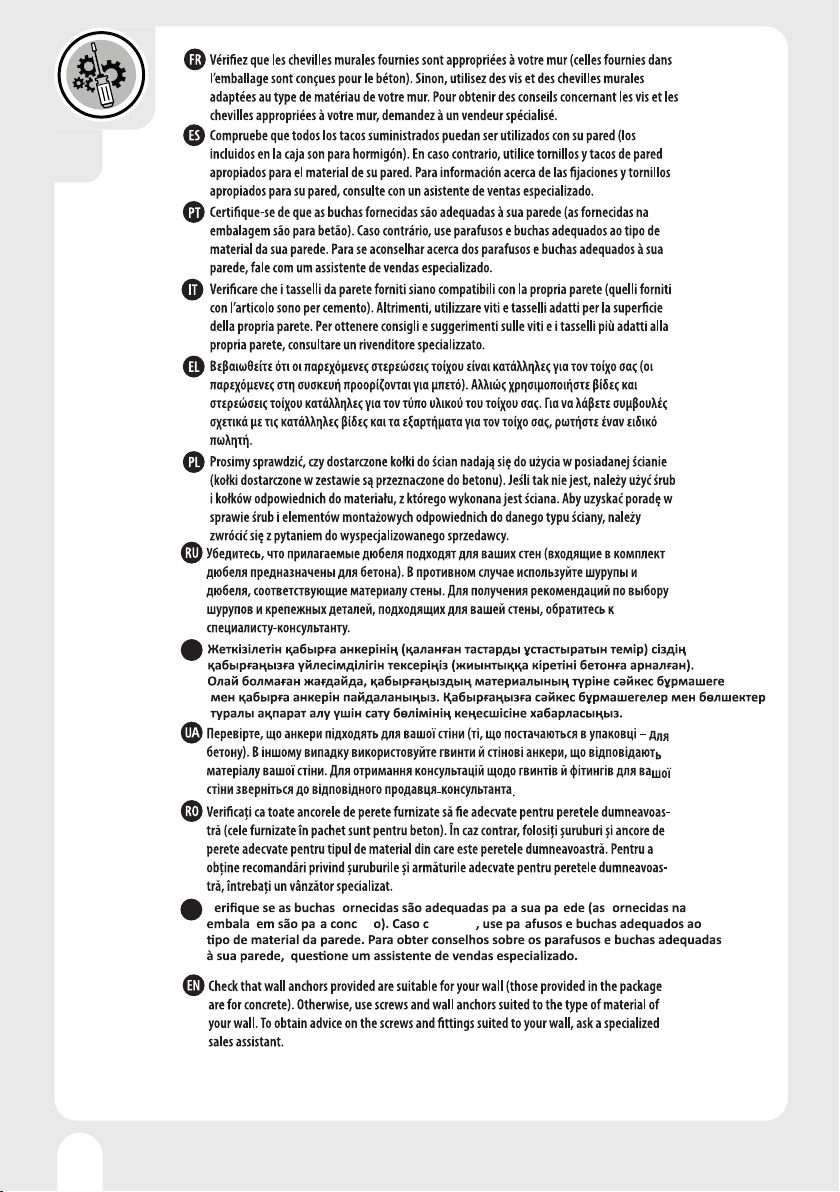

9

V f r r f

g r ret ontrário r

KZ

BR

i

10

I

J

E1

8

50mm

I

E1

J

E1

4

x2

x2

2

3

1

K

Other manuals for NEO

4

Other Sensea Bathroom Fixture manuals

Sensea

Sensea NEO 2A User manual

Sensea

Sensea NEO R Maintenance manual

Sensea

Sensea NEO 2P Maintenance manual

Sensea

Sensea NEO 2B Maintenance manual

Sensea

Sensea Remix User manual

Sensea

Sensea S10-WH Maintenance manual

Sensea

Sensea Remix User manual

Sensea

Sensea MOA 3 WHITE Maintenance manual

Sensea

Sensea BORA Maintenance manual

Sensea

Sensea B 46 C 61 1B1F User manual

Sensea

Sensea Frame Maintenance manual

Sensea

Sensea STUDIO 3276007331899 Maintenance manual

Sensea

Sensea ESSENTIAL 3276000677109 Quick setup guide

Sensea

Sensea EASY User manual

Sensea

Sensea EASY 3276007607420 User manual

Sensea

Sensea REDONDO MIXER 3276000342663 Maintenance manual

Sensea

Sensea ICONE Maintenance manual

Sensea

Sensea NEO F Maintenance manual

Sensea

Sensea DOCCE 3276200157586 Maintenance manual

Sensea

Sensea NEO 26128 Maintenance manual

Sensea

Sensea ESSENTIAL ESS-AR75-C-C Maintenance manual

Sensea

Sensea LUNE Maintenance manual

Sensea

Sensea SAMAR Maintenance manual

Sensea

Sensea NEO NE19080 Maintenance manual
