Sennheiser MKH 8070 User manual

TOUCHDOWN.

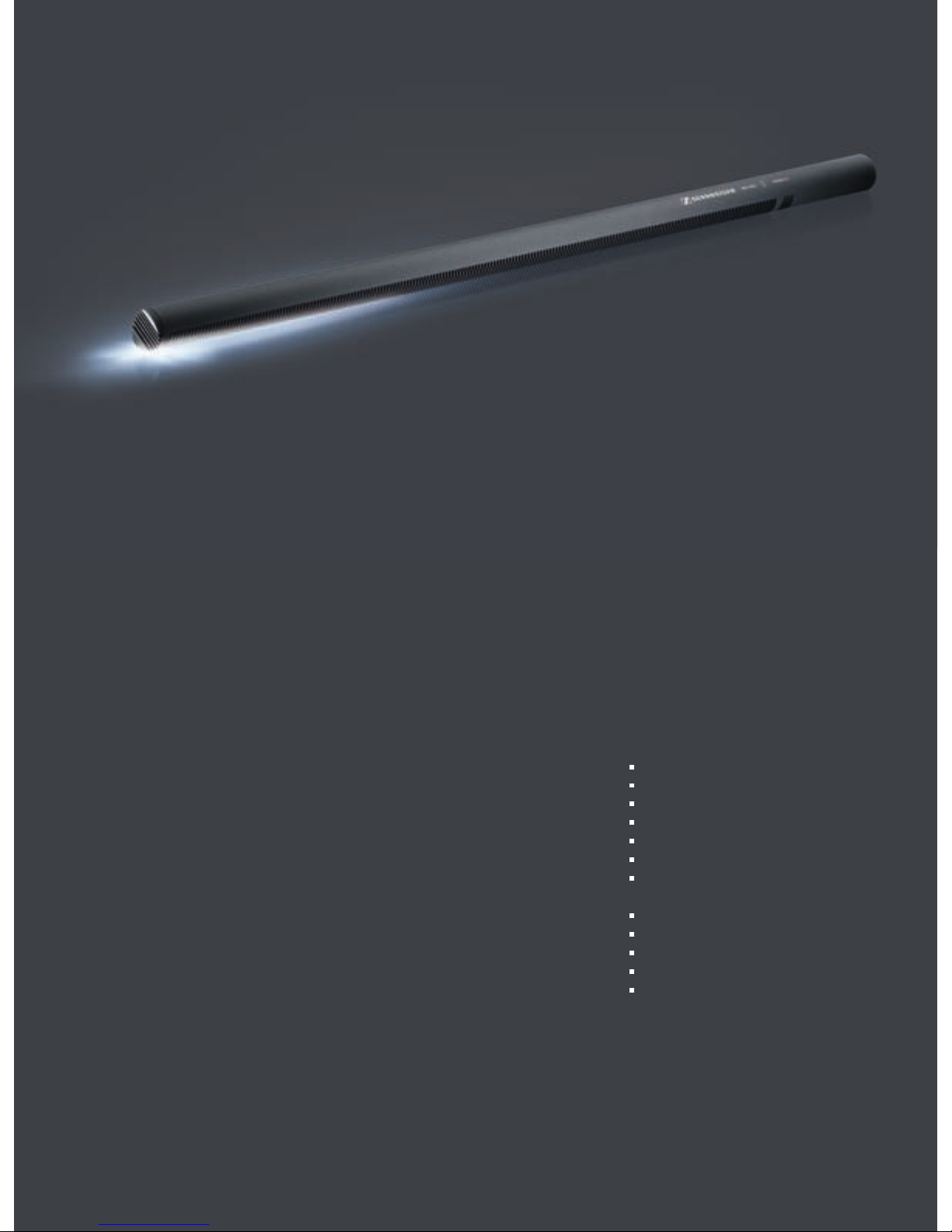

MKH8070 Long Gun Microphone

MKH_8070.indd 1 25.03.11 13:47

MKHRF Microphones

Sennheiser‘s MKH Line has constantly set

new standards in broadcast and recording.

The microphones operate on the RF principle

which Sennheiser has used for more than

50 years and brought to the highest level of

perfection.

Among the many advantages of this

principle are an extremely low inherent self-

noise, the capability to handle high sound

pressure levels without distortion and a high

resistance to adverse climatic conditions.

Sennheiser has recently updated its classic

MKH Line with the new MKH 8070 long gun

microphone which combines the strengths

of the legendary MKH 816 with new

developments in sound characteristics.

MKH8070

The new MKH 8070 is in a league of its own.

Its excellent directivity and off-axis linearity

make it your ideal team member for major

broadcast and sporting events.

Due to its excellent directivity and

pronounced lobar pick-up pattern it will

reliably capture that magic moment from a

distance, offering a true and natural sound

– even under the toughest sonic and climatic

conditions.

The MKH 8070‘s special design ensures

attenuation of off-axis sound without

coloration.

Part of the ﬂexible MKH 8000 series, just add

the MZD 8000 and it is a digital mic.

Features

Lobar pick-up pattern

Enhanced directivity

Very natural sound

Uncolored off-axis sound

Exceptionally low inherent self-noise

Extremely low distortion

Transformerless and fully ﬂoating

balanced output

High output signal

Rugged metal housing

non-reﬂective Nextel coating

Extremely weather-proof due to RF circuit

incl. MZD 8000 fully AES 42 digital

microphone

Capturing the Moment

at Major Sporting Events and Broadcast.

MKH8070 Long Gun Microphone.

MKH_8070.indd 2 25.03.11 13:47

MKHRF Microphones

Sennheiser‘s MKH Line has constantly set

new standards in broadcast and recording.

The microphones operate on the RF principle

which Sennheiser has used for more than

50 years and brought to the highest level of

perfection.

Among the many advantages of this

principle are an extremely low inherent self-

noise, the capability to handle high sound

pressure levels without distortion and a high

resistance to adverse climatic conditions.

Sennheiser has recently updated its classic

MKH Line with the new MKH 8070 long gun

microphone which combines the strengths

of the legendary MKH 816 with new

developments in sound characteristics.

MKH8070

The new MKH 8070 is in a league of its own.

Its excellent directivity and off-axis linearity

make it your ideal team member for major

broadcast and sporting events.

Due to its excellent directivity and

pronounced lobar pick-up pattern it will

reliably capture that magic moment from a

distance, offering a true and natural sound

– even under the toughest sonic and climatic

conditions.

The MKH 8070‘s special design ensures

attenuation of off-axis sound without

coloration.

Part of the ﬂexible MKH 8000 series, just add

the MZD 8000 and it is a digital mic.

Features

Lobar pick-up pattern

Enhanced directivity

Very natural sound

Uncolored off-axis sound

Exceptionally low inherent self-noise

Extremely low distortion

Transformerless and fully ﬂoating

balanced output

High output signal

Rugged metal housing

non-reﬂective Nextel coating

Extremely weather-proof due to RF circuit

incl. MZD 8000 fully AES 42 digital

microphone

Capturing the Moment

at Major Sporting Events and Broadcast.

MKH8070 Long Gun Microphone.

MKH_8070.indd 2 25.03.11 13:47

Technical data

MKH8070

Transducer principle RF condenser microphone

Pick-up pattern lobar

Frequency response 45–20,000 Hz

Sensitivity -19 dBV/Pa (112 mV/Pa)

Max. sound pressure level 124 dB SPL

Phantom powering 48 ± 4 V (P48, IEC 61938)

Current consumption 3.3 mA

Nominal impedance 25 ƻ

Min. terminating impedance 2 Kƻ

Equivalent noise level 8 dB(A) (DIN-IEC 651),

21 dB (CCIR 268-3)

Weight 300 g (332 g with XLR module MZX 8000)

Dimensions Length: 432 mm (465 mm with XLR module MZX 8000)

Diameter: 19 mm

Operating temperatur -10 °C to 60 °C

Microphone frequency response curve Polar diagram

low frequencies

125 Hz

250 Hz

500 Hz

1 kHz

high frequencies

2 kHz

4 kHz

8 kHz

16 kHz

30°

60°

90°

150°

120°

0°

30°

60°

90°

120°

150°

180°

Delivery includes

The MKH 8070 comes with a threaded transport tube,

MZQ 8060 microphone clamp and a MZW 8070 foam windshield.

The microphone system consists of the microphone head and the

MZX 8000 XLR module.

Recommended Accessories

MZS 20-1 pistol grip suspension for use with basket windshields

MZW 80-1 basket windshield

MZW 80-1 hairy cover providing

MKH8070 0302

MKH_8070.indd 3 25.03.11 13:47

542556 03/11 Printed in Germany Sennheiser is a registered trademark of Sennheiser electronic GmbH & Co. KG

Sennheiser electronic GmbH& Co. KG

Am Labor 1, 30900 Wedemark, Germany

www.sennheiser.com

MKH_8070.indd 4 25.03.11 13:47
