Sennheiser Evolution E 835S User manual

User manual 2 – 5

Gebrauchsanleitung 6 – 9

Istruzioni per l’uso 10 – 13

Manuel ’utilisation 14 – 17

Manual el usuario 18 – 21

Gebruiksaanwijzing 22 – 25

Thank you for buying this Sennheiser

Evolution microphone.We wish you much

satisfaction and enjoyment from its use.

Made from the highest quality materials

and components this has been manufactured

to the same exacting standards that have

become the hallmark of SENNHEISER

products over the last fifty years and made

them reference equipment for broadcast

studio and stage the world over.

The family of ten Evolution mics shown

opposite cover every vocal and instrument

application and provide you with the most

comprehensive range to select from

whatever your requirement.

revolution

Welcome to the

EVOLUTION

Amazing SPL in excess of 150 dB on all models

Outstanding feedback rejection.

Advanced shock-mount design minimises handling noise.

Rugged road-proof construction.

Designed and made in Germany.

...and they sound great !

A new family of microphones for

new standards of performance

On/Off Switch

Quality vocal mic with performance

and build characteristics never before

available at this price.

Uniform frequency pick-up pattern

maintains signal quality when

moving on and off axis during

performance. Gentle presence boost

to even tonal response ensures clarity

and projection. Minimal proximity

effect provides consistently clear bass

end performance when singing closer

to or further from capsule.

Cardioid pick-up pattern provides

good signal isolation and feedback

rejection enabling higher sound

levels to be obtained. Metal

construction and internal shock-

mount system minimises handling

noise. Lead vocal stage mic designed

to perform under pressure.

Also available without ON/OFF

switch ( ).

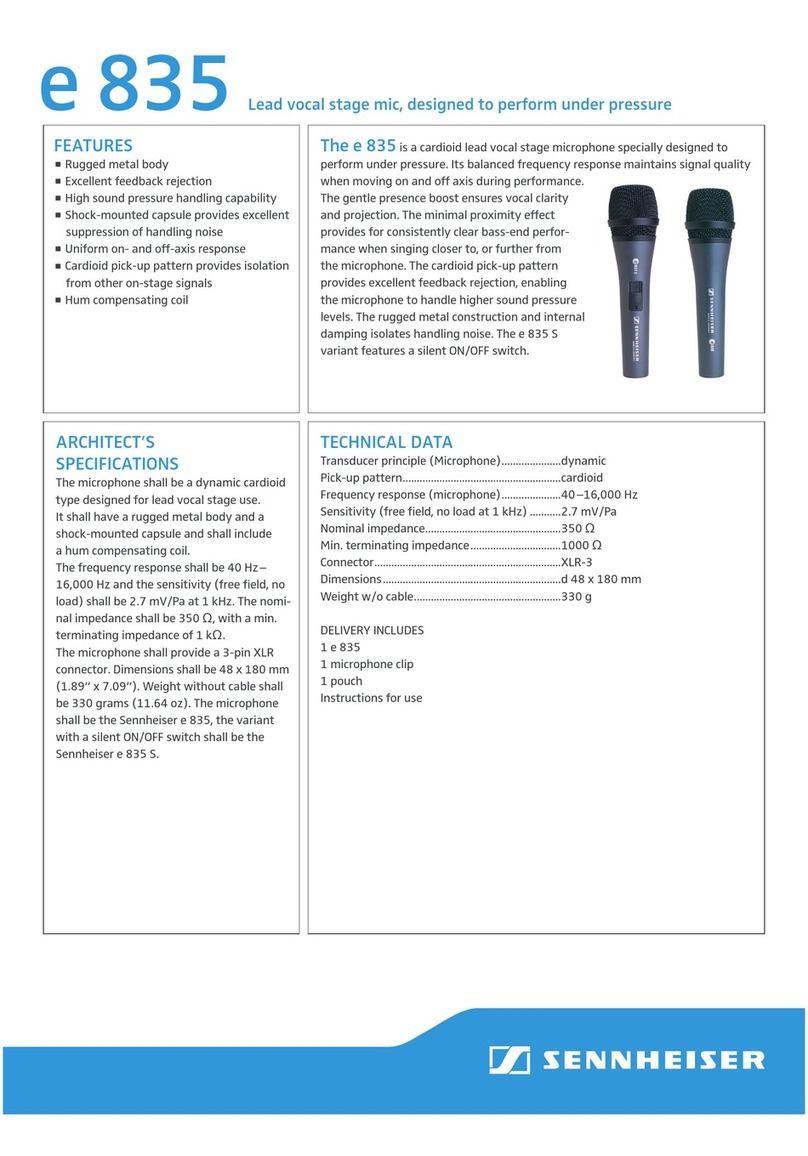

Connection

Frequency Response

Polar Pattern

Frequency response 40Hz…16kHz

Trans ucer principle Pressure gradient

receiver

Pick-up pattern Cardioid

Front-to-back-rejection at 1kHz at 180˚ >20dB

Sensitivity (free fiel ,no loa ) 1kHz

2.7mV Pa ≡ −51.4dB (0dB=1V Pa)

≡ −71.4dB (0dB=1V µbar)(USA)

Nominal impe ance at 1kHz 350Ω

Min.terminating impe ance 1kΩ

Sensitivity to magnetic

fiel at 50Hz ≤1µV µT

Weight 330g

Dimensions ∅ 48,l =180mm

Delivere with pouch an mic clip

English

Frequentiekarakteristiek

Richtdiagram

Frequentiebereik 40Hz…16kHz

Omzetprincipe Drukgradiëntkapsel

Richtkarakteristiek Cardioide

Maximale on er rukking op 180˚ >20dB

Onbelaste gevoelighei (bij 1kHz)

2,7mV Pa ≡ −51,4dB (0dB=1V Pa)

≡ −71,4dB (0dB=1V µbar)(USA)

Nominale impe antie 1kHz 350Ω

Minimale afsluitimpe antie 1kΩ

Magnetische gevoelighei

(bij 50Hz) ≤1µV µT

Gewicht 330g

Afmetingen ∅ 48,l =180mm

Wor t gelever met etui en mikrofoonklem

Nederlands

Product Registration Card

Ensure your:

✓ Warranty Confirmation

✓ Owner Verification

✓ Model Registration

Protect Your Investment

Congratulations on your Sennheiser Audio equipment

purchase.Your Sennheiser equipment is sure to provide years

of listening enjoyment. To receive all the privileges your

purchase entitles you to, please complete and mail your

Product Registration Card today.

Please retain this portion for your records.

Model Number: Serial Number:

Return the attached card within 10 days to ensure:

✓Warranty Confirmation Ensure your right to protection under

the terms and conditions of our limited

warranty.

✓Owner Verification Can serve as verification of ownership in

the event of loss or theft.

✓Model Registration Ensure receipt of information and bene-

fits due t owners of your model.

To register your product on-line or for

up-to-date information on Sennheiser products visit

our Web Site at www.sennheiserusa.com

Product Registration Card

Your name will not be provided to other companies for mailing purposes.

DETACH AND MAIL THIS PORTION TODAY

Date of Purchase: Model Number: Serial Number:

First Name: Middle Initial: Last Name:

Street Address:

City: State: Zip Code:

Telephone: Fax: E-Mail:

Purchase Details:

Purchased at:

Street Address:

City: State: Zip Code:

Telephone: Fax: E-Mail:

Not applicable in Hongkong,Japan,taiwan

Sennheiser electronic · D-30892 Wedemark · Germany

Tel +49-5130-600-0 · Fax +49-5130-600-300 · Web site:www.sennheiser.com

Printed in Germany 68814 0600
