e 825s_511654_0706_Sp6.book Seite 1 Dienstag, 25. Juli 2006 5:11 17
1
825 S
The 825 S is a general purpose microphone ideal for
vocal and instrument miking and club PA. The balanced
frequency response produces a warm, smooth sound.
The cardioid pick-up pattern provides e
xcellent feedback
and spillage rejection
. The rugged metal construction and
internal damping isolates handling noise.
The 825 S features a silent
ON/OFF switch
.
Features
yRugged metal body
yExcellent feedback and spillage rejection
yGood suppression of handling noise
yBalanced frequency response
yWarm transparent tonal response
ySilent ON/OFF switch
e 825s_511654_0706_Sp6.book Seite 1 Dienstag, 25. Juli 2006 5:11 17
2
Delivery includes
y825 S microphone
yMZQ 800 microphone clamp
yPouch
yInstructions for use
yWarranty Certificate
ON/OFF switch
Use the screw to lock the switch in the ON position. With
the switch set in the ON position, gently turn the screw
head 90° to lock the switch in position.

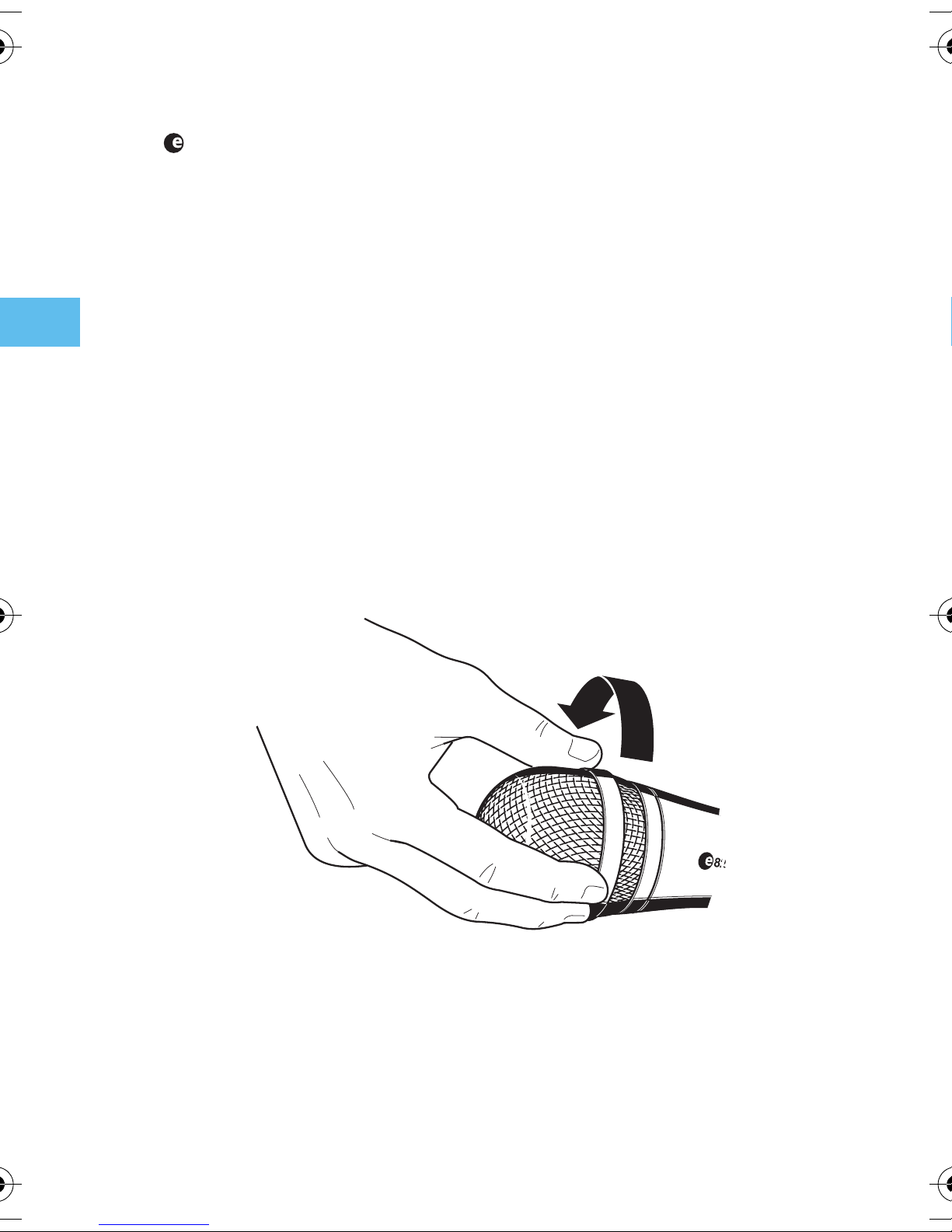

Removing the sound inlet basket
e 825s_511654_0706_Sp6.book Seite 2 Dienstag, 25. Juli 2006 5:11 17
3

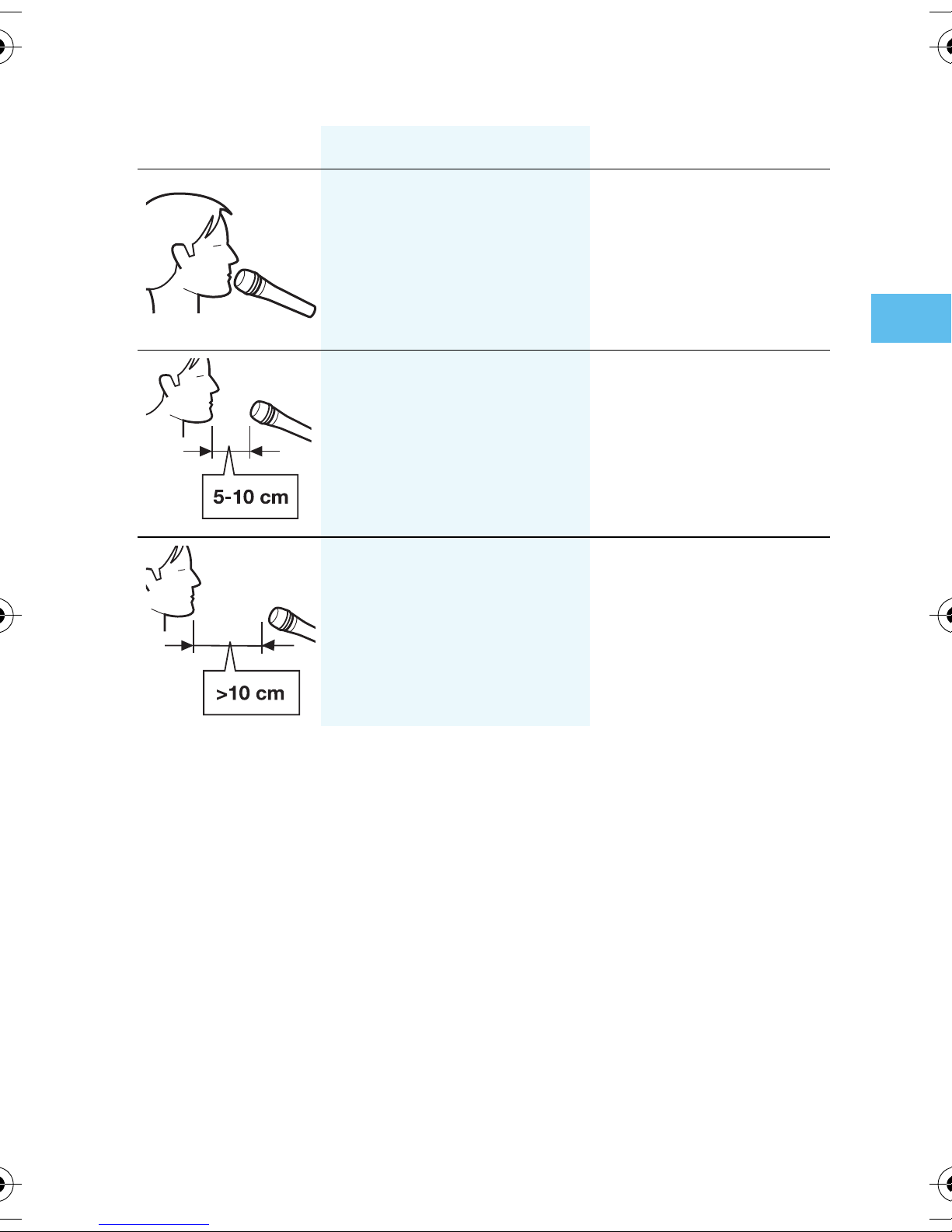

Positioning the microphone
If sibilance or „popping“ occurs, position the microphone
not directly in front of the mouth but slightly to the side.
In order to prevent feedback, position monitor
loudspeakers so that they are located in the angle area of
the highest cancellation of the microphone.
In order to prevent interference due to crosstalk between
adjacent sound sources, try to position the microphone so
that the interfering sound source is located in the angle
area of the highest cancellation of the microphone
(approx. 180°; see polar diagram).
Position Resulting sound Commentary
High proximity effect
(much bass/
fundamental)
powerful, direct sound
Very little crosstalk
from other sound
sources
Less proximity effect
(less bass/
fundamental)
Some room ambience,
natural, balanced sound
More crosstalk from
other sound sources
Very little proximity
effect (little bass/
fundamental)
More room ambience,
indirect sound
Much crosstalk from
other sound sources
e 825s_511654_0706_Sp6.book Seite 3 Dienstag, 25. Juli 2006 5:11 17
4

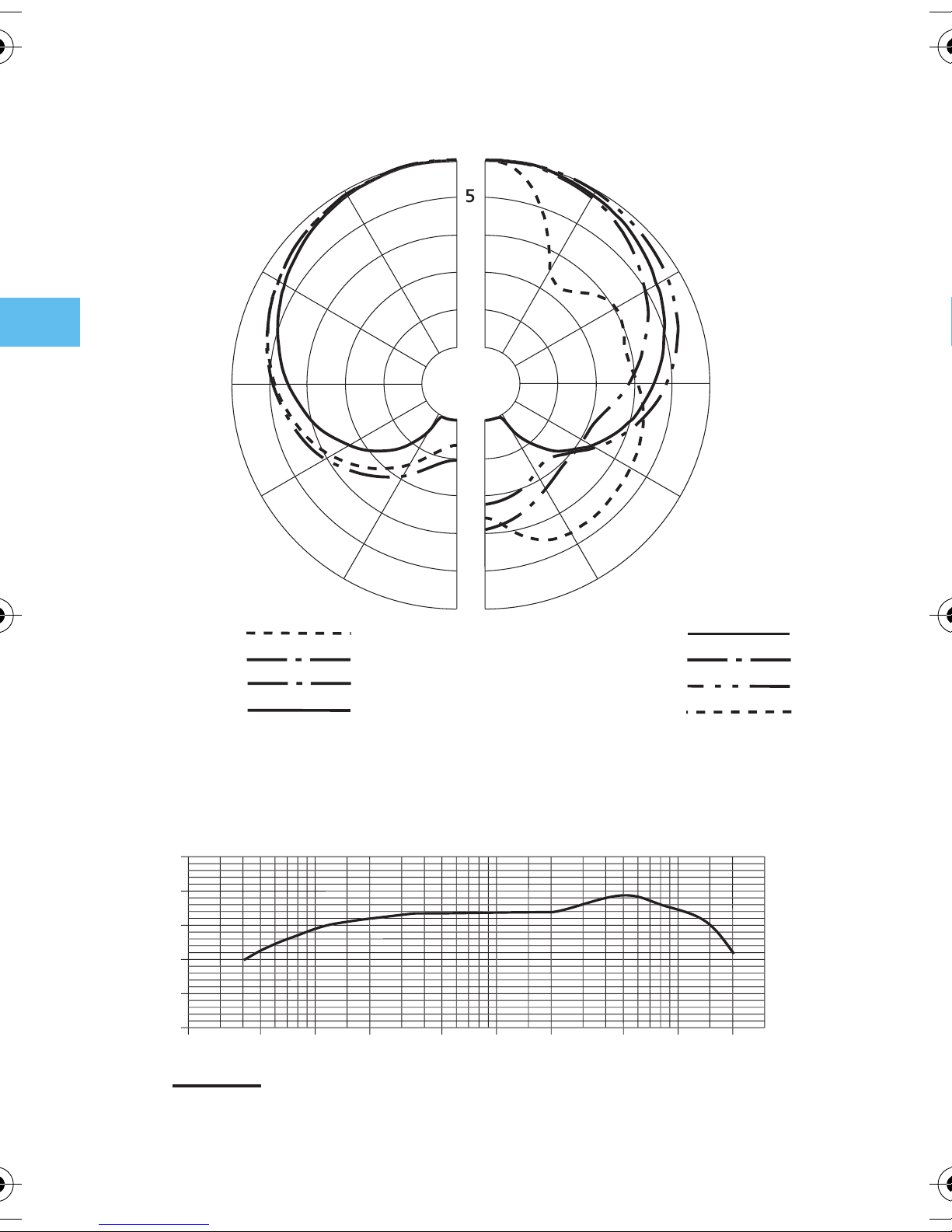

Polar diagram
Frequency response curve
0
°
5
1
0
1
5
2
0
2
5
dB
30
°
60
°
90
°
30
°
60
°
90
°
12
0
°
1
50
°
1
80
°
1
50
°
12
0
°
2
000
H
z
4
000
H
z
8000
H
z
1
6000
H
z
12
5
H
z
2
50
H
z
500
H
z
1
000
H
z
0
-
50
-
60
- 7
0
-
80
-
90
2
0
50
1
00
2
00
500
1
000
2
000
5000
1
0000
2
0000
Hz
0
°
,
1
m
- 4
0
d
B
v
e 825s_511654_0706_Sp6.book Seite 4 Dienstag, 25. Juli 2006 5:11 17
5
Specifications
Transducer principle dynamic
Frequency response 80.....15,000 Hz
Pick-up pattern cardioid
Sensitivity
(free field, no load at 1 kHz) 1.5 mV/Pa
Nominal impedance 350 Ω
Min. terminating impedance 1 kΩ
Connector XLR-3
Operating temperature 0°C to +40°C
Weight 330 g
Dimensions Ø 48 x L 180 mm

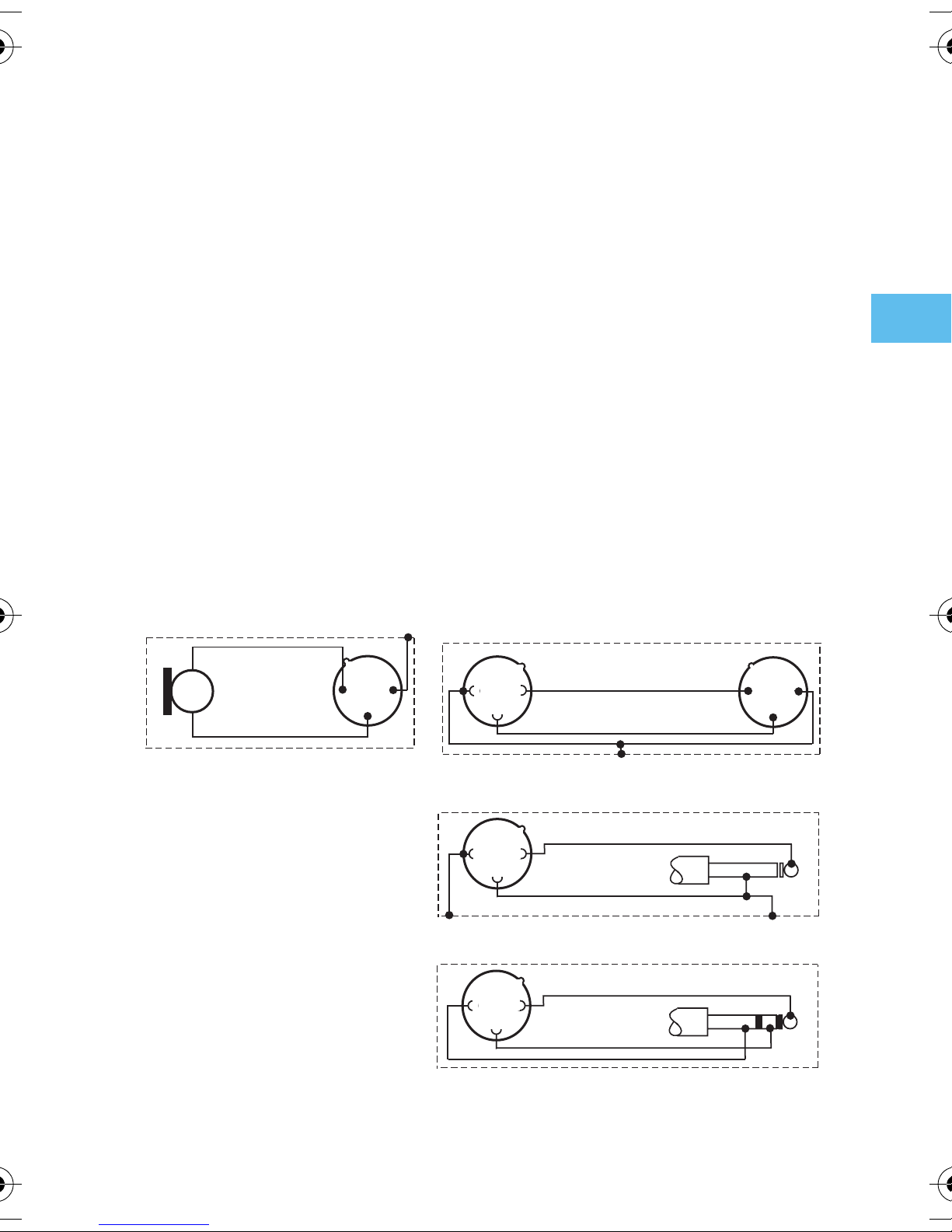

Pin assignment of XLR-3 connector
12
3
12
3
++
12
3
XLR 6,3 mm
+
+
12
3
XLR
+
XLR
12
3
6,3 mm
+
+
symmetrisch
XLR
XLR
+
balanced
e 825s_511654_0706_Sp6.book Seite 5 Dienstag, 25. Juli 2006 5:11 17
6
Overview of microphone applications
Variant
Application
e602-II
e604
e606
e608
e614
e815
e825
e835
e840
e845
e865
Vocals xxxxxx
Choirs x
Studio,
acoustic instruments
x
Orchestra x
Brass / Saxophone xx x
Acoustic guitar x
Acoustic bass x
Guitar amplifiers x
Bass amplifiers x
Leslie xxx
Piano, grand piano x
Kick drums x
Snare drums xxx
Rack toms xxx
Floor toms xxx
Congas xxx
Cymbals x
Percussion xxxx
Overheads x
e 825s_511654_0706_Sp6.book Seite 6 Dienstag, 25. Juli 2006 5:11 17
7
Manufacturer declarations
Warranty
2 years
Approval
Sennheiser electronic GmbH & Co. KG declare that
this device is in compliance with the applicable CE
standards and regulations.
Before putting the device into operation, please observe the respec-
tive country-specific regulations!
WEEE Declaration
Please dispose of this product at the end of its operati-
onal lifetime by bringing it to your local collection point
or recycling centre for such equipment.
e 825s_511654_0706_Sp6.book Seite 7 Dienstag, 25. Juli 2006 5:11 17
Sennheiser electronic GmbH & Co. KG
30900 Wedemark, Germany
Phone +49 (5130) 600 0
Fax +49 (5130) 600 300
www.sennheiser.com
Printed in Germany Publ. 07/06 511654/A02
