Sennheiser HS 2 User manual

HS 2

INSTRUCTIONS FOR USE

HS2_27_9_02 02.10.2002, 11:44 Uhr9

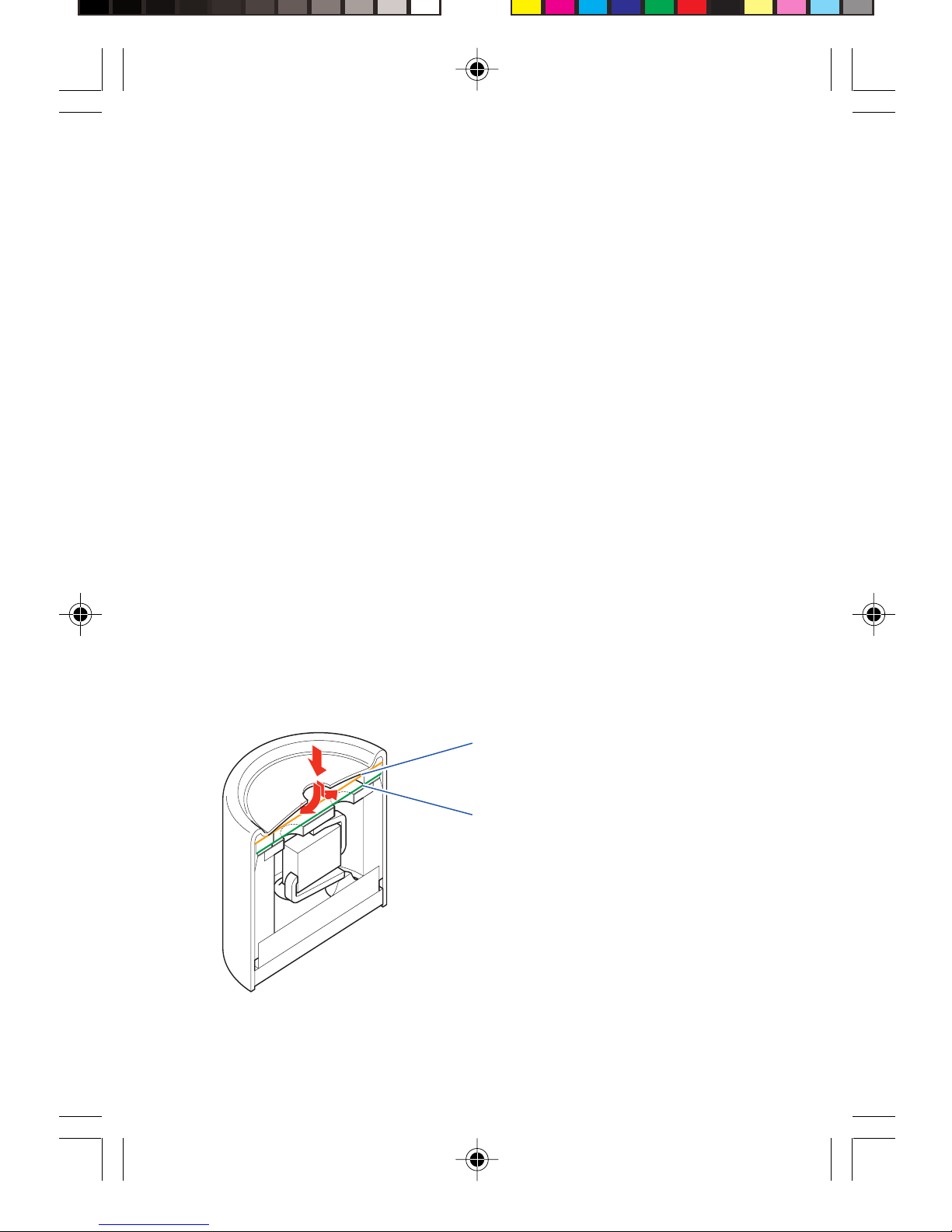

top "umbrella" diaphragm

(seals the capsule against moisture)

bottom (active) diaphragm

HS 2

The HS 2 is a condenser omni-directional headmic fitted with a steel wire

cable and a special connector. It fulfils the most stringent demands on sound

quality and is extremely rugged. The HS 2 is suitable for both vocal and

speech applications in all areas of live work.

씰HS 2 (anthracite): Cat. No. 05336

씰HS 2-1 (beige): Cat. No. 05337

Features

씰The frequency response curve has been optimised for close-miking. The

treble response can be adapted to different requirements via accessories.

씰Largely insensitive to penetration of sweat due to the patented tandem

diaphragm. This design comprises two individual diaphragms installed

onbothsidesofthediaphragmring.Thebottomdiaphragmiselectrically

active and forms the capacitive electroacoustic transducer together with

the back plate. The top diaphragm is passive and seals the microphone

against sweat. Robust sealing of the housing is ensured by a silicone ring.

HS2_27_9_02 02.10.2002, 11:44 Uhr10

Adapting the treble response to different requirements

Two caps with different lengths are available as accessories. With these caps

you can influence the treble response.

Slide the cap onto the microphone head until it locks into place.

Please refer to the frequency responses curves on page 38.

씰Short cap: MZC2-1 Cat. No. 76612

씰Long cap: MZC2-2 Cat. No. 74645

Attachment of the microphone

HS2_27_9_02 02.10.2002, 11:44 Uhr11

MZW 2

MZW 02

Windshields

Wind noise impairs the quality of outdoor recording and close-miking. The

MZW 2 and MZW 02 windshields considerably reduce the wind noise.

Please first use the MZW 2 windshield.

This windshield reduces the wind noise

by approx. 20 dB.

You may further reduce the wind noise

by 10 dB by using the additional

MZW 02 foam windshield.

MZW 2 and MZW 02 are available as

accessories.

HS2_27_9_02 02.10.2002, 11:44 Uhr12

Technical data

HS 2 HS 2-1

Pick-up pattern omni-directional omni-directional

Frequency response 20-20000 Hz 20-20000 Hz

±3 dB ±3 dB

Sensitivity 5 mV / Pa 5 mV / Pa

(free field, no load) (1kHz) ±3 dB ±3 dB

Nominal impedance 1000 Ω1000 Ω

Min. terminating impedance 4.7 kΩ4.7 kΩ

Equivalent noise level

A-weighted (DIN IEC 651) 26 dB 26 dB

CCIR-weighted (CCIR 468-1) 39 dB 39 dB

Max. sound pressure level 142 dB 142 dB

Power supply 18 kΩ/ 7.5 V 18 kΩ/ 7.5 V

Connector 3-pin special 3-pin special

connector for connector for

SK 50 / SK 250 / SK 50 / SK 250 /

SK 5012 SK 5012

Colour anthracite beige

Cable length 1.6 m 1.6 m

Diametre of the microphone 4.8 mm 4.8 mm

Weight (incl. cable) 34.4 g 34.4 g

Delivery includes:

Instructions for use 1 1

Document of warranty 1 1

HS2_27_9_02 02.10.2002, 11:44 Uhr13

HS2_27_9_02 02.10.2002, 11:44 Uhr14

Zonder kap met MZC2-1 met MZC2-2

sin caperuza enchufable con MZC2-1 con MZC2-2

senza coperchio innestabile con MZC2-1 con MZC2-2

sans capuchon avec MZC2-1 avec MZC2-2

capsuleonly with MZC2-1 with MZC2-2

ohne Aufsteckkappe mit MZC2-1 mit MZC2-2

Frequenzgang des Mikrofons

Mikrofonentfernung zum Mundwinkel: 3 cm

mit MZW 2 mit MZW 2 und MZW 02

Microphone placed in the corner of the mouth, distance to the mouth 3 cm

with MZW 2 with MZW 2 and MZW 02

Distance entre micro et coin de la bouche: 3 cm

avec MZW 2 avec MZW 2 et MZW 02

Distanza del microfono dall'angolo della bocca di 3 cm

conMZW 2 con MZW 2 e MZW 02

Distancia del micrófono a la comisura de los labios 3 cm

con MZW 2 con MZW 2 y MZW 02

Afstand van de microfoon tot de mondhoek 3 cm

met MZW 2 met MZW 2 en MZW 02

Frequency response curves of the microphone

Courbes de réponse du microphone

Risposta in frequenza del microfono

Respuesta de frecuencia del micrófono

Frequentiebereik van de microfoon

HS2_27_9_02 02.10.2002, 11:44 Uhr38

Konformitätserklärung

Sennheiser electronic GmbH & Co. KG erklären, daß dieses

GerätdieanwendbarenCE-NormenundVorschriftenerfüllt.

Approval

Sennheiser electronic GmbH & Co. KG declare that this

device is in compliance with the applicable CE standards and

regulations.

Certification

Sennheiser electronic GmbH & Co. KG déclarons que cet

appareil est en conformité avec les normes CE.

Certificazione

Sennheiser electronic GmbH & Co. KG diachiara che questo

apparecchio risponde alle normative e alle prescrizioni CE

applicabili.

Autorizacion

Sennheiser electronic GmbH & Co. KG declara que este

aparato cumple las normas y directrices de la CE aplicables.

CE – Verklaring van overeenstemming

Hiermee verklaart Sennheiser electronic GmbH & Co. KG

dat dit toestel voldoet aan de van toepassing zijnde CE-

normen en voorschriften.

Diese Service-Nummer gilt nur für Deutschland

HS2_27_9_02 02.10.2002, 11:44 Uhr39

Sennheiser electronic GmbH & Co. KG

D-30900 Wedemark

Telefon: +49 (0) 05130 600 0

Telefax: +49 (0) 05130 600 300

Printed in Germany Publ. 10/02 88040 / A01

Änderungen vorbehalten

Subject to alterations

Sous réserve de modification

Con riserva di modifiche

Reservado el derecho a introducir modificaciones

Wijzigingen voorbehouden

씰Aktuelle Informationen zu Sennheiser-Produkten erhalten

Sie auch im Internet unter „http://www.sennheiser.com“.

씰Up to date information on Sennheiser products can also be found

on the Internet at “http://www.sennheiser.com”.

씰Vous trouverez également toutes les informations actuelles relatives aux

produits Sennheiser sur Internet, sous “http://www.sennheiser.com“.

씰Informazioni attuali sulla gamma di prodotti Sennheiser sono

disponibili anche in Internet al sito „http://www.sennheiser.com“.

씰También en Internet, bajo „http://www.sennheiser.com“ obtendrá Vd.

informaciones actuales sobre los productos Sennheiser.

씰Actuele informatie met betrekking tot Sennheiser producten

vindt u ook op Internet onder “http://www.sennheiser.com“.

HS2_27_9_02 02.10.2002, 11:44 Uhr40
