Selden CXe25 OD User manual

Manual for assembly and operation

TD & OD

597-963-E

2023-02-27

CXe

CXe 45

Introduction

Congratulations on the purchase of your new Seldén CXe electric Code 0 furler.

This manual covers installation and operating instructions for CXe 25/45 TD (through deck) and

CXe 25/45 OD (on deck).

Please read the entire manual before assembly/usage and keep the manual available for future reference.

The latest version is available at www.seldenmast.com.

Related installation manuals and user guides:

Power supply and SEL-Bus system: Manual 597-275-E

Safety precautions

Choosing the correct version of furler for your boat:

The key to a safe and properly working installation is correct dimensioning in relation to the boat size the

products shall be used on. Seldén provides dimensioning guidelines in catalogues, leaets and on the

website. If there are any questions about selecting the right product, please consult an authorized Seldén

dealer. All dealers are listed at www.seldenmast.com.

Safety notes regarding the electrical installation for the CXe:

-The installation should be done by a person with marine installations skills. You can nd your local

authorized Seldén dealer at www.seldenmast.com.

-CXe is controlled only by Seldén’s 42V motor drive system.

-Make sure the system is switched o before performing any installation or service.

-Never modify the electric system of your CXe or its installation drawings - installation, alterations

and maintenance should be performed by a competent marine electrician.

-Never alter or modify the rated current amperage of overcurrent protective devices.

-Never leave the craft unattended with the CXe energized.

This symbol indicates a delicate moment in the assembly or a technical advice.

This symbol indicates a potential hazardous situation which, in the event of failure,

can lead to damages to property, personal injury or death.

Contents page

1 Introduction ..................................................................................................................... 2

2 Presentation .................................................................................................................... 4

2.1 Basic Packs for CXe complete kit ........................................................................ 4

2.2 Control pack............................................................................................................. 5

2.3 Optional parts .......................................................................................................... 6

2.4 Technical specication ........................................................................................... 7

3 Drive unit installation CXe TD through deck .............................................................. 8

3.1 Assembly preparations ...........................................................................................8

3.2 Deck cut-out............................................................................................................. 9

4 Installation ...................................................................................................................... 12

4.1 Fitting the deck collar ........................................................................................... 12

4.2 Fitting the drive unit .............................................................................................. 12

4.3 Assembly of the collar ........................................................................................ 14

4.4 Assembly of the drive unit .................................................................................... 15

5 Drive unit installation CXe TD through bow sprit ..................................................... 16

5.1 Assembly preparations......................................................................................... 16

5.2 Deck cut-out .......................................................................................................... 17

6 Installation ..................................................................................................................... 18

6.1 Fitting the deck collar ........................................................................................... 18

6.2 Fitting the drive unit .............................................................................................. 18

6.3 Assembly of the deck collar ................................................................................ 19

6.4 Assembly of the drive unit .................................................................................. 20

7 Electrical installation .................................................................................................... 22

7.1 Assembly of the deck contact housing and power cable ............................... 22

7.2 Assembly of connector ....................................................................................... 23

7.3 Connection to Seldén Power supply and SEL-Bus system ........................... 24

8 Operation ..................................................................................................................... 25

8.1 Normal operation ................................................................................................... 25

8.2 Unfurling .................................................................................................................. 25

8.3 Furling ..................................................................................................................... 26

8.4 Securing the system ............................................................................................. 26

8.5 Emergency furling ................................................................................................. 26

9 Trouble shooting .......................................................................................................... 27

10 Service and Maintenance ........................................................................................... 28

10.1 Frequent maintenance.......................................................................................... 28

10.2 Yearly Inspection points and maintenance ....................................................... 28

11 Technical Information .................................................................................................. 29

12 Disposal ........................................................................................................................ 29

13 Warranty ....................................................................................................................... 29

2. CXe

CXe is a two-speed electric furler for Code sails and with a Selden tack adaptor also for top-down furling

gennakers. CXe is available as an on-deck (designated OD) and through deck installation (designated TD).

Low power consumption

High eciency throughout the electric power and control system. A “sleep mode” is activated to save power

when not in operation.

Powerful enough, but with precise torque limitation.

The electric motor has a computerised controller that monitors the current draw precisely. As soon as it

reaches a pre-set level it cuts out quickly enough to avoid damage to components. The torque level is

programmed into a memory chip.

Resistant to the marine environment

CXe uses anodized 6000-series aluminium components. Plastic components are PC and PA, glass bre

reinforced and UV stabilized. The motor and reduction gear operates in the oil lled and sealed aluminium

housing. The drive units are individually pressure tested before delivery.

A double seal between deck collar and drive unit prevents water intrusion (TD)

Two speed operation

A double control button makes it possible to operate the furler with great precision in the low speed mode.

By pushing both buttons at the same time, high speed is activated.

Limited brake

The reduction gear and motor gives a limited brake function but will not protect against involuntary unfurling.

See chapter 8 for more information.

Compact size. Minimized weight and dimensions.

The electric motor is compact, still giving enough power. This is made possible by raising the voltage up to

42V. Keeping weight and the dimensions in focus during the design has resulted in a small unit.

2.1 Basic Packs for CXe45 complete kit

CXe25 OD CXe25 TD CXe45 OD CXe45 TD

Parts included Qty 545-455-18 545-455-28 545-455-20 545-455-30

Drive unit 1 545-455-09 545-455-10 545-455-11 545-455-12

Deck collar assembly 1 - 545-465-01 - 545-465-01

Insulators 2 - 530-778 - 530-778

Screws M8x40 4 - 153-008 - 153-008

Bag 1 596-196 - 596-196 -

Deck connector kit 1 532-830-01 - 532-830-01 -

Deck connector

housing with support

1 532-833-01 - 532-833-01 -

Manual 1 597-963-E 597-963-E 597-963-E 597-963-E

2.2 Control pack

CXe is used together with the Seldén Power supply and SEL-Bus system. The drive unit is connected to a

motor control unit (MCU), which enables communication with the power supply unit and the OUT/IN push

buttons. The CXe is either connected to an existing SEL-Bus system onboard (only requiring an additional

MCU (Motor Control Unit), push buttons and SEL-Bus converter) or sold as a complete system.

All power supply and SEL-Bus system parts are sold separately. Parts and packages are described in

Seldén Power Supply and SEL-Bus system: Order guide 597-283-E. For installation of the Power Supply

and SEL-Bus system, see installation guide 597-275-E. System illustration.

All SEL-Bus Ill. Dan Ljungsvik/Seldén 2022

- +

1Battery (not sold by Seldén) 4Push buttons for CXe 7CXe TD or

OD Code 0 furler

2Main switch/fuse 5 SEL-Bus backbone cables

and connections

8Motor Control Unit

(MCU), CXe

3Power supply unit (PSU)

Converts 12/24V to 42V

6Connection cables, 3x5m

(Delivered with drive unit)

9 Code 0 sail

Item

CXe 25 CXe 45

Art. No.

Halyard swivel 545 -207- 01 545-435-01

Block for 2:1 halyard 405-501-01R 405-501-01R

Dead-end tting 508-844-01R (ø14)

508-838-01R (ø16)

AT Cable, ø15 mm Ø13

613-022-01 16000mm

613-022-02 19000mm

613-022-03 22000mm

613-022-04 25000mm

613-022-05 28000mm

Ø15

613-023-01 19000mm

613-023-02 22000mm

613-023-03 25000mm

613-023-04 28000mm

Thimble kit 545-216-01 5 45- 416 -01

AT clamp kit 301-312-01 301-313-01

Protective cage/

Anchor guard

545-468 -01 1)

SEL-Bus Converter (for custom control

buttons)

532-827-01

Panel, 1 push button 540-461-01

Panel, 2 push buttons 540-461-01

Deck connector kit 2) 532-830-01

Deck connector housing with support 2) 532-833-01

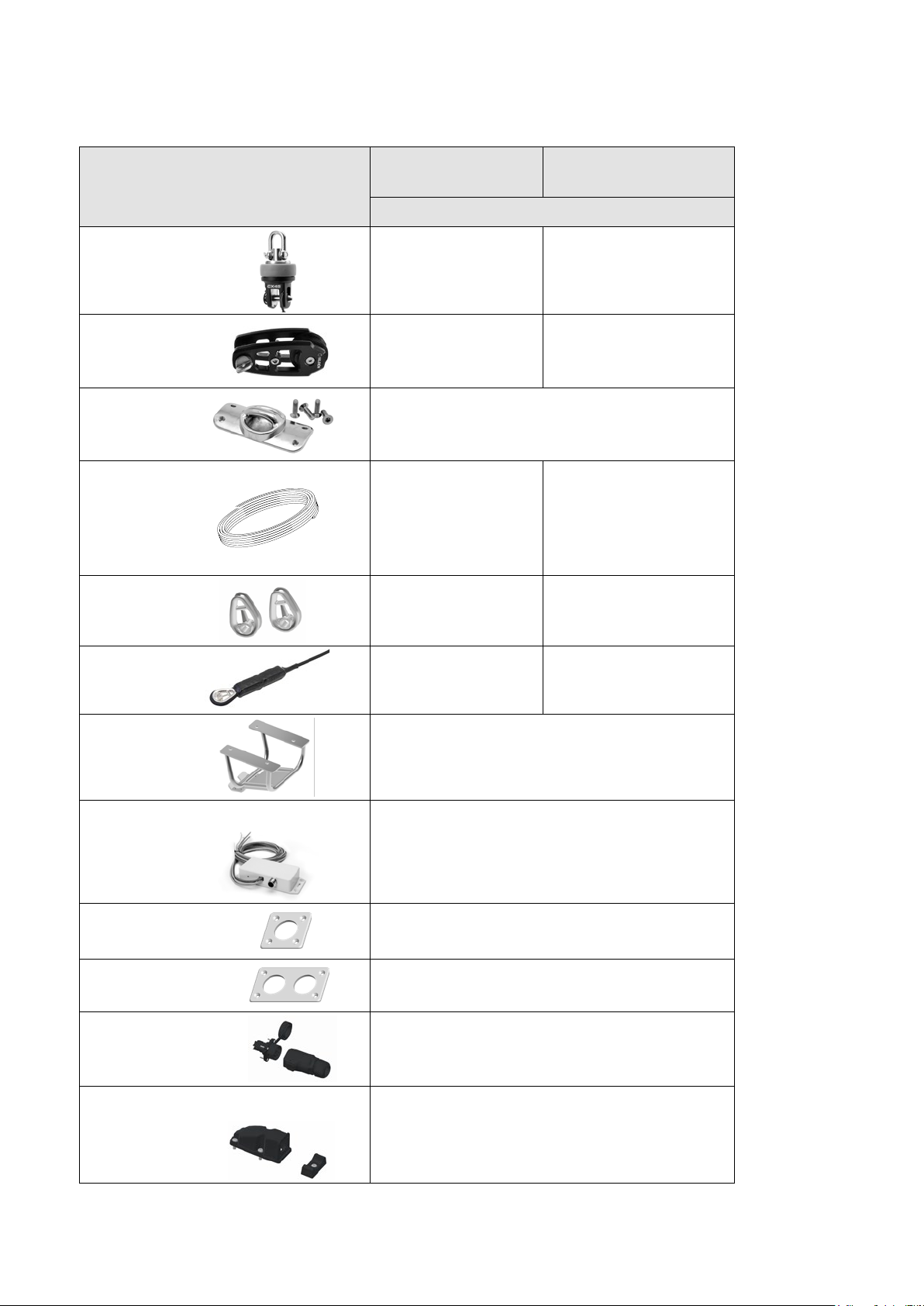

2.3 Optional parts

Parts that adapt your installation to your individual boat.

1) CXeTD only

2) Included in CXe OD basic packs.

2.4 Technical specifications

CXe 25/45

Input voltage to motor control unit 42V

Peak Torque 50 Nm

Peak Current Consumption [42V] 25A

Total Gear Ratio 19:1

Low Speed (unloaded) 220 rpm

High Speed (unloaded) 500 rpm

Efciency (Motor Control Unit + Drive Unit) 80%

Electric cable between drive unit and motor control unit 3x6 mm2, ø11,5 mm

CXe 25 CXe 45

Pin ø (D1) 12 16

Fork width (W1) 21 22

Fork depth (D2) 32 34

Width (W2) 106 106

Height (H1) 285 300

Width (W3) 149 149

Height (H2) 140 140

Width (W4) 132 132

T (Deck thickness) 50 50

Main dimensions, mm.

3 Drive unit installation CXe TD through deck.

Chapter 3 & 4 cover installation in laminated deck or wooden deck. For installation in stainless bow sprits or

other metal designs -see to chapter 5.

3.1 Assembly preparations

Always use protective goggles, gloves, dust mask and ear protection when working with power tools

and in a dusty environment.

Space requirements

-Check so that there is enough space for the installation. The dimensions are given in the section

”2.4 Technical Specication”.

-Note that the deck needs to have a thickness of 50 mm (2”) at the two brackets.

-The deck needs to be reasonably at within the outline if the deck collar for a good t and seal.

-The drive unit has a built in angle of 73°. Angle between AT-cable and deck must be 73°+-2°. Make a simple

template and use halyard to check angle. Adjust surface under deck collar if necessary.

-Do not use the deck collar and bracket insulators. Used only when deck material is metal.

Strength of the deck

Make sure the deck is solid around the drive unit and can handle the load.

Max service load (MSL): CXe 25: 25kN, CXe 45: 45kN.

Tools required:

-Tape measure.

-Fine marking pen.

-Cloth tape.

- ø86 mm hole saw or jigsaw.

-ø3-4 mm drill bit for pilot holes.

-ø6.8 mm drill bit for M8 or drill bit for 5/16 thread if imperial screws are used.

-4x countersunk screws 5/16” in A4/316L quality. Length 1”.

-4x socket head cap screws 5/16” in A4/316L quality. Length 1 3/16”

All necessary screws (M8) are included in the kit.

-Set of Torx and Hex bits.

-Files-half round and round

-Structural berglass putty, wood or other suitable material for adjusting deck thickness if necessary.

-Caulking

-Rubbing alcohol or other suitable cleaner.

-Marine type grease.

-Corrosion inhibiting compound (grease can be used)

-Threadlocker.

3.2 Deck cut-out.

Find the centerline of the boat and mark out the

position of the ø86 mm hole.

Drill a ø4-5 mm pilot hole through center.

For deck thickness >20 mm-drill an additional

hole (A) 27 mm in front of rst hole

For deck thickness >20 mm:

Using the forward hole as a guide, drill from

below with the hole saw.

Drill depth: Deck thickness-20 mm.

Use hole saw or jig saw to make the center hole.

Take caution when using a jig saw not making

the hole too large.

Remove forward portion of deck if applicable.

See next chapter for more details

27mm

Adjust deck thickness and add clearance.

Examples of dierent deck thickness and required

modications shown.

Seen from below.

Reduce deck thickness by 4 mm if protective

cage 545-468 is used.

<=20 mm

>=20 mm. Forward cut-out necessary

50 mm. Chamfer necessary.

>50 mm

50 mm thickness shown as marked areas.

This manual suits for next models

Table of contents

Other Selden Boating Equipment manuals

Selden

Selden Furlex 500 H Series Instructions and recipes

Selden

Selden RB User manual

Selden

Selden 597-081-EF Owner's manual

Selden

Selden Furlex 300 H Quick start guide

Selden

Selden SMF RC Guide

Selden

Selden 22 User manual

Selden

Selden Furlex 50 S User manual

Selden

Selden Rodkicker 05 User manual

Selden

Selden Furlex 404E Instructions and recipes

Selden

Selden Single Line Reef User manual

Selden

Selden 507-309-01 User manual

Popular Boating Equipment manuals by other brands

Ideal Windlass

Ideal Windlass CWM Installation, operation & maintenance instructions

Access

Access BIMINI Assembly instructions

Floe

Floe VSD 6000 Assembly instructions

Faun

Faun C40 Trackway user manual

Exalto

Exalto 240BS manual

Hobie

Hobie Mirage 360 manual

Dowco

Dowco V322 CC - 2019 installation instructions

Humphree

Humphree HCS-5 installation manual

Vetus

Vetus BOW4512D Operation manual and installation instructions

Dock Doctors

Dock Doctors SLIDING BOARDING STEP Assembly instructions

Mastervolt

Mastervolt Mass Combi 12/2000-100 Quick installation

Zattini Group

Zattini Group bamar BOXTRON E14S Use and maintenance instruction manual

SeaView

SeaView PM5-FMD-8 installation instructions

Vetus

Vetus HTANK installation manual

Grammer

Grammer AVENTO MSG 65/511 Repair manual

Furuno

Furuno TZTL12F installation manual

Harken

Harken 944 instruction sheet

ShoreLand'r

ShoreLand'r DUB 2314 install guide
