Seifert 854020S62 User manual
Version No. 1-8 - 16.03.2022 Doc. No. 99854020S62 1 / 25
Table of Content 854020S62
1. User manual 2 ..................................................................................................................................
2. Legal regulations 3 .........................................................................................................................
3. Safety instructions 4 ......................................................................................................................
4. Settings 5 .........................................................................................................................................
5. Functional principle 6 .....................................................................................................................
6. Technical data 7 ..............................................................................................................................
7. Mounting 8 .......................................................................................................................................
8. Mounting Principle 12 .....................................................................................................................
9. Electrical Connection 13 .................................................................................................................
10. Controller 15 ..................................................................................................................................
11. Wiring Diagram 19 ........................................................................................................................
12. Taking into Operation 20 .............................................................................................................
13. Trouble Shooting 21 .....................................................................................................................
14. Maintenance & Cleaning 21 .........................................................................................................
15. Transport & Storage 23 ................................................................................................................
16. Parts supplied / Spare parts / Accessories 24 ..........................................................................
Version No. 1-8 - 16.03.2022 Doc. No. 99854020S62 2 / 25
1. User manual
This instruction manual contains information and instructions to enable the user to work safely, correctly and
economically on the unit. Understanding and adhering to the manual can help one:
Avoid any dangers.
Reduce repair costs and stoppages.
Extend and improve the reliability and working life of the unit.
PLEASE ENSURE TO USE THE RIGHT VERSION OF THE INSTRUCTION MANUAL SUITABLE FOR YOUR
UNIT.
Intended use
The unit is to be used exclusively for the dissipation of heat from control cabinets and enclosures (stationary,
not moving) in order to protect temperature sensitive components in an industrial environment. To meet the
conditions of use, all the information and instructions in the instruction manual must be adhered to.
General danger
Indicates compulsory safety regulations which are not covered by a specific
pictogram such as one of the following.
High electric voltage
Indicates electric shock danger.
Important safety instruction
Indicates instructions for safe maintenance and operation of the unit.
Attention
Indicates possible burns from hot components.
Attention
Indicates possible damage to the unit.
Instruction
Indicates possible danger to the environment.
Version No. 1-8 - 16.03.2022 Doc. No. 99854020S62 3 / 25
2. Legal regulations
Liability
The information, data and instructions contained in this instruction manual are current at the time of going to
press. We reserve the right to make technical changes to the unit in the course of its development. Therefore,
no claims can be accepted for previously delivered units based on the information, diagrams or descriptions
contained in this manual. No liability can be accepted for damage and production caused by:
Disregarding the instruction manual
Operating error
Inappropriate work on or with the unit
The use of non-specified spare parts and accessories
Unauthorised modifications or changes to the unit by the user or his personnel
The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in the main
contractual agreement. Claims for damages on any grounds are excluded.
Version No. 1-8 - 16.03.2022 Doc. No. 99854020S62 4 / 25
3. Safety instructions
Upon delivery the unit is already meeting current technical standards and can therefore be safely taken into
operation. Only authorised personnel is allowed to work on the unit. Unauthorised personnel must be prohibited
from working on the unit. Operating personnel must inform their superiors immediately of any malfunction of
the unit.
Please note that before starting to work on or with the unit, a procedure must be carried out inside the cabinet
on which the unit is to be mounted.
Before commencing work inside the cabinet, the control cabinet manufacturer's instruction must be read with
regards to:
Safety instructions.
Instructions on taking the cabinet out of operation.
Instructions on the prevention of unauthorised cabinet reconnection.
The electric equipment meets the valid safety regulations. One can find dangerous voltages (above 50 V AC or
above 100 V DC)
Behind the control cabinet doors.
On the power supply in the unit housing.
The unit has to be operated according to the type plate and the wiring diagram, and must be protected
externally from overloading and electrical faults via suitable protective devices.
Danger through incorrect work on the unit
The unit can only be installed and maintained by technical competent and qualified
personnel, using only supplied material according to the supplied instructions.
Danger from electrical voltage
Only specialised personnel are allowed to maintain and clean the unit. The personnel must
ensure that for the duration of the maintenance and cleaning, the unit is disconnected from
the electrical supply.
Attention
Damage to the unit through the use of inappropriate cleaning materials. Please do not use
aggressive cleaning material.
Instruction
Damage to the environment through unauthorised disposal. All spare parts and associated
material must be disposed according to the environmental laws.
Version No. 1-8 - 16.03.2022 Doc. No. 99854020S62 5 / 25
4. Settings
The cooling unit is intended to be used as a complementary accessory to larger industrial equipment. The unit
is used where heat needs to be dissipated from electrical control cabinets or similar enclosures in order to
protect heat sensitive components. It is not intended for household use.
The unit has two completely separate air circuits which ensure that the clean cabinet air does not come into
contact with the ambient air which may well be dirty or polluted.
Enclosure cooling units can dissipate large quantities of heat from sealed enclosures such as electrical
enclosures into the ambient air and at the same time reduce the cabinet internal temperature to below that of
the ambient air.
The unit can function without problems in extreme ambient conditions (e.g. dusty and oily air) with a standard
operating temperature ranging between +10°C (50°F) and +60°C (131°F). Units can be ordered with an
additional electrical cabinet heater. For the cooling capacities and evironmental ratings please refer to the type
plate data.
Version No. 1-8 - 16.03.2022 Doc. No. 99854020S62 6 / 25
5. Functional principle
The cooling unit for industrial enclosures works on the basis of a refrigeration circuit consisting of four main
components; a compressor, an evaporator, a condenser and an expansion device. The circuit is hermetically
sealed and R134a refrigerant circulates inside it (R134a is chlorine free and has an Ozone Destruction Potential
[ODP] of 0 and a Global Warming Potential [GWP] of 1430).
The compressor compresses the refrigerant (thus taking it to high pressure and high temperature), and pushes
it through the condenser, where it is cooled by ambient air thus passing from the gas to the liquid state. At the
liquid state it then passes through the capillary pipe being a much lower pressure the refrigerant arrives to the
evaporator where it absorbs the necessary heat to change from liquid to gas state. The gas is then drawn back
into the compressor completing the cycle.
1 Air intake cabinet side 6 Air intake ambient side
2 Radial fan cabinet side 7 Air intake ambient side
3 Evaporator 8 Condenser
4 Air outlet cabinet side 9 Air outlet ambient side
5 Compressor 10 Filter dryer
11 Expansion device
Version No. 1-8 - 16.03.2022 Doc. No. 99854020S62 7 / 25
6. Technical data
Order Number 854020S62
Cooling capacity L35L35 4.0 kW @ 50 Hz
4.2 kW @ 60 Hz
Cooling capacity L35L50 3.5 kW @ 50 Hz
3.9 kW @ 60 Hz
Compressor type Rotary Piston
Refrigerant / GWP R134a / 1430
Refrigerant Charge 570 g / 20.1 oz.
High / low Pressure 32 / 6 bar
460 / 88 psi
Operating Temperature Range 10°C - 60°C
UL temperature range 10°C - 60°C
Air flow volume (system / unimpeded) Ambient: 1000 / 1400 m³/h
Enclosure: 750 / 1200 m³/h
Mounting External/Internal
Housing Material Stainless steel AISI 304 (V2A)
Dimensions A x B x C (D+E) 1550 x 455 x 270 mm
Weight 62 kg
Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~
UL Voltage / Frequency 460 V / 60Hz 3~
Current L35L35 3.5 A @ 50 Hz
3.7 A @ 60 Hz
Starting current 15 A
Max. current 4.8 A
Nominal power L35L35 1.73 kW @ 50 Hz
2.27 kW @ 60 Hz
Max. power 3.2 kW
Fuse 15 A (T)
Max circuit ampacity 15 A
Short-circuit current rating 5 kA
Rated current compressor 3 A
Full load current fans 1.3 A
Connection 4 pole terminal for power
5 pole terminal for signals
Ingress Protection IP 56 / Type 12, 3, 3R, 4, 4X
Approvals CE, cURus, cULus
Version No. 1-8 - 16.03.2022 Doc. No. 99854020S62 8 / 25
7. Mounting
Unpacking unit:
Please follow the below steps to unpack the unit.
STEP 1:
Stand the cooling unit upright with the pre-cut packaging opening facing up.
STEP 2:
Pull off the packaging opening.
STEP 3:
Hang the transport loop of the unit in the transport hook and lift it slightly.
STEP 4:
Pull off the packaging and slide out the tray with installation material and the short version of the operating
manual.
STEP 5:
Pull off the remaining packaging.
STEP 6:
The cooling unit can now be attached to the enclosure.
Version No. 1-8 - 16.03.2022 Doc. No. 99854020S62 9 / 25
Mounting:
The power supply rating on unit rating plate must comply with mains rating.
Always disconnect the power supply before opening the unit.
The heat load to be dissipated from enclosure should not exceed specific cooling output of the unit at any
condition. At cooling unit selection always cater for a safety margin of at least 15% extra cooling output in the
worst conditions.
Air inlets and outlets must be completely free from obstruction. Ensure that flows of air leaving and entering the
cooling unit, internal and external, are not obstructed. It must also be ensured in accordance with UL, that the
air outlet is not blowing air directly at an equipment operator. Should this be the case a barrier or duct shall be
provided to redirect the airflow.
Cooling unit enclosure air suction hole must be installed in the highest possible point.
When installing the unit on a door ensure it can take the weight. Before drilling the enclosure ensure the fixing
elements and couplings will not interfere with the equipment inside the enclosure itself. Disconnect power
before starting any work inside the enclosure.
If the unit is mounted in a recessed position, the controller bracket can be pulled according to the wall thickness
of the enclosure outwards as per steps below.
.
Version No. 1-8 - 16.03.2022 Doc. No. 99854020S62 10 / 25

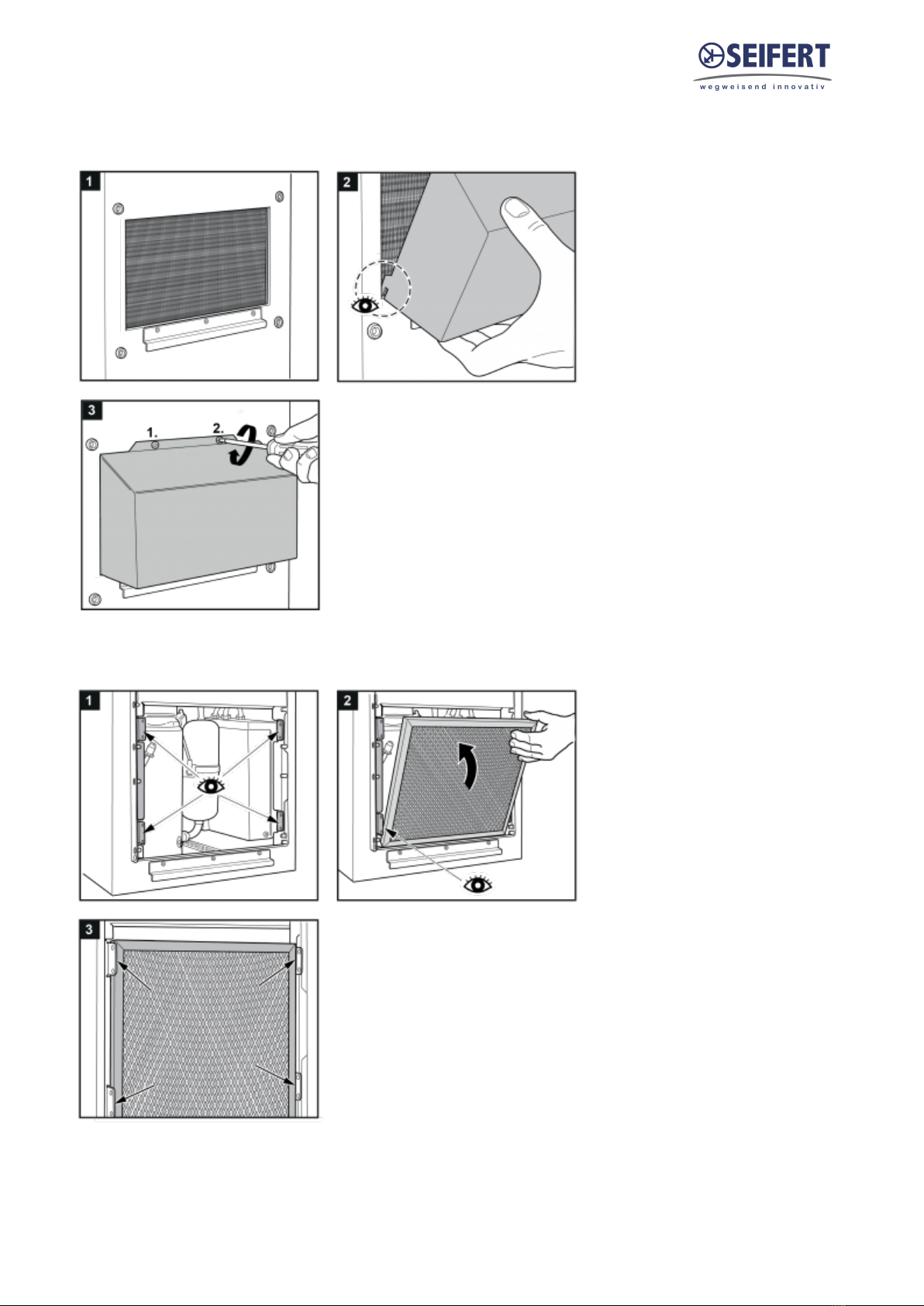

Cold air outlet duct:
When using a cold air outlet duct please follow the steps below.
Filter installation:
If you install / replace a filter please follow the steps below.
