Sega SOUL SURFER User manual

1ST PRINTING JULY ‘02

MANUAL NO. 999-1479

Owner’s Manual

SEGA ENTERPRISES, INC. USA

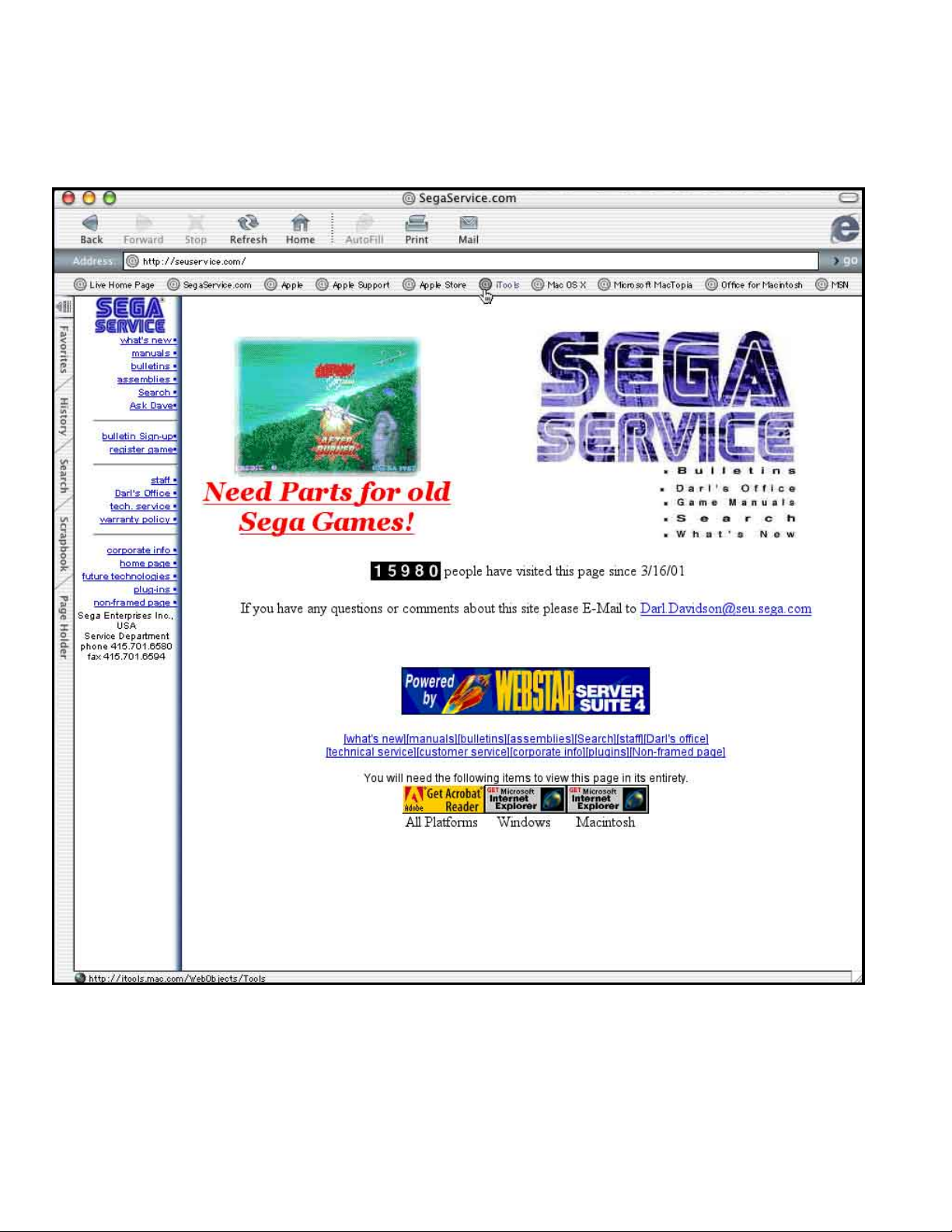

www.seuservice.com

VISIT OUR WEBSITE!

BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:

To maintain the safety:

To ensure the safe usage of the product, be sure to read the following before using the product. The

following instructions are intended for the users, operators and the personnel in charge of the opera-

tion of the product. After carefully reading and sufciently understanding the warning displays and

cautions, handle the product appropriately. Be sure to keep this manual nearby the product or else-

where convenient for referring to it when necessary.

Herein, explanations which require special attention are enclosed with dual lines. Depending on the

potentially hazardous degrees, the terms of WARNING, CAUTION, etc. are used. Be sure to under-

stand the contents of the displays before reading the text.

Indicates that mishandling the prod-

uct by disregarding this warning

will cause a potentially hazardous

situation which can result in death

or serious injury.

Indicates that mishandling the product

by disregarding this caution will cause

a slight hazardous situation which can

result in personal injury and or material

damage.

For the safe usage of the product, the following pictographs are used:

Indicates “HANDLE WITH CARE.” In order to protect the human body an equipment,

this display is attached to places where the Owner’s Manual and or Service Manual should

be referred to.

Perform work in accordance with the instructions herein stated.

Instructions for work are explained by paying attention to the aspect of accident prevention. Failing to

perform work as per the instructions can cause accidents. In the case where only those who have tech-

nical expertise should perform the work to avoid hazardous situation, the instructions herein state that the

serviceman should perform such work.

Be sure to turn off power before working on the machine.

To prevent electric shock, be sure to turn off power before starting the work in which the worker touches

the interior of the product. If the work is to be performed in the power-on status, the Instruction Manual

herein always states to that effect.

Be sure to ground the Earth Terminal (this, however, is not required in the case where a power cord

with earth is used).

This product is equipped with the Earth Terminal. When installing the product, Connect the Earth Ter-

minal to the “accurately grounded indoor earth terminal” by using an earth wire. Unless the product is

grounded appropriately, the user can be subject to electric shock. After performing repair, etc. for the

Control equipment, ensure that the Earth Wire is rmly connected to the Control equipment.

Ensure that the Power Supply used is equipped with an Earth Leakage Breaker.

This product does not incorporate the Earth Leakage Breaker. Using a power supply which is not

equipped with the Earth Leakage Breaker can cause a re when earth leakage occurs.

Be sure to use fuses which meet the specied rating. (only for the machines which use fuses).

Using fuses exceeding the specied rating can cause a re and electric shock.

WARNING! CAUTION!

Specication changes (removal of equipment, conversion and addition) not designated by SEGA

are not allowed.

The parts of the product include warning labels for safety, covers for personal protection, etc. It is

very hazardous to operate the product by removing parts and or modifying the circuits. Should doors,

lids and protective parts be damaged or lost, refrain from operating the product, and contact where the

product was purchased from or the ofce herein stated. SEGA shall not be held responsible for any

accidents, compensation for damage to a third party, resulting from the specications not designated by

SEGA.

Ensure that the product meets the requirements of appropriate Electrical Specications.

Before installing the product, check for Electrical Specications. SEGA products have a nameplate

on which Electrical Specications are described. Ensure that the product is compatible with the power

supply voltage and frequency requirements of the location. Using any Electrical Specications different

from the designated Specications can cause a re and electric shock.

Install and operate the product in places where appropriate lighting is available, allowing warning

labels to be clearly read.

To ensure safety for the customers, labels and printed instructions describing potentially hazardous situ-

ation are applied to places where accidents can be caused. Ensure that where the product is operated

has sufcient lighting allowing the warnings to be read. If any label is peeled off, apply it again imme-

diately. Please place an order with where the product was purchased from or the ofce herein stated.

When handling the Monitor, be very careful. (Applies only to the product w/monitor.)

Some of the monitor (TV) parts are subject to high tension voltage. Even after running off power, some

portions are still subject to high tension voltage sometimes. Monitor repair and replacement should be

performed only be those technical personnel who have knowledge of electricity and technical expertise.

Be sure to adjust the monitor (projector) properly. (Applies only to the product w/monitor.)

Do not operate the product leaving on-screen ickering or blurring as it is. Using the product with the

monitor not properly adjusted may cause dizziness or a headache to an operator, a player, or the cus-

tomers.

When transporting or reselling this product, be sure to attach this manual to the product.

In the case where commercially available monitors and printers are used in this product, only the con-

tents relating to this product are explained herein. Some commercially available equipment has func-

tions and reactions not stated in this manual. Read this manual together with the specic Instruction

Manual of such equipment.

Descriptions herein contained may be subject to improvement changes without notice.

The contents described herein are fully prepared with due care. However, should any question arise or

errors be found, please contact SEGA.

•

INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION.

Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately after

transporting to the location. Nevertheless, an irregular situation may occur during transportation. Before

turning on power, check the following points to ensure that the product has been transported in a satis-

factory status.

Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet?

Are Casters and Adjusters, damaged?

Do the power supply voltage and frequency requirements meet with those of the location?

Are all wiring connectors correctly and securely connected? Unless connected in the correct direction,

connector connections can not be made accurately. Do not insert connectors forcibly.

Do power cords have cuts and dents?

Do the fuses used meet specied rating? Is the Circuit Protector in an energized status?

Are all accessories available?

Can all Doors and Lids be opened with the Accessory keys? Can Doors and Lids be rmly closed?

TABLE OF CONTENTS

BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:

TABLE OF CONTENTS

INTRODUCTION OF THE OWNER'S MANUAL

1. HANDLING PRECAUTIONS.........................................................................................1

2. PRECAUTIONS CONCERNING INSTALLATION LOCATION .................................3

3. OPERATION ....................................................................................................................5

4. NAME OF PARTS.......................................................................................................... 11

5. ACCESSORIES ..............................................................................................................12

6. ASSEMBLING AND INSTALLATION ........................................................................15

7. PRECAUTIONS TO BE HEEDED WHEN MOVING THE MACHINE..................... 36

8. GAME CONTENTS.......................................................................................................39

9. EXPLANATION OF TEST AND DATA DISPLAY ...................................................... 54

10. MAINTENANCE OF SURFBOARD MECHANISM UNIT ........................................ 68

10-1 ADJUSTMENT/REPLACEMENT OF THE SWING DIRECTION VOLUME.68

10-2 ADJUSTMENT/REPLACEMENT OF THE ROLL DIRECTION VOLUME ...74

10-3 PITCH DETECTION VOLUME REPLACEMENT...........................................80

10-4 GREASING..........................................................................................................83

10-5 REPLACING THE BELLOWS ........................................................................... 86

11. PROJECTOR .................................................................................................................. 91

11-1 CLEANING THE SCREEN................................................................................. 91

11-2 PROJECTOR ADJUSTMENT .............................................................................92

12. COIN SELECTOR........................................................................................................102

13. REPLACING THE FLUORESCENT LAMP, AND LAMPS......................................106

14. PERIODIC INSPECTION TABLE .............................................................................. 114

15. TROUBLESHOOTING................................................................................................ 115

16. GAME BOARD............................................................................................................ 117

16-1 REMOVING THE GAME BOARD .................................................................. 117

16-2 COMPOSITION OF GAME BOARD............................................................... 119

17. DESIGN RELATED PARTS ........................................................................................120

18. PARTS LIST ................................................................................................................. 121

19. WIRE COLOR CODE TABLE ....................................................................................186

20. WIRING DIAGRAM................................................................................................. XXX

SPECIFICATIONS

Installation space : 54.3 in. (W) × 113.0 in(D)

Height : 88.6 in.

Weight : 1,115.5 lbs.

Power, maximum current : 443 W 4.7 A (AC 120 V 60 Hz AREA)

444 W 2.6 A (AC 220 V 50 Hz AREA)

429 W 2.5 A (AC 220 V 60 Hz AREA)

440 W 2.5 A (AC 230 V 50 Hz AREA)

447 W 2.4 A (AC 240 V 50 Hz AREA)

For TAIWAN

Power, current : 450 W 5.3 A (MAX.)

280 W 3.4 A (MIN.)

MONITOR : 50 TYPE PROJECTION DISPLAY

INTRODUCTION OF THE OWNER'S MANUAL

This Owner's Manual is intended to provide detailed descriptions together with all the neces-

sary information covering the general operation of electronic assemblies, electromechanicals,

servicing control, spare parts, etc. as regards the product,

SOUL SURFER.

This manual is intended for the owners, personnel and managers in charge of operation of

the product. Operate the product after carefully reading and sufciently understanding the

instructions. If the product fails to function satisfactorily, non-technical personnel should

under no circumstances touch the internal system. Should any malfunctioning occur, turn

the power off and unplug the AC Cable (Power Cord), and contact where the product was

purchased from.

Use of this product is unlikely to cause physical injuries or damages to property. However, where

special attention is required this is indicated by a thick line, the word "IMPORTANT" and its sign

in this manual.

Indicates that mishandling the product by disregarding this display can cause the product's

intrinsic performance not to be obtained, resulting in malfunctioning.

SEGA ENTERPRISES, INC. (U.S.A.)/CUSTOMER SERVICE

45133 Industrial Drive, Fremont, California 94538, U.S.A.

Phone: (415) 701-6580

Facsimile: (415) 701-6594

STOP

IMPORTANT!

WARNING!

DEFINITION OF LOCATION'S MAINTENANCE MAN AND SERVICEMAN

Non-technical personnel who do not have technical knowledge and expertise should

refrain from performing such work that this manual requires the location's main-

tenance man or a serviceman to carry out, or work which is not explained in this

manual. Failing to comply with this instruction can cause a severe accident such as

electric shock.

Ensure that parts replacement, servicing & inspections, and troubleshooting are performed by the

location's maintenance man or the serviceman. It is instructed herein that particularly hazardous work

should be performed by the serviceman who has technical expertise and knowledge.

The location's maintenance man and serviceman are herein dened as follows:

"Location's Maintenance Man" :

Those who have experience in the maintenance of amusement equipment and vending machines, etc.,

and also participate in the servicing and control of the equipment through such routine work as equip-

ment assembly and installation, servicing and inspections, replacement of units and consumables, etc.

within the Amusement Facilities and or locations under the management of the Owner and Owner's

Operators of the product.

Activities of Location's Maintenance Man :

Assembly & installation, servicing & inspections, and replacement of units & consumables as regards

amusement equipment, vending machines, etc.

Serviceman :

Those who participate in the designing, manufacturing, inspections and maintenance service of the

equipment at an amusement equipment manufacturer.

Those who have technical expertise equivalent to that of technical high school graduates as regards

electricity, electronics and or mechanical engineering, and daily take part in the servicing & control

and repair of amusement equipment.

Serviceman's Activities :

Assembly & installation and repair & adjustments of electrical, electronic and mechanical parts of

amusement equipment and vending machines.

LISTED

5K92

AMUSEMENT MACHINE

1www.seuservice.com

1. HANDLING PRECAUTIONS

When installing or inspecting the machine, be very careful of the following points and pay attention

to ensure that the player can enjoy the game safely.

Non-compliance with the following points or inappropriate handling running counter to the cau-

tionary matters herein stated can cause personal injury or damage to the machine.

● Before performing work, be sure to turn power off. Performing the work

without turning power off can cause an electric shock or short circuit. In the

case work should be performed in the status of power on, this manual always

states to that effect.

● To avoid electric shock or short circuit, do not plug in or unplug quickly.

● To avoid electric shock, do not plug in or unplug with a wet hand.

● Do not expose Power Cords and Earth Wires on the surface, (oor, passage,

etc.). If exposed, the Power Cords and Earth Wires are susceptible to damage.

Damaged cords and wires can cause electric shock or short circuit.

● To avoid causing a re or electric shock, do not put things on or damage

Power Cords.

● When or after installing the product, do not unnecessarily pull the power cord.

If damaged, the power cord can cause a re or electric shock.

● In case the power cord is damaged, ask for replacement through where the

product was purchased from or the ofce herein stated. Using the cord as is

damaged can cause re, electric shock or leakage.

● Be sure to perform grounding appropriately. Inappropriate grounding can

cause an electric shock.

● Be sure to use fuses meeting specied rating. Using fuses exceeding the

specied rating can cause a re or electric shock.

● Completely make connector connections for IC BD and others. Insufcient

insertion can cause an electric shock.

● Specication changes, removal of equipment, conversion and/or addition, not

designated by SEGA are not permitted.

• Failure to observe this may cause a re or an electric shock. Non-compliance

with this instruction can have a bad inuence upon physical conditions of the

players or the lookers-on, or result in injury during play.

• SEGA shall not be held responsible for damage, compensation for damage to

a third party, caused by specication changes not designated by SEGA.

● Be sure to perform periodic maintenance inspections herein stated.

WARNING!

www.seuservice.com

3www.seuservice.com

● For the IC board circuit inspections, only the logic tester is allowed. The use

of a multiple-purpose tester is not permitted, so be careful in this regard.

● The Projector is employed for this machine. The Projector's screen is

susceptible to damage, therefore, be very careful when cleaning the screen.

For details, refer to PROJECTOR.

● Some parts are the ones designed and manufactured not specically for

this game machine. The manufacturers may discontinue, or change the

specications of, such general-purpose parts. If this is the case, Sega cannot

repair or replace a failed game machine whether or not a warranty period has

expired.

STOP

IMPORTANT!

www.seuservice.com

3www.seuservice.com

PRECAUTIONS CONCERNING INSTALLATION LOCATION

This product is an indoor game machine. Do not install it outside. Even indoors,

avoid installing in places mentioned below so as not to cause a re, electric shock,

injury and or malfunctioning.

● Places subject to rain or water leakage, or places subject to high humidity in

the proximity of an indoor swimming pool and or shower, etc.

● Places subject to direct sunlight, or places subject to high temperatures in the

proximity of heating units, etc.

● Places lled with inammable gas or vicinity of highly inammable/volatile

chemicals or hazardous matter.

● Dusty places.

● Sloped surfaces.

● Places subject to any type of violent impact.

● Vicinity of anti-disaster facilities such as re exits and re extinguishers.

● The operating (ambient) temperature range is from 5° to 30°.

LIMITATIONS OF USAGE REQUIREMENTS

● Be sure to check the Electrical Specications.

Ensure that this product is compatible with the location's power supply, volt-

age and frequency requirements.

A plate describing Electrical Specications is attached to the product.

Non-compliance with the Electrical Specications can cause a re and electric

shock.

● This product requires the Breaker and Earth Mechanisms as part of the loca-

tion facilities. Using them in a manner not independent can cause a re and

electric shock.

● Ensure that the indoor wiring for the power supply is rated at 15 A or higher

(AC single phase 100 ~ 120 V area), and 10 A or higher (AC 220 ~ 240 V

area). Non-compliance with the Electrical Specications can cause a re and

electric shock.

● Be sure to independently use the power supply equipped with the Earth Leak-

age Breaker. Using a power supply without the Earth Leakage Breaker can

cause an outbreak of re when earth leakage occurs.

● Putting many loads on one electrical outlet can cause generation of heat and a

re resulting from overload.

● When using an extension cord, ensure that the cord is rated at 15 A or higher

(AC 100 ~ 120 V area) and 10 A or higher (AC 220 ~ 240 V area). Using a

cord rated lower than the specied rating can cause a re and electric shock.

WARNING!

Table of contents

Other Sega Arcade Game Machine manuals

Sega

Sega FORD RACING TWIN-FULL BLOWN User manual

Sega

Sega PIRATES of MONSTER ISLAND User manual

Sega

Sega Virtua Cop 3 Deluxe Type User manual

Sega

Sega Hot Racer User manual

Sega

Sega UFO CATCHER User manual

Sega

Sega Royal Rumble Standard Version User manual

Sega

Sega OUTRUN 2 SPECIAL TOURS DELUXE User manual

Sega

Sega Virtua Tennis 3 User manual

Sega

Sega Buster Bubble User manual

Sega

Sega Virtua Cop 3 User manual

Sega

Sega Snakes & Ladders User manual

Sega

Sega BG-X005SGA User manual

Sega

Sega AFTER BURNER CLIMAX User manual

Sega

Sega bop it ARCADE User manual

Sega

Sega NAOMI 2 User manual

Sega

Sega Let's Go ISLAND! User manual

Sega

Sega MISSION: IMPOSSIBLE User manual

Sega

Sega Lindbergh Universal User manual

Sega

Sega Star Wars Trilogy User manual

Sega

Sega Capcom vs SNK 2 Troubleshooting guide

Sega

Sega Double Spin User manual

Sega

Sega SHOOT THIS WIN THIS User manual

Sega

Sega MINI DELUXE THE HOUSE OF THE DEAD 4 User manual

Sega

Sega ALL AIR TRIX DLX Reference manual

Popular Arcade Game Machine manuals by other brands

Universal Space

Universal Space COCONUT BASH Operation manual

Bay-Tek

Bay-Tek EVOLVE installation guide

Global VR

Global VR America's Army Operation & service manual

Atronic

Atronic Cashline installation manual

Universal Space

Universal Space Checky Monkey Operation manual

Bay-Tek

Bay-Tek Skee Ball 1908 Alley Service manual

Aristocrat Technologies

Aristocrat Technologies Mars X Upright Service manual

Family Fun Companies

Family Fun Companies Reactor Parts, Service and Distribution

Universal Space

Universal Space FRUIT MANIA Extreme Operation manual

falgas

falgas CARRUSEL FIESTA user guide

Konami

Konami DanceDanceRevolution Operator's manual

Bay-Tek

Bay-Tek quik drop Service manual

Bandai Namco

Bandai Namco PAC-MAN BATTLE ROYALE CHOMPIONSHIP DELUXE Operation manual

Adrenaline

Adrenaline Flying Tickets Operation & service manual

Swinks

Swinks Stern Pinball Ghostbusters manual

Innovative Concepts in Entertainment

Innovative Concepts in Entertainment MONOPOLY ROLL-N-GO Service manual

jakar

jakar SPEED CARS Operator's manual

Carmelli

Carmelli HAT TRICK NG1015H Assembly instructions
