Introduction

SeaI/O™ USB serial expansion modules provide an easy way to add RS-232 or RS485 serial ports to a Relio

industrial computer, SeaPAC touchscreen computer, stack of SeaI/O modules, or anywhere serial devices need

to be connected via an available USB port.

Available in four and eight port models, the serial ports appear as standard COM ports to the host system

enabling compatibility with legacy software. SeaI/O USB serial modules support data rates to 921.6K bps and

are designed with a statemachine architecture that greatly reduces the host CPU overhead when communicating

over multiple ports simultaneously. Status LEDs integrated into the RJ45 connectors display transmit and

receive data activity.

With the unique VersaCom multi-interface connector design, both RS-232 and two-wire RS-485 signals are

always present and active on the RJ45 serial connectors. Simply select the appropriate pin out for RS-232 or

two-wire RS-485 on each individual port. There are no internal jumpers or switches to set, so field installation

and service is easy.

The USB serial modules are powered from your 9-30VDC source or your choice from several Sealevel power

supply options. For conveniently powering serial peripherals, the supplied power is fused and connected to pin

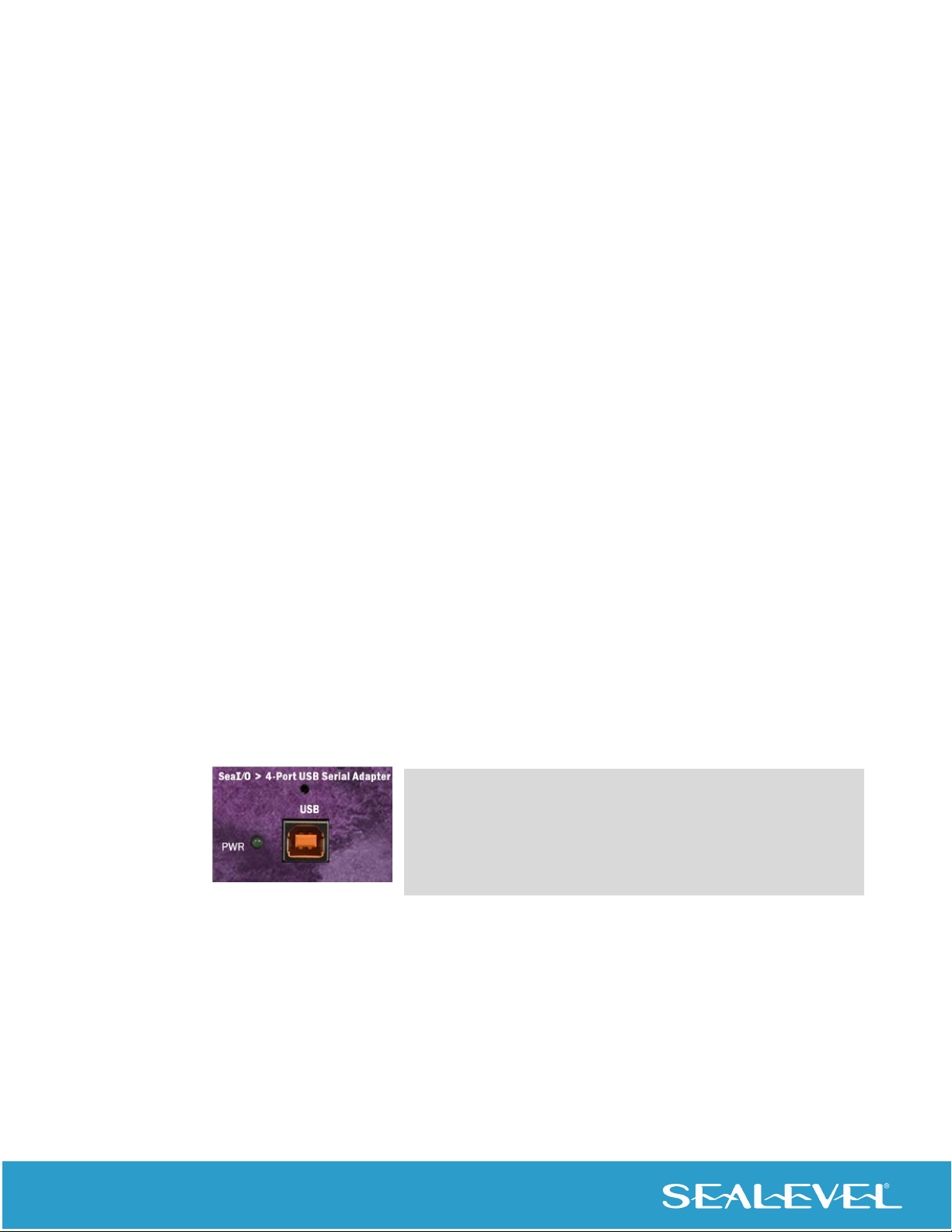

5 on each of the RJ45 serial connectors. A high-retention USB type "B" connector helps to prevent accidental

disconnection of the USB cable.

An RS-485 pass-through connector on the side of the SeaI/O USB serial modules provides additional I/O

capabilities using SeaI/O "N" series expansion modules. Up to 246 additional SeaI/O expansion modules can be

added and are available with Reed and Form C relays, optically isolated inputs, TTL interfaces, A/D and D/A

functionality.

This manual covers the installation and operation of these SeaI/O products:

USB Serial Expansion Modules

SeaI/O-641U – 4-Port RS-232 RJ45 Serial Interface

SeaI/O-647U – 4-Port RS-232, RS-485 RJ45 VersaCom Serial Interface

SeaI/O-681U – 8-Port RS-232 RJ45 Serial Interface

SeaI/O-687U – 8-Port RS-232, RS-485 RJ45 VersaCom Serial Interface

SeaI/O Hardware Overview

SeaI/O Base and Expansion Modules

In general, SeaI/O data acquisition modules provide powerful digital, analog, and serial expansion to any host

computer. Multiple modules can be daisy chained using convenient pass-through connectors to create a

versatile distributed control and monitoring network. For ease of installation, multiple modules can be combined

in a local stack or separated up to 4000 feet using the RS-485 expansion interface.

The first SeaI/O module connected to the host computer is considered the Base module and connects to the

host via one of the following interfaces:

•E-Series – Ethernet Modbus TCP

•U-Series – USB Modbus RTU

•M-Series – RS-485 Modbus RTU

•S-Series – RS-232 Modbus RTU

SeaI/O USB serial expansion modules only connect to the host via USB and will operate as a Base module when

connected to digital and analog SeaI/O N-series Expansion Modules.

After the Base unit is installed, up to 246 additional SeaI/O N-Series expansion modules can be added to create

an I/O network. These expansion modules interface via RS-485 and can be located local to the Base SeaI/O

module or remotely located up to 4000 feet away. Local installations (<10’ of cabling) should use the 5” CAT5

RS-485 pass-through cable (Item# CA239) included with each N-series module to connect together two or more

modules. Remote expansion modules (>10’ of cabling) should use twisted pair wiring connected via the

removable screw terminal connectors.

For local installations, power to the expansion modules is supplied from the base module via the pass-through

connectors. For remote devices, separate power is required at each expansion module. Refer to the Power

Options chapter of this manual for more information on SeaI/O power requirements and power supply sizing.

Communicating Via Modbus Commands

Sealevel SeaI/O modules are designed to integrate seamlessly into existing Modbus networks. The supported

command set will vary depending on the SeaI/O model used. While SeaI/O USB serial expansion modules do

not require any Modbus commands to operate, they do pass through all Modbus RTU commands to other

connected SeaI/O modules and Modbus compliant devices.

The SeaI/O Modules manual covers digital and analog I/O modules and details the supported Modbus command

set. The official Modbus specification can be found at www.modbus.org.

Before You Get Started

What’s Included

All SeaI/O USB serial expansion modules are shipped with the following items. If any of these items is missing

or damaged please contact Sealevel for replacement.

•SeaI/O USB Serial Expansion Module – (one of the following models)

SeaI/O-641U – 4-Port RS-232 RJ45 Serial Interface

SeaI/O-647U – 4-Port RS-232, RS-485 RJ45 VersaCom Serial Interface

SeaI/O-681U – 8-Port RS-232 RJ45 Serial Interface

SeaI/O-687U – 8-Port RS-232, RS-485 RJ45 VersaCom Serial Interface

•Item# CA179 – 72” USB ‘A’ to ‘B’ Device Cable

•Item# LB116 – RS-232 RJ45 Serial Loopback

•Item# LB115 – RS-485 RJ45 Serial Loopback (only VersaCom models)

Each SeaI/O module is shipped with 4 adhesive rubber feet that can be attached to the bottom of the enclosure

to enhance the stability in table mount applications.

Advisory Conventions

Warning

The highest level of importance used to stress a condition where damage could result to the product,

or the user could suffer serious injury.

Important

The middle level of importance used to highlight information that might not seem obvious or a

situation that could cause the product to fail.

Note

The lowest level of importance used to provide background information, additional tips, or other non-

critical facts that will not affect the use of the product.

Power Supplies

SeaI/O USB serial expansion modules are powered from your 9-30VDC source or from a variety of Sealevel

power supply options. Refer to the Power Options chapter of this manual for power supply sizing considerations

when powering multiple SeaI/O modules.

Loopback Adapters

All SeaI/O USB serial expansion modules include an RJ45 RS-232 serial loopback adapter (Item# LB116) that is

useful for testing the data signals on RS-232 ports. SeaI/O USB serial models with RS-485 VersaCom ports also

include an RJ45 RS485 loopback cable (Item# LB115) that is useful for testing the data signals between a pair

of RS-485 ports.

WinSSD is a full featured asynchronous serial diagnostic utility for Windows that allows you to modify default

parameters, perform loopback tests, toggle modem control signals, and transmit test pattern messages.

WinSSD is available as a standalone utility and is included with Sealevel’s SeaCOM, SeaLINK and SeaMAC

software suites.

Hardware Description

SeaI/O RS-232 Serial Expansion Modules

Models

•SeaI/O-641U USB to 4-Port RS-232 RJ45 Serial Interface

•SeaI/O-681U USB to 8-Port RS-232 RJ45 Serial Interface

Features

•Utilizes high speed UARTs with 128-byte Tx FIFOs and 384-byte Rx FIFOs

•Provides four or eight RJ45 RS-232 serial ports with Tx/Rx status LEDs

•Integrates transmit and receive LED indicators on each port

•Input power via terminal block or barrel connector

•USB 1.1 compliant, USB 2.0 compatible

•High-retention USB type “B” connector prevents accidental disconnection of USB cable

Power Requirements

•9-30VDC @ 1.5W

SeaI/O RS-232/485 VersaCom Serial Expansion Modules

Models

•SeaI/O-647U USB to 4-Port RS-232/485 RJ45 VersaCom Serial Interface

•SeaI/O-687U USB to 8-Port RS-232/485 RJ45 VersaCom Serial Interface

Features

•Utilizes high speed UARTs with 128-byte Tx FIFOs and 384-byte Rx FIFOs

•Provides four or eight RJ45 RS-232 serial ports with Tx/Rx status LEDs

•Integrates transmit and receive LED indicators on each port

•VersaCom design allows RS-232 or two-wire RS-485 selection via cabling on each individual port

•Input power via terminal block or barrel connector

•USB 1.1 compliant, USB 2.0 compatible

•High-retention USB type “B” connector prevents accidental disconnection of USB cable

Power Requirements

•9-30VDC @ 2.5W

Power Options

All SeaI/O modules are powered from a 9-30VDC source using either the DC jack or screw terminals on the side

of the unit. Sealevel offers several power supply choices to make connection easy (see Accessories chapter at

the end of this manual).

If the SeaI/O USB serial expansion module will be used alone, the recommended “single-unit” power supply

(Item# TR112) rated at 24VDC @ 250mA is a perfect fit. Skip ahead to the Software Installation chapter of this

manual.

One of the primary features of SeaI/O modules is their ability to be powered from a single input source, which is

then shared with other SeaI/O expansion modules via pass-through connectors or screw terminals located on

the left side of the modules. If you are connecting multiple SeaI/O modules together, refer to the rest of this

chapter for power supply sizing considerations.

SeaI/O Expansion Power Connection

Each SeaI/O product, including the expansion modules, contains an onboard switching regulator power supply

rated for 9-30VDC. For local installations (less than 10’ apart), expansion module power is usually supplied from

the Base module via the pass-through connectors. The number of expansion modules that can be driven from

the Base module depends on the power source and number/type of expansion modules. Refer to the chart below

for power requirements. For expansion modules mounted remotely (greater than 10’ apart), separate power is

required at each expansion module.

SeaI/O Expansion Power Requirements

The following table shows the maximum power requirements for each SeaI/O digital and analog expansion

module.

Model Number Max Power

SeaI/O-410N 1.4W

SeaI/O-420N 2.0W

SeaI/O-430N 0.4W

SeaI/O-440N 2.5W

SeaI/O-450N 3.8W

SeaI/O-470N 1.5W

SeaI/O-520N 3.5W

TTL Expansion Power Requirements

The SeaI/O-462N and SeaI/O-463N use 74ABT245 octal bi-directional transceivers to provide TTL input/output

capabilities and can sink 64mA and source 32mA. Each bit is pulled to +5V through a 10K ohm pull-up resistor

to insure each bit is at a known state when not driven. The supply current and maximum output power for the

TTL expansion modules is shown in the table below.

Model Number Max Power

SeaI/O-462N 0.5W

SeaI/O-463N 0.5W

Output Power +5VDC @ 1A (5W) Maximum

Sample Power Calculation

A typical application for SeaI/O products would use one Base module and several Nseries expansion modules

in a local “stack” configuration. In this arrangement, with power applied to the Base module through either the

DC jack or screw terminal connector and passed-through to the expansion modules, attention should be given

to ensure the input power to all connected modules is adequate.

Example:

Power (W)

Base Module: SeaI/O-641U 1.5

Expansion 1: SeaI/O-410N 1.4

Expansion 2: SeaI/O-440N 2.5

5.4W Power Required

In this application, the Sealevel Item# TR112 “wall wart” power supply is a good choice since it is low-cost and

supplies 24VDC @ 250mA (6W).

A complete listing of recommended power supplies is provided in the Accessories chapter at the end

of this manual.

Software Installation

SeaMAX Software Installation

Windows Installation

Do not connect the SeaI/O module to the host until the software has been fully installed.

Only users running Windows 7 or newer should utilize these instructions for accessing and installing

the appropriate driver via Sealevel’s website. If you are utilizing an operating system prior to Windows

7, please contact Sealevel by calling 864.843.4343 or emailing support@sealevel.com to receive

access to the proper driver download and installation instructions.

1. Begin by locating, selecting, and installing the correct software from the Sealevel software driver

database.

2. Type in or select the part number (#641U, 647U, 681U or 687U)) for the adapter from the listing.

3. Select “Download Now” for SeaMAX for Windows.

4. The setup files will automatically detect the operating environment and install the proper

components. Follow the information presented on the screens that follow.

5. A screen may appear with text similar to: “The publisher cannot be determined due to the

problems below: Authenticode signature not found.” Please click the ‘Yes’ button and proceed

with the installation. This declaration simply means that the operating system is not aware of

the driver being loaded. It will not cause any harm to your system.

6. During setup, the user may specify installation directories and other preferred configurations.

This program also adds entries to the system registry that are necessary for specifying the

operating parameters for each driver. An uninstall option is also included to remove all

registry/INI file entries from the system.

7. The software is now installed, and you can proceed with the physical installation of your SeaI/O

USB serial expansion module.

Windows NT is not USB aware and thus cannot support this device.

This manual suits for next models

Table of contents

Other SeaLevel Computer Hardware manuals

SeaLevel

SeaLevel IC485+ User manual

SeaLevel

SeaLevel COMM+4/422.PCIe User manual

SeaLevel

SeaLevel SeaISO ISO-1 User manual

SeaLevel

SeaLevel SeaLINK+8/232.RJ User manual

SeaLevel

SeaLevel COMM+4.PCI User manual

SeaLevel

SeaLevel SIO-485.LPCI User manual

SeaLevel

SeaLevel 7802e User manual

SeaLevel

SeaLevel UltraCOMM+4.PCIe User manual

SeaLevel

SeaLevel ACB 56 User manual

SeaLevel

SeaLevel SeaLINK+2/PC.SC User manual

SeaLevel

SeaLevel C4-104.ULTRA User manual

SeaLevel

SeaLevel Ultra 485.OPT022 User manual

SeaLevel

SeaLevel ISO-232+2.CF User manual

SeaLevel

SeaLevel SeaLINK+232.PC User manual

SeaLevel

SeaLevel ISO-COMM User manual

SeaLevel

SeaLevel ISO COMM2.cPCI User manual

SeaLevel

SeaLevel ISO-16 User manual

SeaLevel

SeaLevel SeaLINK +2.SC User manual

SeaLevel

SeaLevel SIO-104 User manual

SeaLevel

SeaLevel ACB-MP.LPCI User manual

SeaLevel

SeaLevel DIO-32.PCIe User manual

SeaLevel

SeaLevel COMM+16.PCIe User manual

SeaLevel

SeaLevel UltraCOMM+2.LPCIe User manual

SeaLevel

SeaLevel 7406e User manual

Popular Computer Hardware manuals by other brands

EMC2

EMC2 VNX Series Hardware Information Guide

Panasonic

Panasonic DV0PM20105 Operation manual

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 user manual

Gigabyte

Gigabyte B660M DS3H AX DDR4 user manual

Raidon

Raidon iT2300 Quick installation guide

National Instruments

National Instruments PXI-8186 user manual

Hauppauge

Hauppauge WinTV-HVR-2250 Quick installation guide

Kontron

Kontron CP6002 user guide

Manhattan

Manhattan 702843 user manual

Aphex

Aphex 230 instruction manual

AMD

AMD Phenom II Product data sheet

Intel

Intel NUC 12 Pro user guide

dbx

dbx Zone Pro 1260 user manual

Galaxy

Galaxy GHDX2-2430S-24F4D Installation and hardware reference manual

Intel

Intel AXXRMFBU4 Quick installation user's guide

Kontron

Kontron DIMM-PC/MD product manual

ST X-NUCLEO-SAFEA1B How to use

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 installation manual
