SeaLevel SeaISO ISO-1 User manual

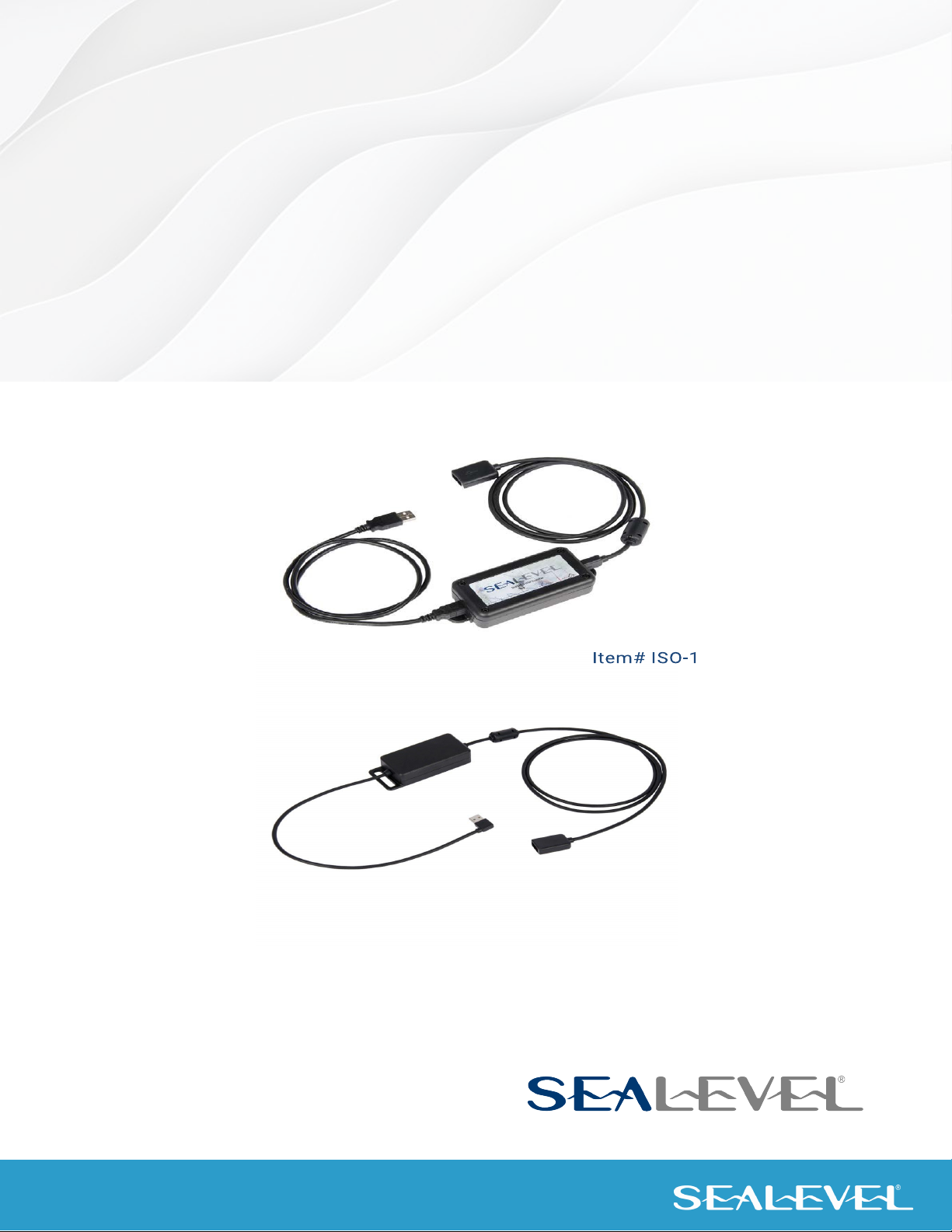

Item# ISO-1R

SeaISO

™

USB Isolator

User Manual | ISO-1 and ISO-1R

Contents

CONTENTS...........................................................................................................................................................2

INTRODUCTION ................................................................................................................................................... 3

BEFORE YOU GET STARTED ............................................................................................................................... 4

SPECIFICATIONS ................................................................................................................................................. 7

APPENDIX A – DRAWINGS2................................................................................................................................ 8

APPENDIX B – HOW TO GET ASSISTANCE .....................................................................................................10

APPENDIX C – COMPLIANCE NOTICES ..........................................................................................................11

WARRANTY ........................................................................................................................................................12

Introduction

The SeaISO USB Isolator is a device that provides galvanic separation between USB devices and host

control systems. It is powered from the host system and allows energy transfer over the isolation barrier

to the slave device. The Isolator is a USB 2.0 compatible device connecting with the host over a high-speed

link and featuring full speed (12 Mbit/s) connection to the isolated slave device.

Model ISO-1 is a standard version enclosed in an ABS plastic case dedicated mainly for industrial use.

Model ISO-1R is a custom ruggedized version featuring cable “bump” design and sealed TPE overmold for

environmental protection in medical applications.

Features

Medical grade 4000Vac isolation, data, and power

Meets 60601-1 3rd Edition requirements for 1x MOPP at working voltage up to 250Vac

Meets 60601-1 3rd Edition requirements for 2x MOPP at working voltage up to 42.4Vac

High retention connectors

USB bus powered

High speed host port

1Full speed device port

Energy transfer with isolation

300mA minimum output current (with host port capable of 500mA)

Up to 1.1A output current from high-power host port

Tested for compatibility with USB 3.0

Overload and short circuit protection

No software required – appears in the system as a 1-port hub

1Low speed only devices such as keyboards and mice must be connected through an intervening USB

hub.

Before You Get Started

Advisory Conventions

Warning

The highest level of importance used to stress a condition where damage could result to the

product, or the user could suffer serious injury.

Important

The middle level of importance used to highlight information that might not seem obvious or a

situation that could cause the product to fail.

Note

The lowest level of importance used to provide background information, additional tips, or other

non-critical facts that will not affect the use of the product.

Important Safety Instructions

SAVE THIS MANUAL— It contains important safety and operating instructions for the installing and using

the SeaISO USB Isolator.

Prior to beginning the installation, carefully read, understand, and follow all related safety

guidelines and documentation. This manual includes warnings, recommendations, and safety

precautions that must be observed.

•Carefully follow all the installation instructions later in this manual.

•There are no user-serviceable parts in the SeaISO USB Isolator. Do not disassemble.

•Contact the manufacturer if service or repair is required.

•Do not operate the system if it has visible damage. Contact the manufacturer for a replacement.

What’s Included

ISO-1

The SeaISO ISO-1 USB Isolator is shipped with the following items. If any of these items are missing

or damaged, please contact Sealevel for replacement.

• SeaISO USB Isolator (model # ISO-1)

• USB cable extension (CA-536)

• USB A-B cable 1m (CA-539)

Installation Instructions (ISO-1)

• Connect B-type USB connector on the isolator to the host computer via the included A-B

type 1m long USB cable CA-539

• Connect CA-536 cable to the A-type female USB connector on the isolator

• Connect your desired USB device to the A-type female end of the CA-536 cable

• Host computer should detect a new device and start enumeration

• After enumeration completes (and appropriate device drivers are loaded, if required) your

USB device is ready to use

ISO-1R

The SeaISO ISO-1R Ruggedized Isolator is shipped as an overmolded cable with the isolation

electronics contained in a “bump” in the cable.

Installation Instructions (ISO-1R)

• Connect A-type male USB connector of the isolator to the host computer.

• Connect your desired USB device to the A-type female connector of the isolator

• Host computer should detect a new device and start enumeration

• After enumeration completes (and appropriate device drivers are loaded, if required) your

USB device is ready to use

Specifications

Physical Dimensions

Length 4.0”

Width 2.0”

Height 1.2”

For CAD drawing with dimensions, see Appendix A

Power Consumption

Input 5VDC 5VDC

Output (host USB port) Current limited by host port

capability (up to 1.1A)

Environmental Specifications

Specification Operating Storage

Temperature Range 0º to 50º C (32º to 122º F) -20º to 70º C (-4º to 158º F)

Humidity Range 10 to 90% R.H. Non-Condensing 10 to 90% R.H. Non-Condensing

Manufacturing

All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested.

These printed circuit boards are solder mask over bare copper or solder mask over tin nickel.

Appendix A – Drawings2

ISO-1

CA-536

1All dimensions in millimeters

CA-539

ISO-1R

Appendix B – How To Get Assistance

When calling for technical assistance, please have your user manual and current adapter settings. If

possible, please have the adapter installed in a computer ready to run diagnostics.

Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common

questions. This section can be found at http://www.sealevel.com/faq.asp.

Sealevel Systems maintains a Home page on the Internet. Our home page address is www.sealevel.com.

The latest software updates, and newest manuals are available via our FTP site that can be accessed from

our home page.

Technical support is available Monday to Friday from 8:00 A.M. to 5:00 P.M. Eastern time. Technical

support can be reached at (864) 843-4343.

RETURN AUTHORIZATION MUST BE OBTAINED FROM SEALEVEL SYSTEMS BEFORE RETURNED

MERCHANDISE WILL BE ACCEPTED. AUTHORIZATION CAN BE OBTAINED BY CALLING SEALEVEL
