Sea-doo 2011 RXX Manual

RXX 219 000 137

Guide

du conducteur

Supplément au

Cette motomarine est une embarcation de

haute performance pour un usage de

compétition seulement par des conducteurs

expérimentés avec des compétences avan-

cées. Elle est vendue sans aucune garantie.

AVERTISSEMENT

À utiliser conjointement

avec le

Guide du conducteur

Sea-Doo 2001

(N/P 219 000 116)

RXX 219 000 137

Supplement

Operator’s Guide

™®

Trademarks of Bombardier Inc. and its subsidiaries.

Printed in Canada.

This watercraft is a high performance craft for competi-

tive use only. It is intended for experienced operators

with advanced skills. It is sold without any warranty

coverage.

WARNING

This supplement must be used in

conjunction with

2001 Sea-Doo

Operator’s Guide

(P/N 219 000 136)

www.SeaDooManuals.net

SAFETY WARNING

Disregarding any of the safety precautions and instructions contained in

this Operator’s Guide, the Safety Handbook, the Safety Videocassette

and on the on-product warning labels could cause injury, including the

possibility of death. The operator has the responsibility to inform

passenger(s) of safety precautions.

This Operator’s Guide, the Safety Handbook and Safety Videocassette

should remain with the craft at the time of resale.

The following trademarks are the property of Bombardier Inc. or its

subsidiaries:

SEA-DOO®

BOMBARDIER-ROTAX®

ROTAX®

BOMBARDIER Formula XP-S DI Synthetic Injection Oil

Printed in Canada (smo2001-004a.fm SH)

™®Trademarks of Bombardier Inc. or its subsidiaries.

smo2001-004a.book Page 0 Wednesday, December 20, 2000 9:54 AM

www.SeaDooManuals.net

NOTE

Dear 2001 RXX watercraft owner, information on the 2001 Operator’s Guide

(P/N 219 000 136) included herewith also applies to your RXX model except

for the following.

smo2001-004a.fm Page 1 Thursday, December 21, 2000 8:13 AM

www.SeaDooManuals.net

go to 219 000 136

TABLE OF CONTENTS

BOMBARDIER LIMITED WARRANTY: SEA-DOO®WATERCRAFT .. 3

LOCATION OF THE IMPORTANT LABELS SPECIFIC TO RXX...... 3

INSTRUMENTS SPECIFIC TO THE RXX MODEL ......................... 4

LOCATION CONTROLS, COMPONENTS AND INSTRUMENTS

SPECIFIC TO THE RXX MODEL .................................................. 5

FUNCTIONS OF CONTROLS, COMPONENTS AND

INSTRUMENTS SPECIFIC TO RXX MODEL................................. 6

1) Safety Lanyard (engine cut-off cord) ................................................. 6

5) Hydraulic Variable Trim System Lever (VTS) ..................................... 6

11) Tachometer....................................................................................... 6

FUEL AND LUBRICATION ........................................................... 6

Recommended Fuel ................................................................................ 6

Recommended Oil................................................................................... 6

PRE-OPERATION CHECKS SPECIFIC TO RXX MODEL................ 7

Hydraulic VTS (Variable Trim System)....................................................... 7

SPECIAL PROCEDURES SPECIFIC TO RXX MODEL ................... 7

Jet Pump Water Intake and Impeller Cleaning ........................................ 7

Capsized Watercraft ................................................................................ 7

MAINTENANCE SPECIFIC TO RXX MODEL ................................ 8

Periodic Inspection Chart......................................................................... 8

SPECIFICATIONS........................................................................ 10

AFTER-MARKET PARTS SUPPLIERS .......................................... 12

smo2001-004a.book Page 2 Wednesday, December 20, 2000 9:54 AM

www.SeaDooManuals.net

go to 219 000 136

BOMBARDIER LIMITED WARRANTY: SEA-DOO®

WATERCRAFT

LOCATION OF THE IMPORTANT LABELS

SPECIFIC TO RXX

RXX Model

TYPICAL

WARNING

This watercraft is a high performance craft for competitive use only. It is

intended for experienced operators with advanced skills. It is sold without

any warranty coverage.

F12L0EM 7

smo2001-004a.book Page 3 Wednesday, December 20, 2000 9:54 AM

www.SeaDooManuals.net

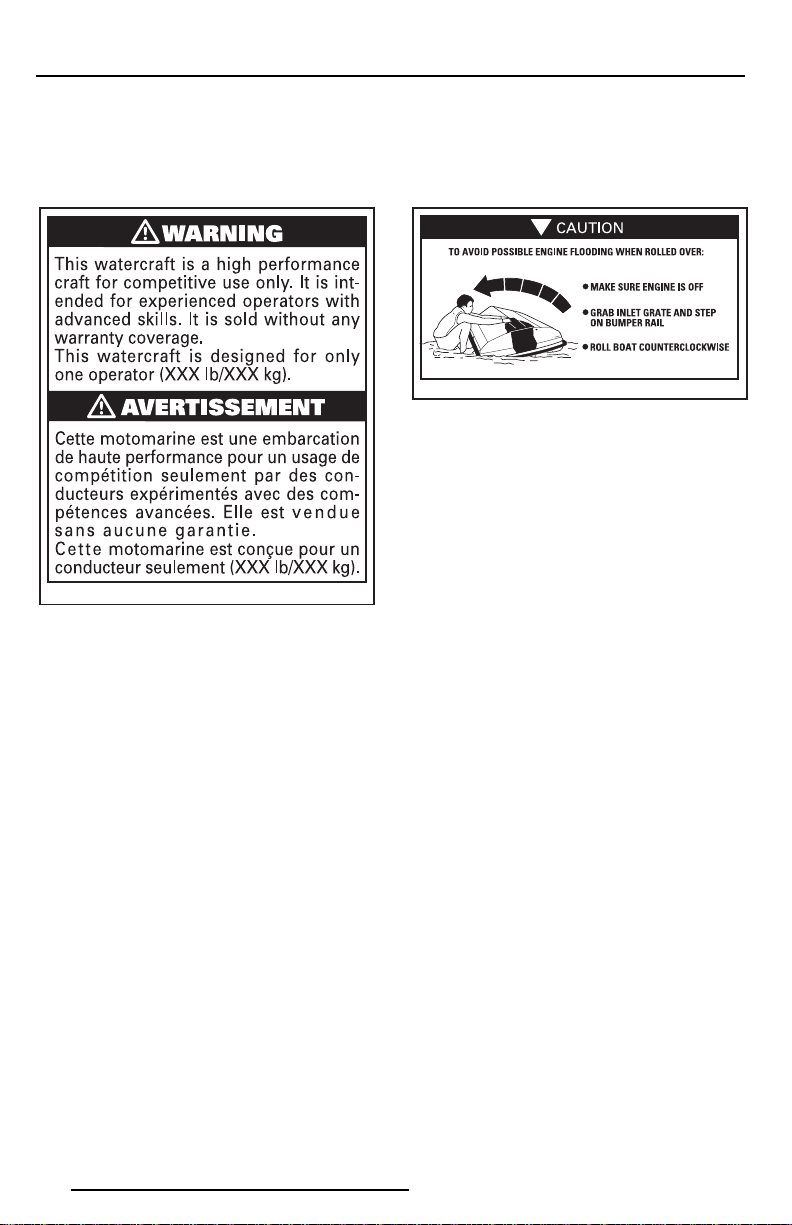

INSTRUMENTS SPECIFIC TO THE RXX MODEL

NOTE: These labels replace the ones found in the 2001 Operator’s Guide.

Label 1 Label 7

F16L0QY

F06L0DZ

smo2001-004a.book Page 4 Wednesday, December 20, 2000 9:54 AM

www.SeaDooManuals.net

LOCATION OF CONTROLS, COMPONENTS AND

INSTRUMENTS SPECIFIC TO THE RXX MODEL

NOTE: This section is in addition to the other applicable information which is

already specified in the 2001 Operator’s Guide.

RXX Model

1. Safety Lanyard

5. Hydraulic Variable Trim System Lever (VTS)

11. Tachometer

NOTE: Some components shown in the 2001 Sea-Doo Operator’s Guide do not

apply to this watercraft.

F16L0OL

smo2001-004a.book Page 5 Wednesday, December 20, 2000 9:54 AM

www.SeaDooManuals.net

FUNCTIONS OF CONTROLS, COMPONENTS

AND INSTRUMENTS SPECIFIC TO RXX MODEL

NOTE: This section is in addition to the

other applicable information which is

already specified in the 2001 Opera-

tor’s Guide.

1) Safety Lanyard

(engine cut-off cord)

It is the same operation as explained

on the 2001 Operator’s Guide. Only

the location differs. Refer to LOCA-

TION CONTROLS, COMPONENTS

AND INSTRUMENTS SPECIFIC TO

THE RXX MODEL section.

5) Hydraulic Variable Trim

System Lever (VTS)

Located on LH side of handlebar, this

lever is used to change jet pump noz-

zle position. Squeeze lever to lower

nozzle and thus improving watercraft

acceleration. When lever is released,

the nozzle automatically returns to its

center position.

11) Tachometer

It is the same operation as explained

on the 2001 Operator’s Guide. Only

the location differs. Refer to LOCA-

TION CONTROLS, COMPONENTS

AND INSTRUMENTS SPECIFIC TO

THE RXX MODEL.

FUEL AND LUBRICATION

NOTE: This section is in addition to the

other applicable information which is

already specified in the 2001 Opera-

tor’s Guide.

Recommended Fuel

Use super unleaded regular gasoline

with 91 octane minimum (Ron +

Mon)/2 specification.

CAUTION: Never experiment with

other fuels or fuel ratios. Never use

fuel containing more than 10% alco-

hol, (ethanol or methanol). The use

of non-recommended fuel can result

in watercraft performance deterio-

ration and damage to critical parts in

the fuel system and engine compo-

nents.

Recommended Oil

Use only two-stroke engine injection

oil sold by authorized Sea-Doo dealers.

CAUTION: Never use four-stroke pe-

troleum or synthetic motor oil and

never mix these with outboard mo-

tor oil. Do not use NMMA TC-W, TC-

W2 or TC-W3 outboard motor oils or

other ashless type two-stroke oil.

Avoid mixing different brands of API

TC oil as resulting chemical reac-

tions may cause severe engine dam-

age.

MODELS OIL TYPE

RXX

BOMBARDIER

Formula XP-S DI

synthetic injection oil

(or equivalent)

smo2001-004a.book Page 6 Wednesday, December 20, 2000 9:54 AM

www.SeaDooManuals.net

PRE-OPERATION CHECKS SPECIFIC TO RXX

MODEL

NOTE: This section is in addition to the

other applicable information which is

already specified in the 2001 Sea-Doo

Operator’s Guide.

Hydraulic VTS

(Variable Trim System)

Squeeze VTS lever to check nozzle

movement. When releasing lever, noz-

zle should automatically return to its

center position.

SPECIAL PROCEDURES SPECIFIC TO RXX

MODEL

NOTE: This section is in addition to the

other applicable information which is

already specified in the 2001 Opera-

tor’s Guide.

Jet Pump Water Intake and

Impeller Cleaning

On-Beach Water Cleaning

Rotate the watercraft clockwise (seen

from rear) to its right side for cleaning.

Capsized Watercraft

Rotate the watercraft counterclock-

wise (seen from rear).

F06L11Y

Max. 90°

F06L0DZ

smo2001-004a.book Page 7 Wednesday, December 20, 2000 9:54 AM

www.SeaDooManuals.net

MAINTENANCE SPECIFIC TO RXX MODEL

NOTE: This maintenance chart applicable to the RXX model replaces the one

included in the 2001 Operator’s Guide.

Periodic Inspection Chart

DESCRIPTION

FREQUENCY

EVERY RACE

EVERY 10

HOURS OR

MONTH

EVERY 25

HOURS OR

3 MONTHS

EVERY 100

HOURS

OR 1 YEAR

TO BE

PERFORMED

GENERAL

Lubrication/corrosion protection ➀✔O

ENGINE

Support and rubber mount condition/tightness ✔✔D

Exhaust system fasteners ✔✔D

RAVE valve cleaning ✔✔D

Counterbalance shaft oil level ✔✔D

Spark plug inspection, cleaning and gap adjustment ✔D

Spark plug replacement ✔D

TDC setting/Ignition timing ✔D

COOLING

SYSTEM

Flushing ✔✔➂ O

Hose condition and fasteners ✔✔D

Inspect/clean engine drain tubes ✔O

FUEL

SYSTEM

Carburetor adjustment including choke/throttle cable

adjustments ✔✔D

Throttle/choke cables, inspection/lubrication ✔➀ ✔ O

Fuel filter and lines inspection ✔✔ D

Fuel filter replacement ✔D

Fuel vent line pressure relief valve inspection ✔D

Fuel lines, check-valve and fuel system

pressurization ✔D

Visual inspection: carburetors, fuel lines ✔✔D

Flame arrester condition/tightness ✔✔D

Fuel tank straps visual inspection ✔✔O

LUBRICATION

SYSTEM

Oil injection pump adjustment ✔✔D

Oil filter and lines inspection ✔✔ D

Oil filter replacement ✔D

Oil reservoir straps ✔O

smo2001-004a.book Page 8 Wednesday, December 20, 2000 9:54 AM
